Add synchronized captions to video scenes with CE.SDK’s caption tracks, caption blocks, subtitle import, styling properties, and burned-in video export.

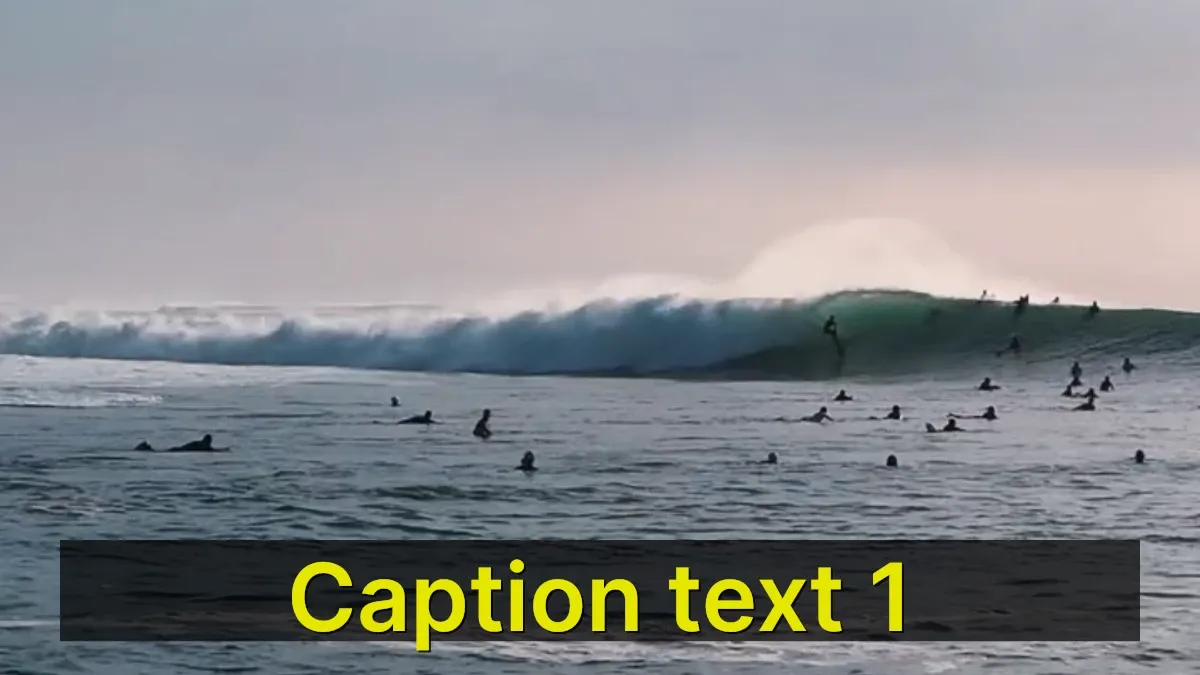

A video page with a yellow caption rendered over surf footage at the bottom of the frame.

10 mins

estimated time

GitHub

Captions in CE.SDK use the same block hierarchy as other video content: a page contains a video track and a caption track, and the caption track contains caption blocks. Each caption block stores text, a time offset, a duration, and styling properties.

This guide focuses on the Engine API. The example below builds a video page, overlays manually authored and SRT-imported captions, styles them, adds a fade-in animation, and exports the page as an MP4 with the captions burned into every frame.

Creating a Video Scene#

Create a video scene, append a page, set the page dimensions, and enable the video captions feature before adding caption blocks.

let scene = try engine.scene.createVideo()
let page = try engine.block.create(.page)
try engine.block.appendChild(to: scene, child: page)
try engine.block.setWidth(page, value: 1280)
try engine.block.setHeight(page, value: 720)
try engine.editor.setSettingBool("features/videoCaptionsEnabled", value: true)

engine.scene.createVideo() returns the scene’s DesignBlockID. The features/videoCaptionsEnabled setting controls whether captions render and respond to caption-specific APIs — set it once after creating the scene.

Setting Page Duration#

The page duration defines the time range where captions can appear. This guide uses a 20-second page.

try engine.block.setDuration(page, duration: 20)

Adding a Video Clip#

Create a graphic block with a video fill, give it the page duration, place it on a regular video track, and size the track to fill the page. This gives the caption track real video frames to overlay during preview and export.

let video = try engine.block.create(.graphic)
try engine.block.setShape(video, shape: engine.block.createShape(.rect))
let videoFill = try engine.block.createFill(.video)
try engine.block.setURL(
  videoFill,
  property: "fill/video/fileURI",
  value: baseURL.appendingPathComponent(
    "ly.img.video/videos/pexels-drone-footage-of-a-surfer-barrelling-a-wave-12715991.mp4",
  ),
)
try engine.block.setFill(video, fill: videoFill)
try engine.block.setDuration(video, duration: 20)

let videoTrack = try engine.block.create(.track)
try engine.block.appendChild(to: page, child: videoTrack)
try engine.block.appendChild(to: videoTrack, child: video)
try engine.block.fillParent(videoTrack)

createFill(.video) returns the video fill block, and setURL(_:property:value:) with the fill/video/fileURI property points it at the source file. The track parent acts as the timeline container; fillParent(_:) makes the track match the page size so the video covers the full frame.

Creating a Caption Track#

A caption track groups caption blocks under the page. Create it before adding manual or imported captions so every caption has the correct parent.

let captionTrack = try engine.block.create(.captionTrack)
try engine.block.appendChild(to: page, child: captionTrack)

Caption tracks can either keep each caption’s explicit time offset or manage offsets automatically from child durations. Keep track/automaticallyManageBlockOffsets set to false when you import SRT or VTT captions, or whenever you want to set custom offsets yourself; set it to true when captions should play back sequentially without gaps.

let manageOffsetsAutomatically = false
try engine.block.setBool(
  captionTrack,
  property: "track/automaticallyManageBlockOffsets",
  value: manageOffsetsAutomatically,
)

Adding Captions#

Creating Caption Blocks#

Create caption blocks with DesignBlockType.caption, write their text with the caption/text property, and append them to the caption track.

let caption1 = try engine.block.create(.caption)
try engine.block.setString(caption1, property: "caption/text", value: "Caption text 1")
let caption2 = try engine.block.create(.caption)
try engine.block.setString(caption2, property: "caption/text", value: "Caption text 2")
try engine.block.appendChild(to: captionTrack, child: caption1)
try engine.block.appendChild(to: captionTrack, child: caption2)

Importing Captions from Subtitle Files#

Use createCaptionsFromURI(_:) to parse SRT or VTT files. CE.SDK reads each cue’s text and timing, returns the created caption block IDs, and you append them to the caption track.

// Captions can also be loaded from SRT or VTT files. The text and timing of
// each caption are read from the file. Point the URL at your own subtitle
// file; here we write a short SRT to a temporary file for demonstration.
let srtContents = """
1
00:00:08,000 --> 00:00:11,000
Imported from an SRT file

2
00:00:11,000 --> 00:00:14,000
with its own text and timing.
"""
let srtURL = FileManager.default.temporaryDirectory.appendingPathComponent("captions.srt")
try srtContents.write(to: srtURL, atomically: true, encoding: .utf8)

let captions = try await engine.block.createCaptionsFromURI(srtURL)
for caption in captions {
  try engine.block.appendChild(to: captionTrack, child: caption)
}

Imported captions are normal caption blocks, so you can style them with the same APIs as manually authored ones. Supported file formats are SRT and VTT.

Modifying Captions#

Timing#

With manual offsets, set the duration and time offset on each caption block. Time values are in seconds, so the second caption below starts where the first one ends.

try engine.block.setDuration(caption1, duration: 3)
try engine.block.setDuration(caption2, duration: 5)

try engine.block.setTimeOffset(caption1, offset: 0)
try engine.block.setTimeOffset(caption2, offset: 3)

Position and Size#

Caption position and size are synchronized between caption blocks that share the same caption track, so set the shared layout on one caption per track. Use percentage modes so the caption box stays proportional when the output resolution changes.

// Position and size sync only with caption blocks under the same caption track,
// so configure them once on a single caption.
try engine.block.setPositionX(caption1, value: 0.05)
try engine.block.setPositionXMode(caption1, mode: .percent)
try engine.block.setPositionY(caption1, value: 0.8)
try engine.block.setPositionYMode(caption1, mode: .percent)
try engine.block.setHeight(caption1, value: 0.15)
try engine.block.setHeightMode(caption1, mode: .percent)
try engine.block.setWidth(caption1, value: 0.9)
try engine.block.setWidthMode(caption1, mode: .percent)

Styling#

Caption styling properties also synchronize between caption blocks under the same caption track. The sample changes text color, drop shadow, and background with dedicated styling setters, then uses property-keyed setters for automatic font sizing.

// Style properties also sync only with caption blocks under the same caption
// track. Set text color, drop shadow, and background with dedicated styling
// setters, then use property-keyed setters for automatic font sizing.
try engine.block.setTextColor(caption1, color: Color.rgba(r: 0.9, g: 0.9, b: 0.0, a: 1.0))
try engine.block.setDropShadowEnabled(caption1, enabled: true)
try engine.block.setDropShadowColor(caption1, color: Color.rgba(r: 0.0, g: 0.0, b: 0.0, a: 0.8))
try engine.block.setBackgroundColorEnabled(caption1, enabled: true)
try engine.block.setBackgroundColor(caption1, r: 0.0, g: 0.0, b: 0.0, a: 0.7)
try engine.block.setBool(caption1, property: "caption/automaticFontSizeEnabled", value: true)
try engine.block.setFloat(caption1, property: "caption/minAutomaticFontSize", value: 24)
try engine.block.setFloat(caption1, property: "caption/maxAutomaticFontSize", value: 72)

If your app registers a caption-preset asset source, you can query it with engine.asset.findAssets(sourceID:query:) and apply a returned asset with engine.asset.applyToBlock(sourceID:assetResult:block:). The example uses direct block properties so the guide does not depend on a particular preset source being registered.

Caption Animations#

Caption blocks support the same animation APIs as other animatable blocks. Create an animation, set its duration, and assign it as an in, loop, or out animation. Keep entry animations short — readability and timing matter more than motion for captions.

let fadeInAnimation = try engine.block.createAnimation(.fade)
try engine.block.setDuration(fadeInAnimation, duration: 0.3)
try engine.block.setInAnimation(caption1, animation: fadeInAnimation)

Replace setInAnimation(_:animation:) with setLoopAnimation(_:animation:) for a continuous effect, or setOutAnimation(_:animation:) for an exit transition.

Exporting Videos with Captions#

Exporting the page as MP4 burns the captions into every rendered frame. The captions become part of the video and render on any platform without further configuration.

// Exporting the page as MP4 burns the caption text into every rendered frame.
let videoStream = try await engine.block.exportVideo(page, mimeType: .mp4)
for try await event in videoStream {
  switch event {
  case let .progress(renderedFrames, encodedFrames, totalFrames):
    print("Rendered", renderedFrames, "frames and encoded", encodedFrames, "frames out of", totalFrames)
  case let .finished(video: blob):
    try blob.write(to: exportsDirectory.appendingPathComponent("captions.mp4"))
  }
}

exportVideo(_:mimeType:) returns an AsyncThrowingStream<VideoExport, Error> that emits .progress(...) events while encoding and a final .finished(video:) event with the encoded MP4 bytes as a Data value. Changes made to the scene after export starts do not appear in the exported file — the engine freezes the scene state for the export run.

Troubleshooting#

Issue	Cause	Solution
Captions are not visible	The caption is not under a caption track on the page	Check the hierarchy: page → caption track → caption block
Caption appears at the wrong time	The time offset or duration is wrong, or automatic offset management is enabled when custom offsets are expected	Read back `getTimeOffset(_:)` and `getDuration(_:)`, then check `track/automaticallyManageBlockOffsets` on the caption track
Subtitle import fails	The URI does not resolve to a valid SRT or VTT file	Confirm the URI is reachable and the file is well-formed
Styling is not applied	The property key is not a caption or text property	Use caption properties such as `caption/text`, `caption/automaticFontSizeEnabled`, and text styling setters

API Reference#

Method	Purpose
`engine.scene.createVideo()`	Create a video scene
`engine.editor.setSettingBool("features/videoCaptionsEnabled", value: _)`	Enable caption editing features
`engine.block.create(.page)`	Create the page that holds the video and caption tracks
`engine.block.create(.graphic)`	Create a block for the video clip
`engine.block.createShape(.rect)`	Create a rectangular shape for the video block
`engine.block.setShape(_:shape:)`	Assign the shape to the video block
`engine.block.createFill(.video)`	Create a video fill
`engine.block.setURL(_:property:value:)` (`fill/video/fileURI`)	Set the video file URL
`engine.block.setFill(_:fill:)`	Assign the video fill to the video block
`engine.block.create(.track)`	Create a video track
`engine.block.create(.captionTrack)`	Create a caption track
`engine.block.setBool(_:property:value:)` (`track/automaticallyManageBlockOffsets`)	Enable or disable automatic caption offset management
`engine.block.create(.caption)`	Create a caption block
`engine.block.createCaptionsFromURI(_:)`	Import SRT or VTT captions
`engine.block.appendChild(to:child:)`	Add tracks and blocks to the hierarchy
`engine.block.fillParent(_:)`	Size a track to the page
`engine.block.setString(_:property:value:)` (`caption/text`)	Set caption text
`engine.block.setTimeOffset(_:offset:)`	Set when a caption appears
`engine.block.setDuration(_:duration:)`	Set page, video, caption, or animation duration
`engine.block.getTimeOffset(_:)`	Read when a caption appears
`engine.block.getDuration(_:)`	Read a page, video, caption, or animation duration
`engine.block.setPositionX(_:value:)` / `setPositionXMode(_:mode:)`	Set the caption box x position and mode
`engine.block.setPositionY(_:value:)` / `setPositionYMode(_:mode:)`	Set the caption box y position and mode
`engine.block.setWidth(_:value:maintainCrop:)` / `setWidthMode(_:mode:)`	Set the caption box width and mode
`engine.block.setHeight(_:value:maintainCrop:)` / `setHeightMode(_:mode:)`	Set the caption box height and mode
`engine.block.setTextColor(_:color:in:)`	Set caption text color
`engine.block.setDropShadowEnabled(_:enabled:)`	Enable the caption drop shadow
`engine.block.setDropShadowColor(_:color:)`	Set caption drop shadow color
`engine.block.setBackgroundColorEnabled(_:enabled:)`	Enable the caption background
`engine.block.setBackgroundColor(_:r:g:b:a:)`	Set caption background color
`engine.block.setBool(_:property:value:)` (`caption/automaticFontSizeEnabled`)	Enable automatic caption font sizing
`engine.block.setFloat(_:property:value:)` (`caption/minAutomaticFontSize`, `caption/maxAutomaticFontSize`)	Set the automatic font size bounds
`engine.asset.findAssets(sourceID:query:)`	Query registered caption preset assets
`engine.asset.applyToBlock(sourceID:assetResult:block:)`	Apply a preset asset to an existing caption block
`engine.block.createAnimation(_:)`	Create an animation block
`engine.block.setInAnimation(_:animation:)`	Assign an entry animation
`engine.block.setLoopAnimation(_:animation:)`	Assign a looping animation
`engine.block.setOutAnimation(_:animation:)`	Assign an exit animation
`engine.block.exportVideo(_:mimeType:)`	Export the page with burned-in captions

Next Steps#

Join and Arrange Clips — Combine multiple video clips into sequences and organize them on the timeline using tracks and time offsets.
Video Timeline Overview — Use the timeline editor to arrange and edit video clips, audio, and animations frame by frame.
