Customize crop presets to provide users with aspect ratio options tailored to your application’s needs.

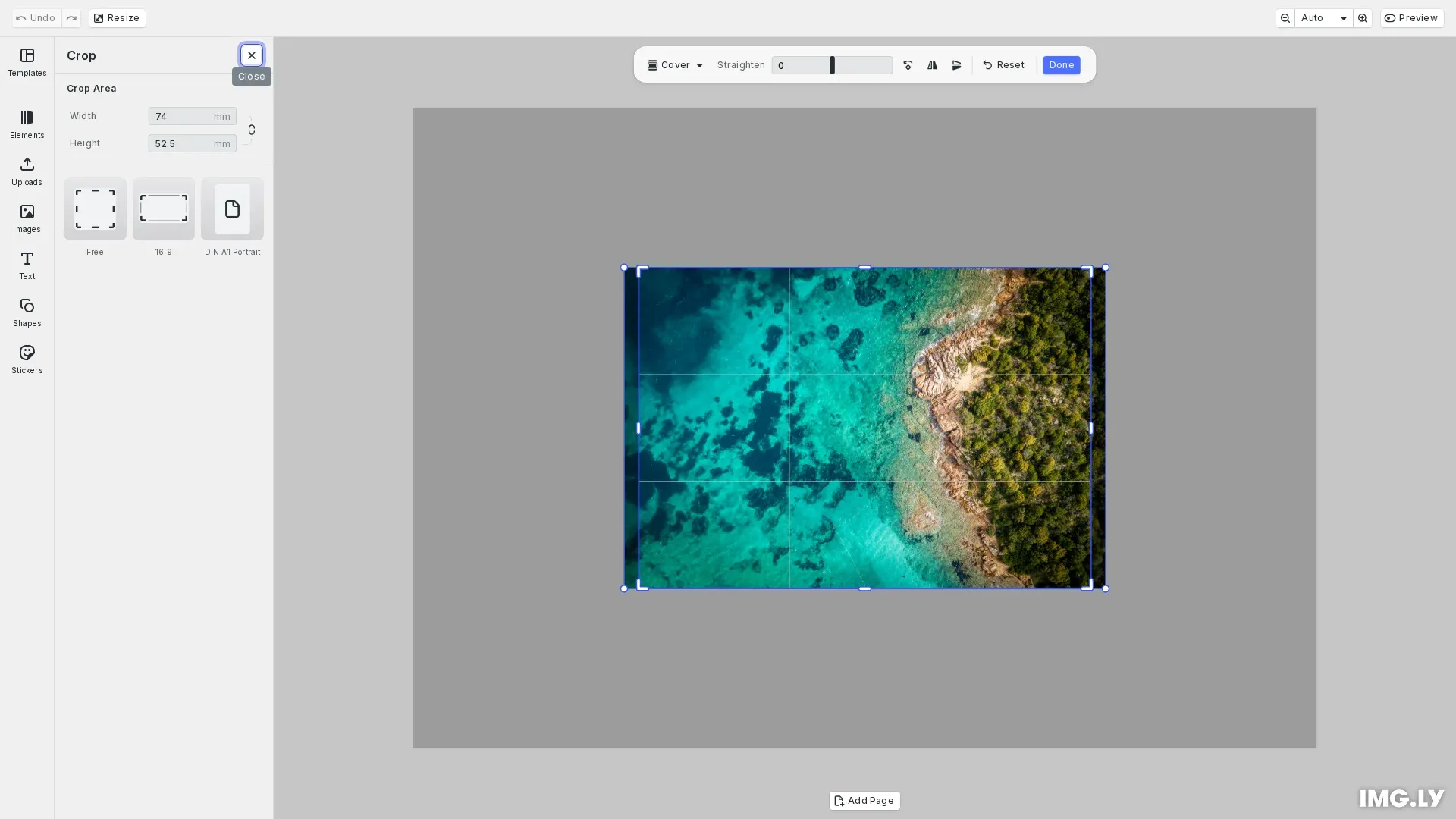

Crop presets example showing custom aspect ratio options in the crop interface

5 mins

estimated time

Crop presets define the aspect ratios and dimensions users can select when cropping images or pages. CE.SDK includes a default set of common ratios (1:1, 16:9, 4:3, etc.), and you can replace or extend these with custom presets through asset sources.

import CreativeEditorSDK from '@cesdk/cesdk-js';

const config = {
  // license: import.meta.env.VITE_CESDK_LICENSE,
  userId: 'guides-user',
  // baseURL: `https://cdn.img.ly/packages/imgly/cesdk-js/${CreativeEditorSDK.version}/assets`,
  // Use local assets when developing with local packages
  ...(import.meta.env.CESDK_USE_LOCAL && {
    baseURL: '/assets/'
  }),
  ui: {
    stylesheets: {
      /* ... */
    },
    elements: {
      /* ... */
    }
  }
};

CreativeEditorSDK.create('#cesdk_container', config).then(async (instance) => {
  // Expose for hero image capture
  window.cesdk = instance;
  // Do something with the instance of CreativeEditor SDK
  // Set scale using the new API
  instance.ui.setScale('normal');
  // Populate the asset library with default / demo asset sources.
  instance.addDefaultAssetSources();
  instance.addDemoAssetSources({
    sceneMode: 'Design',
    withUploadAssetSources: true
  });

  // Add a custom crop preset asset source.
  instance.engine.asset.addLocalSource('my-custom-crop-presets');

  instance.engine.asset.addAssetToSource(
    'my-custom-crop-presets',
    {
      id: 'aspect-ratio-free',
      label: {
        en: 'Free'
      },
      meta: {
        width: 80,
        height: 120,
        thumbUri: `${window.location.protocol}//${window.location.host}/ratio-free.png`
      },
      payload: {
        transformPreset: {
          type: 'FreeAspectRatio'
        }
      }
    }
  );

  instance.engine.asset.addAssetToSource(
    'my-custom-crop-presets',
    {
      id: 'aspect-ratio-16-9',
      label: {
        en: '16:9'
      },
      meta: {
        width: 80,
        height: 120,
        thumbUri: `${window.location.protocol}//${window.location.host}/ratio-16-9.png`
      },
      payload: {
        transformPreset: {
          type: 'FixedAspectRatio',
          width: 16,
          height: 9
        }
      }
    }
  );

  instance.engine.asset.addAssetToSource(
    'my-custom-crop-presets',
    {
      id: 'din-a1-portrait',
      label: {
        en: 'DIN A1 Portrait'
      },
      meta: {
        width: 80,
        height: 120,
        thumbUri: `${window.location.protocol}//${window.location.host}/din-a1-portrait.png`
      },
      payload: {
        transformPreset: {
          type: 'FixedSize',
          width: 594,
          height: 841,
          designUnit: 'Millimeter'
        }
      }
    }
  );

  // Update crop presets library entry
  instance.ui.updateAssetLibraryEntry('ly.img.cropPresets', {
    sourceIds: [
      // 'ly.img.crop.presets',
      'my-custom-crop-presets'
    ]
  });

  await instance.createDesignScene();

  // Add an image and enable crop mode to show the presets
  const engine = instance.engine;
  const page = engine.scene.getCurrentPage();

  // Get page dimensions for relative sizing
  const pageWidth = engine.block.getWidth(page);
  const pageHeight = engine.block.getHeight(page);

  // Create an image block at ~50% of page size
  const imageBlock = engine.block.create('graphic');
  engine.block.appendChild(page, imageBlock);

  const rectShape = engine.block.createShape('rect');
  engine.block.setShape(imageBlock, rectShape);

  const imageWidth = pageWidth * 0.5;
  const imageHeight = pageHeight * 0.5;
  engine.block.setWidth(imageBlock, imageWidth);
  engine.block.setHeight(imageBlock, imageHeight);

  // Center the image on the page
  engine.block.setPositionX(imageBlock, (pageWidth - imageWidth) / 2);
  engine.block.setPositionY(imageBlock, (pageHeight - imageHeight) / 2);

  const imageFill = engine.block.createFill('image');
  engine.block.setString(
    imageFill,
    'fill/image/imageFileURI',
    'https://img.ly/static/ubq_samples/sample_1.jpg'
  );
  engine.block.setFill(imageBlock, imageFill);

  // Select the image and enter crop mode
  engine.block.select(imageBlock);
  engine.editor.setEditMode('Crop');
});

This guide covers how to use the built-in crop UI, understand default presets, create custom crop preset sources, and configure which presets appear in the interface.

Using the Built-in Crop UI#

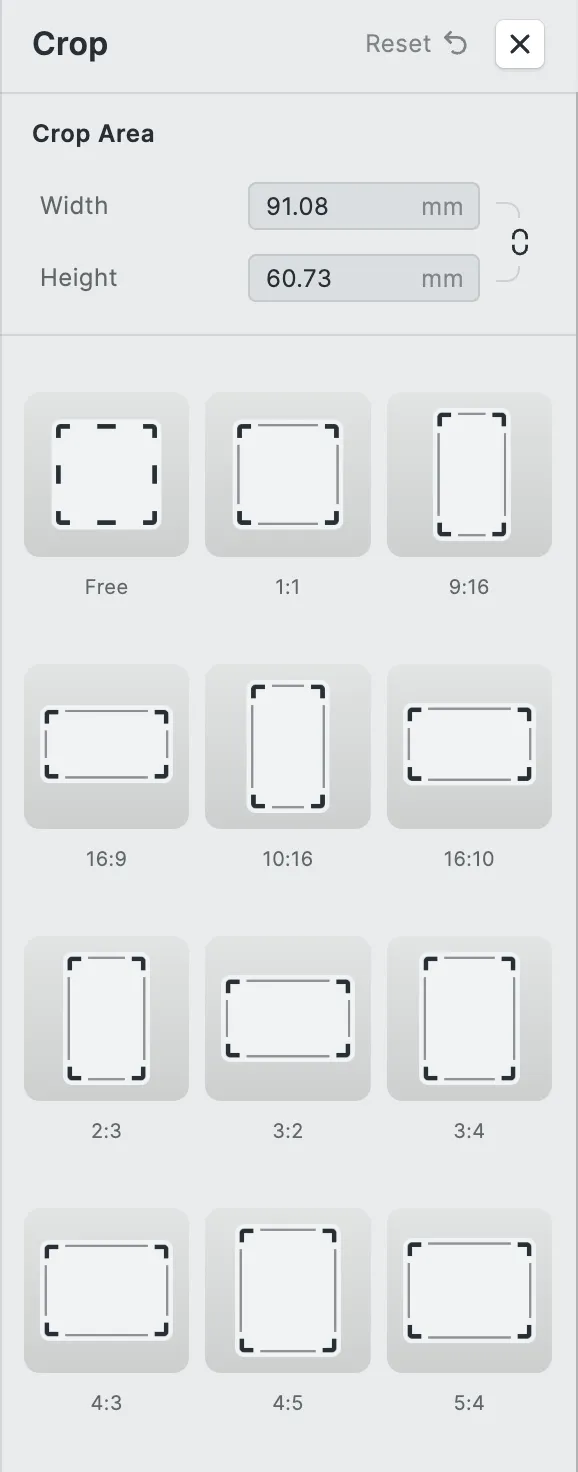

The crop interface displays preset options when users enter crop mode. Presets appear as selectable thumbnails with aspect ratio labels. Users click a preset to constrain the crop frame to that ratio, or select the free preset for unconstrained cropping.

To enable the default crop presets, we load them using addDefaultAssetSources():

await instance.addDefaultAssetSources();

This loads the ly.img.crop.presets asset source, which contains common ratios including free, 1:1, 9:16, 16:9, 4:3, and others.

Creating Custom Crop Preset Sources#

We can define custom crop presets by creating a local asset source and adding preset assets to it. Each preset requires a payload.transformPreset property that defines the crop behavior.

First, we create a local asset source to hold our custom presets:

instance.engine.asset.addLocalSource('my-custom-crop-presets');

Free Aspect Ratio#

A free aspect ratio preset enables unconstrained cropping, allowing users to drag the crop frame sides independently.

{
  id: 'aspect-ratio-free',
  label: {
    en: 'Free'
  },
  meta: {
    width: 80,
    height: 120,
    thumbUri: `${window.location.protocol}//${window.location.host}/ratio-free.png`
  },
  payload: {
    transformPreset: {
      type: 'FreeAspectRatio'
    }
  }
}

The type: 'FreeAspectRatio' setting removes aspect ratio constraints from the crop frame.

Fixed Aspect Ratio#

A fixed aspect ratio preset constrains the crop frame to a specific ratio. When applied, the crop frame maintains the width to height proportion.

{
  id: 'aspect-ratio-16-9',
  label: {
    en: '16:9'
  },
  meta: {
    width: 80,
    height: 120,
    thumbUri: `${window.location.protocol}//${window.location.host}/ratio-16-9.png`
  },
  payload: {
    transformPreset: {
      type: 'FixedAspectRatio',
      width: 16,
      height: 9
    }
  }
}

The width and height values define the ratio (16:9 in this example), not absolute dimensions.

Fixed Size#

A fixed size preset sets exact pixel dimensions for the crop area. This resizes the selected block to match the specified width and height.

{
  id: 'din-a1-portrait',
  label: {
    en: 'DIN A1 Portrait'
  },
  meta: {
    width: 80,
    height: 120,
    thumbUri: `${window.location.protocol}//${window.location.host}/din-a1-portrait.png`
  },
  payload: {
    transformPreset: {
      type: 'FixedSize',
      width: 594,
      height: 841,
      designUnit: 'Millimeter'
    }
  }
}

The designUnit property specifies the measurement unit. Valid options are 'Pixel', 'Millimeter', or 'Inch'.

Configuring the Crop Presets Library#

We control which presets appear in the crop interface by updating the ly.img.cropPresets asset library entry.

Replace Default Presets#

To show only custom presets, we set sourceIds to our custom source:

instance.ui.updateAssetLibraryEntry('ly.img.cropPresets', {
  sourceIds: ['my-custom-crop-presets']
});

Add Presets Alongside Defaults#

To add custom presets while keeping the defaults, we use a callback to append our source:

instance.ui.updateAssetLibraryEntry('ly.img.cropPresets', {
  sourceIds: ({ currentIds }) => [...currentIds, 'my-custom-crop-presets']
});

Localization#

Each preset requires a label object with at least an en key for the English label. You can add additional language keys for localization:

label: {
  en: '16:9',
  de: '16:9'
}

Troubleshooting#

Presets Not Appearing#

Verify the asset source exists by checking registered sources:

const sources = await instance.engine.asset.findAllSources();
console.log(sources); // Should include your custom source ID

Invalid Preset Type#

Ensure the type value is one of:

'FreeAspectRatio' - for unconstrained cropping
'FixedAspectRatio' - for ratio-locked cropping
'FixedSize' - for exact dimension cropping

Missing Labels#

Each preset must have a label object. Missing labels cause presets to display without text.

API Reference#

Method	Description
`engine.asset.addLocalSource(sourceId)`	Create a local asset source for custom presets
`engine.asset.addAssetToSource(sourceId, asset)`	Add a crop preset asset to the source
`engine.asset.findAllSources()`	List all registered asset sources
`cesdk.ui.updateAssetLibraryEntry(entryId, config)`	Configure which sources appear in a library entry
`addDefaultAssetSources()`	Load default asset sources including crop presets
