Apply distortion effects to warp, shift, and transform images and videos for dynamic artistic visuals using CE.SDK’s effect system.

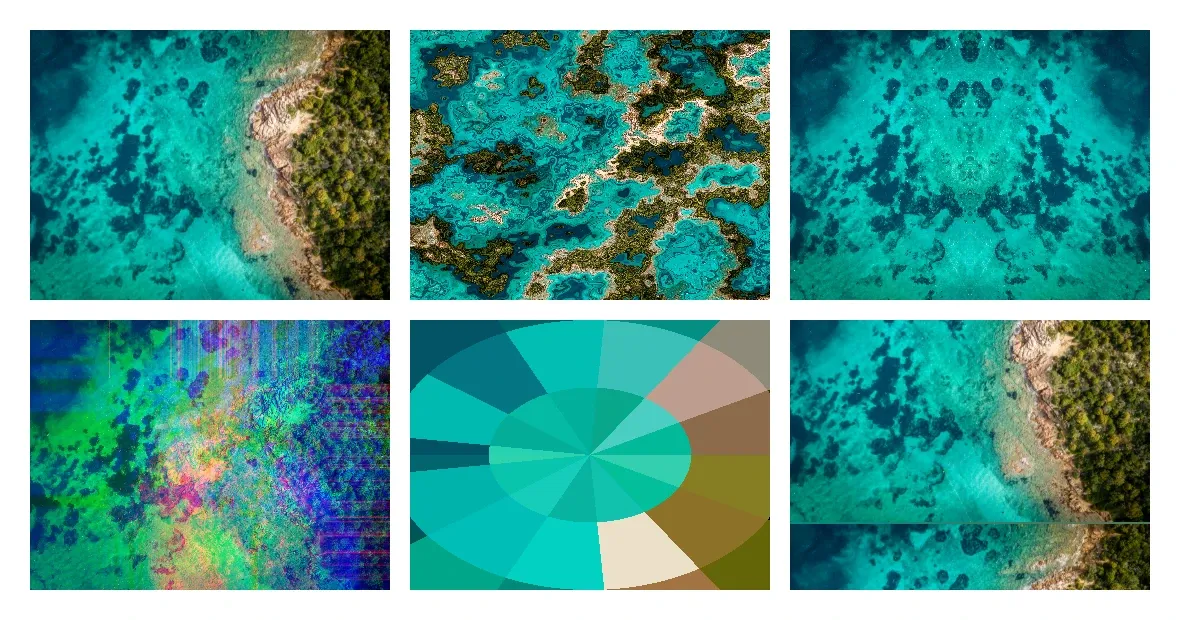

A grid showing the same photo unaltered alongside the liquid, mirror, shifter, radial pixel, and TV glitch distortion effects

8 mins

estimated time

GitHub

Distortion effects differ from color filters because they change the geometry and spatial arrangement of pixels rather than only changing color values. CE.SDK provides several distortion effect types: liquid warping, mirror reflections, color channel shifting, radial pixelation, and TV glitch.

This guide covers the built-in Android workflow and how to apply and configure each distortion effect programmatically, combine multiple effects on a single block, and manage the effect stack with the block API. To compare the effects side by side, the example places six copies of the same image in a grid and applies one effect to each cell.

Using the Built-in Distortion UI#

The Android Base Editor exposes distortion effects for supported image and video blocks:

Select a supported image or video block on the canvas.
Open Effect in the inspector bar and browse the available distortion effects.
Choose Liquid, Mirror, Shifter, Radial Pixel, or TV Glitch. Select the applied effect again to open its controls, then adjust the values.
Preview the result directly on the canvas as you change the controls.

Apply Liquid Effect#

The liquid effect creates organic, flowing distortions that warp the image as if viewed through water. Verify the block supports effects, create the effect with EffectType.Liquid, configure its properties with setFloat(), then attach it with appendEffect().

require(engine.block.supportsEffects(liquidBlock)) {
    "Image-backed graphic blocks can render distortion effects."
}
val liquid = engine.block.createEffect(type = EffectType.Liquid)
engine.block.setFloat(liquid, property = "effect/liquid/amount", value = 0.5F)
engine.block.setFloat(liquid, property = "effect/liquid/scale", value = 1.0F)
engine.block.appendEffect(block = liquidBlock, effectBlock = liquid)

The liquid effect properties:

effect/liquid/amount (0.0 to 1.0) - Intensity of the warping.
effect/liquid/scale (0.0 to 1.0) - Scale of the liquid pattern.
effect/liquid/time (0.0 to 1.0) - Fixed variation and randomness input for the liquid pattern. This property does not animate the effect automatically.

Apply Mirror Effect#

The mirror effect reflects the image along a configurable side, creating symmetrical compositions.

val mirror = engine.block.createEffect(type = EffectType.Mirror)
engine.block.setInt(mirror, property = "effect/mirror/side", value = 0)
engine.block.appendEffect(block = mirrorBlock, effectBlock = mirror)

The effect/mirror/side property is an integer: 0 (Left), 1 (Right), 2 (Top), or 3 (Bottom). Set it with setInt().

Apply Shifter Effect#

The shifter effect displaces color channels at an angle, creating chromatic aberration commonly seen in glitch art and retro visuals.

val shifter = engine.block.createEffect(type = EffectType.Shifter)
engine.block.setFloat(shifter, property = "effect/shifter/amount", value = 0.3F)
engine.block.setFloat(shifter, property = "effect/shifter/angle", value = 0.785F)
engine.block.appendEffect(block = shifterBlock, effectBlock = shifter)

The shifter effect properties:

effect/shifter/amount (0.0 to 1.0) - Displacement distance.
effect/shifter/angle - Direction of the shift in radians.

Apply Radial Pixel Effect#

The radial pixel effect pixelates the image in a circular pattern from the center, useful for focus effects or stylized treatments.

val radialPixel = engine.block.createEffect(type = EffectType.RadialPixel)
engine.block.setFloat(radialPixel, property = "effect/radial_pixel/radius", value = 0.5F)
engine.block.setFloat(radialPixel, property = "effect/radial_pixel/segments", value = 0.5F)
engine.block.appendEffect(block = radialPixelBlock, effectBlock = radialPixel)

The radial pixel effect properties:

effect/radial_pixel/radius - Radius of each row of pixels, relative to the image.
effect/radial_pixel/segments - Proportional size of a pixel in each row.

Apply TV Glitch Effect#

The TV glitch effect simulates analog television interference with horizontal distortion and rolling effects.

val tvGlitch = engine.block.createEffect(type = EffectType.TvGlitch)
engine.block.setFloat(tvGlitch, property = "effect/tv_glitch/distortion", value = 0.4F)
engine.block.setFloat(tvGlitch, property = "effect/tv_glitch/distortion2", value = 0.2F)
engine.block.setFloat(tvGlitch, property = "effect/tv_glitch/speed", value = 0.5F)
engine.block.setFloat(tvGlitch, property = "effect/tv_glitch/rollSpeed", value = 0.5F)
engine.block.appendEffect(block = tvGlitchBlock, effectBlock = tvGlitch)

The TV glitch effect properties:

effect/tv_glitch/distortion - Primary horizontal distortion intensity.
effect/tv_glitch/distortion2 - Secondary distortion layer.
effect/tv_glitch/speed - Fixed variance input for the glitch pattern. This property does not animate the effect automatically.
effect/tv_glitch/rollSpeed - Fixed vertical offset for the TV bands.

Combine Multiple Distortion Effects#

Stack multiple distortion effects on a single block. Effects render in the order they appear in the block’s effect list, from bottom to top, so the liquid warp is applied first and the shifter then displaces color channels on the already-warped result.

val extraShifter = engine.block.createEffect(type = EffectType.Shifter)
engine.block.setFloat(extraShifter, property = "effect/shifter/amount", value = 0.2F)
engine.block.appendEffect(block = liquidBlock, effectBlock = extraShifter)

Use appendEffect() to add an effect to the end of the list, or insertEffect() when an effect must occupy a specific stack index.

List Applied Effects#

Retrieve every effect attached to a block with getEffects(). It returns an ordered list of effect block IDs.

val combinedEffects = engine.block.getEffects(liquidBlock)

Use the list when you need to inspect effect order, find an effect before toggling it, or remove an effect by index.

Enable and Disable Effects#

Toggle an effect on and off without removing it using setEffectEnabled(), and query its state with isEffectEnabled(). A disabled effect stays attached and keeps its parameters, but the engine skips it during rendering.

engine.block.setEffectEnabled(effectBlock = extraShifter, enabled = false)
val disabledState = engine.block.isEffectEnabled(extraShifter)

This is useful for before/after comparisons or temporarily reducing rendering cost.

Remove Effects#

Remove an effect from a block by index with removeEffect(), then call destroy() on the detached effect block when you no longer need it.

engine.block.removeEffect(block = liquidBlock, index = 1)
engine.block.destroy(extraShifter)

Discover Effect Properties#

Use findAllProperties() to discover every property available on an effect. The distortion properties shown here are numeric, so use setFloat() and getFloat() or setInt() and getInt() according to each property type.

val liquidProperties = engine.block.findAllProperties(liquid)

Troubleshooting#

Effect Not Visible#

Confirm the block supports effects with supportsEffects() and that the effect is enabled with isEffectEnabled(). Effects apply to graphic blocks with image or video fills, not to scene blocks.

Unexpected Results#

Verify each parameter against its accepted range:

Effect	Accepted Values
Liquid	`amount`, `scale`, and `time`: `0.0`–`1.0`
Mirror	`side`: `0`–`3`
Shifter	`amount`: `0.0`–`1.0`; `angle`: `0.0`–`6.3`
Radial Pixel	`radius`: `0.05`–`1.0`; `segments`: `0.01`–`1.0`
TV Glitch	`distortion`: `0.0`–`10.0`; `distortion2`: `0.0`–`5.0`; `speed`: `0.0`–`5.0`; `rollSpeed`: `0.0`–`3.0`

Performance#

Distortion effects are GPU-intensive. Limit the number of stacked effects on a single block, especially on mobile devices, and disable effects you are not actively rendering.

API Reference#

API	Description
`engine.block.supportsEffects(block=_)`	Checks whether a design block can render effects
`engine.block.createEffect(type=EffectType.Liquid)`	Creates a liquid distortion effect block
`engine.block.createEffect(type=EffectType.Mirror)`	Creates a mirror effect block
`engine.block.createEffect(type=EffectType.Shifter)`	Creates a shifter effect block
`engine.block.createEffect(type=EffectType.RadialPixel)`	Creates a radial pixel effect block
`engine.block.createEffect(type=EffectType.TvGlitch)`	Creates a TV glitch effect block
`engine.block.appendEffect(block=_, effectBlock=_)`	Adds the effect to the end of a block’s effect stack
`engine.block.insertEffect(block=_, effectBlock=_, index=_)`	Inserts an effect at a specific stack index
`engine.block.getEffects(block=_)`	Returns the ordered effects attached to a block
`engine.block.removeEffect(block=_, index=_)`	Removes the effect at the specified stack index
`engine.block.setEffectEnabled(effectBlock=_, enabled=_)`	Enables or disables an effect block
`engine.block.isEffectEnabled(effectBlock=_)`	Returns whether an effect block is enabled
`engine.block.findAllProperties(block=_)`	Lists the properties available on an effect block
`engine.block.setFloat(block=_, property="effect/liquid/amount", value=_)`	Writes a liquid effect float property
`engine.block.getFloat(block=_, property="effect/liquid/amount")`	Reads a liquid effect float property
`engine.block.setFloat(block=_, property="effect/liquid/scale", value=_)`	Writes the liquid pattern scale
`engine.block.getFloat(block=_, property="effect/liquid/scale")`	Reads the liquid pattern scale
`engine.block.setFloat(block=_, property="effect/liquid/time", value=_)`	Writes the liquid pattern variation input
`engine.block.getFloat(block=_, property="effect/liquid/time")`	Reads the liquid pattern variation input
`engine.block.setInt(block=_, property="effect/mirror/side", value=_)`	Writes the mirror side property
`engine.block.getInt(block=_, property="effect/mirror/side")`	Reads the mirror side property
`engine.block.setFloat(block=_, property="effect/shifter/amount", value=_)`	Writes a shifter effect float property
`engine.block.getFloat(block=_, property="effect/shifter/amount")`	Reads a shifter effect float property
`engine.block.setFloat(block=_, property="effect/shifter/angle", value=_)`	Writes the shifter direction in radians
`engine.block.getFloat(block=_, property="effect/shifter/angle")`	Reads the shifter direction in radians
`engine.block.setFloat(block=_, property="effect/radial_pixel/radius", value=_)`	Writes a radial pixel effect float property
`engine.block.getFloat(block=_, property="effect/radial_pixel/radius")`	Reads a radial pixel effect float property
`engine.block.setFloat(block=_, property="effect/radial_pixel/segments", value=_)`	Writes the radial pixel segment size
`engine.block.getFloat(block=_, property="effect/radial_pixel/segments")`	Reads the radial pixel segment size
`engine.block.setFloat(block=_, property="effect/tv_glitch/distortion", value=_)`	Writes a TV glitch effect float property
`engine.block.getFloat(block=_, property="effect/tv_glitch/distortion")`	Reads a TV glitch effect float property
`engine.block.setFloat(block=_, property="effect/tv_glitch/distortion2", value=_)`	Writes the secondary TV glitch distortion
`engine.block.getFloat(block=_, property="effect/tv_glitch/distortion2")`	Reads the secondary TV glitch distortion
`engine.block.setFloat(block=_, property="effect/tv_glitch/speed", value=_)`	Writes the TV glitch variance input
`engine.block.getFloat(block=_, property="effect/tv_glitch/speed")`	Reads the TV glitch variance input
`engine.block.setFloat(block=_, property="effect/tv_glitch/rollSpeed", value=_)`	Writes the TV glitch vertical offset
`engine.block.getFloat(block=_, property="effect/tv_glitch/rollSpeed")`	Reads the TV glitch vertical offset
`engine.block.destroy(block=_)`	Destroys a detached or unused effect block

Available Distortion Effects#

Effect	`EffectType`	Description	Key Properties
Liquid	`EffectType.Liquid`	Flowing, organic warping	`amount`, `scale`, `time`
Mirror	`EffectType.Mirror`	Reflection along a side	`side` (0=Left, 1=Right, 2=Top, 3=Bottom)
Shifter	`EffectType.Shifter`	Chromatic aberration	`amount`, `angle`
Radial Pixel	`EffectType.RadialPixel`	Circular pixelation	`radius`, `segments`
TV Glitch	`EffectType.TvGlitch`	Analog TV interference	`distortion`, `distortion2`, `speed`, `rollSpeed`

Next Steps#

Apply a Filter or Effect - Learn the foundational effect APIs.
Blur Effects - Apply blur techniques for depth and focus effects.
