Blur Effects

import android.net.Uri
import ly.img.engine.BlurType
import ly.img.engine.Color
import ly.img.engine.DesignBlock
import ly.img.engine.DesignBlockType
import ly.img.engine.Engine
import ly.img.engine.ExportOptions
import ly.img.engine.FillType
import ly.img.engine.MimeType
import ly.img.engine.ShapeType
import java.nio.ByteBuffer

private const val PAGE_WIDTH = 800F
private const val PAGE_HEIGHT = 600F

data class BlurEffects(
    val pageSupportsBlur: Boolean,
    val imageSupportsBlur: Boolean,
    val imageAllowsBlur: Boolean,
    val radialBlurType: String,
    val radialBlurRadius: Float,
    val radialBlurEnabled: Boolean,
    val disabledState: Boolean,
    val reenabledState: Boolean,
    val pageSharedBlur: DesignBlock,
    val secondarySharedBlur: DesignBlock,
    val pageSharedBlurType: String,
    val secondarySharedBlurType: String,
    val pageSharedBlurEnabled: Boolean,
    val secondarySharedBlurEnabled: Boolean,
    val oldBlur: DesignBlock,
    val replacementBlur: DesignBlock,
    val replacementBlurType: String,
    val replacementBlurRadius: Float,
    val oldBlurValidAfterDestroy: Boolean,
    val previewPng: ByteBuffer,
)

suspend fun blurEffects(engine: Engine): BlurEffects {
    val scene = engine.scene.create()
    val page = engine.block.create(DesignBlockType.Page)
    engine.block.setWidth(page, value = PAGE_WIDTH)
    engine.block.setHeight(page, value = PAGE_HEIGHT)
    engine.block.appendChild(parent = scene, child = page)

    val imageBlock = engine.block.create(DesignBlockType.Graphic)
    engine.block.setShape(imageBlock, shape = engine.block.createShape(ShapeType.Rect))
    engine.block.setWidth(imageBlock, value = PAGE_WIDTH)
    engine.block.setHeight(imageBlock, value = PAGE_HEIGHT)

    val imageFill = engine.block.createFill(FillType.Image)
    engine.block.setUri(
        block = imageFill,
        property = "fill/image/imageFileURI",
        value = Uri.parse("file:///android_asset/imgly-assets/ly.img.image/images/sample_1.jpg"),
    )
    engine.block.setFill(block = imageBlock, fill = imageFill)
    engine.block.appendChild(parent = page, child = imageBlock)

    val pageSupportsBlur = engine.block.supportsBlur(page)
    val imageSupportsBlur = engine.block.supportsBlur(imageBlock)
    val imageAllowsBlur = engine.block.isAllowedByScope(imageBlock, "appearance/blur")

    check(imageSupportsBlur) { "The image block must support blur effects." }
    check(imageAllowsBlur) { "The image block must allow blur changes." }

    val radialBlur = engine.block.createBlur(type = BlurType.Radial)

    engine.block.setFloat(block = radialBlur, property = "blur/radial/blurRadius", value = 40F)
    engine.block.setFloat(block = radialBlur, property = "blur/radial/radius", value = 100F)
    engine.block.setFloat(block = radialBlur, property = "blur/radial/gradientRadius", value = 80F)
    engine.block.setFloat(block = radialBlur, property = "blur/radial/x", value = 0.5F)
    engine.block.setFloat(block = radialBlur, property = "blur/radial/y", value = 0.5F)

    engine.block.setBlur(block = imageBlock, blurBlock = radialBlur)
    engine.block.setBlurEnabled(block = imageBlock, enabled = true)

    val appliedBlur = engine.block.getBlur(block = imageBlock)
    val radialBlurType = engine.block.getType(block = appliedBlur)
    val radialBlurRadius = engine.block.getFloat(
        block = appliedBlur,
        property = "blur/radial/blurRadius",
    )
    val radialBlurEnabled = engine.block.isBlurEnabled(block = imageBlock)

    engine.block.setBlurEnabled(block = imageBlock, enabled = false)
    val disabledState = engine.block.isBlurEnabled(block = imageBlock)

    engine.block.setBlurEnabled(block = imageBlock, enabled = true)
    val reenabledState = engine.block.isBlurEnabled(block = imageBlock)

    val previewPng = engine.block.export(
        block = page,
        mimeType = MimeType.PNG,
        options = ExportOptions(targetWidth = PAGE_WIDTH, targetHeight = PAGE_HEIGHT),
    )

    val secondaryBlock = engine.block.create(DesignBlockType.Graphic)
    engine.block.setShape(secondaryBlock, shape = engine.block.createShape(ShapeType.Rect))
    val secondaryFill = engine.block.createFill(FillType.Color)
    engine.block.setFill(block = secondaryBlock, fill = secondaryFill)
    engine.block.setFillSolidColor(
        block = secondaryBlock,
        color = Color.fromRGBA(r = 0.1F, g = 0.18F, b = 0.28F, a = 1F),
    )
    engine.block.setWidth(secondaryBlock, value = 160F)
    engine.block.setHeight(secondaryBlock, value = 160F)
    engine.block.setPositionX(secondaryBlock, value = 560F)
    engine.block.setPositionY(secondaryBlock, value = 380F)
    engine.block.appendChild(parent = page, child = secondaryBlock)

    val sharedBlur = engine.block.createBlur(type = BlurType.Uniform)
    engine.block.setFloat(block = sharedBlur, property = "blur/uniform/intensity", value = 0.35F)
    engine.block.setBlur(block = secondaryBlock, blurBlock = sharedBlur)
    engine.block.setBlur(block = page, blurBlock = sharedBlur)
    engine.block.setBlurEnabled(block = secondaryBlock, enabled = true)
    engine.block.setBlurEnabled(block = page, enabled = true)

    val pageSharedBlur = engine.block.getBlur(block = page)
    val secondarySharedBlur = engine.block.getBlur(block = secondaryBlock)

    val oldBlur = engine.block.getBlur(block = imageBlock)
    val linearBlur = engine.block.createBlur(type = BlurType.Linear)
    engine.block.setFloat(block = linearBlur, property = "blur/linear/blurRadius", value = 30F)
    engine.block.setFloat(block = linearBlur, property = "blur/linear/x1", value = 0F)
    engine.block.setFloat(block = linearBlur, property = "blur/linear/y1", value = 0.5F)
    engine.block.setFloat(block = linearBlur, property = "blur/linear/x2", value = 1F)
    engine.block.setFloat(block = linearBlur, property = "blur/linear/y2", value = 0.5F)
    engine.block.setBlur(block = imageBlock, blurBlock = linearBlur)
    engine.block.setBlurEnabled(block = imageBlock, enabled = true)
    val replacementBlur = engine.block.getBlur(block = imageBlock)
    engine.block.destroy(block = oldBlur)
    val oldBlurValidAfterDestroy = engine.block.isValid(block = oldBlur)

    return BlurEffects(
        pageSupportsBlur = pageSupportsBlur,
        imageSupportsBlur = imageSupportsBlur,
        imageAllowsBlur = imageAllowsBlur,
        radialBlurType = radialBlurType,
        radialBlurRadius = radialBlurRadius,
        radialBlurEnabled = radialBlurEnabled,
        disabledState = disabledState,
        reenabledState = reenabledState,
        pageSharedBlur = pageSharedBlur,
        secondarySharedBlur = secondarySharedBlur,
        pageSharedBlurType = engine.block.getType(block = pageSharedBlur),
        secondarySharedBlurType = engine.block.getType(block = secondarySharedBlur),
        pageSharedBlurEnabled = engine.block.isBlurEnabled(block = page),
        secondarySharedBlurEnabled = engine.block.isBlurEnabled(block = secondaryBlock),
        oldBlur = oldBlur,
        replacementBlur = replacementBlur,
        replacementBlurType = engine.block.getType(block = replacementBlur),
        replacementBlurRadius = engine.block.getFloat(block = replacementBlur, property = "blur/linear/blurRadius"),
        oldBlurValidAfterDestroy = oldBlurValidAfterDestroy,
        previewPng = previewPng,
    )
}

Apply blur effects to design elements with CE.SDK’s dedicated blur API for softening backgrounds, creating depth, and focusing attention.

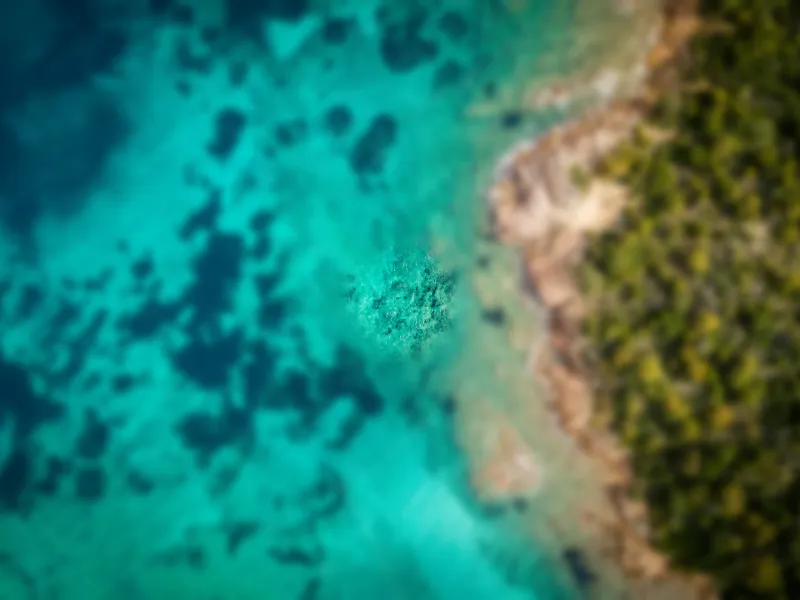

Radial blur applied to an Android Engine scene

8 mins

estimated time

GitHub

Unlike stackable effects, blur is attached through its own block APIs. A block supports at most one blur at a time, but the same blur instance can be assigned to multiple compatible blocks.

This guide covers the built-in editor UI and the Android Engine APIs for applying and managing blur.

Using the Built-in Blur UI#

The CE.SDK editor UI exposes blur through the Blur action when the effective appearance/blur editing permission allows it. The inspector bar shows the action for selected image or video fills, and the dock opens the same Blur sheet for the current page.

The Blur sheet uses the ly.img.blur appearance library. Users choose a blur type, then open the selected blur’s property controls to adjust intensity, gradient size, focus size, and control-point values depending on the active blur type.

Programmatic Blur Application#

Check Blur Support#

supportsBlur() checks whether the block type can carry a blur. This capability check is separate from the effective appearance/blur permission required by setBlur(). Check both before applying blur; a denied permission causes setBlur() to throw an EngineException with code BLOCK.SCOPE_PERMISSION_DENIED.

val pageSupportsBlur = engine.block.supportsBlur(page)
val imageSupportsBlur = engine.block.supportsBlur(imageBlock)
val imageAllowsBlur = engine.block.isAllowedByScope(imageBlock, "appearance/blur")

check(imageSupportsBlur) { "The image block must support blur effects." }
check(imageAllowsBlur) { "The image block must allow blur changes." }

Create Blur#

Create a blur block with the type-safe BlurType.Uniform, BlurType.Linear, BlurType.Mirrored, or BlurType.Radial constants.

val radialBlur = engine.block.createBlur(type = BlurType.Radial)

Configure Blur Parameters#

Each blur type stores its adjustable values as float properties on the blur block. This example configures a radial blur with a clear center point and a soft transition around it.

engine.block.setFloat(block = radialBlur, property = "blur/radial/blurRadius", value = 40F)
engine.block.setFloat(block = radialBlur, property = "blur/radial/radius", value = 100F)
engine.block.setFloat(block = radialBlur, property = "blur/radial/gradientRadius", value = 80F)
engine.block.setFloat(block = radialBlur, property = "blur/radial/x", value = 0.5F)
engine.block.setFloat(block = radialBlur, property = "blur/radial/y", value = 0.5F)

Apply Blur to a Block#

Attach the configured blur to the target block with setBlur(), then enable it. The blur renders only while it is enabled on that block.

engine.block.setBlur(block = imageBlock, blurBlock = radialBlur)
engine.block.setBlurEnabled(block = imageBlock, enabled = true)

Managing Blur#

Access Existing Blur#

Use getBlur() to retrieve the blur block currently assigned to a block. You can then read its type and property values with the same block APIs used for other design blocks.

val appliedBlur = engine.block.getBlur(block = imageBlock)
val radialBlurType = engine.block.getType(block = appliedBlur)
val radialBlurRadius = engine.block.getFloat(
    block = appliedBlur,
    property = "blur/radial/blurRadius",
)
val radialBlurEnabled = engine.block.isBlurEnabled(block = imageBlock)

Enable or Disable Blur#

Toggle blur with setBlurEnabled() when you want a before/after state without losing the configured blur parameters.

engine.block.setBlurEnabled(block = imageBlock, enabled = false)
val disabledState = engine.block.isBlurEnabled(block = imageBlock)

engine.block.setBlurEnabled(block = imageBlock, enabled = true)
val reenabledState = engine.block.isBlurEnabled(block = imageBlock)

When disabled, the blur remains attached to the block but does not render until it is enabled again.

A single blur instance can be assigned to more than one compatible block. Changes to that shared blur block affect every block that uses it.

val sharedBlur = engine.block.createBlur(type = BlurType.Uniform)
engine.block.setFloat(block = sharedBlur, property = "blur/uniform/intensity", value = 0.35F)
engine.block.setBlur(block = secondaryBlock, blurBlock = sharedBlur)
engine.block.setBlur(block = page, blurBlock = sharedBlur)
engine.block.setBlurEnabled(block = secondaryBlock, enabled = true)
engine.block.setBlurEnabled(block = page, enabled = true)

val pageSharedBlur = engine.block.getBlur(block = page)
val secondarySharedBlur = engine.block.getBlur(block = secondaryBlock)

Replace Blur#

To change blur type, create a new blur block and assign it with setBlur(). Destroy the old blur only when you know no other block should use it.

val oldBlur = engine.block.getBlur(block = imageBlock)
val linearBlur = engine.block.createBlur(type = BlurType.Linear)
engine.block.setFloat(block = linearBlur, property = "blur/linear/blurRadius", value = 30F)
engine.block.setFloat(block = linearBlur, property = "blur/linear/x1", value = 0F)
engine.block.setFloat(block = linearBlur, property = "blur/linear/y1", value = 0.5F)
engine.block.setFloat(block = linearBlur, property = "blur/linear/x2", value = 1F)
engine.block.setFloat(block = linearBlur, property = "blur/linear/y2", value = 0.5F)
engine.block.setBlur(block = imageBlock, blurBlock = linearBlur)
engine.block.setBlurEnabled(block = imageBlock, enabled = true)
val replacementBlur = engine.block.getBlur(block = imageBlock)
engine.block.destroy(block = oldBlur)
val oldBlurValidAfterDestroy = engine.block.isValid(block = oldBlur)

Blur Types and Properties#

CE.SDK provides four blur types. Coordinates use relative values from 0.0 to 1.0, where 0,0 is the top-left of the block and 1,1 is the bottom-right.

Blur Type	Property	Default	Description
`BlurType.Uniform`	`blur/uniform/intensity`	`0.5`	Uniform blur strength from `0.0` to `1.0`
`BlurType.Linear`	`blur/linear/blurRadius`	`30`	Linear blur intensity
`BlurType.Linear`	`blur/linear/x1`, `blur/linear/y1`	`0`, `0.5`	Linear blur start point
`BlurType.Linear`	`blur/linear/x2`, `blur/linear/y2`	`1`, `0.5`	Linear blur end point
`BlurType.Mirrored`	`blur/mirrored/blurRadius`	`30`	Mirrored blur intensity
`BlurType.Mirrored`	`blur/mirrored/gradientSize`	`50`	Width of the transition zones
`BlurType.Mirrored`	`blur/mirrored/size`	`75`	Width of the clear focus band
`BlurType.Mirrored`	`blur/mirrored/x1`, `blur/mirrored/y1`, `blur/mirrored/x2`, `blur/mirrored/y2`	`0`, `0.5`, `1`, `0.5`	Mirrored blur axis points
`BlurType.Radial`	`blur/radial/blurRadius`	`30`	Radial blur intensity
`BlurType.Radial`	`blur/radial/radius`	`75`	Size of the sharp center
`BlurType.Radial`	`blur/radial/gradientRadius`	`50`	Width of the transition band
`BlurType.Radial`	`blur/radial/x`, `blur/radial/y`	`0.5`, `0.5`	Radial blur center point

Use getFloat() to read any property after setting it when your app needs to persist or compare blur state.

Troubleshooting#

Symptom	Cause	Solution
Blur does not appear	The block does not support blur, or blur is disabled	Check `supportsBlur()` before applying and `isBlurEnabled()` after enabling
`setBlur()` throws `EngineException` with `BLOCK.SCOPE_PERMISSION_DENIED`	The effective `appearance/blur` permission is denied	Check `isAllowedByScope()` separately from `supportsBlur()` and only change the scope when your editing rules allow it
Setting a property throws `EngineException`, typically with `BLOCK.PROPERTY_NOT_FOUND`	The property path is unknown or does not match the blur type	Use an exact property path for the active `BlurType`; inspect the block’s available properties when needed
Blur appears off-center	Radial, linear, or mirrored control points are outside the intended area	Keep coordinate properties in the `0.0` to `1.0` range
Replacing blur changes other blocks	The old blur block is shared	Destroy an old blur only when no other block should keep using it

API Reference#

Method	Description
`engine.block.supportsBlur(block=_)`	Check whether a block supports blur
`engine.block.isAllowedByScope(block=_, key="appearance/blur")`	Check whether the effective blur editing permission allows changes
`engine.block.createBlur(type=_)`	Create a blur block from a `BlurType`
`engine.block.setFloat(block=_, property="blur/radial/blurRadius", value=_)`	Set the radial blur intensity
`engine.block.getFloat(block=_, property="blur/radial/blurRadius")`	Read the radial blur intensity
`engine.block.setFloat(block=_, property="blur/radial/radius", value=_)`	Set the radial blur’s sharp center size
`engine.block.getFloat(block=_, property="blur/radial/radius")`	Read the radial blur’s sharp center size
`engine.block.setFloat(block=_, property="blur/radial/gradientRadius", value=_)`	Set the radial blur transition width
`engine.block.getFloat(block=_, property="blur/radial/gradientRadius")`	Read the radial blur transition width
`engine.block.setFloat(block=_, property="blur/radial/x", value=_)`	Set the radial blur center’s x-coordinate
`engine.block.getFloat(block=_, property="blur/radial/x")`	Read the radial blur center’s x-coordinate
`engine.block.setFloat(block=_, property="blur/radial/y", value=_)`	Set the radial blur center’s y-coordinate
`engine.block.getFloat(block=_, property="blur/radial/y")`	Read the radial blur center’s y-coordinate
`engine.block.setFloat(block=_, property="blur/uniform/intensity", value=_)`	Set the uniform blur intensity
`engine.block.getFloat(block=_, property="blur/uniform/intensity")`	Read the uniform blur intensity
`engine.block.setFloat(block=_, property="blur/linear/blurRadius", value=_)`	Set the linear blur intensity
`engine.block.getFloat(block=_, property="blur/linear/blurRadius")`	Read the linear blur intensity
`engine.block.setFloat(block=_, property="blur/linear/x1", value=_)`	Set the linear blur start point’s x-coordinate
`engine.block.getFloat(block=_, property="blur/linear/x1")`	Read the linear blur start point’s x-coordinate
`engine.block.setFloat(block=_, property="blur/linear/y1", value=_)`	Set the linear blur start point’s y-coordinate
`engine.block.getFloat(block=_, property="blur/linear/y1")`	Read the linear blur start point’s y-coordinate
`engine.block.setFloat(block=_, property="blur/linear/x2", value=_)`	Set the linear blur end point’s x-coordinate
`engine.block.getFloat(block=_, property="blur/linear/x2")`	Read the linear blur end point’s x-coordinate
`engine.block.setFloat(block=_, property="blur/linear/y2", value=_)`	Set the linear blur end point’s y-coordinate
`engine.block.getFloat(block=_, property="blur/linear/y2")`	Read the linear blur end point’s y-coordinate
`engine.block.setBlur(block=_, blurBlock=_)`	Assign a blur block to a design block
`engine.block.getBlur(block=_)`	Retrieve the blur block assigned to a design block
`engine.block.setBlurEnabled(block=_, enabled=_)`	Enable or disable blur rendering for a design block
`engine.block.isBlurEnabled(block=_)`	Check whether blur rendering is enabled
`engine.block.getType(block=_)`	Read the engine type identifier of a blur block
`engine.block.destroy(block=_)`	Destroy an unused blur block
`engine.block.isValid(block=_)`	Check whether a destroyed blur block is still valid

Next Steps#

Apply a Filter or Effect - Stack visual effects such as adjustments, LUT filters, and duotone alongside blur.
Filters & Effects Overview - Browse every filter and effect CE.SDK provides.
Modify Properties - Understand block properties and how to modify them.
