Insert Videos - Android

import android.net.Uri
import ly.img.engine.ContentFillMode
import ly.img.engine.DesignBlockType
import ly.img.engine.Engine
import ly.img.engine.FillType
import ly.img.engine.MimeType
import ly.img.engine.ShapeType
import kotlin.math.abs

suspend fun insertMediaVideos(engine: Engine): InsertMediaVideosResult {
    val scene = engine.scene.createForVideo()

    val page = engine.block.create(DesignBlockType.Page)
    engine.block.setWidth(page, value = 1280F)
    engine.block.setHeight(page, value = 720F)
    engine.block.appendChild(parent = scene, child = page)

    val videoUri = Uri.parse("https://img.ly/static/ubq_video_samples/bbb.mp4")

    val videoBlock = engine.block.create(DesignBlockType.Graphic)
    engine.block.setShape(block = videoBlock, shape = engine.block.createShape(ShapeType.Rect))

    val videoFill = engine.block.createFill(FillType.Video)
    engine.block.setUri(
        block = videoFill,
        property = "fill/video/fileURI",
        value = videoUri,
    )
    engine.block.setFill(block = videoBlock, fill = videoFill)
    engine.block.appendChild(parent = page, child = videoBlock)

    engine.block.setWidth(block = videoBlock, value = 720F)
    engine.block.setHeight(block = videoBlock, value = 405F)
    engine.block.setPositionX(block = videoBlock, value = 280F)
    engine.block.setPositionY(block = videoBlock, value = 150F)
    engine.block.setContentFillMode(block = videoBlock, mode = ContentFillMode.COVER)

    engine.block.forceLoadAVResource(block = videoFill)
    val sourceDuration = engine.block.getAVResourceTotalDuration(block = videoFill)

    val trimOffset = 2.0
    require(sourceDuration > trimOffset) { "The source video must be longer than the trim offset." }
    // Keep the demo clip short while clamping to the loaded source duration.
    val trimLength = (sourceDuration - trimOffset).coerceAtMost(5.0).coerceAtLeast(0.1)

    engine.block.setTrimOffset(block = videoFill, offset = trimOffset)
    engine.block.setTrimLength(block = videoFill, length = trimLength)
    engine.block.setDuration(block = videoBlock, duration = trimLength)

    val fillType = engine.block.getType(videoFill)
    val actualTrimOffset = engine.block.getTrimOffset(videoFill)
    val actualTrimLength = engine.block.getTrimLength(videoFill)
    val blockDuration = engine.block.getDuration(videoBlock)

    val videoBlocks = engine.block.findByType(DesignBlockType.Graphic)
        .filter { block ->
            runCatching {
                val fill = engine.block.getFill(block)
                engine.block.getType(fill) == FillType.Video.key
            }.getOrDefault(false)
        }

    val currentFill = engine.block.getFill(videoBlocks.first())
    val currentVideoUri = engine.block.getUri(
        block = currentFill,
        property = "fill/video/fileURI",
    )

    check(currentVideoUri == videoUri)
    check(fillType == FillType.Video.key)
    check(abs(actualTrimOffset - trimOffset) < 0.001)
    check(abs(actualTrimLength - trimLength) < 0.001)
    check(abs(blockDuration - trimLength) < 0.001)

    val exportedImage = engine.block.export(block = page, mimeType = MimeType.PNG)

    engine.block.destroy(block = videoBlocks.first())

    val remainingVideoBlocks = engine.block.findByType(DesignBlockType.Graphic)
        .filter { block ->
            runCatching {
                val fill = engine.block.getFill(block)
                engine.block.getType(fill) == FillType.Video.key
            }.getOrDefault(false)
        }

    check(exportedImage.hasRemaining()) { "The exported video preview is empty." }

    return InsertMediaVideosResult(
        videoUri = currentVideoUri,
        fillType = fillType,
        sourceDuration = sourceDuration,
        trimOffset = actualTrimOffset,
        trimLength = actualTrimLength,
        blockDuration = blockDuration,
        videoBlockCount = videoBlocks.size,
        remainingVideoBlockCount = remainingVideoBlocks.size,
        exportedImage = exportedImage.asReadOnlyBuffer(),
    )
}

import android.net.Uri
import java.nio.ByteBuffer

data class InsertMediaVideosResult(
    val videoUri: Uri,
    val fillType: String,
    val sourceDuration: Double,
    val trimOffset: Double,
    val trimLength: Double,
    val blockDuration: Double,
    val videoBlockCount: Int,
    val remainingVideoBlockCount: Int,
    val exportedImage: ByteBuffer,
)

Add videos to CE.SDK scenes on Android by creating a graphic block, attaching a video fill, and configuring its source, trim range, size, and position.

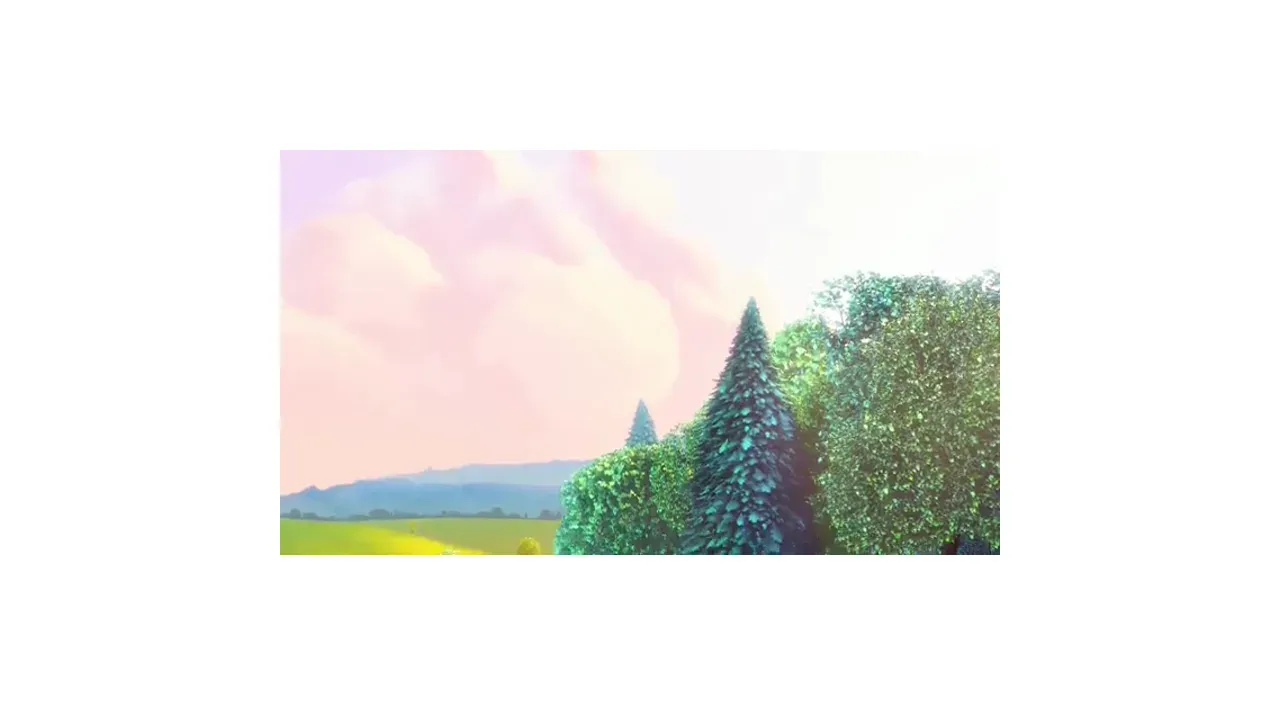

Android insert videos preview showing the exported scene with a video block on the page

6 mins

estimated time

GitHub

Videos in CE.SDK are graphic blocks with a video fill. The graphic block defines the scene placement and shape; the video fill stores the source URI and trim metadata.

For a complete timeline editor UI, use the Video Editor Starter Kit. This guide focuses on CreativeEngine APIs for inserting and configuring video blocks programmatically.

Creating a Video Block#

Create a graphic block with create(), attach a rectangular shape with setShape(), then create a video fill with createFill(). Set the source with setUri() using the fill/video/fileURI property and append the block to the page.

val videoBlock = engine.block.create(DesignBlockType.Graphic)
engine.block.setShape(block = videoBlock, shape = engine.block.createShape(ShapeType.Rect))

val videoFill = engine.block.createFill(FillType.Video)
engine.block.setUri(
    block = videoFill,
    property = "fill/video/fileURI",
    value = videoUri,
)
engine.block.setFill(block = videoBlock, fill = videoFill)
engine.block.appendChild(parent = page, child = videoBlock)

Use a remote, local, bundled, or app-provided Uri as the source. MP4 with H.264 encoding is the safest default across Android devices; other codecs depend on the target device’s media support.

Positioning and Sizing#

Set width and height on the graphic block, then move it with setPositionX() and setPositionY(). Use a content fill mode when you need predictable framing inside the block’s rectangle.

engine.block.setWidth(block = videoBlock, value = 720F)
engine.block.setHeight(block = videoBlock, value = 405F)
engine.block.setPositionX(block = videoBlock, value = 280F)
engine.block.setPositionY(block = videoBlock, value = 150F)
engine.block.setContentFillMode(block = videoBlock, mode = ContentFillMode.COVER)

All values use the scene’s design unit. Positive X moves the frame right, and positive Y moves it down from the page’s top-left origin.

Configuring Trim#

Load the video fill before reading duration or applying trim values. Trim is set on the fill, while the graphic block’s duration controls how long the block stays active on the timeline in a video scene.

engine.block.forceLoadAVResource(block = videoFill)
val sourceDuration = engine.block.getAVResourceTotalDuration(block = videoFill)

val trimOffset = 2.0
require(sourceDuration > trimOffset) { "The source video must be longer than the trim offset." }
// Keep the demo clip short while clamping to the loaded source duration.
val trimLength = (sourceDuration - trimOffset).coerceAtMost(5.0).coerceAtLeast(0.1)

engine.block.setTrimOffset(block = videoFill, offset = trimOffset)
engine.block.setTrimLength(block = videoFill, length = trimLength)
engine.block.setDuration(block = videoBlock, duration = trimLength)

setTrimOffset() skips into the source media, and setTrimLength() controls how much of that source plays from the offset. Matching setDuration() to the trim length keeps the timeline block visible for the same time span as the trimmed content.

Finding Video Blocks#

Find graphic blocks and filter them by the type of their attached fill. This is useful when your app needs to inspect existing scene content or build a custom media list.

val videoBlocks = engine.block.findByType(DesignBlockType.Graphic)
    .filter { block ->
        runCatching {
            val fill = engine.block.getFill(block)
            engine.block.getType(fill) == FillType.Video.key
        }.getOrDefault(false)
    }

val currentFill = engine.block.getFill(videoBlocks.first())
val currentVideoUri = engine.block.getUri(
    block = currentFill,
    property = "fill/video/fileURI",
)

getType() returns the Engine type key for the fill. Compare it with FillType.Video.key, then read fill/video/fileURI from the fill with getUri().

Removing Videos#

Destroy the graphic block when you want to remove the inserted video from the scene. The block is detached from its parent page and the attached video fill is released with it.

engine.block.destroy(block = videoBlocks.first())

val remainingVideoBlocks = engine.block.findByType(DesignBlockType.Graphic)
    .filter { block ->
        runCatching {
            val fill = engine.block.getFill(block)
            engine.block.getType(fill) == FillType.Video.key
        }.getOrDefault(false)
    }

Troubleshooting#

Video Not Visible#

Verify that the Uri is reachable from the app, or resolve it with your app’s URI resolver before assigning fill/video/fileURI.
Use a device-supported video format. MP4 with H.264 is the safest Android default, but codec support still depends on the target device.
Make sure the graphic block is appended to a page and has non-zero width and height.

Trim Metadata Not Available#

Call forceLoadAVResource() on the video fill before reading duration or clamping trim values.
Apply setTrimOffset() and setTrimLength() to the video fill, not the graphic block.
Keep trimOffset + trimLength within getAVResourceTotalDuration(), then set the graphic block duration to the clip length when the timeline should match the trim.

API Reference#

API	Description
`engine.scene.createForVideo()`	Create a video scene where block durations control timeline playback and video export.
`engine.block.create(blockType=DesignBlockType.Graphic)`	Create a graphic block that can host a video fill.
`engine.block.createShape(type=_)`	Create the shape that clips the video fill.
`engine.block.setShape(block=_, shape=_)`	Attach a shape to the graphic block.
`engine.block.createFill(fillType=FillType.Video)`	Create a video fill object.
`engine.block.setUri(block=_, property="fill/video/fileURI", value=_)`	Assign a video source URI.
`engine.block.setFill(block=_, fill=_)`	Attach a fill to a block.
`engine.block.appendChild(parent=_, child=_)`	Attach a block to the scene hierarchy.
`engine.block.setWidth(block=_, value=_)`	Set the block width in design units.
`engine.block.setHeight(block=_, value=_)`	Set the block height in design units.
`engine.block.setPositionX(block=_, value=_)`	Set the horizontal position.
`engine.block.setPositionY(block=_, value=_)`	Set the vertical position.
`engine.block.setContentFillMode(block=_, mode=_)`	Set Cover, Contain, or Crop behavior.
`engine.block.forceLoadAVResource(block=_)`	Load video metadata before reading duration or trimming.
`engine.block.getAVResourceTotalDuration(block=_)`	Read the loaded source duration in seconds.
`engine.block.setTrimOffset(block=_, offset=_)`	Set where playback starts within the source video.
`engine.block.setTrimLength(block=_, length=_)`	Set how much source video plays from the trim offset.
`engine.block.setDuration(block=_, duration=_)`	Set how long the block is active on the timeline.
`engine.block.findByType(type=DesignBlockType.Graphic)`	Find graphic blocks in the current scene.
`engine.block.getFill(block=_)`	Read the fill attached to a graphic block.
`engine.block.getType(block=_)`	Read a block or fill type key.
`engine.block.getUri(block=_, property="fill/video/fileURI")`	Read the assigned video source URI.
`engine.block.destroy(block=_)`	Remove a block from the scene.
