Apply Transitions

Blend adjacent video clips into each other with clip-to-clip transitions such as cross-fades, pushes, and wipes using CE.SDK’s transitions API.

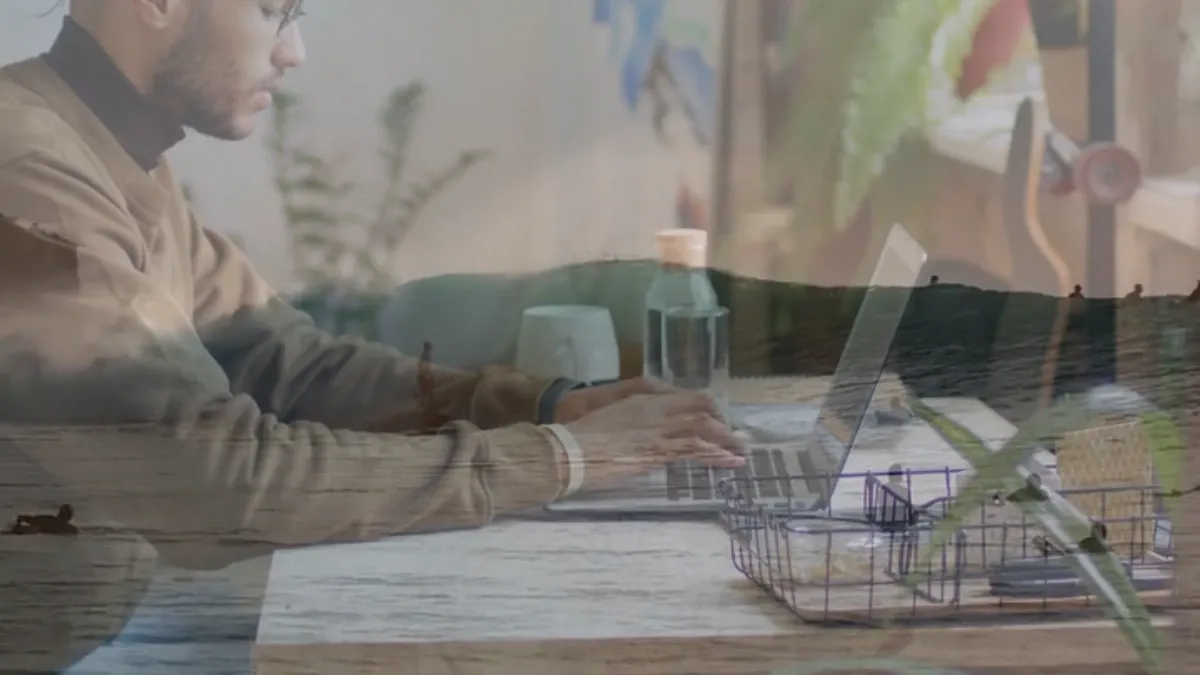

Two video clips blending into each other in a cross-fade, halfway through the transition

10 mins
estimated time
GitHub

A transition belongs to the outgoing clip and blends it into the following clip on the same track. When you assign one, the engine overlaps the two clips for the transition duration: the incoming clip—and every clip after it on that track—moves earlier on the timeline, and audio cross-fades over the same window following the transition’s easing curve.

Transitions are blocks. You create one with createTransition(_:), attach it to a clip with setTransition(_:transition:), and configure it through the same generic setters you use for other blocks. Once assigned, the transition is owned by its clip: it is destroyed together with the clip.

This guide covers how to check transition support, create and assign transitions between clips, understand the timeline overlap they introduce, configure per-type properties, and replace or remove them.

Creating the Video Timeline#

Transitions need a video scene with at least two adjacent clips on a track. supportsTransition(_:) only reports true for clips in a video-mode scene, so create the scene with createVideo().

let scene = try engine.scene.createVideo()


let page = try engine.block.create(.page)
try engine.block.appendChild(to: scene, child: page)
try engine.block.setWidth(page, value: 1280)
try engine.block.setHeight(page, value: 720)
try engine.block.setDuration(page, duration: 16)


let track = try engine.block.create(.track)
try engine.block.appendChild(to: page, child: track)

Each clip is a graphic block with a video fill. Loading the resource up front with forceLoadAVResource(_:) gives the engine the clip’s duration and lets it decode frames for playback.

@MainActor
private func makeTransitionClip(
  engine: Engine,
  videoURL: URL,
  width: Float,
  height: Float,
) async throws -> DesignBlockID {
  let clip = try engine.block.create(.graphic)
  try engine.block.setShape(clip, shape: engine.block.createShape(.rect))
  try engine.block.setWidth(clip, value: width)
  try engine.block.setHeight(clip, value: height)


  let videoFill = try engine.block.createFill(.video)
  try engine.block.setURL(videoFill, property: "fill/video/fileURI", value: videoURL)
  try engine.block.setFill(clip, fill: videoFill)
  try engine.block.setContentFillMode(clip, mode: .cover)
  try await engine.block.forceLoadAVResource(videoFill)


  return clip
}

Appending the clips to the track makes them play one after another. Each clip runs for 4 seconds, so they start at 0, 4, 8, and 12 seconds.

var clips = [DesignBlockID]()
for (index, videoURL) in videoURLs.enumerated() {
  let clip = try await makeTransitionClip(engine: engine, videoURL: videoURL, width: 1280, height: 720)
  try engine.block.appendChild(to: track, child: clip)
  try engine.block.setDuration(clip, duration: 4)
  try engine.block.setTimeOffset(clip, offset: Double(index) * 4)
  clips.append(clip)
}
try engine.block.fillParent(track)


let clipA = clips[0]
let clipB = clips[1]
let clipC = clips[2]

Checking Transition Support#

Before assigning a transition, verify that both the outgoing and the incoming clip support one. Any individual clip placed directly in a video track qualifies, no matter whether it shows a video, an image, a shape, a sticker or text. Audio, group, caption, and cutout blocks report false, as do blocks outside a video track.

let clipsSupportTransitions = try engine.block.supportsTransition(clipA)
  && engine.block.supportsTransition(clipB)
print("Clips support transitions: \(clipsSupportTransitions)")

setTransition(_:transition:) throws when either clip fails this check, so testing upfront lets you disable the option instead of handling an error later.

Creating and Assigning a Transition#

Create a cross-fade and give it a duration. The duration defines how long the two clips overlap.

let crossFade = try engine.block.createTransition(.crossFade)
try engine.block.setDuration(crossFade, duration: 1)

The new block is standalone until you assign it. Assigning it to the first clip blends that clip into the one that follows it on the track.

try engine.block.setTransition(clipA, transition: crossFade)

A transition block can only be assigned to one clip. Assigning a different transition to a clip that already has one detaches the previous block without destroying it.

Understanding the Timeline Overlap#

Assigning a transition reflows the timeline. The incoming clip moves earlier by the transition duration so the two clips overlap, and all downstream clips on the same track shift with it. The outgoing clip itself stays where it is, and clips on other tracks are untouched.

let incomingClipOffset = try engine.block.getTimeOffset(clipB)
print("Clip B now starts at \(incomingClipOffset)s (was 4)")

With a 1-second cross-fade on the first clip, the second clip’s time offset changes from 4 to 3 seconds. The effective overlap is clamped: it never exceeds half of either neighboring clip’s duration, so a long transition between short clips plays shorter than requested. Removing the transition restores the original offsets.

Configuring Transition Properties#

Each transition type exposes its own properties under transition/{type}/{property} keys, which you set through the generic block setters. The key uses the type’s short ID, so TransitionType.push maps to transition/push/…. Use findAllProperties(_:) to discover what a specific type offers.

let push = try engine.block.createTransition(.push)
try engine.block.setDuration(push, duration: 1)
try engine.block.setTransition(clipB, transition: push)


let pushProperties = try engine.block.findAllProperties(push)
print("Push properties: \(pushProperties)")


try engine.block.setEnum(push, property: "transition/push/direction", value: "Left")

Directional types expose a direction enum, but they don’t all share the same value set: push, slide, stack, splice, wipe, gradient-fade, and color-wipe take Left, Right, Up, or Down, while cross-spin and chop take Clockwise or CounterClockwise, diagonal-splice takes RaisedRamp or LoweredRamp, and two-stripes takes Horizontal or Vertical. Call getEnumValues(ofProperty:) to read the accepted values for a key. Other types expose numeric controls such as transition/cross-spin/intensity or transition/cross-warp/zoom, and color-wipe exposes a transition/color-wipe/color color property.

Morphing Between Clips#

With morph enabled, the engine interpolates position, rotation, scale, and shape between the outgoing and incoming clip during the transition. Most types morph by default; push is the exception and starts with morph off, and clock-wipe and cross-spin don’t expose the flag at all.

try engine.block.setBool(push, property: "transition/push/morph", value: true)

Morphing is most visible when the two clips differ in framing—for example when one clip is scaled or rotated relative to the other.

Reading Back a Transition#

getTransition(_:) returns the transition assigned to a clip, or an invalid block when the clip has none. Check the result with isValid(_:) before using it.

let assigned = try engine.block.getTransition(clipA)
if engine.block.isValid(assigned) {
  print("Clip A transitions with: \(try engine.block.getType(assigned))")
}

Replacing or Removing a Transition#

removeTransition(_:) detaches a clip’s transition and restores the original clip timing, but does not destroy the detached block. Destroy it yourself when you no longer need it, then assign a replacement.

let fadeToBlack = try engine.block.createTransition(.fadeToBlack)
try engine.block.setDuration(fadeToBlack, duration: 1)
try engine.block.setTransition(clipC, transition: fadeToBlack)


try engine.block.removeTransition(clipC)
print("Detached transition is still valid: \(engine.block.isValid(fadeToBlack))")
try engine.block.destroy(fadeToBlack)


let colorWipe = try engine.block.createTransition(.colorWipe)
try engine.block.setDuration(colorWipe, duration: 1)
try engine.block.setTransition(clipC, transition: colorWipe)
try engine.block.setEnum(colorWipe, property: "transition/color-wipe/direction", value: "Up")
try engine.block.setColor(
  colorWipe,
  property: "transition/color-wipe/color",
  color: .rgba(r: 1, g: 1, b: 1, a: 1),
)

Removing from a clip without an assigned transition is a no-op.

Transition Types#

createTransition(_:) takes a TransitionType. Its rawValue is the longhand ID—//ly.img.ubq/transition/cross-fade for .crossFade—and the short form of that ID is what the property keys are built from. TransitionType conforms to CaseIterable, so you can enumerate every type to build a picker.

  • Blends: .crossFade, .crossBlur, .crossSpin, .crossZoom, .crossWarp
  • Movement: .push, .slide, .stack, .splice, .diagonalSplice
  • Fades: .fade, .fadeToBlack, .fadeToWhite, .gradientFade
  • Wipes: .wipe, .lineWipe, .clockWipe, .colorWipe
  • Patterns: .chop, .twoStripes
  • None: .none

Troubleshooting#

Transition Has No Visible Effect#

Check that both clips sit next to each other on the same track and that the playhead is inside the overlap window. The overlap starts at the incoming clip’s time offset and ends at the outgoing clip’s end.

setTransition Throws#

Verify supportsTransition(_:) returns true for both the outgoing and the incoming clip, and that the transition block isn’t already assigned to another clip. The outgoing clip also needs a clip following it on the same track, and the call requires the appearance/animation scope.

Transition Disappeared#

The engine destroys an assigned transition when the owning clip is destroyed, or when the two clips stop being timeline-adjacent. Adjacency only breaks on a track you manage yourself: a track keeps its children packed while track/automaticallyManageBlockOffsets is true, which is the default.

Transition Plays Shorter Than Requested#

The effective duration is clamped to half of either neighboring clip’s duration. Shorten the transition or lengthen the clips.

API Reference#

Methods#

Method Description
engine.block.createTransition(_:) Create a standalone transition block of a TransitionType
engine.block.supportsTransition(_:) Check whether a clip can own an outgoing transition
engine.block.setTransition(_:transition:) Assign the outgoing transition of a clip
engine.block.getTransition(_:) Get the assigned transition, or an invalid block when unset
engine.block.removeTransition(_:) Detach the outgoing transition of a clip
engine.block.setDuration(_:duration:) Set clip or transition duration in seconds
engine.block.getTimeOffset(_:) Get a clip’s timeline start
engine.block.findAllProperties(_:) List the properties a transition exposes
engine.block.getEnumValues(ofProperty:) List the accepted values of an enum property
engine.block.isValid(_:) Check a getTransition(_:) result
engine.block.destroy(_:) Destroy a detached transition block

Properties#

Property Type Description
transition/{type}/direction Enum Direction of a directional transition
transition/{type}/morph Bool Interpolate position, rotation, scale, and shape between the clips
transition/color-wipe/color Color Color of the wipe
transition/cross-spin/intensity Float Strength of the spin
transition/cross-warp/zoom Float Zoom applied while warping
