Dual Camera

Dual Camera mode records the front and back cameras at the same time into two synchronized clips. Capture the subject and the person filming in one session, then arrange the clips in the editor as a split screen, picture-in-picture, or any custom layout.

6 mins
estimated time
GitHub

Dual Camera mode is a camera workflow. For adding the camera to your app, presenting it, and the Info.plist permission keys it requires, see Integrate Mobile Camera; for the full set of camera options, see Mobile Camera Configuration.

The example also uses two small helpers the iOS guides repository ships: ModalEditor.swift — a wrapper around fullScreenCover — and Secrets.swift, which supplies secrets.licenseKey. Substitute your own presentation and license-key plumbing — neither is part of the CE.SDK shipped to customers.

When to Use It#

Choose Dual Camera mode when both perspectives are part of the story:

  • Interviews, podcasts, and conversations where both participants should be visible
  • Reaction content during live events, like filming a concert while capturing the audience
  • Vlogs and narrated tutorials that show both the subject and the presenter

It is not the right fit when:

  • A single selfie or back-camera clip is enough — use the default Standard mode
  • A base video should play back while the user records — use Record Reaction mode
  • You expect one pre-composited side-by-side file — Dual Camera returns two clips, and you compose them in the editor

Check Device Support#

Simultaneous front-and-back capture requires multi-camera hardware. Older iPhones and the iOS Simulator don’t support it — launching the camera with .dualCamera on such a device prints a console warning and falls back to .standard mode. Check Camera.isModeSupported(_:) before presenting the camera so your UI can branch on the result. The example hides the dual-camera entry point on unsupported devices instead of letting the session silently downgrade:

if Camera.isModeSupported(.dualCamera()) {
  Button("Record with Dual Camera") {
    isCameraPresented = true
  }
} else {
  Text("Dual Camera isn't supported on this device.")
}

Launch the Camera#

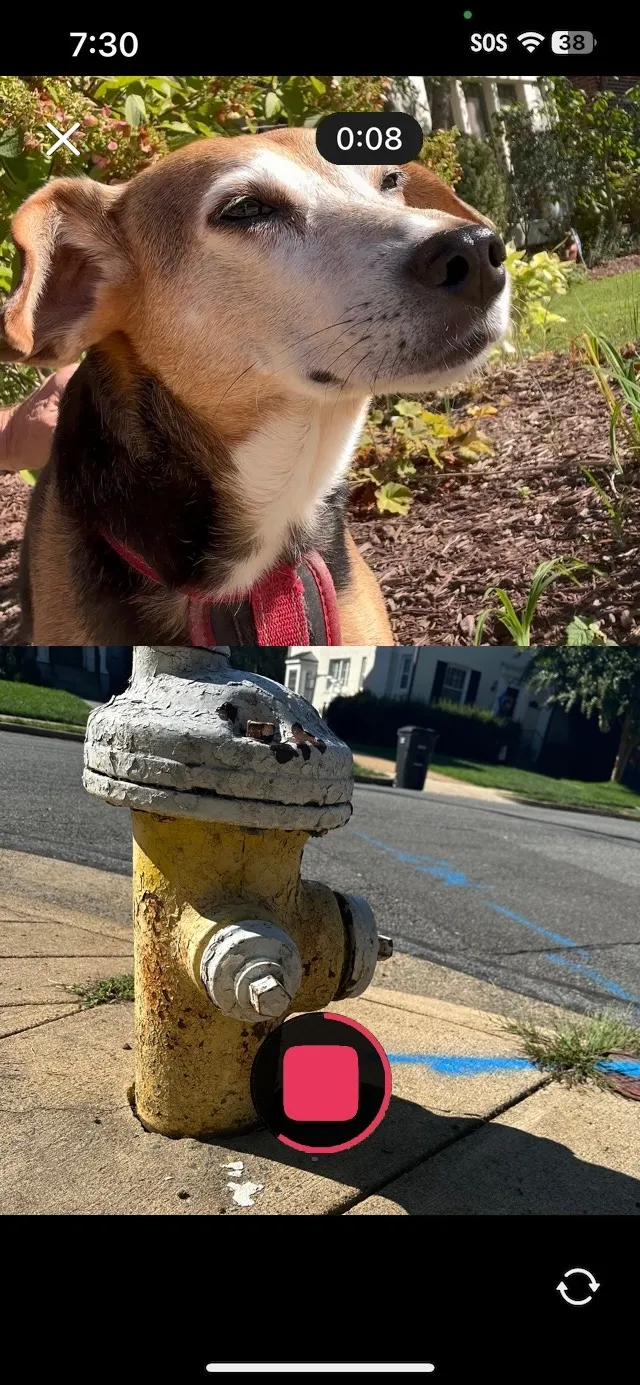

Initialize Camera with mode: .dualCamera(.vertical) to stack the two preview windows on top of each other, or .dualCamera(.horizontal) to place them side by side. The example also passes CameraConfiguration(allowModeSwitching: false) to lock the camera into the launched mode — users can still switch between the vertical and horizontal layouts from the camera’s features menu, but can’t exit to Standard mode. With the default true, the features menu also offers mode switching.

Camera(
  EngineSettings(license: secrets.licenseKey, userID: "<your unique user id>"),
  config: CameraConfiguration(allowModeSwitching: false),
  mode: .dualCamera(.vertical),
) { cameraResult in

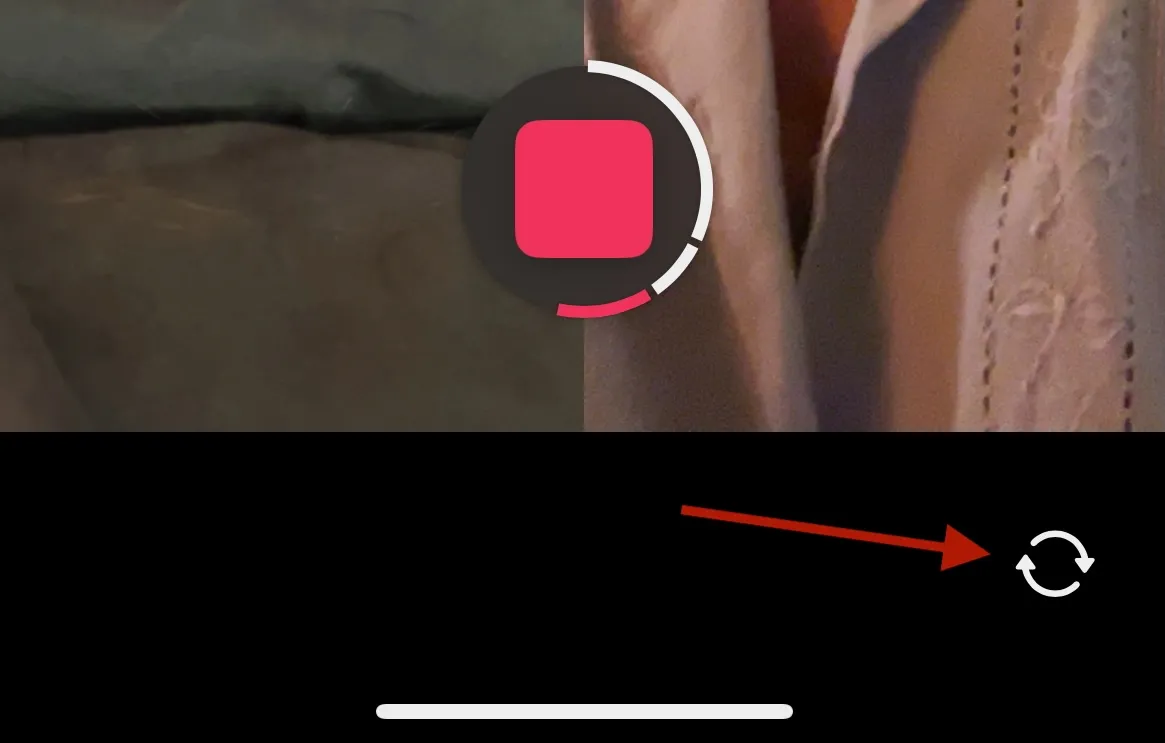

The two preview rectangles aren’t permanently bound to the front or back camera. Tapping the flip button swaps the feeds shown in each rectangle, but the rectangles keep their identity — a flip during recording is part of the resulting clip.

Handle the Result#

When the user finishes, the onDismiss closure receives a Result<CameraResult, CameraError>. On success, a dual-camera session returns .capture([Capture]) with one Capture per shutter press. Store the CameraResult and hand it to the editor in the next step; handle .cancelled and other failures separately.

switch cameraResult {
case let .success(value):
  dualCameraResult = DualCameraResult(result: value)
  isCameraPresented = false


case let .failure(error) where error == .cancelled:
  isCameraPresented = false


case let .failure(error):
  print(error.localizedDescription)
  isCameraPresented = false
}

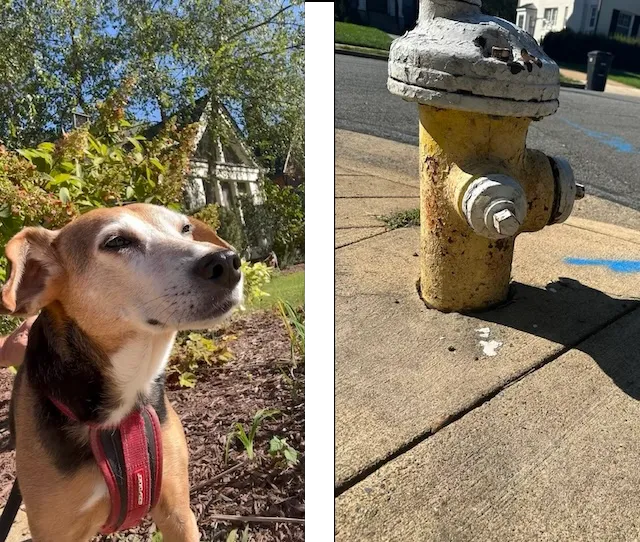

Dual Camera records video, so each Capture is a .video(Recording) — the [Capture].videos helper extracts them as [Recording]. Each Recording carries two Recording.Video entries, one per camera feed, each with the clip’s file url and the rect it occupied in the camera’s 1080×1920 canvas. The preview windows crop each feed to fit the on-screen layout, while the recorded clips contain the full camera frames, time-synced so they align in the editor.

The returned URLs point at temporary files, so copy them to an app-managed location if you keep them beyond the current workflow — see Access Recordings. To capture stills instead, set captureType: .photo in the CameraConfiguration; dual-camera photos arrive as .photo(Photo) captures whose Photo.images array holds one image per feed, as covered in Access Photos.

Open the Recordings in the Editor#

engine.createScene(from:) — an IMGLYCamera extension on Engine — takes the stored CameraResult and builds an editable video scene from it. It places the first feed of each recording on the scene’s background track and the second feed on a parallel track, positions every clip using the rect of its Recording.Video, and chains multiple recordings end to end. A vertical capture lands as a top/bottom layout, a horizontal capture side by side. Call it from your editor configuration’s onCreate callback:

try await engine.createScene(from: dualCameraResult.result)

Custom Scene Construction#

When you need a different composition — picture-in-picture, an overlaid feed, an animated split — build the scene yourself with IMGLYEngine APIs instead of calling engine.createScene(from:). The helper below extracts the recordings with captures.videos, seeds the scene with the first feed, sizes the page to the union of both feed rects, and adds the remaining feed as a .graphic block with a video fill on top. Change the rect you pass to setFrame to position a feed anywhere — for picture-in-picture, scale and offset the second feed’s rect into a corner.

@MainActor
private func buildDualCameraSceneManually(engine: Engine, result: CameraResult) async throws {
  guard case let .capture(captures) = result else { return }
  let recordings = captures.videos
  guard
    let firstRecording = recordings.first,
    let firstVideo = firstRecording.videos.first
  else {
    return
  }


  try await engine.scene.create(fromVideo: firstVideo.url)


  guard let page = try engine.scene.getCurrentPage() else { return }
  let sceneFrame = firstRecording.videos
    .map(\.rect)
    .reduce(CGRect.null) { $0.union($1) }
  try setFrame(engine: engine, designBlock: page, rect: sceneFrame)


  guard let firstBlock = try engine.block.find(byType: .graphic).first else { return }
  try setFrame(engine: engine, designBlock: firstBlock, rect: firstVideo.rect)
  try engine.block.setDuration(firstBlock, duration: firstRecording.duration.seconds)


  for video in firstRecording.videos.dropFirst() {
    let block = try engine.block.create(.graphic)
    let shape = try engine.block.createShape(.rect)
    try engine.block.setShape(block, shape: shape)
    try setFrame(engine: engine, designBlock: block, rect: video.rect)


    let fill = try engine.block.createFill(.video)
    try engine.block.setURL(fill, property: "fill/video/fileURI", value: video.url)
    try engine.block.setFill(block, fill: fill)


    try engine.block.setDuration(block, duration: firstRecording.duration.seconds)
    try engine.block.appendChild(to: page, child: block)
  }
}

The setFrame helper maps a rect the camera returns to CE.SDK block size and position. engine.block.setWidth(_:value:), setHeight(_:value:), setPositionX(_:value:), and setPositionY(_:value:) accept Float values, so cast each CGFloat before passing it in.

@MainActor
private func setFrame(engine: Engine, designBlock: DesignBlockID, rect: CGRect) throws {
  try engine.block.setWidth(designBlock, value: Float(rect.width))
  try engine.block.setHeight(designBlock, value: Float(rect.height))
  try engine.block.setPositionX(designBlock, value: Float(rect.minX))
  try engine.block.setPositionY(designBlock, value: Float(rect.minY))
}

The helper lays out a single recording. For multi-segment sessions, or when each feed should sit on its own timeline track for independent trimming, engine.createScene(from:) already handles both.

API Reference#

Methods#

Method Description
Camera.isModeSupported(_:) Returns true if the current device supports the given CameraMode; .dualCamera requires multi-camera hardware
Camera(_:config:mode:onDismiss:) Present the Mobile Camera; pass mode: .dualCamera(.vertical) or .dualCamera(.horizontal) to record both feeds
CameraConfiguration(allowModeSwitching:captureType:) Camera options; allowModeSwitching: false locks the camera into the launched mode and captureType: .photo switches to still capture
Engine.createScene(from:) IMGLYCamera extension on Engine that builds a video scene from a CameraResult, laying out clips using each Recording.Video’s rect
engine.scene.create(fromVideo:) Creates a video scene seeded with a single clip; the custom construction path starts from it

Result Types#

Type Description
CameraResult.capture([Capture]) The captures a session produces, one per shutter press
Capture.video(Recording) A video capture; the [Capture].videos helper extracts all of them as [Recording]
Recording One recorded segment; holds its duration and, in Dual Camera mode, two Recording.Video entries
Recording.Video One camera feed’s clip; holds the file url and the rect it occupies in the 1080×1920 canvas
