Replace specific colors with transparency using CE.SDK’s green screen effect for video compositing and virtual background applications.

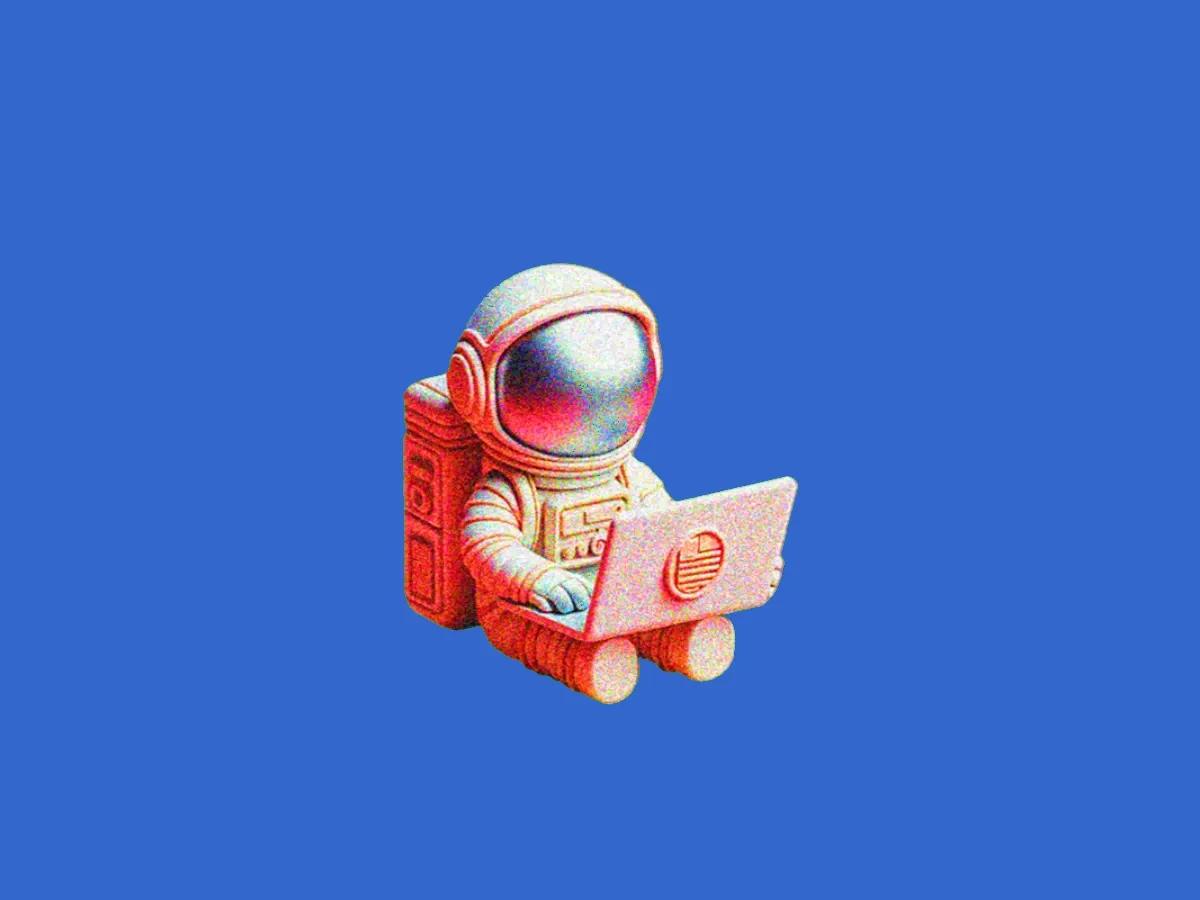

An astronaut subject composited over a solid blue background after the green backdrop of the source frame was keyed out with the green screen effect

8 mins

estimated time

GitHub

The green screen effect (chroma key) replaces a specified color with transparency, enabling compositing workflows where foreground subjects appear over different backgrounds. While green is the most common key color due to its contrast with skin tones, the effect works with any solid color—blue screens, white backgrounds, or custom colors. CE.SDK processes chroma keying in real-time using GPU-accelerated shaders.

This guide covers how to apply the green screen effect programmatically, configure color selection and keying parameters, composite with background layers, and manage effects on blocks. The example applies the effect to a graphic block whose image fill holds a frame of green-screen footage — a subject in front of a uniform green backdrop — and keys out the backdrop.

Apply the Green Screen Effect#

Create a green screen effect instance with createEffect(_:) and attach it to a block with appendEffect(_:effectID:), which adds the effect to the block’s effect list. The effect immediately processes the target color, making matching pixels transparent.

let greenScreenEffect = try engine.block.createEffect(.greenScreen)
try engine.block.appendEffect(imageBlock, effectID: greenScreenEffect)

imageBlock is the example’s graphic block with an image fill; the same calls work on the block types that support effects — graphic blocks and pages. Video content also lives on a graphic block, with a video fill instead of an image fill, so the same workflow applies.

Configure Color Selection#

The green screen effect targets a specific color to key out. Set this color using setColor(_:property:color:) with the effect/green_screen/fromColor property. The effect defaults to pure green, and the color’s alpha channel is ignored.

try engine.block.setColor(
  greenScreenEffect,
  property: "effect/green_screen/fromColor",
  color: .rgba(r: 0, g: 0.8, b: 0.25, a: 1),
)

The example sets the key color to the exact green of its footage’s backdrop. For blue screen footage, set the color to blue instead — any solid color works. Match the exact color you want to remove for best results.

Adjust Color Matching Tolerance#

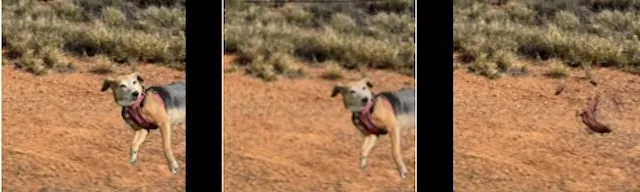

The colorMatch parameter controls how closely pixels must match the target color to be keyed out. Adjust it with setFloat(_:property:value:).

try engine.block.setFloat(greenScreenEffect, property: "effect/green_screen/colorMatch", value: 0.26)

Higher values (closer to 1.0) key out a wider range of similar colors, which is useful for footage with uneven lighting or color variations in the background. Lower values create more precise keying for well-lit footage with uniform backgrounds. The parameter ranges from 0.0 to 1.0 and defaults to 0.4.

Control Edge Smoothness#

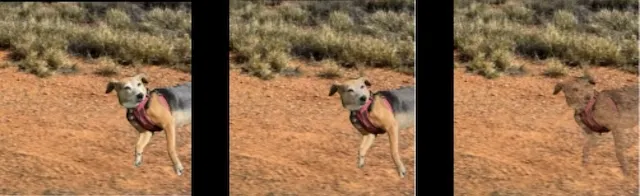

The smoothness parameter controls the transition between opaque and transparent areas. This affects how sharp or soft the edges appear around keyed subjects.

try engine.block.setFloat(greenScreenEffect, property: "effect/green_screen/smoothness", value: 0.15)

Higher smoothness values create softer edges that blend naturally with new backgrounds, reducing harsh outlines. Lower values produce sharper edges, which may be preferable for high-contrast composites or when preserving fine detail.

Remove Color Spill#

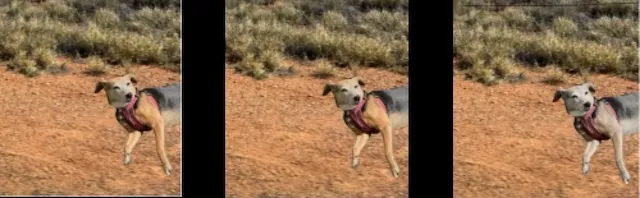

Color spill occurs when the key color reflects onto the foreground subject, creating a green or blue tint on edges. The spill parameter desaturates the remaining traces of the key color.

try engine.block.setFloat(greenScreenEffect, property: "effect/green_screen/spill", value: 0.4)

Increase the spill value when you notice the key color appearing on subject edges or reflective surfaces. This is common with shiny hair, glasses, or metallic objects near the screen. Spill removal is off by default (0.0).

Composite with Background Layers#

After keying, layer the transparent content over backgrounds using block ordering. Create a background block and use sendToBack(_:) to place it behind the keyed image.

let backgroundBlock = try engine.block.create(.graphic)
try engine.block.setShape(backgroundBlock, shape: engine.block.createShape(.rect))
let backgroundFill = try engine.block.createFill(.color)
try engine.block.setColor(
  backgroundFill,
  property: "fill/color/value",
  color: .rgba(r: 0.2, g: 0.4, b: 0.8, a: 1),
)
try engine.block.setFill(backgroundBlock, fill: backgroundFill)
try engine.block.setWidth(backgroundBlock, value: 800)
try engine.block.setHeight(backgroundBlock, value: 600)
try engine.block.setPositionX(backgroundBlock, value: 0)
try engine.block.setPositionY(backgroundBlock, value: 0)
try engine.block.appendChild(to: page, child: backgroundBlock)
try engine.block.sendToBack(backgroundBlock)
try engine.block.bringToFront(imageBlock)

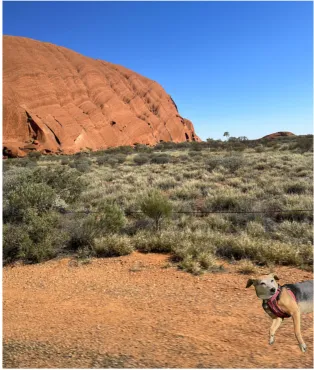

The background appears through the transparent areas where the key color was removed. You can use image or video fills instead of solid colors for more dynamic backgrounds.

Toggle the Effect#

Check whether an effect is enabled using isEffectEnabled(effectID:).

let isEnabled = try engine.block.isEffectEnabled(effectID: greenScreenEffect)
print("Green screen effect enabled: \(isEnabled)")

To toggle the effect on or off, use setEffectEnabled(effectID:enabled:). This preserves the effect configuration while temporarily removing its visual impact — here the effect is flipped relative to the state read above.

try engine.block.setEffectEnabled(effectID: greenScreenEffect, enabled: !isEnabled)

Toggling effects is useful for before/after comparisons or conditional processing without removing and recreating the effect.

Manage the Effect#

Beyond toggling, you can query, remove, and clean up effects. Use supportsEffects(_:) to check if a block can have effects, getEffects(_:) to list all applied effects, removeEffect(_:index:) to detach an effect from a block, and destroy(_:) to free the effect’s resources.

let blockSupportsEffects = try engine.block.supportsEffects(imageBlock)
print("Block supports effects: \(blockSupportsEffects)")

let effects = try engine.block.getEffects(imageBlock)
print("Number of effects: \(effects.count)")

if let effectIndex = effects.firstIndex(of: greenScreenEffect) {
  try engine.block.removeEffect(imageBlock, index: effectIndex)
}
try engine.block.destroy(greenScreenEffect)

When removing an effect, find its position in the list returned by getEffects(_:) and pass that index to removeEffect(_:index:). Removing an effect detaches it from the block but keeps the instance alive — call destroy(_:) on the effect to release its resources.

Troubleshooting#

Keying Results Appear Rough or Incomplete#

Increase the colorMatch value to capture more color variations
Ensure source footage has even lighting on the screen
Check that the target color accurately matches the screen color

Edges Have Color Fringing#

Increase the spill value to remove color cast
Adjust smoothness to soften hard edges
Increase colorMatch if the fringe consists of leftover key-color pixels that fall just outside the matching threshold

Transparent Areas Appear in Wrong Places#

Decrease colorMatch to be more selective about which colors are keyed
Verify the fromColor matches only the intended background color
Check that foreground subjects don’t contain colors similar to the key color

API Reference#

Methods#

Method	Description
`engine.block.createEffect(_:)`	Create an effect instance from an `EffectType` such as `.greenScreen`
`engine.block.appendEffect(_:effectID:)`	Add an effect to the end of a block’s effect list
`engine.block.setColor(_:property:color:)`	Set the color to key out
`engine.block.setFloat(_:property:value:)`	Set a keying parameter such as tolerance, smoothness, or spill
`engine.block.isEffectEnabled(effectID:)`	Check whether an effect is enabled
`engine.block.setEffectEnabled(effectID:enabled:)`	Enable or disable an effect
`engine.block.supportsEffects(_:)`	Check whether a block supports effects
`engine.block.getEffects(_:)`	Get all effects applied to a block
`engine.block.removeEffect(_:index:)`	Remove the effect at the given position from a block
`engine.block.destroy(_:)`	Destroy an effect instance

Properties#

Property	Type	Description
`effect/green_screen/fromColor`	Color	The color to replace with transparency; defaults to pure green, alpha is ignored
`effect/green_screen/colorMatch`	Float	Color matching tolerance (`0.0`–`1.0`, default `0.4`)
`effect/green_screen/smoothness`	Float	Edge smoothness (`0.0`–`1.0`, default `0.08`)
`effect/green_screen/spill`	Float	Spill removal intensity (`0.0`–`1.0`, default `0.0`)

Next Steps#

Apply a Filter or Effect — Apply, configure, stack, and manage filters and effects with the Engine API.
Blur Effects — Soften backgrounds and create depth with the blur API.
Duotone — Map image tones to two colors for stylized or vintage treatments.
