Notifications and Dialogs - Vue

Display notifications and dialogs to communicate with users during the editing experience using CE.SDK’s UI API.

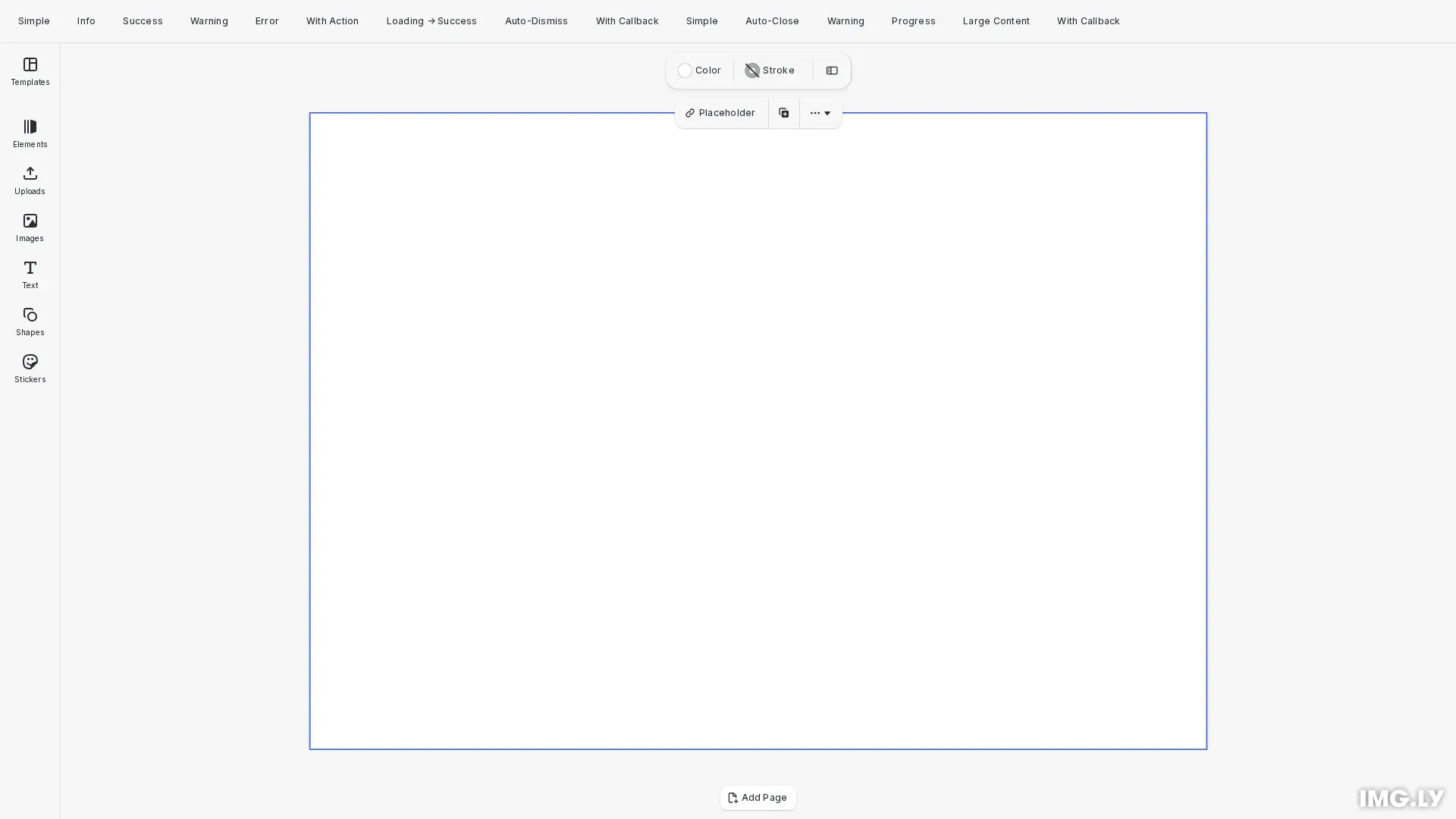

Notifications and Dialogs example showing the CE.SDK editor with notification and dialog UI

10 mins

estimated time

Notifications and dialogs are essential for communicating with users during the editing experience. Notifications appear as temporary, non-blocking messages at the edge of the editor for status updates and feedback. Dialogs are modal overlays that interrupt the workflow to present information or collect user decisions. Both are created and controlled through the cesdk.ui API.

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';
import packageJson from './package.json';

class Example implements EditorPlugin {
  name = packageJson.name;
  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    // Load assets and create scene
    await cesdk.addDefaultAssetSources();
    await cesdk.addDemoAssetSources({
      sceneMode: 'Design',
      withUploadAssetSources: true
    });

    // Use cesdk convenience method - automatically handles zoom
    await cesdk.createDesignScene();

    // Register a notifications dropdown in the navigation bar
    cesdk.ui.registerComponent(
      'ly.img.notifications.demo.navigationBar',
      ({ builder }) => {
        // Display a simple notification with a string message
        builder.Button('simple-notification', {
          label: 'Simple',
          onClick: () => {
            cesdk.ui.showNotification('Welcome to CE.SDK!');
          }
        });

        // Display notifications with different types
        builder.Button('info-notification', {
          label: 'Info',
          onClick: () => {
            cesdk.ui.showNotification({
              message: 'This is an info notification',
              type: 'info'
            });
          }
        });

        builder.Button('success-notification', {
          label: 'Success',
          onClick: () => {
            cesdk.ui.showNotification({
              message: 'Operation completed successfully',
              type: 'success'
            });
          }
        });

        builder.Button('warning-notification', {
          label: 'Warning',
          onClick: () => {
            cesdk.ui.showNotification({
              message: 'Please check your input',
              type: 'warning'
            });
          }
        });

        builder.Button('error-notification', {
          label: 'Error',
          onClick: () => {
            cesdk.ui.showNotification({
              message: 'Something went wrong',
              type: 'error'
            });
          }
        });

        // Add an action button to a notification
        builder.Button('action-notification', {
          label: 'With Action',
          onClick: () => {
            cesdk.ui.showNotification({
              message: 'New template available',
              type: 'info',
              duration: 'long',
              action: {
                label: 'View',
                onClick: ({ id }) => {
                  console.log('Action clicked on notification:', id);
                  cesdk.ui.dismissNotification(id);
                }
              }
            });
          }
        });

        // Create a loading notification that updates to success
        builder.Button('loading-notification', {
          label: 'Loading → Success',
          onClick: () => {
            const loadingId = cesdk.ui.showNotification({
              message: 'Processing your request...',
              type: 'loading',
              duration: 'infinite'
            });

            // Simulate async operation completing
            setTimeout(() => {
              cesdk.ui.updateNotification(loadingId, {
                type: 'success',
                message: 'Processing complete!',
                duration: 'medium'
              });
            }, 2000);
          }
        });

        // Show a notification that can be dismissed
        builder.Button('dismiss-notification', {
          label: 'Auto-Dismiss',
          onClick: () => {
            const notificationId = cesdk.ui.showNotification({
              message: 'This will be dismissed in 2 seconds',
              type: 'info',
              duration: 'infinite'
            });

            setTimeout(() => {
              cesdk.ui.dismissNotification(notificationId);
            }, 2000);
          }
        });

        // Handle notification dismiss events
        builder.Button('ondismiss-notification', {
          label: 'With Callback',
          onClick: () => {
            cesdk.ui.showNotification({
              message: 'Dismiss me to see the callback',
              type: 'info',
              duration: 'long',
              onDismiss: () => {
                console.log('Notification was dismissed');
              }
            });
          }
        });
      }
    );

    // Register a dialogs dropdown in the navigation bar
    cesdk.ui.registerComponent(
      'ly.img.dialogs.demo.navigationBar',
      ({ builder }) => {
        // Display a simple dialog with a string message
        builder.Button('simple-dialog', {
          label: 'Simple',
          onClick: () => {
            cesdk.ui.showDialog('This is a simple dialog message');
          }
        });

        // Show a dialog and close it programmatically
        builder.Button('close-dialog', {
          label: 'Auto-Close',
          onClick: () => {
            const dialogId = cesdk.ui.showDialog(
              'This dialog will close in 2 seconds'
            );
            setTimeout(() => {
              cesdk.ui.closeDialog(dialogId);
            }, 2000);
          }
        });

        // Display a warning dialog with actions
        builder.Button('warning-dialog', {
          label: 'Warning',
          onClick: () => {
            cesdk.ui.showDialog({
              type: 'warning',
              content: {
                title: 'Unsaved Changes',
                message:
                  'You have unsaved changes. Do you want to save before leaving?'
              },
              actions: [
                {
                  label: 'Save',
                  color: 'accent',
                  onClick: ({ id }) => {
                    console.log('Save clicked');
                    cesdk.ui.closeDialog(id);
                  }
                },
                {
                  label: "Don't Save",
                  variant: 'plain',
                  onClick: ({ id }) => {
                    console.log('Discard clicked');
                    cesdk.ui.closeDialog(id);
                  }
                }
              ],
              cancel: {
                label: 'Cancel',
                onClick: ({ id }) => cesdk.ui.closeDialog(id)
              }
            });
          }
        });

        // Create a loading dialog with progress indicator
        builder.Button('progress-dialog', {
          label: 'Progress',
          onClick: () => {
            const progressDialogId = cesdk.ui.showDialog({
              type: 'loading',
              content: {
                title: 'Exporting',
                message: 'Preparing your export...'
              },
              progress: 'indeterminate',
              clickOutsideToClose: false
            });

            // Simulate progress updates
            let progress = 0;
            const progressInterval = setInterval(() => {
              progress += 20;
              cesdk.ui.updateDialog(progressDialogId, {
                progress: { value: progress, max: 100 },
                content: {
                  title: 'Exporting',
                  message: `Processing... ${progress}%`
                }
              });

              if (progress >= 100) {
                clearInterval(progressInterval);
                cesdk.ui.updateDialog(progressDialogId, {
                  type: 'success',
                  content: {
                    title: 'Export Complete',
                    message: 'Your file has been exported successfully.'
                  },
                  progress: undefined,
                  actions: [
                    {
                      label: 'Done',
                      color: 'accent',
                      onClick: ({ id }) => cesdk.ui.closeDialog(id)
                    }
                  ],
                  clickOutsideToClose: true
                });
              }
            }, 500);
          }
        });

        // Dialog with multi-paragraph content and large size
        builder.Button('content-dialog', {
          label: 'Large Content',
          onClick: () => {
            cesdk.ui.showDialog({
              type: 'info',
              size: 'large',
              content: {
                title: 'About This Feature',
                message: [
                  'Notifications and dialogs help communicate with users during the editing workflow.',
                  'Use notifications for non-blocking feedback and dialogs for important decisions.'
                ]
              },
              actions: [
                {
                  label: 'Got It',
                  color: 'accent',
                  onClick: ({ id }) => cesdk.ui.closeDialog(id)
                }
              ]
            });
          }
        });

        // Handle dialog close events
        builder.Button('onclose-dialog', {
          label: 'With Callback',
          onClick: () => {
            cesdk.ui.showDialog({
              type: 'info',
              content: 'Close this dialog to see the callback',
              onClose: () => {
                console.log('Dialog was closed');
              }
            });
          }
        });
      }
    );

    // Add the demo dropdowns to the navigation bar
    cesdk.ui.setNavigationBarOrder([
      'ly.img.navigationBar.position.left',
      'ly.img.navigationBar.position.center',
      'ly.img.navigationBar.position.right',
      'ly.img.notifications.demo.navigationBar',
      'ly.img.dialogs.demo.navigationBar'
    ]);
  }
}

export default Example;

Displaying Notifications#

Notifications provide non-blocking feedback without interrupting the user’s workflow. They appear in the lower right corner of the editor and automatically dismiss after a set duration.

Creating Notifications#

Use cesdk.ui.showNotification() to display a notification. Pass a string for a simple message or a configuration object for full control. The method returns a unique ID for managing the notification.

cesdk.ui.showNotification('Welcome to CE.SDK!');

Notification Types#

Configure the visual appearance with the type property. Available types convey different levels of importance:

info — General information (default)
success — Positive confirmations
warning — Cautions requiring attention
error — Errors or failures
loading — Operations in progress with a spinner

cesdk.ui.showNotification({
  message: 'This is an info notification',
  type: 'info'
});

Notification Duration#

Control how long notifications remain visible using the duration property:

short — Brief display for quick updates
medium — Standard duration (default)
long — Extended display for important messages
infinite — Persists until dismissed programmatically
A number for custom millisecond duration

Adding Actions to Notifications#

Include an action object to add a clickable button. The action’s onClick callback receives an object with the notification ID, allowing self-dismissal or other operations.

cesdk.ui.showNotification({
  message: 'New template available',
  type: 'info',
  duration: 'long',
  action: {
    label: 'View',
    onClick: ({ id }) => {
      console.log('Action clicked on notification:', id);
      cesdk.ui.dismissNotification(id);
    }
  }
});

Loading Notifications#

For operations with unknown completion time, create a loading notification with infinite duration. Update or dismiss it when the operation completes.

const loadingId = cesdk.ui.showNotification({
  message: 'Processing your request...',
  type: 'loading',
  duration: 'infinite'
});

Updating Notifications#

Modify an existing notification with cesdk.ui.updateNotification(). Pass the ID and a partial notification object with updated properties. This is useful for changing a loading notification to a success message when an operation completes.

cesdk.ui.updateNotification(loadingId, {
  type: 'success',
  message: 'Processing complete!',
  duration: 'medium'
});

Dismissing Notifications#

Use cesdk.ui.dismissNotification() with the notification ID to remove it programmatically. This is useful for canceling loading notifications when operations complete or when you need to clear notifications based on user actions.

const notificationId = cesdk.ui.showNotification({
  message: 'This will be dismissed in 2 seconds',
  type: 'info',
  duration: 'infinite'
});

setTimeout(() => {
  cesdk.ui.dismissNotification(notificationId);
}, 2000);

Handling Dismiss Callbacks#

Use the onDismiss callback to execute code when a notification is dismissed, whether by timeout, user action, or programmatic dismissal.

cesdk.ui.showNotification({
  message: 'Dismiss me to see the callback',
  type: 'info',
  duration: 'long',
  onDismiss: () => {
    console.log('Notification was dismissed');
  }
});

Displaying Dialogs#

Dialogs present modal content requiring user attention or decisions. They overlay the editor and block interaction until dismissed.

Creating Dialogs#

Use cesdk.ui.showDialog() to display a dialog. Pass a string for a simple message or a configuration object for full control. The method returns a unique ID for managing the dialog.

cesdk.ui.showDialog('This is a simple dialog message');

Closing Dialogs#

Use cesdk.ui.closeDialog() with the dialog ID to close it programmatically.

const dialogId = cesdk.ui.showDialog(
  'This dialog will close in 2 seconds'
);
setTimeout(() => {
  cesdk.ui.closeDialog(dialogId);
}, 2000);

Dialog Types and Actions#

Configure the visual style with the type property. Available types are regular (default), info, success, warning, error, and loading. Add action buttons with the actions array and a cancel button with the cancel property.

cesdk.ui.showDialog({
  type: 'warning',
  content: {
    title: 'Unsaved Changes',
    message:
      'You have unsaved changes. Do you want to save before leaving?'
  },
  actions: [
    {
      label: 'Save',
      color: 'accent',
      onClick: ({ id }) => {
        console.log('Save clicked');
        cesdk.ui.closeDialog(id);
      }
    },
    {
      label: "Don't Save",
      variant: 'plain',
      onClick: ({ id }) => {
        console.log('Discard clicked');
        cesdk.ui.closeDialog(id);
      }
    }
  ],
  cancel: {
    label: 'Cancel',
    onClick: ({ id }) => cesdk.ui.closeDialog(id)
  }
});

Each action object includes:

label — Button text
variant — regular (default) or plain for a text-only button
color — accent for primary actions or danger for destructive actions
onClick — Callback receiving the dialog ID for closing or other operations

Progress Indicators#

Display progress in loading dialogs with the progress property:

indeterminate — For unknown duration
A number (0-100) — For percentage progress
An object with value and max — For custom progress ranges

const progressDialogId = cesdk.ui.showDialog({
  type: 'loading',
  content: {
    title: 'Exporting',
    message: 'Preparing your export...'
  },
  progress: 'indeterminate',
  clickOutsideToClose: false
});

Updating Dialogs#

Modify an existing dialog with cesdk.ui.updateDialog(). Pass the ID and a partial dialog object. This is useful for updating progress indicators or changing dialog content during operations.

cesdk.ui.updateDialog(progressDialogId, {
  progress: { value: progress, max: 100 },
  content: {
    title: 'Exporting',
    message: `Processing... ${progress}%`
  }
});

Dialog Content#

Set content as a string for simple messages or an object with title and message properties. The message can be a string or an array of strings for multiple paragraphs. Use the size property to control dialog dimensions (regular or large).

cesdk.ui.showDialog({
  type: 'info',
  size: 'large',
  content: {
    title: 'About This Feature',
    message: [
      'Notifications and dialogs help communicate with users during the editing workflow.',
      'Use notifications for non-blocking feedback and dialogs for important decisions.'
    ]
  },
  actions: [
    {
      label: 'Got It',
      color: 'accent',
      onClick: ({ id }) => cesdk.ui.closeDialog(id)
    }
  ]
});

Handling Close Callbacks#

Use the onClose callback to execute cleanup code when a dialog closes, whether by action, cancel, clicking outside, or programmatic closure.

cesdk.ui.showDialog({
  type: 'info',
  content: 'Close this dialog to see the callback',
  onClose: () => {
    console.log('Dialog was closed');
  }
});

Click Outside Behavior#

Control whether clicking outside the dialog closes it with the clickOutsideToClose property. It defaults to true. Set to false for mandatory interactions like loading dialogs.

Troubleshooting#

Notification Not Visible#

Verify the notification was created with a valid message string or configuration object. Check that the duration hasn’t expired before you could observe it. Ensure the editor UI is properly initialized before calling notification methods.

Dialog Not Closing#

Confirm you’re calling cesdk.ui.closeDialog() with the correct dialog ID. Check that action callbacks properly close the dialog. If clickOutsideToClose is false, ensure an action or cancel button is provided.

Callback Not Firing#

Ensure the callback function is properly defined in the notification or dialog configuration. Verify the notification or dialog hasn’t already been dismissed before the callback could fire. Check for JavaScript errors in callback code.

Progress Not Updating#

Confirm you’re using cesdk.ui.updateDialog() with the correct dialog ID. Verify the progress value is in the expected format (number, indeterminate, or object with value and max).

API Reference#

Method	Description
`cesdk.ui.showNotification()`	Display a non-blocking notification
`cesdk.ui.dismissNotification()`	Remove a notification by ID
`cesdk.ui.updateNotification()`	Update notification content or properties
`cesdk.ui.showDialog()`	Display a modal dialog
`cesdk.ui.closeDialog()`	Close a dialog by ID
`cesdk.ui.updateDialog()`	Update dialog content or properties
