URI Resolver - Vue | IMG.LY Docs

Learn how to intercept and transform asset URIs in CE.SDK, enabling authentication and custom resolution logic.

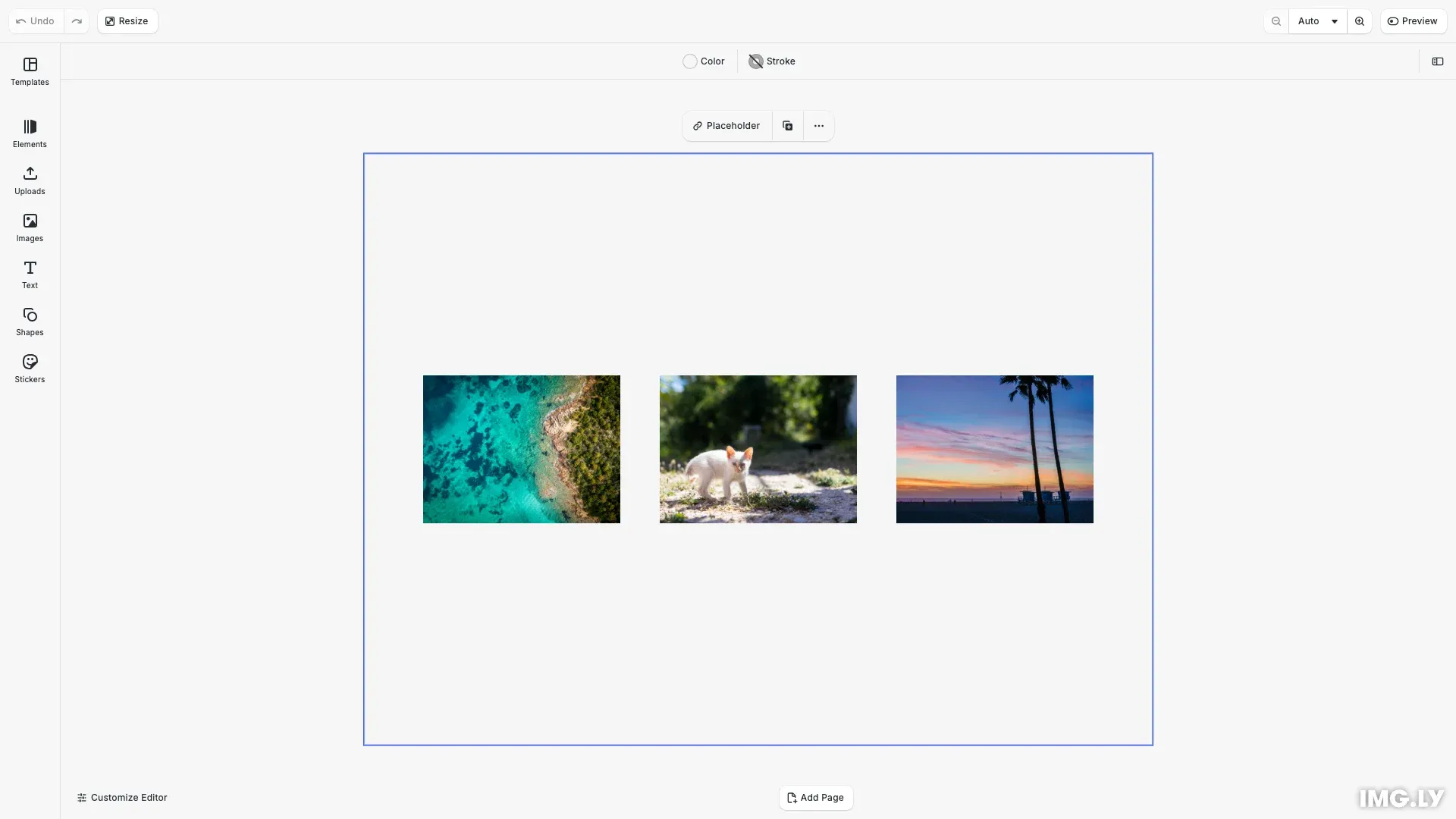

CE.SDK URI Resolver demonstration showing custom resolution behavior

5 mins

estimated time

When CE.SDK loads an asset, it resolves the URI to an absolute path before fetching. You can intercept this process to add authentication tokens or transform URIs based on your application’s needs.

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';
import packageJson from './package.json';

/**
 * CE.SDK Plugin: URI Resolver Guide
 *
 * This example demonstrates:
 * - Understanding default URI resolution behavior
 * - Setting custom URI resolvers
 * - Adding authentication tokens
 * - Removing custom resolvers
 */
class Example implements EditorPlugin {
  name = packageJson.name;

  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    // Create a design scene
    await cesdk.createDesignScene();

    const engine = cesdk.engine;

    // Get the page
    const pages = engine.block.findByType('page');
    const page = pages[0];
    if (!page) {
      throw new Error('No page found');
    }

    // Set page dimensions
    engine.block.setWidth(page, 800);
    engine.block.setHeight(page, 600);

    // Set page background to light gray
    const pageFill = engine.block.getFill(page);
    engine.block.setColor(pageFill, 'fill/color/value', {
      r: 0.96,
      g: 0.96,
      b: 0.96,
      a: 1.0
    });

    // ========================================
    // Section 1: Understanding Default URI Resolution
    // ========================================

    // Test resolution without loading assets
    const relativeURI = '/images/photo.jpg';
    const resolvedURI = engine.editor.getAbsoluteURI(relativeURI);
    // eslint-disable-next-line no-console
    console.log('Default resolution:');
    // eslint-disable-next-line no-console
    console.log(`  Input:  ${relativeURI}`);
    // eslint-disable-next-line no-console
    console.log(`  Output: ${resolvedURI}`);

    // ========================================
    // Section 2: Setting a Custom URI Resolver
    // ========================================

    // Set a custom resolver that transforms specific file types
    engine.editor.setURIResolver((uri, defaultURIResolver) => {
      // Transform JPG files to a watermarked version
      if (uri.endsWith('.jpg')) {
        // eslint-disable-next-line no-console
        console.log(`Custom resolver: Transforming ${uri}`);
        return 'https://img.ly/static/ubq_samples/sample_1.jpg';
      }
      // Use default resolver for all other URIs
      return defaultURIResolver(uri);
    });

    // Test the custom resolver
    // ========================================
    // Section 2: Adding Authentication with JWT Tokens
    // ========================================

    // Pre-generate token BEFORE setting the resolver (must be synchronous)
    const authToken = 'demo-jwt-token-123';

    // Set resolver that adds authentication to specific endpoints
    engine.editor.setURIResolver((uri, defaultURIResolver) => {
      // Only add auth token to URIs pointing to your stable link endpoint
      if (uri.includes('your-server/image-stable-links/')) {
        const authenticatedURI = `${uri}?auth=${authToken}`;
        // eslint-disable-next-line no-console
        console.log(`\nAuth resolver: Adding token to ${uri}`);
        // eslint-disable-next-line no-console
        console.log(`  Result: ${authenticatedURI}`);
        return authenticatedURI;
      }
      // Use default resolver for all other URIs
      return defaultURIResolver(uri);
    });

    // Test authentication with a protected URI
    const protectedURI = 'https://your-server/image-stable-links/abc123';
    engine.editor.getAbsoluteURI(protectedURI);

    // ========================================
    // Section 3: Removing a Custom Resolver
    // ========================================

    // Remove the custom resolver to restore default behavior
    engine.editor.setURIResolver((uri, defaultURIResolver) =>
      defaultURIResolver(uri)
    );
    // eslint-disable-next-line no-console
    console.log('\n✓ Removed custom resolver - back to default behavior');

    // ========================================
    // Visual Demonstration: Load Images
    // ========================================

    // Create a visual demonstration with actual image loading
    // This shows that the resolver affects actual asset loading, not just getAbsoluteURI()

    // Set a simple resolver for the demo
    engine.editor.setURIResolver((uri, defaultURIResolver) => {
      // For this demo, ensure all images resolve to valid URLs
      if (uri.includes('sample')) {
        return uri;
      }
      return defaultURIResolver(uri);
    });

    // Create three image blocks to demonstrate URI resolution in action
    const imageSize = { width: 200, height: 150 };
    const spacing = 40;
    const startX = (800 - (imageSize.width * 3 + spacing * 2)) / 2;
    const startY = (600 - imageSize.height) / 2;

    // Image 1: Standard resolution
    const image1 = await engine.block.addImage(
      'https://img.ly/static/ubq_samples/sample_1.jpg',
      { size: imageSize }
    );
    engine.block.setPositionX(image1, startX);
    engine.block.setPositionY(image1, startY);
    engine.block.appendChild(page, image1);

    // Image 2: Another sample
    const image2 = await engine.block.addImage(
      'https://img.ly/static/ubq_samples/sample_2.jpg',
      { size: imageSize }
    );
    engine.block.setPositionX(image2, startX + imageSize.width + spacing);
    engine.block.setPositionY(image2, startY);
    engine.block.appendChild(page, image2);

    // Image 3: Third sample
    const image3 = await engine.block.addImage(
      'https://img.ly/static/ubq_samples/sample_3.jpg',
      { size: imageSize }
    );
    engine.block.setPositionX(image3, startX + (imageSize.width + spacing) * 2);
    engine.block.setPositionY(image3, startY);
    engine.block.appendChild(page, image3);

    // Zoom to fit all content
    await engine.scene.zoomToBlock(page, {
      padding: {
        left: 40,
        top: 40,
        right: 40,
        bottom: 40
      }
    });

    // eslint-disable-next-line no-console
    console.log('\n✓ URI Resolver guide loaded successfully!');
  }
}

export default Example;

Default URI Resolution#

By default, CE.SDK resolves URIs relative to the basePath setting. Absolute URIs (with http://, https://, data:) pass through unchanged, while relative paths get prepended with basePath.

Use getAbsoluteURI() to test how URIs resolve without loading assets:

// Test resolution without loading assets
const relativeURI = '/images/photo.jpg';
const resolvedURI = engine.editor.getAbsoluteURI(relativeURI);
// eslint-disable-next-line no-console
console.log('Default resolution:');
// eslint-disable-next-line no-console
console.log(`  Input:  ${relativeURI}`);
// eslint-disable-next-line no-console
console.log(`  Output: ${resolvedURI}`);

Custom URI Resolver#

Set a custom resolver to intercept and transform URIs. The resolver receives the URI and a defaultURIResolver function for fallback behavior:

// Set a custom resolver that transforms specific file types
engine.editor.setURIResolver((uri, defaultURIResolver) => {
  // Transform JPG files to a watermarked version
  if (uri.endsWith('.jpg')) {
    // eslint-disable-next-line no-console
    console.log(`Custom resolver: Transforming ${uri}`);
    return 'https://img.ly/static/ubq_samples/sample_1.jpg';
  }
  // Use default resolver for all other URIs
  return defaultURIResolver(uri);
});

Important: The resolver must be synchronous—no async/await or Promises. Pre-compute any tokens or transformations before setting the resolver.

Adding Authentication#

A common use case is adding authentication tokens to asset URIs. Generate the token before setting the resolver, then append it as a query parameter:

// Pre-generate token BEFORE setting the resolver (must be synchronous)
const authToken = 'demo-jwt-token-123';

// Set resolver that adds authentication to specific endpoints
engine.editor.setURIResolver((uri, defaultURIResolver) => {
  // Only add auth token to URIs pointing to your stable link endpoint
  if (uri.includes('your-server/image-stable-links/')) {
    const authenticatedURI = `${uri}?auth=${authToken}`;
    // eslint-disable-next-line no-console
    console.log(`\nAuth resolver: Adding token to ${uri}`);
    // eslint-disable-next-line no-console
    console.log(`  Result: ${authenticatedURI}`);
    return authenticatedURI;
  }
  // Use default resolver for all other URIs
  return defaultURIResolver(uri);
});

// Test authentication with a protected URI
const protectedURI = 'https://your-server/image-stable-links/abc123';
engine.editor.getAbsoluteURI(protectedURI);

Your server validates the token and redirects to the actual asset (e.g., pre-signed S3 URL). CE.SDK follows redirects automatically.

Removing a Resolver#

Restore default behavior by setting a resolver that delegates to defaultURIResolver:

// Remove the custom resolver to restore default behavior
engine.editor.setURIResolver((uri, defaultURIResolver) =>
  defaultURIResolver(uri)
);
// eslint-disable-next-line no-console
console.log('\n✓ Removed custom resolver - back to default behavior');

Key Constraints#

Synchronous only: No async/await or Promises
Must return absolute URIs: Include scheme (http://, https://, data:)
One resolver at a time: New calls overwrite previous resolvers
Delegate unmatched URIs: Pass to defaultURIResolver() for unchanged paths

Next Steps#

Configuration — CE.SDK initialization and baseURL settings
Load Assets from Remote — Load assets from remote URLs and servers
