Retrieve MIME Type - Vue

Detect the MIME type of resources loaded in the engine and relocate them to external URLs using engine.editor.getMimeType() and engine.editor.relocateResource().

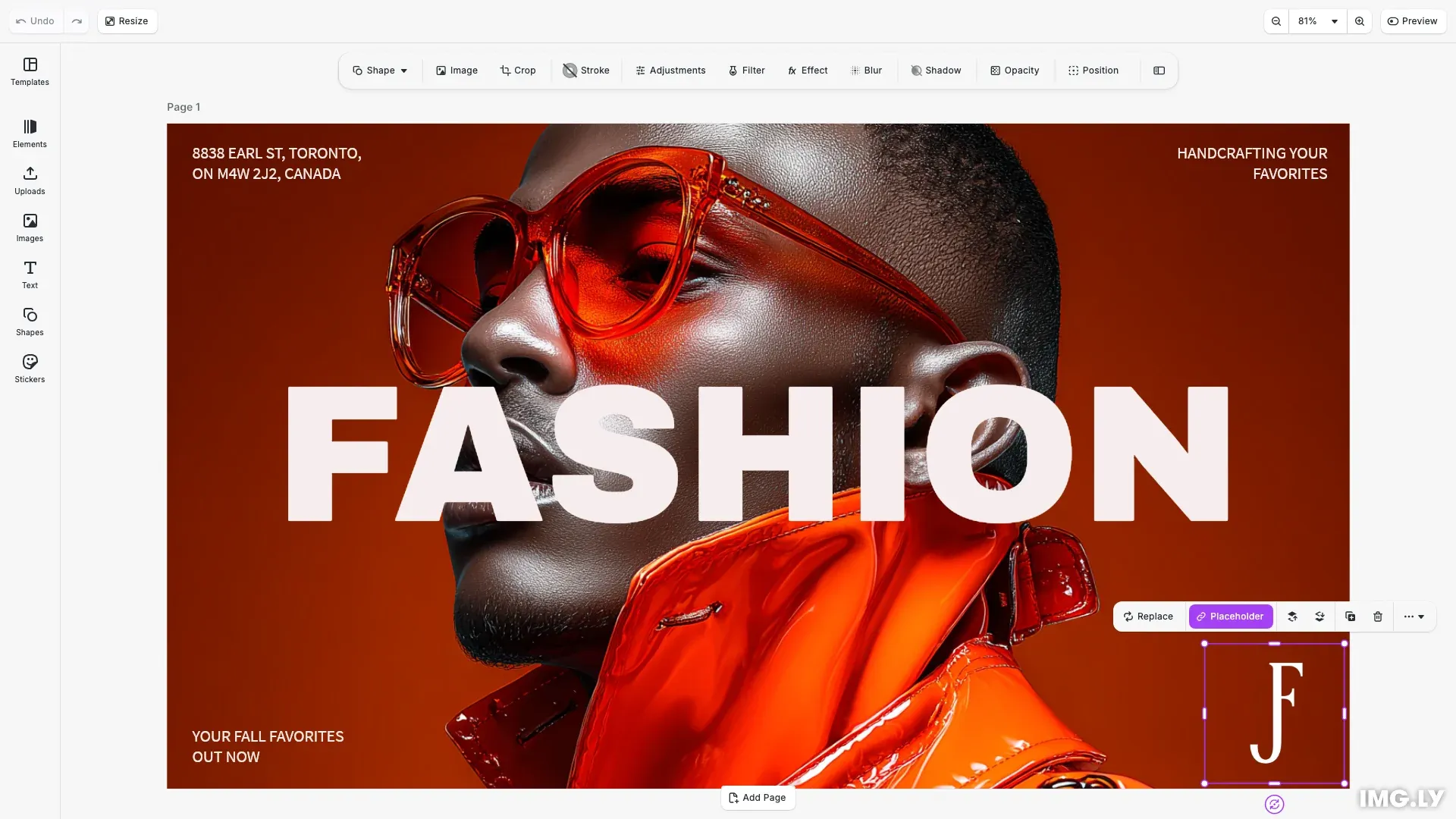

Retrieve MIME Type example showing a loaded scene with embedded images

5 mins

estimated time

Download

StackBlitz

GitHub

When loading scene archives in CE.SDK, embedded media resources are stored with internal buffer:// URIs rather than their original URLs. These resources include both images and fonts used in the scene. To process these resources correctly—for instance when uploading to a CDN, displaying previews, or exporting a clean scene file—you need to determine their MIME type and relocate them to external URLs.

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';
import packageJson from './package.json';

class Example implements EditorPlugin {
  name = packageJson.name;
  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    await cesdk.addDefaultAssetSources();
    await cesdk.addDemoAssetSources({
      sceneMode: 'Design',
      withUploadAssetSources: true
    });

    const engine = cesdk.engine;

    // Load an archive that contains embedded resources (images and fonts)
    const archiveUrl =
      'https://cdn.img.ly/assets/templates/starterkits/16-9-fashion-ad.zip';
    await engine.scene.loadFromArchiveURL(archiveUrl);

    // Find all transient resources (embedded media with buffer:// URIs)
    // This includes both images and fonts embedded in the archive
    const transientResources = engine.editor.findAllTransientResources();
    console.log(`Found ${transientResources.length} transient resources`);

    if (transientResources.length === 0) {
      console.log('No transient resources found in the loaded archive');
      return;
    }

    // Get MIME types for all resources to see what's included
    const resourcesByType: Record<string, number> = {};
    for (const resource of transientResources) {
      const mimeType = await engine.editor.getMimeType(resource.URL);
      resourcesByType[mimeType] = (resourcesByType[mimeType] || 0) + 1;
    }
    console.log('Resources by type:', resourcesByType);

    // Filter to find only image resources
    const imageResources = [];
    for (const resource of transientResources) {
      const mimeType = await engine.editor.getMimeType(resource.URL);
      if (mimeType.startsWith('image/')) {
        imageResources.push({ ...resource, mimeType });
      }
    }
    console.log(`Found ${imageResources.length} image resources`);

    // Relocate all transient resources from buffer:// URIs to blob: URLs
    // This is useful for displaying previews or preparing for upload
    for (const resource of transientResources) {
      const bufferUri = resource.URL;
      // Skip internal bundle resources
      if (bufferUri.includes('bundle://ly.img.cesdk/')) continue;

      const mimeType = await engine.editor.getMimeType(bufferUri);
      const length = engine.editor.getBufferLength(bufferUri);
      const data = engine.editor.getBufferData(bufferUri, 0, length);

      // Create a blob URL from the buffer data
      const blob = new Blob([new Uint8Array(data)], { type: mimeType });
      const blobUrl = URL.createObjectURL(blob);

      // Update the scene to use the new URL instead of buffer://
      engine.editor.relocateResource(bufferUri, blobUrl);
    }
    console.log('Relocated all transient resources to blob URLs');

    // After relocation, the scene references blob: URLs instead of buffer:// URIs
    // Note: blob: URLs are still considered transient (runtime) resources
    // For permanent storage, upload to a CDN and relocate to https:// URLs
    console.log(`Relocated ${transientResources.length} buffer:// URIs to blob: URLs`);

    // Zoom to fit the scene
    const pages = engine.block.findByType('page');
    if (pages.length > 0) {
      await cesdk.engine.scene.zoomToBlock(pages[0], { padding: 40 });
    }

    console.log('Retrieve MIME Type example loaded successfully');
  }
}

export default Example;

This guide covers loading a scene archive, finding transient resources, retrieving MIME types, filtering by resource type, and relocating resources to external URLs for a clean scene export.

Loading a Scene Archive#

Scene archives package a complete scene along with its embedded assets. When loaded, images, fonts, and other media are stored in memory and referenced via buffer URIs.

// Load an archive that contains embedded resources (images and fonts)
const archiveUrl =
  'https://cdn.img.ly/assets/templates/starterkits/16-9-fashion-ad.zip';
await engine.scene.loadFromArchiveURL(archiveUrl);

After loading an archive, you can find all embedded resources using the findAllTransientResources() method.

Finding Transient Resources#

Transient resources are embedded media files stored in memory with buffer:// URIs. Use findAllTransientResources() to get a list of all such resources in the current scene. This includes both images and fonts.

// Find all transient resources (embedded media with buffer:// URIs)
// This includes both images and fonts embedded in the archive
const transientResources = engine.editor.findAllTransientResources();
console.log(`Found ${transientResources.length} transient resources`);

Each resource object contains a URL property with the buffer URI and a size property indicating the resource size in bytes.

Retrieving the MIME Type#

Use getMimeType() to detect the format of each embedded resource. This is useful for categorizing resources or determining how to process them.

// Get MIME types for all resources to see what's included
const resourcesByType: Record<string, number> = {};
for (const resource of transientResources) {
  const mimeType = await engine.editor.getMimeType(resource.URL);
  resourcesByType[mimeType] = (resourcesByType[mimeType] || 0) + 1;
}
console.log('Resources by type:', resourcesByType);

The method returns standard MIME type strings:

Image types:

image/jpeg for JPEG images
image/png for PNG images
image/webp for WebP images
image/gif for GIF images

Font types:

font/ttf for TrueType fonts
font/otf for OpenType fonts
font/woff for WOFF fonts
font/woff2 for WOFF2 fonts

Filtering Resources by Type#

Since transient resources include both images and fonts, you may want to filter them by MIME type prefix to process only specific resource types.

// Filter to find only image resources
const imageResources = [];
for (const resource of transientResources) {
  const mimeType = await engine.editor.getMimeType(resource.URL);
  if (mimeType.startsWith('image/')) {
    imageResources.push({ ...resource, mimeType });
  }
}
console.log(`Found ${imageResources.length} image resources`);

This pattern allows you to separate image processing from font processing, or to handle each resource type differently.

Relocating Resources#

After extracting buffer data, use relocateResource() to update the scene to reference new URLs instead of buffer:// URIs. This is essential when uploading resources to a CDN or storage service.

// Relocate all transient resources from buffer:// URIs to blob: URLs
// This is useful for displaying previews or preparing for upload
for (const resource of transientResources) {
  const bufferUri = resource.URL;
  // Skip internal bundle resources
  if (bufferUri.includes('bundle://ly.img.cesdk/')) continue;

  const mimeType = await engine.editor.getMimeType(bufferUri);
  const length = engine.editor.getBufferLength(bufferUri);
  const data = engine.editor.getBufferData(bufferUri, 0, length);

  // Create a blob URL from the buffer data
  const blob = new Blob([new Uint8Array(data)], { type: mimeType });
  const blobUrl = URL.createObjectURL(blob);

  // Update the scene to use the new URL instead of buffer://
  engine.editor.relocateResource(bufferUri, blobUrl);
}
console.log('Relocated all transient resources to blob URLs');

In the browser, you can create blob URLs for immediate use. For production workflows, you would upload the blob data to your storage service and use the returned CDN URL.

Verifying Relocation#

After relocating all resources, verify that no buffer:// URIs remain. Note that blob: URLs are still considered transient resources by the engine—they are runtime URLs that exist only in the current browser session.

// After relocation, the scene references blob: URLs instead of buffer:// URIs
// Note: blob: URLs are still considered transient (runtime) resources
// For permanent storage, upload to a CDN and relocate to https:// URLs
console.log(`Relocated ${transientResources.length} buffer:// URIs to blob: URLs`);

For production use, upload resources to a CDN and relocate to permanent https:// URLs. This produces a scene file that can be stored and loaded in future sessions.

API Reference#

Method	Description
`engine.editor.findAllTransientResources()`	Returns an array of transient resources with `URL` and `size` properties. Includes images, fonts, and other embedded media.
`engine.editor.getMimeType(uri)`	Returns the MIME type of the resource at the given URI. Downloads the resource if not already cached.
`engine.editor.getBufferLength(uri)`	Returns the byte length of the buffer at the given URI.
`engine.editor.getBufferData(uri, offset, length)`	Returns raw binary data from the buffer, starting at the specified offset for the given length.
`engine.editor.relocateResource(currentUrl, relocatedUrl)`	Updates all references to `currentUrl` in the scene to use `relocatedUrl` instead.

Troubleshooting#

MIME Type Returns Empty String#

If getMimeType() returns an empty string, the resource format could not be determined. This may happen if:

The buffer URI is invalid or the resource was not properly embedded
The resource data is corrupted or in an unsupported format

No Transient Resources Found#

If findAllTransientResources() returns an empty array:

Verify the archive was loaded successfully
Check that the scene contains embedded resources rather than external URL references
Some templates may use external CDN URLs instead of embedded resources

Resources Not Relocated#

If transient resources remain after calling relocateResource():

Ensure you’re using the exact buffer URI from findAllTransientResources()
Check that you’re not skipping any resources in your loop
Bundle resources (bundle://ly.img.cesdk/) are internal and cannot be relocated
