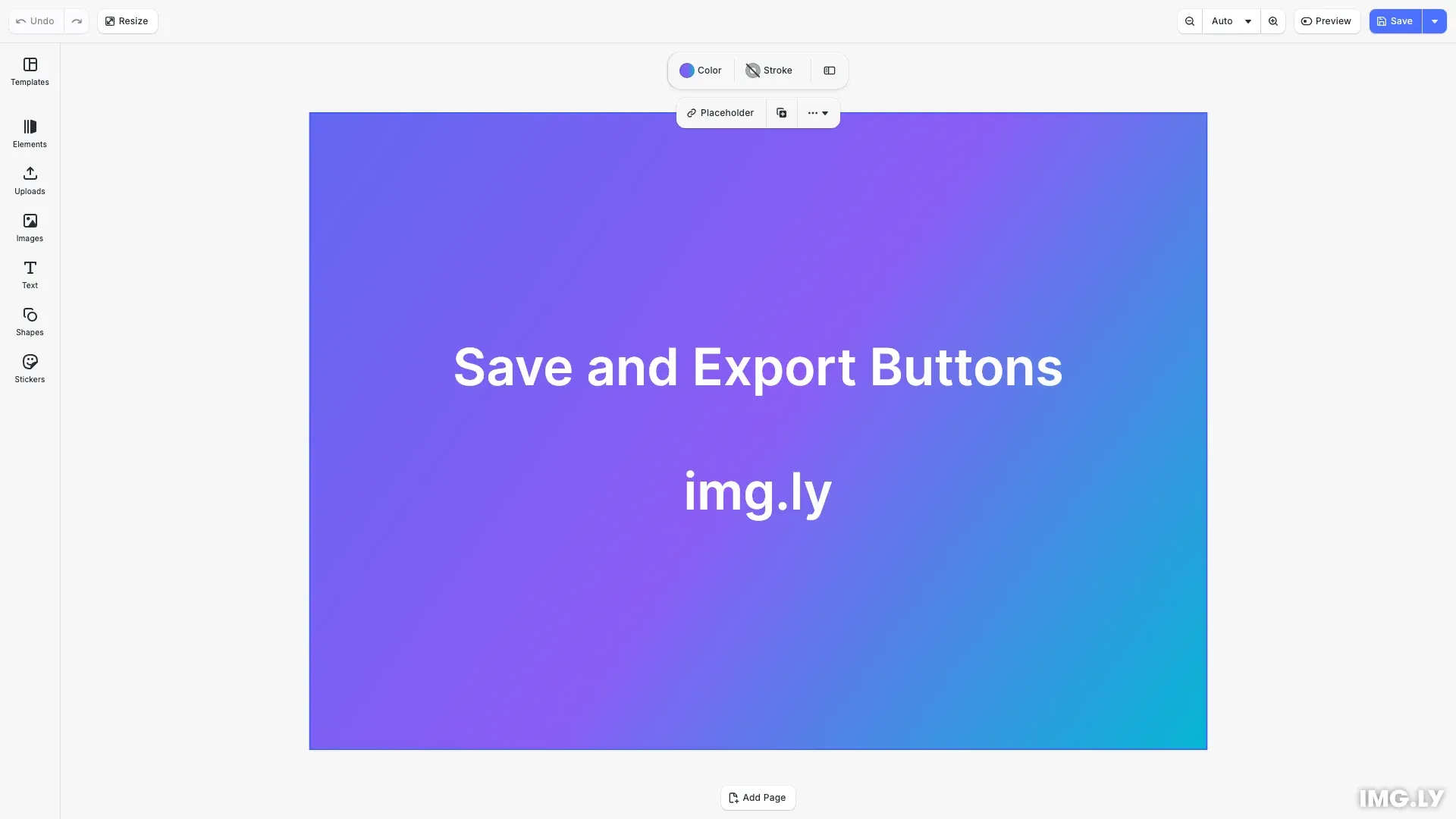

Save and Export Buttons

This guide shows you how to add, customize, and configure save and export buttons in the CE.SDK navigation bar. You’ll learn how to use the Navigation Bar Order API to display built-in action buttons and the Actions API to implement custom save and export workflows.

10 mins

estimated time

Download

StackBlitz

GitHub

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';
import packageJson from './package.json';

/**
 * Save and Export Buttons Example
 *
 * Demonstrates adding save/export buttons to the navigation bar
 * and overriding their default behavior with custom handlers.
 */
class Example implements EditorPlugin {
  name = packageJson.name;
  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    await cesdk.addDefaultAssetSources();
    await cesdk.addDemoAssetSources({
      sceneMode: 'Design',
      withUploadAssetSources: true
    });
    await cesdk.createDesignScene();

    const engine = cesdk.engine;
    const page = engine.block.findByType('page')[0];
    const pageWidth = engine.block.getWidth(page);
    const pageHeight = engine.block.getHeight(page);

    // Create gradient fill for page background (purple to violet to cyan diagonal)
    const gradientFill = engine.block.createFill('gradient/linear');
    engine.block.setGradientColorStops(gradientFill, 'fill/gradient/colors', [
      { color: { r: 0.388, g: 0.4, b: 0.945, a: 1 }, stop: 0 }, // #6366f1 indigo
      { color: { r: 0.545, g: 0.361, b: 0.965, a: 1 }, stop: 0.5 }, // #8b5cf6 violet
      { color: { r: 0.024, g: 0.714, b: 0.831, a: 1 }, stop: 1 } // #06b6d4 cyan
    ]);
    // Diagonal gradient from top-left to bottom-right
    engine.block.setFloat(gradientFill, 'fill/gradient/linear/startPointX', 0);
    engine.block.setFloat(gradientFill, 'fill/gradient/linear/startPointY', 0);
    engine.block.setFloat(gradientFill, 'fill/gradient/linear/endPointX', 1);
    engine.block.setFloat(gradientFill, 'fill/gradient/linear/endPointY', 1);
    engine.block.setFill(page, gradientFill);

    // Create centered text with title and subtitle
    const titleText = engine.block.create('text');
    engine.block.appendChild(page, titleText);
    engine.block.replaceText(titleText, 'Save and Export Buttons\n\nimg.ly');
    engine.block.setWidth(titleText, pageWidth);
    engine.block.setHeightMode(titleText, 'Auto');
    engine.block.setPositionX(titleText, 0);
    engine.block.setPositionY(titleText, pageHeight * 0.35);
    engine.block.setEnum(titleText, 'text/horizontalAlignment', 'Center');
    engine.block.setFloat(titleText, 'text/fontSize', 24);
    engine.block.setTextColor(titleText, { r: 1, g: 1, b: 1, a: 1 });

    // Deselect all blocks for clean hero image
    engine.block.findAllSelected().forEach((block) => {
      engine.block.setSelected(block, false);
    });

    // Select the page to show the page toolbar (looks better in hero)
    engine.block.select(page);

    // Override the saveScene action with custom logic
    cesdk.actions.register('saveScene', async () => {
      // Replace with your backend upload logic
      console.trace('saveScene action triggered');
      const archive = await cesdk.engine.scene.saveToArchive();
      cesdk.utils.downloadFile(archive, 'application/zip');
    });

    // Add all save and export buttons to the navigation bar
    cesdk.ui.insertNavigationBarOrderComponent('last', {
      id: 'ly.img.actions.navigationBar',
      children: [
        'ly.img.saveScene.navigationBar',
        'ly.img.exportImage.navigationBar',

        {
          // Override the PDF export button's onClick callback
          id: 'ly.img.exportPDF.navigationBar',
          onClick: async () => {
            const { blobs } = await cesdk.utils.export({
              mimeType: 'application/pdf'
            });
            cesdk.utils.downloadFile(blobs[0], 'application/pdf');
            cesdk.ui.showNotification({
              message: 'PDF exported successfully!',
              type: 'success',
              duration: 'short'
            });
          }
        },
        'ly.img.exportScene.navigationBar',
        'ly.img.exportArchive.navigationBar'
      ]
    });
  }
}

export default Example;

This guide demonstrates how to add save and export buttons to your CE.SDK editor’s navigation bar and customize their behavior with custom action handlers. Use the built-in actions to get started quickly, then override them to fully fit your workflows.

Available Save and Export Buttons#

CE.SDK provides several built-in action buttons for the navigation bar. Each button triggers an action when clicked:

Button ID	Action	Default Behavior
`ly.img.saveScene.navigationBar`	`saveScene`	Downloads scene as `.scene` file
`ly.img.exportImage.navigationBar`	`exportDesign` with PNG	Downloads PNG image
`ly.img.exportPDF.navigationBar`	`exportDesign` with PDF	Downloads PDF document
`ly.img.exportVideo.navigationBar`	`exportDesign` with MP4	Downloads MP4 video
`ly.img.exportScene.navigationBar`	`exportScene`	Downloads scene file
`ly.img.exportArchive.navigationBar`	`exportScene` (archive)	Downloads scene archive

Use cesdk.ui.setNavigationBarOrder() to configure the navigation bar with save and export buttons. The buttons must be wrapped in the ly.img.actions.navigationBar container:

// Add all save and export buttons to the navigation bar
cesdk.ui.insertNavigationBarOrderComponent('last', {
  id: 'ly.img.actions.navigationBar',
  children: [
    'ly.img.saveScene.navigationBar',
    'ly.img.exportImage.navigationBar',

Overriding Actions#

By default, each button triggers a built-in action. To implement custom logic like uploading to a backend, register a custom handler using cesdk.actions.register():

// Override the saveScene action with custom logic
cesdk.actions.register('saveScene', async () => {
  // Replace with your backend upload logic
  console.trace('saveScene action triggered');
  const archive = await cesdk.engine.scene.saveToArchive();
  cesdk.utils.downloadFile(archive, 'application/zip');
});

The saveScene action receives no arguments. Use cesdk.engine.scene.saveToString() to serialize the scene, or cesdk.engine.scene.saveToArchive() if you need to include referenced assets.

Overriding Export Buttons#

Instead of overriding the global exportDesign action, you can provide a custom onClick callback directly on individual buttons. This approach gives you fine-grained control over each button’s behavior:

// Override the PDF export button's onClick callback
id: 'ly.img.exportPDF.navigationBar',
onClick: async () => {
  const { blobs } = await cesdk.utils.export({
    mimeType: 'application/pdf'
  });
  cesdk.utils.downloadFile(blobs[0], 'application/pdf');
  cesdk.ui.showNotification({
    message: 'PDF exported successfully!',
    type: 'success',
    duration: 'short'
  });
}

The onClick callback completely replaces the button’s default behavior. Use cesdk.ui.showNotification() to display feedback after the export completes. The notification accepts type values of 'success', 'error', 'info', 'warning', or 'loading'.

Troubleshooting#

Button Not Appearing#

Verify the button ID is spelled correctly
Ensure buttons are wrapped in the ly.img.actions.navigationBar container
Check that the scene mode supports the export type (video export requires Video mode)

Export Produces Empty Result#

Ensure a page exists in the scene
Check that the page has visible content
Verify export dimensions are valid

Save Action Not Triggered#

Confirm the saveScene action is registered before the button is clicked
Check the browser console for errors in your action handler

API Reference#

Method	Purpose
`cesdk.actions.register(actionId, callback)`	Register a custom action handler
`cesdk.actions.run(actionId, ...args)`	Programmatically trigger a registered action
`cesdk.ui.setNavigationBarOrder(order)`	Set the navigation bar component order
`cesdk.utils.export(options)`	Export with automatic loading dialog
`cesdk.utils.downloadFile(blob, mimeType)`	Download a blob as a file
`cesdk.ui.showNotification(notification)`	Display a notification message
`cesdk.engine.scene.saveToString()`	Serialize scene to string

Next Steps#

Navigation Bar - Complete navigation bar customization
Actions - Register and customize action handlers
Export Options - Export configuration and format options
