Template Library - SvelteKit

Configure and populate the Template Library in CE.SDK so users can browse and select predefined design templates.

10 mins

estimated time

Templates in CE.SDK are pre-designed scenes stored as assets within asset sources. They contain complete scene definitions that users can load and customize. The Template Library provides a centralized way to organize, browse, and access these templates through both the built-in UI and programmatic APIs.

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';
import packageJson from './package.json';

/**
 * CE.SDK Plugin: Template Library
 *
 * This example demonstrates how to configure and populate the Template Library:
 * 1. Creating custom template sources from JSON
 * 2. Handling template application with addLocalSource callback
 * 3. Querying and browsing templates programmatically
 * 4. Managing template sources
 */
class Example implements EditorPlugin {
  name = packageJson.name;
  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    const engine = cesdk.engine;

    // Load default asset sources (fonts, etc.)
    await cesdk.addDefaultAssetSources();

    // Create a design scene to work with
    await cesdk.createDesignScene();

    // Create a custom template source with an apply callback
    // The callback handles what happens when a user clicks a template
    engine.asset.addLocalSource('my.custom.templates', undefined, async (asset) => {
      const sceneUri = asset.meta?.uri;
      const scene = engine.scene.get();
      if (!sceneUri || scene == null) return undefined;

      const sceneUrl = new URL(sceneUri, window.location.href);
      await engine.scene.applyTemplateFromURL(sceneUrl.href);

      return scene;
    });

    // Add template assets to the source
    // Each asset needs meta.uri pointing to a .scene file
    engine.asset.addAssetToSource('my.custom.templates', {
      id: 'postcard-1',
      label: { en: 'Postcard Design' },
      tags: { en: ['postcard', 'card'] },
      groups: ['cards'],
      meta: {
        thumbUri:
          'https://cdn.img.ly/assets/demo/v2/ly.img.template/thumbnails/cesdk_postcard_1.jpg',
        uri: 'https://cdn.img.ly/packages/imgly/cesdk-js/latest/assets/templates/cesdk_postcard_1.scene'
      }
    });

    engine.asset.addAssetToSource('my.custom.templates', {
      id: 'postcard-2',
      label: { en: 'Business Card' },
      tags: { en: ['business', 'card'] },
      groups: ['business'],
      meta: {
        thumbUri:
          'https://cdn.img.ly/assets/demo/v2/ly.img.template/thumbnails/cesdk_postcard_2.jpg',
        uri: 'https://cdn.img.ly/packages/imgly/cesdk-js/latest/assets/templates/cesdk_postcard_2.scene'
      }
    });

    // Create an asset library entry for the custom templates
    cesdk.ui.addAssetLibraryEntry({
      id: 'custom-templates-entry',
      sourceIds: ['my.custom.templates'],
      title: 'Custom Templates',
      icon: '@imgly/Template',
      gridColumns: 2,
      gridItemHeight: 'square'
    });

    // Configure the dock to show ONLY the custom template library
    cesdk.ui.setDockOrder([
      {
        id: 'ly.img.assetLibrary.dock',
        key: 'custom-templates',
        icon: '@imgly/Template',
        label: 'Custom Templates',
        entries: ['custom-templates-entry']
      }
    ]);

    // Open the custom templates panel on startup (same as clicking dock button)
    cesdk.ui.openPanel('//ly.img.panel/assetLibrary', {
      payload: {
        entries: ['custom-templates-entry']
      }
    });

    // Query templates with filtering options
    const queryResult = await engine.asset.findAssets('my.custom.templates', {
      page: 0,
      perPage: 20,
      groups: ['cards']
    });
    console.log(
      'Templates in "cards" group:',
      queryResult.assets.map((t) => t.id)
    );

    // Query all templates from custom source
    const allCustomTemplates = await engine.asset.findAssets(
      'my.custom.templates',
      {
        page: 0,
        perPage: 100
      }
    );
    console.log('Total custom templates:', allCustomTemplates.total);

    // List all registered asset sources
    const allSources = engine.asset.findAllSources();
    const templateSources = allSources.filter(
      (id) => id.includes('template') || id === 'my.custom.templates'
    );
    console.log('Template sources:', templateSources);

    // Get available groups from a source
    const groups = await engine.asset.getGroups('my.custom.templates');
    console.log('Available groups:', groups);

    // Subscribe to source changes
    const unsubscribeAdd = engine.asset.onAssetSourceAdded((sourceId) => {
      console.log('Asset source added:', sourceId);
    });

    const unsubscribeRemove = engine.asset.onAssetSourceRemoved((sourceId) => {
      console.log('Asset source removed:', sourceId);
    });

    // Clean up subscriptions when done (for demonstration)
    setTimeout(() => {
      unsubscribeAdd();
      unsubscribeRemove();
    }, 10000);

    console.log('Template Library example loaded successfully!');
  }
}

export default Example;

This guide covers how to create custom template sources, handle template application, query templates programmatically, and manage template sources.

Setup#

Before creating custom template sources, load the default asset sources to ensure fonts and other base assets are available. Then create a design scene to work with.

// Load default asset sources (fonts, etc.)
await cesdk.addDefaultAssetSources();

// Create a design scene to work with
await cesdk.createDesignScene();

Using the Built-in Template UI#

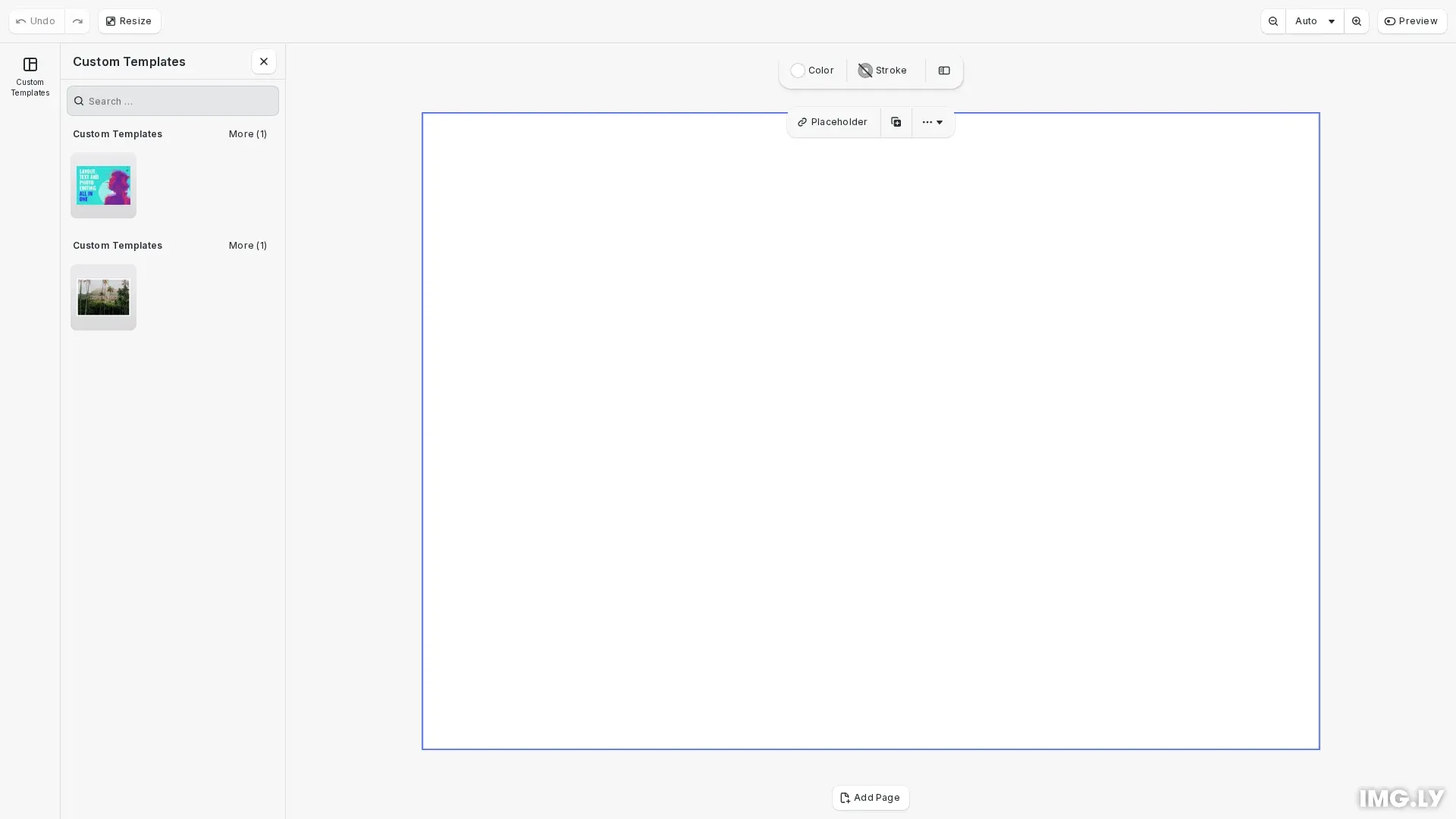

The CE.SDK editor UI includes a template panel where users can browse and select templates. The panel displays thumbnails organized by groups, allowing users to filter templates by category.

To access templates in the UI:

Open the asset library panel
Navigate to the Templates section
Browse templates with thumbnail previews
Click a template to apply it to the current design

The template panel automatically displays templates from all registered template sources.

Creating Custom Template Sources#

You can create custom template sources to provide your own branded templates. We use engine.asset.addLocalSource() to create a source with an apply callback, then engine.asset.addAssetToSource() to add template assets.

// Create a custom template source with an apply callback
// The callback handles what happens when a user clicks a template
engine.asset.addLocalSource('my.custom.templates', undefined, async (asset) => {
  const sceneUri = asset.meta?.uri;
  const scene = engine.scene.get();
  if (!sceneUri || scene == null) return undefined;

  const sceneUrl = new URL(sceneUri, window.location.href);
  await engine.scene.applyTemplateFromURL(sceneUrl.href);

  return scene;
});

// Add template assets to the source
// Each asset needs meta.uri pointing to a .scene file
engine.asset.addAssetToSource('my.custom.templates', {
  id: 'postcard-1',
  label: { en: 'Postcard Design' },
  tags: { en: ['postcard', 'card'] },
  groups: ['cards'],
  meta: {
    thumbUri:
      'https://cdn.img.ly/assets/demo/v2/ly.img.template/thumbnails/cesdk_postcard_1.jpg',
    uri: 'https://cdn.img.ly/packages/imgly/cesdk-js/latest/assets/templates/cesdk_postcard_1.scene'
  }
});

engine.asset.addAssetToSource('my.custom.templates', {
  id: 'postcard-2',
  label: { en: 'Business Card' },
  tags: { en: ['business', 'card'] },
  groups: ['business'],
  meta: {
    thumbUri:
      'https://cdn.img.ly/assets/demo/v2/ly.img.template/thumbnails/cesdk_postcard_2.jpg',
    uri: 'https://cdn.img.ly/packages/imgly/cesdk-js/latest/assets/templates/cesdk_postcard_2.scene'
  }
});

The addLocalSource() method creates the source and registers a callback that handles template application when users click a template. The callback:

Extracts the scene URI from asset.meta.uri
Resolves the URI to an absolute URL
Applies the template using engine.scene.applyTemplateFromURL()
Returns the scene ID to indicate successful application

Each template asset added with addAssetToSource() can include:

id - Unique identifier for the template
label - Localized display name (e.g., { en: 'Business Card' })
tags - Searchable keywords for filtering
groups - Categories for organization
meta.uri - URL to the .scene file (required for template application)
meta.thumbUri - Thumbnail image URL

From Remote URI#

For production use, you can load templates from a hosted JSON file using engine.asset.addLocalAssetSourceFromJSONURI(). The parent directory of the JSON URI becomes the base path for resolving relative URLs within the JSON.

const sourceId = await engine.asset.addLocalAssetSourceFromJSONURI(
  'https://cdn.example.com/templates/content.json'
);

Querying Templates Programmatically#

We use engine.asset.findAssets() to search and retrieve templates from a source. You can query by groups, tags, or search text to find specific templates.

// Query templates with filtering options
const queryResult = await engine.asset.findAssets('my.custom.templates', {
  page: 0,
  perPage: 20,
  groups: ['cards']
});
console.log(
  'Templates in "cards" group:',
  queryResult.assets.map((t) => t.id)
);

// Query all templates from custom source
const allCustomTemplates = await engine.asset.findAssets(
  'my.custom.templates',
  {
    page: 0,
    perPage: 100
  }
);
console.log('Total custom templates:', allCustomTemplates.total);

The query options include:

page and perPage - Pagination controls
groups - Filter by group names (e.g., ['business', 'cards'])
tags - Filter by tags
query - Text search across labels and tags

The result object contains:

assets - Array of template assets matching the query
total - Total number of matching templates
currentPage - Current page index
nextPage - Next page index (if available)

Managing Template Sources#

CE.SDK provides APIs to manage the lifecycle of template sources, including listing, monitoring, and removing sources.

// List all registered asset sources
const allSources = engine.asset.findAllSources();
const templateSources = allSources.filter(
  (id) => id.includes('template') || id === 'my.custom.templates'
);
console.log('Template sources:', templateSources);

// Get available groups from a source
const groups = await engine.asset.getGroups('my.custom.templates');
console.log('Available groups:', groups);

// Subscribe to source changes
const unsubscribeAdd = engine.asset.onAssetSourceAdded((sourceId) => {
  console.log('Asset source added:', sourceId);
});

const unsubscribeRemove = engine.asset.onAssetSourceRemoved((sourceId) => {
  console.log('Asset source removed:', sourceId);
});

// Clean up subscriptions when done (for demonstration)
setTimeout(() => {
  unsubscribeAdd();
  unsubscribeRemove();
}, 10000);

Key management methods:

engine.asset.findAllSources() - Lists all registered asset source IDs
engine.asset.getGroups(sourceId) - Gets available groups from a source
engine.asset.removeSource(sourceId) - Removes an asset source
engine.asset.onAssetSourceAdded(callback) - Subscribe to source additions
engine.asset.onAssetSourceRemoved(callback) - Subscribe to source removals

Troubleshooting#

Common issues when working with the Template Library:

Templates not appearing in UI: Verify the source is registered by checking engine.asset.findAllSources(). Ensure the source ID matches what you expect.
Thumbnails not loading: Check that thumbUri values are accessible URLs with proper CORS headers enabled.
Scene files not loading: Ensure meta.uri values point to valid .scene files that are accessible from the browser.
