Using Strokes - SvelteKit

Add outlines around shapes, text, and graphics to enhance visual definition and create decorative effects.

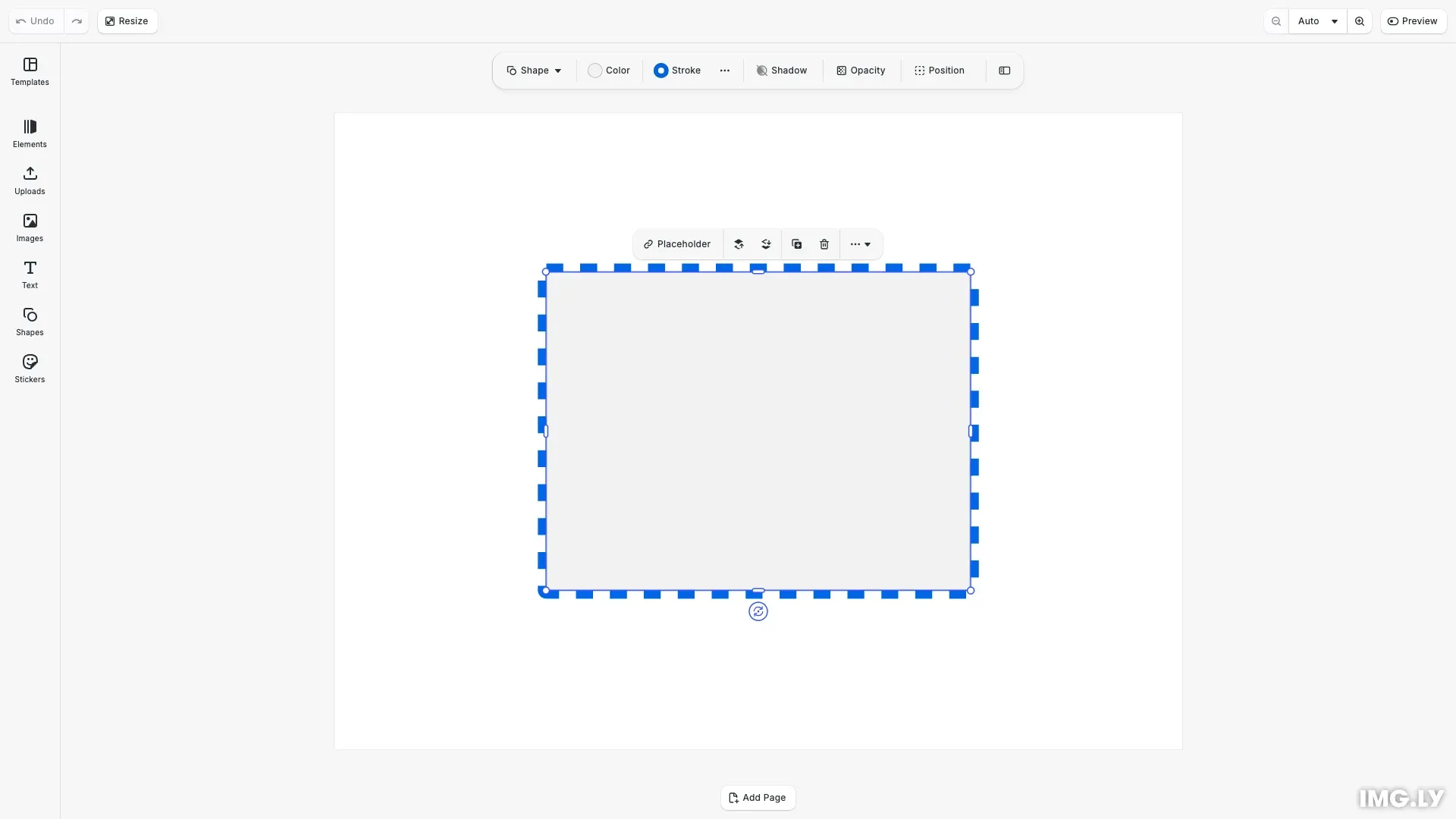

Using Strokes example showing a rectangle with a styled blue dashed stroke

5 mins

estimated time

Strokes add visual outlines that define block boundaries. You can customize their color, width, line style (solid, dashed, dotted), position relative to the block edge, and corner treatment. CE.SDK provides both built-in UI controls and programmatic APIs for stroke management.

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';

class Example implements EditorPlugin {
  name = 'guides-outlines-stroke-browser';
  version = '1.0.0';

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    // Load assets and create scene
    await cesdk.addDefaultAssetSources();
    await cesdk.addDemoAssetSources({
      sceneMode: 'Design',
      withUploadAssetSources: true
    });

    await cesdk.createDesignScene();

    const engine = cesdk.engine;
    const page = engine.block.findByType('page')[0]!;

    // Set page dimensions
    engine.block.setWidth(page, 800);
    engine.block.setHeight(page, 600);

    // Create a graphic block with a rectangle shape
    const block = engine.block.create('graphic');
    engine.block.setShape(block, engine.block.createShape('rect'));
    engine.block.appendChild(page, block);

    // Position and size the block
    engine.block.setPositionX(block, 200);
    engine.block.setPositionY(block, 150);
    engine.block.setWidth(block, 400);
    engine.block.setHeight(block, 300);

    // Add a fill so the shape is visible
    const solidFill = engine.block.createFill('color');
    engine.block.setFill(block, solidFill);
    engine.block.setColor(solidFill, 'fill/color/value', {
      r: 0.95,
      g: 0.95,
      b: 0.95,
      a: 1.0
    });

    // Check if block supports strokes
    const canHaveStroke = engine.block.supportsStroke(block);
    console.log('Block supports stroke:', canHaveStroke);

    if (canHaveStroke) {
      // Enable stroke on the block
      engine.block.setStrokeEnabled(block, true);
      const strokeIsEnabled = engine.block.isStrokeEnabled(block);
      console.log('Stroke enabled:', strokeIsEnabled);

      // Set stroke color to blue
      engine.block.setStrokeColor(block, { r: 0.0, g: 0.4, b: 0.9, a: 1.0 });
      const strokeColor = engine.block.getStrokeColor(block);
      console.log('Stroke color:', strokeColor);

      // Set stroke width
      engine.block.setStrokeWidth(block, 8);
      const strokeWidth = engine.block.getStrokeWidth(block);
      console.log('Stroke width:', strokeWidth);

      // Apply a dashed stroke style
      engine.block.setStrokeStyle(block, 'Dashed');
      const strokeStyle = engine.block.getStrokeStyle(block);
      console.log('Stroke style:', strokeStyle);

      // Set stroke position to outer
      engine.block.setStrokePosition(block, 'Outer');
      const strokePosition = engine.block.getStrokePosition(block);
      console.log('Stroke position:', strokePosition);

      // Set corner geometry to round
      engine.block.setStrokeCornerGeometry(block, 'Round');
      const strokeCornerGeometry = engine.block.getStrokeCornerGeometry(block);
      console.log('Stroke corner geometry:', strokeCornerGeometry);
    }

    // Select the block to show it in the inspector
    engine.block.select(block);
  }
}

export default Example;

This guide covers how to use the stroke inspector panel for interactive editing and how to apply and manage strokes programmatically using the block API.

Using the Built-in Stroke UI#

The CE.SDK editor includes a stroke inspector panel for interactive stroke editing. When you select a block that supports strokes, the inspector displays stroke controls:

Enable toggle - Turn strokes on or off for the selected block
Color picker - Choose the stroke color with full RGBA support
Width control - Adjust stroke thickness using a slider or input field
Style dropdown - Select from solid, dashed, or dotted line patterns
Position options - Choose where the stroke renders relative to the block edge (inner, center, or outer)

These controls provide a visual interface for users to customize strokes without writing code.

Checking Stroke Support#

Before applying strokes programmatically, verify the block supports them using supportsStroke(). Not all block types have stroke capabilities.

// Check if block supports strokes
const canHaveStroke = engine.block.supportsStroke(block);
console.log('Block supports stroke:', canHaveStroke);

Enabling Strokes#

Enable strokes on a block using setStrokeEnabled(). You can check the current state with isStrokeEnabled().

// Enable stroke on the block
engine.block.setStrokeEnabled(block, true);
const strokeIsEnabled = engine.block.isStrokeEnabled(block);
console.log('Stroke enabled:', strokeIsEnabled);

Setting Stroke Color#

Control stroke color using setStrokeColor() with an RGBA color object. Color values range from 0.0 to 1.0. Retrieve the current color with getStrokeColor().

// Set stroke color to blue
engine.block.setStrokeColor(block, { r: 0.0, g: 0.4, b: 0.9, a: 1.0 });
const strokeColor = engine.block.getStrokeColor(block);
console.log('Stroke color:', strokeColor);

Setting Stroke Width#

Set stroke thickness in design units using setStrokeWidth(). Larger values create more prominent outlines. Get the current width with getStrokeWidth().

// Set stroke width
engine.block.setStrokeWidth(block, 8);
const strokeWidth = engine.block.getStrokeWidth(block);
console.log('Stroke width:', strokeWidth);

Stroke Styles#

Control the line pattern using setStrokeStyle(). Available styles include:

Solid - Continuous line
Dashed - Square-ended dashes with gaps
DashedRound - Round-ended dashes with gaps
Dotted - Circular dots
LongDashed - Longer square-ended dashes
LongDashedRound - Longer round-ended dashes

// Apply a dashed stroke style
engine.block.setStrokeStyle(block, 'Dashed');
const strokeStyle = engine.block.getStrokeStyle(block);
console.log('Stroke style:', strokeStyle);

Stroke Position#

Control where the stroke renders relative to the block edge using setStrokePosition():

Center - Stroke centered on the edge (default)
Inner - Stroke rendered inside the block boundary
Outer - Stroke rendered outside the block boundary

Position affects how strokes interact with adjacent elements and overall layout dimensions. Inner strokes stay within the block bounds, while outer strokes extend beyond them.

// Set stroke position to outer
engine.block.setStrokePosition(block, 'Outer');
const strokePosition = engine.block.getStrokePosition(block);
console.log('Stroke position:', strokePosition);

Stroke Corner Geometry#

Control how stroke corners are rendered using setStrokeCornerGeometry(). This is particularly visible on rectangular shapes:

Miter - Sharp pointed corners (default)
Round - Smoothly curved corners
Bevel - Flat cut corners

// Set corner geometry to round
engine.block.setStrokeCornerGeometry(block, 'Round');
const strokeCornerGeometry = engine.block.getStrokeCornerGeometry(block);
console.log('Stroke corner geometry:', strokeCornerGeometry);

Troubleshooting#

If strokes don’t appear as expected, check these common issues:

Stroke not visible - Verify stroke is enabled with isStrokeEnabled() and width is greater than 0
Stroke color appears wrong - Ensure color values are in the 0.0-1.0 range, not 0-255
Stroke affects layout unexpectedly - Use Inner position to keep strokes within bounds, or Outer if you want strokes to extend beyond the block
Block doesn’t support strokes - Use supportsStroke() to verify capability before applying stroke properties

API Reference#

Method	Description
`block.supportsStroke(block)`	Check if a block supports strokes
`block.setStrokeEnabled(block, enabled)`	Enable or disable stroke on a block
`block.isStrokeEnabled(block)`	Check if stroke is enabled
`block.setStrokeColor(block, color)`	Set stroke color (RGBA, values 0.0-1.0)
`block.getStrokeColor(block)`	Get current stroke color
`block.setStrokeWidth(block, width)`	Set stroke thickness in design units
`block.getStrokeWidth(block)`	Get current stroke width
`block.setStrokeStyle(block, style)`	Set line pattern (Solid, Dashed, Dotted, etc.)
`block.getStrokeStyle(block)`	Get current stroke style
`block.setStrokePosition(block, position)`	Set stroke position (Center, Inner, Outer)
`block.getStrokePosition(block)`	Get current stroke position
`block.setStrokeCornerGeometry(block, type)`	Set corner rendering (Miter, Round, Bevel)
`block.getStrokeCornerGeometry(block)`	Get current corner geometry
