Join and Arrange Video Clips - SvelteKit

Combine multiple video clips into sequences and organize them on the timeline using CE.SDK’s track system and programmatic APIs.

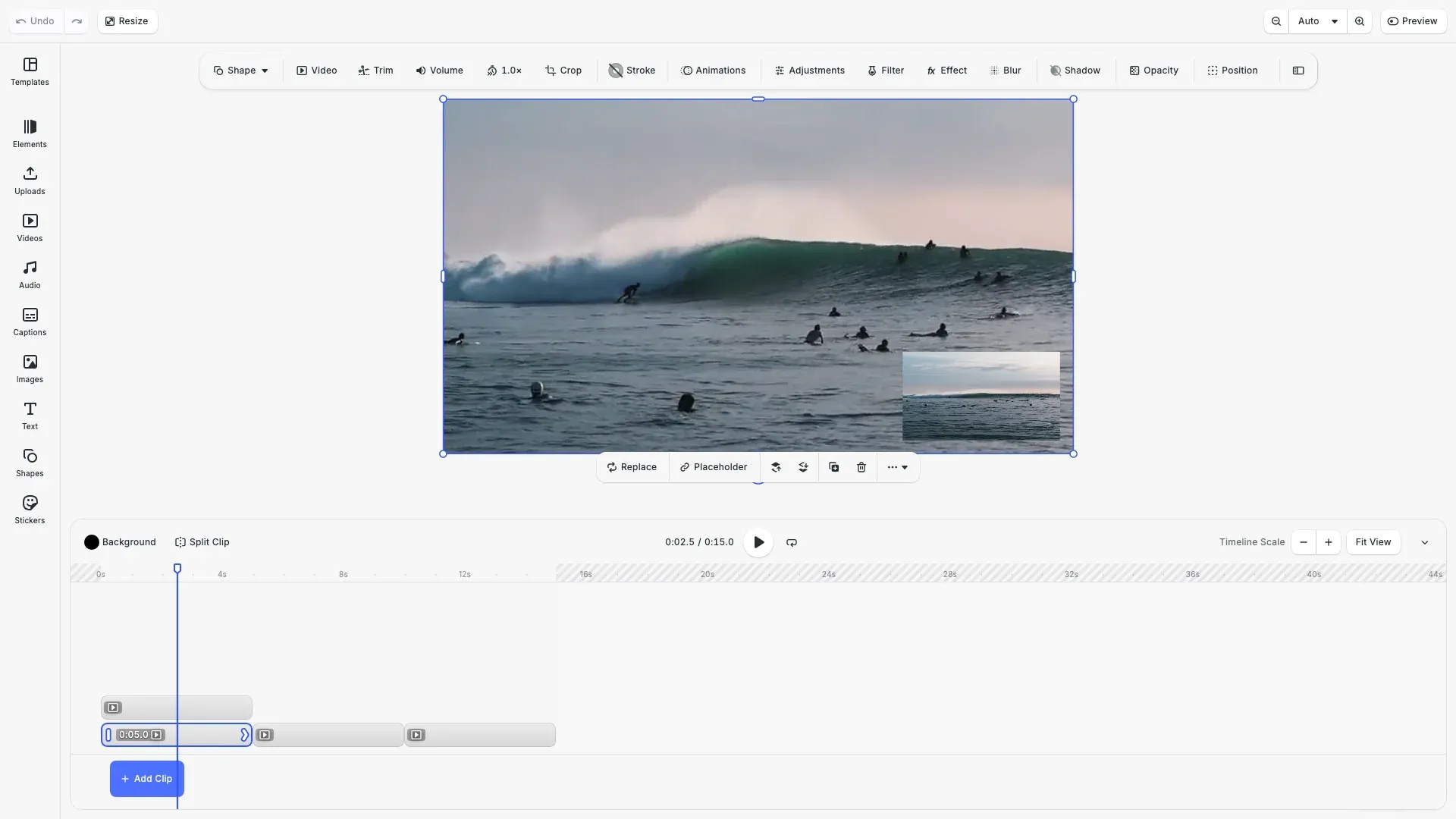

Join and Arrange Video Clips example showing timeline with video clips organized in tracks

12 mins

estimated time

Download

StackBlitz

GitHub

Video compositions in CE.SDK use a hierarchy: Scene → Page → Track → Clip. Tracks organize clips for sequential playback—when you add clips to a track, they play one after another. You can control precise timing using time offsets and create layered compositions by adding multiple tracks to a page.

In CE.SDK’s block-based architecture, a clip is a graphic block with a video fill. This means video clips share the same APIs and capabilities as other blocks—you can position, rotate, scale, and apply effects to video just like images or shapes. The addVideo() helper creates this structure automatically and loads the video metadata.

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';
import packageJson from './package.json';

/**
 * CE.SDK Plugin: Join and Arrange Video Clips Guide
 *
 * Demonstrates combining multiple video clips into sequences:
 * - Creating video scenes and tracks
 * - Adding clips to tracks for sequential playback
 * - Reordering clips within a track
 * - Controlling clip timing with time offsets
 * - Creating multi-track compositions
 */
class Example implements EditorPlugin {
  name = packageJson.name;

  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    // Enable video editing features in CE.SDK
    cesdk.feature.enable('ly.img.video');
    cesdk.feature.enable('ly.img.timeline');
    cesdk.feature.enable('ly.img.playback');

    // Load assets and create a video scene
    await cesdk.addDefaultAssetSources();
    await cesdk.addDemoAssetSources({
      sceneMode: 'Video',
      withUploadAssetSources: true
    });

    // Create a video scene - required for timeline-based editing
    await cesdk.createVideoScene();

    const engine = cesdk.engine;
    const page = engine.block.findByType('page')[0];

    // Set page to 16:9 landscape (1920x1080 is standard HD video resolution)
    engine.block.setWidth(page, 1920);
    engine.block.setHeight(page, 1080);

    // Set page duration to accommodate all clips (15 seconds total)
    engine.block.setDuration(page, 15);

    // Sample video URL for the demonstration
    const videoUrl =
      'https://cdn.img.ly/assets/demo/v3/ly.img.video/videos/pexels-drone-footage-of-a-surfer-barrelling-a-wave-12715991.mp4';

    // Create video clips using the addVideo helper method
    // Each clip is sized to fill the canvas (1920x1080 is standard video resolution)
    const clipA = await engine.block.addVideo(videoUrl, 1920, 1080, {
      timeline: { duration: 5, timeOffset: 0 }
    });

    const clipB = await engine.block.addVideo(videoUrl, 1920, 1080, {
      timeline: { duration: 5, timeOffset: 5 }
    });

    const clipC = await engine.block.addVideo(videoUrl, 1920, 1080, {
      timeline: { duration: 5, timeOffset: 10 }
    });

    // Create a track and add it to the page
    // Tracks organize clips for sequential playback on the timeline
    const track = engine.block.create('track');
    engine.block.appendChild(page, track);

    // Add clips to the track
    engine.block.appendChild(track, clipA);
    engine.block.appendChild(track, clipB);
    engine.block.appendChild(track, clipC);

    // Resize all track children to fill the page dimensions
    engine.block.fillParent(track);

    // Query track children to verify order
    const trackClips = engine.block.getChildren(track);
    console.log('Track clip count:', trackClips.length, 'clips');

    // Set durations for each clip
    engine.block.setDuration(clipA, 5);
    engine.block.setDuration(clipB, 5);
    engine.block.setDuration(clipC, 5);

    // Set time offsets to position clips sequentially on the timeline
    engine.block.setTimeOffset(clipA, 0);
    engine.block.setTimeOffset(clipB, 5);
    engine.block.setTimeOffset(clipC, 10);

    console.log('Track offsets set: Clip A: 0s, Clip B: 5s, Clip C: 10s');

    // Reorder clips: move Clip C to the beginning (index 0)
    // This demonstrates using insertChild for precise positioning
    engine.block.insertChild(track, clipC, 0);

    // After reordering, update time offsets to reflect the new sequence
    engine.block.setTimeOffset(clipC, 0);
    engine.block.setTimeOffset(clipA, 5);
    engine.block.setTimeOffset(clipB, 10);

    console.log('After reorder - updated offsets: C=0s, A=5s, B=10s');

    // Get all clips in the track to verify arrangement
    const finalClips = engine.block.getChildren(track);
    console.log('Final track arrangement:');
    finalClips.forEach((clipId, index) => {
      const offset = engine.block.getTimeOffset(clipId);
      const duration = engine.block.getDuration(clipId);
      console.log(
        `  Clip ${index + 1}: offset=${offset}s, duration=${duration}s`
      );
    });

    // Create a second track for layered compositions
    // Track order determines z-index: last track renders on top
    const overlayTrack = engine.block.create('track');
    engine.block.appendChild(page, overlayTrack);

    // Create an overlay clip for picture-in-picture effect (1/4 size)
    const overlayClip = await engine.block.addVideo(
      videoUrl,
      1920 / 4,
      1080 / 4,
      {
        timeline: { duration: 5, timeOffset: 2 }
      }
    );
    engine.block.appendChild(overlayTrack, overlayClip);

    // Position overlay in bottom-right corner with padding
    engine.block.setPositionX(overlayClip, 1920 - 1920 / 4 - 40);
    engine.block.setPositionY(overlayClip, 1080 - 1080 / 4 - 40);

    console.log('Multi-track composition created with overlay starting at 2s');

    // Select the first clip in the main track to show timeline controls
    engine.block.select(clipC);

    // Seek to 2.5s to show both main clip and overlay visible
    // (overlay starts at 2s, so 2.5s shows both elements)
    engine.block.setPlaybackTime(page, 2.5);

    console.log(
      'Join and Arrange guide initialized. Use timeline to view clip arrangement.'
    );
  }
}

export default Example;

This guide covers how to join clips using the built-in timeline UI, how to programmatically add and arrange clips in tracks, and how to create multi-track compositions.

Joining Clips via UI#

CE.SDK’s timeline UI provides visual tools for arranging video clips. Select the Video mode to access timeline-based editing.

Adding Clips to Timeline#

Drag clips from the asset panel directly onto the timeline. When you drop a clip on an existing track, it joins the sequence. Dropping on an empty area creates a new track for that clip.

The timeline displays clip duration visually—longer clips take more horizontal space. You can see at a glance how clips relate to each other in time.

Reordering Clips#

Drag clips within a track to reorder them. As you drag, CE.SDK shows where the clip will land. Release to confirm the new position.

The timeline UI updates time offsets when you reorder clips via drag-and-drop, positioning clips sequentially without gaps.

Creating Additional Tracks#

Add multiple tracks to create layered compositions. Tracks stack vertically in the timeline, and clips on upper tracks render on top of clips below. This enables picture-in-picture effects, overlays, and complex multi-layer edits.

Programmatic Clip Joining#

Prerequisites and Setup#

For applications that need to join clips programmatically—whether for automation, batch processing, or dynamic compositions—we start by setting up CE.SDK in Video mode.

// Enable video editing features in CE.SDK
cesdk.feature.enable('ly.img.video');
cesdk.feature.enable('ly.img.timeline');
cesdk.feature.enable('ly.img.playback');

Video mode enables timeline features and playback controls. The ly.img.timeline feature provides the timeline panel, and ly.img.playback enables play/pause controls.

Creating a Video Scene#

We create a video scene to access timeline-based editing capabilities. Design mode doesn’t support tracks and sequential playback.

// Create a video scene - required for timeline-based editing
await cesdk.createVideoScene();

const engine = cesdk.engine;
const page = engine.block.findByType('page')[0];

// Set page to 16:9 landscape (1920x1080 is standard HD video resolution)
engine.block.setWidth(page, 1920);
engine.block.setHeight(page, 1080);

// Set page duration to accommodate all clips (15 seconds total)
engine.block.setDuration(page, 15);

The page duration determines how long the composition plays. Set it to accommodate all your clips—in this example, 15 seconds for three 5-second clips.

Creating Video Clips#

We create video clips as graphic blocks with video fills. Each clip needs a video fill that references the source media.

// Create video clips using the addVideo helper method
// Each clip is sized to fill the canvas (1920x1080 is standard video resolution)
const clipA = await engine.block.addVideo(videoUrl, 1920, 1080, {
  timeline: { duration: 5, timeOffset: 0 }
});

const clipB = await engine.block.addVideo(videoUrl, 1920, 1080, {
  timeline: { duration: 5, timeOffset: 5 }
});

const clipC = await engine.block.addVideo(videoUrl, 1920, 1080, {
  timeline: { duration: 5, timeOffset: 10 }
});

The addVideo helper method creates a graphic block with an attached video fill and automatically loads the video resource metadata. We set width and height to control how the clip appears in the composition. The timeline options let us set duration and time offset in one call.

Creating Tracks#

Tracks organize clips for sequential playback. We create a track and attach it to the page.

// Create a track and add it to the page
// Tracks organize clips for sequential playback on the timeline
const track = engine.block.create('track');
engine.block.appendChild(page, track);

A track acts as a container for clips. When you add clips to a track, they play in the order they were added.

Adding Clips to Track#

We add clips to the track using appendChild. Clips join the sequence in the order they’re added.

// Add clips to the track
engine.block.appendChild(track, clipA);
engine.block.appendChild(track, clipB);
engine.block.appendChild(track, clipC);

// Resize all track children to fill the page dimensions
engine.block.fillParent(track);

// Query track children to verify order
const trackClips = engine.block.getChildren(track);
console.log('Track clip count:', trackClips.length, 'clips');

After adding clips, you can query the track’s children to verify the order. getChildren returns an array of clip IDs in playback order.

Setting Clip Durations#

Each clip needs a duration that determines how long it plays in the timeline.

// Set durations for each clip
engine.block.setDuration(clipA, 5);
engine.block.setDuration(clipB, 5);
engine.block.setDuration(clipC, 5);

Duration is measured in seconds. A 5-second duration means the clip occupies 5 seconds of timeline space.

Arranging Clips#

Time Offsets#

Time offsets control when each clip starts playing. We set offsets to position clips at specific points in the timeline.

// Set time offsets to position clips sequentially on the timeline
engine.block.setTimeOffset(clipA, 0);
engine.block.setTimeOffset(clipB, 5);
engine.block.setTimeOffset(clipC, 10);

console.log('Track offsets set: Clip A: 0s, Clip B: 5s, Clip C: 10s');

Clip A starts at 0 seconds, Clip B at 5 seconds, and Clip C at 10 seconds. Combined with 5-second durations, this creates a continuous 15-second sequence with no gaps.

Reordering Clips#

Use insertChild to move clips to specific positions within a track. This moves an existing child to a new index.

// Reorder clips: move Clip C to the beginning (index 0)
// This demonstrates using insertChild for precise positioning
engine.block.insertChild(track, clipC, 0);

// After reordering, update time offsets to reflect the new sequence
engine.block.setTimeOffset(clipC, 0);
engine.block.setTimeOffset(clipA, 5);
engine.block.setTimeOffset(clipB, 10);

console.log('After reorder - updated offsets: C=0s, A=5s, B=10s');

When we insert Clip C at index 0, it becomes the first clip. The order changes from A-B-C to C-A-B. We update time offsets to match the new sequence.

Querying Track Children#

Use getChildren to inspect the current clip order and verify arrangements.

// Get all clips in the track to verify arrangement
const finalClips = engine.block.getChildren(track);
console.log('Final track arrangement:');
finalClips.forEach((clipId, index) => {
  const offset = engine.block.getTimeOffset(clipId);
  const duration = engine.block.getDuration(clipId);
  console.log(
    `  Clip ${index + 1}: offset=${offset}s, duration=${duration}s`
  );
});

This loop outputs each clip’s position, time offset, and duration—useful for debugging or building custom timeline UIs.

Multi-Track Compositions#

Adding Multiple Tracks#

Create layered compositions by adding multiple tracks to a page. Track order determines rendering order—clips in later tracks appear on top.

// Create a second track for layered compositions
// Track order determines z-index: last track renders on top
const overlayTrack = engine.block.create('track');
engine.block.appendChild(page, overlayTrack);

// Create an overlay clip for picture-in-picture effect (1/4 size)
const overlayClip = await engine.block.addVideo(
  videoUrl,
  1920 / 4,
  1080 / 4,
  {
    timeline: { duration: 5, timeOffset: 2 }
  }
);
engine.block.appendChild(overlayTrack, overlayClip);

// Position overlay in bottom-right corner with padding
engine.block.setPositionX(overlayClip, 1920 - 1920 / 4 - 40);
engine.block.setPositionY(overlayClip, 1080 - 1080 / 4 - 40);

console.log('Multi-track composition created with overlay starting at 2s');

The overlay track contains a smaller clip positioned in the corner. It starts at 2 seconds and lasts 5 seconds, creating a picture-in-picture effect during that time range.

Track Rendering Order#

CE.SDK renders tracks from first to last. The first track added appears at the bottom, and subsequent tracks layer on top. Use this to create:

Background layers: Full-screen videos or images on the first track
Overlays: Smaller clips positioned on upper tracks
Titles: Text or graphics that appear over video content

Troubleshooting#

Clips Not Appearing#

If clips don’t show on the timeline, verify they’re attached to a track that’s attached to the page. Use getParent and getChildren to inspect the hierarchy:

const parent = engine.block.getParent(clipId);
const children = engine.block.getChildren(trackId);

Wrong Playback Order#

If clips play in unexpected order, check time offsets. Clips play based on their time offset values, not their order in the children array. Set explicit offsets when precise timing matters.

Video Not Loading#

If video content doesn’t appear when using addVideo, check that the video URL is accessible and the format is supported. The addVideo helper automatically loads video metadata.

API Reference#

Method	Description	Parameters	Returns
`block.addVideo(uri, width, height, options)`	Create video clip with automatic resource loading	`uri: string, width: number, height: number, options?: { timeline: { duration, timeOffset } }`	`Promise<DesignBlockId>`
`block.create('track')`	Create a new track	`type: 'track'`	`DesignBlockId`
`block.appendChild(parent, child)`	Add child to parent	`parent: DesignBlockId, child: DesignBlockId`	`void`
`block.insertChild(parent, child, index)`	Insert child at specific position	`parent: DesignBlockId, child: DesignBlockId, index: number`	`void`
`block.getChildren(id)`	Get all children of a block	`id: DesignBlockId`	`DesignBlockId[]`
`block.setTimeOffset(id, offset)`	Set when block starts in timeline	`id: DesignBlockId, offset: number`	`void`
`block.getTimeOffset(id)`	Get block’s time offset	`id: DesignBlockId`	`number`
`block.setDuration(id, duration)`	Set block’s duration	`id: DesignBlockId, duration: number`	`void`
`block.getDuration(id)`	Get block’s duration	`id: DesignBlockId`	`number`

Next Steps#

Now that you understand how to join and arrange clips, explore related video editing features:

Trim Video Clips - Control which portion of media plays back
Control Audio and Video - Master playback timing and audio mixing
Video Timeline Overview - Understand the complete timeline editing system
