Data Merge - SvelteKit

Generate personalized designs from a single template by merging external data into CE.SDK templates using text variables and placeholder blocks.

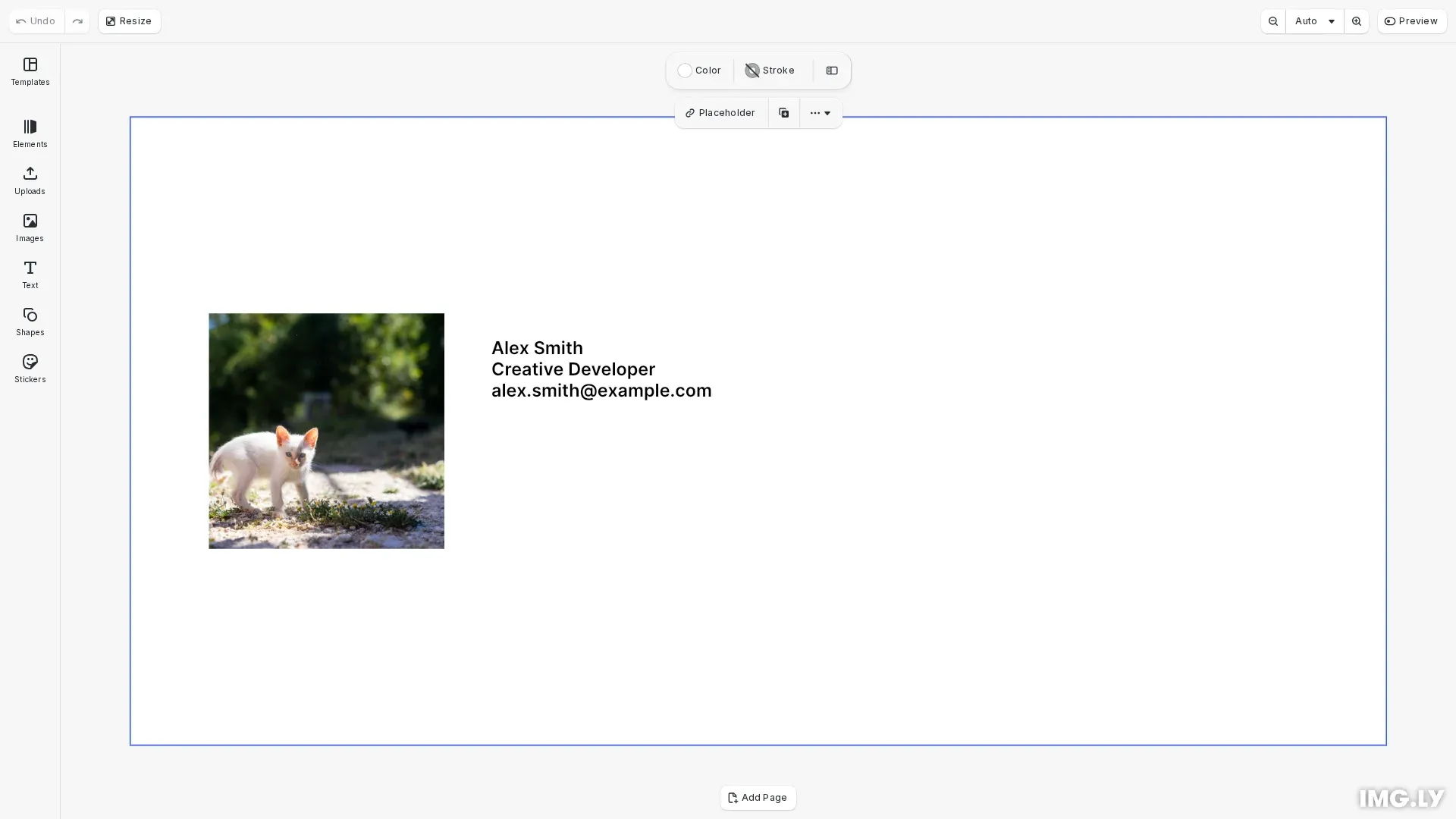

Data Merge example showing personalized business card design

10 mins

estimated time

Download

StackBlitz

GitHub

Data merge generates multiple personalized designs from a single template by replacing variable content with external data. Use it for certificates, badges, team cards, or any design requiring consistent layout with varying content.

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';
import packageJson from './package.json';

/**
 * CE.SDK Plugin: Data Merge Guide
 *
 * Demonstrates merging external data into templates:
 * - Setting text variables with engine.variable.setString()
 * - Finding variables with engine.variable.findAll()
 * - Finding blocks by name with engine.block.findByName()
 * - Updating image content in placeholder blocks
 * - Exporting personalized designs
 */
class Example implements EditorPlugin {
  name = packageJson.name;

  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    // Initialize CE.SDK with Design mode and load asset sources
    await cesdk.addDefaultAssetSources();
    await cesdk.addDemoAssetSources({
      sceneMode: 'Design',
      withUploadAssetSources: true
    });
    await cesdk.createDesignScene();

    const engine = cesdk.engine;
    const page = engine.block.findByType('page')[0];

    // Set page dimensions for a business card layout
    engine.block.setWidth(page, 800);
    engine.block.setHeight(page, 400);

    // Sample data to merge into the template
    const sampleData = {
      name: 'Alex Smith',
      title: 'Creative Developer',
      email: 'alex.smith@example.com',
      photoUrl: 'https://img.ly/static/ubq_samples/sample_1.jpg'
    };

    // Create a profile photo block with a semantic name
    const photoBlock = engine.block.create('graphic');
    engine.block.setShape(photoBlock, engine.block.createShape('rect'));
    const photoFill = engine.block.createFill('image');
    engine.block.setString(
      photoFill,
      'fill/image/imageFileURI',
      sampleData.photoUrl
    );
    engine.block.setFill(photoBlock, photoFill);
    engine.block.setWidth(photoBlock, 150);
    engine.block.setHeight(photoBlock, 150);
    engine.block.setPositionX(photoBlock, 50);
    engine.block.setPositionY(photoBlock, 125);
    engine.block.setName(photoBlock, 'profile-photo');
    engine.block.appendChild(page, photoBlock);

    // Create a text block with variable placeholders
    const textBlock = engine.block.create('text');
    const textContent = `{{name}}
{{title}}
{{email}}`;
    engine.block.replaceText(textBlock, textContent);
    engine.block.setWidthMode(textBlock, 'Auto');
    engine.block.setHeightMode(textBlock, 'Auto');
    engine.block.setFloat(textBlock, 'text/fontSize', 32);
    engine.block.setPositionX(textBlock, 230);
    engine.block.setPositionY(textBlock, 140);
    engine.block.appendChild(page, textBlock);

    // Set the variable values from data
    engine.variable.setString('name', sampleData.name);
    engine.variable.setString('title', sampleData.title);
    engine.variable.setString('email', sampleData.email);

    // Discover all variables in the scene
    const variables = engine.variable.findAll();
    console.log('Variables in scene:', variables);

    // Check if the text block references any variables
    const hasVariables = engine.block.referencesAnyVariables(textBlock);
    console.log('Text block has variables:', hasVariables);

    // Find blocks by their semantic name
    const [foundPhotoBlock] = engine.block.findByName('profile-photo');
    if (foundPhotoBlock) {
      console.log('Found profile-photo block:', foundPhotoBlock);

      // Update the image content
      const fill = engine.block.getFill(foundPhotoBlock);
      engine.block.setString(
        fill,
        'fill/image/imageFileURI',
        'https://img.ly/static/ubq_samples/sample_2.jpg'
      );
    }

    // Export the personalized design
    const blob = await engine.block.export(page, { mimeType: 'image/png' });
    console.log('Exported PNG blob:', blob.size, 'bytes');

    // Create a download link for the exported image
    const url = URL.createObjectURL(blob);
    console.log('Download URL created:', url);

    // Select the text block to show the variable values
    engine.block.select(textBlock);

    console.log(
      'Data merge guide initialized. Try changing variable values in the console.'
    );
  }
}

export default Example;

This guide covers how to prepare templates with variables, set values from data, and export personalized designs.

Initialize the Editor#

We start by initializing CE.SDK with a Design scene and setting up the page dimensions for our template.

// Initialize CE.SDK with Design mode and load asset sources
await cesdk.addDefaultAssetSources();
await cesdk.addDemoAssetSources({
  sceneMode: 'Design',
  withUploadAssetSources: true
});
await cesdk.createDesignScene();

const engine = cesdk.engine;
const page = engine.block.findByType('page')[0];

// Set page dimensions for a business card layout
engine.block.setWidth(page, 800);
engine.block.setHeight(page, 400);

Prepare Sample Data#

In a real application, data comes from a CSV file, database, or API. Here we define a sample record with the fields we want to merge into the template.

// Sample data to merge into the template
const sampleData = {
  name: 'Alex Smith',
  title: 'Creative Developer',
  email: 'alex.smith@example.com',
  photoUrl: 'https://img.ly/static/ubq_samples/sample_1.jpg'
};

Each data record contains field names that map to template variables and placeholder blocks.

Create Template Layout#

We build the template by creating blocks and assigning semantic names. The profile photo block uses setName() so we can find and update it later.

// Create a profile photo block with a semantic name
const photoBlock = engine.block.create('graphic');
engine.block.setShape(photoBlock, engine.block.createShape('rect'));
const photoFill = engine.block.createFill('image');
engine.block.setString(
  photoFill,
  'fill/image/imageFileURI',
  sampleData.photoUrl
);
engine.block.setFill(photoBlock, photoFill);
engine.block.setWidth(photoBlock, 150);
engine.block.setHeight(photoBlock, 150);
engine.block.setPositionX(photoBlock, 50);
engine.block.setPositionY(photoBlock, 125);
engine.block.setName(photoBlock, 'profile-photo');
engine.block.appendChild(page, photoBlock);

Using semantic names like profile-photo makes it easy to locate and modify blocks when processing different data records.

Add Text with Variables#

Text variables use double curly brace syntax: {{variableName}}. We create a text block with variable placeholders for name, title, and email.

    // Create a text block with variable placeholders
    const textBlock = engine.block.create('text');
    const textContent = `{{name}}
{{title}}
{{email}}`;
    engine.block.replaceText(textBlock, textContent);
    engine.block.setWidthMode(textBlock, 'Auto');
    engine.block.setHeightMode(textBlock, 'Auto');
    engine.block.setFloat(textBlock, 'text/fontSize', 32);
    engine.block.setPositionX(textBlock, 230);
    engine.block.setPositionY(textBlock, 140);
    engine.block.appendChild(page, textBlock);

Variables in text blocks automatically display their values when set through the Variable API.

Set Variable Values#

We use engine.variable.setString() to define the value for each variable. When a variable is set, all text blocks referencing that variable update automatically.

// Set the variable values from data
engine.variable.setString('name', sampleData.name);
engine.variable.setString('title', sampleData.title);
engine.variable.setString('email', sampleData.email);

Variable values persist throughout the engine session. Setting a variable to a new value updates all references immediately.

Discover Variables#

Use engine.variable.findAll() to discover which variables exist in the scene. Use engine.block.referencesAnyVariables() to check if a specific block contains variable references.

// Discover all variables in the scene
const variables = engine.variable.findAll();
console.log('Variables in scene:', variables);

// Check if the text block references any variables
const hasVariables = engine.block.referencesAnyVariables(textBlock);
console.log('Text block has variables:', hasVariables);

This is useful when loading existing templates to determine which data fields are required.

Find and Update Placeholder Blocks#

Use engine.block.findByName() to locate blocks by their semantic name. Once found, you can update properties like image content by modifying the fill URI.

// Find blocks by their semantic name
const [foundPhotoBlock] = engine.block.findByName('profile-photo');
if (foundPhotoBlock) {
  console.log('Found profile-photo block:', foundPhotoBlock);

  // Update the image content
  const fill = engine.block.getFill(foundPhotoBlock);
  engine.block.setString(
    fill,
    'fill/image/imageFileURI',
    'https://img.ly/static/ubq_samples/sample_2.jpg'
  );
}

This pattern works well for updating profile photos, logos, or other image placeholders in templates.

Export the Design#

After merging data into the template, export the personalized design using engine.block.export().

// Export the personalized design
const blob = await engine.block.export(page, { mimeType: 'image/png' });
console.log('Exported PNG blob:', blob.size, 'bytes');

// Create a download link for the exported image
const url = URL.createObjectURL(blob);
console.log('Download URL created:', url);

You can export to PNG, JPEG, WebP, or PDF formats. For batch processing, collect blobs in an array or write directly to a file system.

Troubleshooting#

Variables Not Rendering#

If variable placeholders show instead of values:

Verify the variable name matches exactly (case-sensitive)
Use engine.variable.findAll() to check which variables are defined
Ensure engine.variable.setString() was called before rendering

Block Not Found#

If findByName() returns an empty array:

Check the block name was set with engine.block.setName()
Verify the name string matches exactly (case-sensitive)
Ensure the block exists in the current scene

Image Not Updating#

If placeholder images don’t update:

Get the fill block first with engine.block.getFill()
Use the correct property path: fill/image/imageFileURI
Verify the image URL is accessible and valid

API Reference#

Method	Description
`engine.variable.setString(name, value)`	Set a text variable’s value
`engine.variable.getString(name)`	Get a text variable’s value
`engine.variable.findAll()`	List all variable names in the scene
`engine.variable.remove(name)`	Remove a variable
`engine.block.findByName(name)`	Find blocks by their semantic name
`engine.block.setName(block, name)`	Set a block’s semantic name
`engine.block.replaceText(block, text)`	Replace text content in a text block
`engine.block.referencesAnyVariables(block)`	Check if block contains variable references
`engine.block.getFill(block)`	Get the fill block of a design block
`engine.block.setString(block, property, value)`	Set a string property value
`engine.block.export(block, options)`	Export a block to an image format
