Set Zoom Level

Control the canvas zoom level programmatically using CE.SDK. Learn how to use the zoom APIs to set specific levels, enable auto-fit, and zoom to blocks. You can also customize the navigation bar with your own zoom controls.

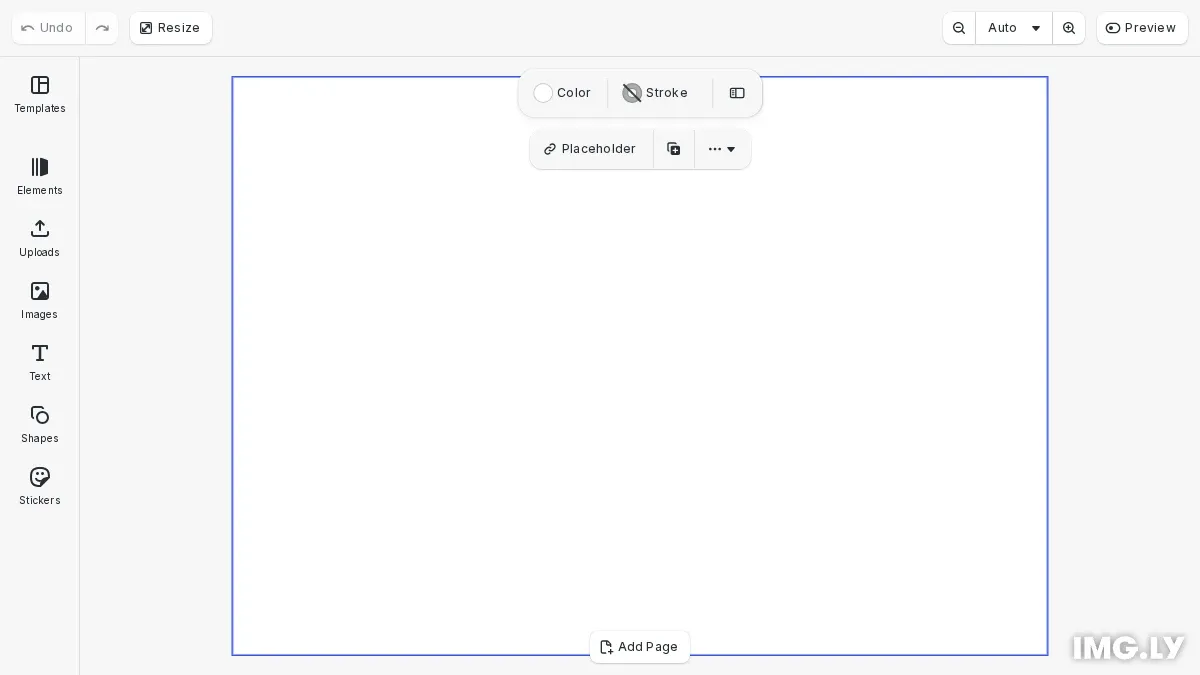

Set Zoom Level example showing canvas with zoom controls

10 mins

estimated time

Download

StackBlitz

GitHub

The zoom level is a ratio where 1.0 equals one design pixel per screen pixel. A zoom level of 2.0 makes content appear twice as large on screen, while 0.5 makes it appear half as large.

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';
import packageJson from '../package.json';

class Example implements EditorPlugin {
  name = packageJson.name;
  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    const engine = cesdk.engine;

    // Load assets and create scene
    await cesdk.addDefaultAssetSources();
    await cesdk.addDemoAssetSources({
      sceneMode: 'Design',
      withUploadAssetSources: true
    });
    await cesdk.createDesignScene();

    const page = engine.block.findByType('page')[0];

    // Set a specific zoom level (value 0.15 = 15%, 1.0 = 100%)
    engine.scene.setZoomLevel(0.15);

    // Enable auto-fit to keep content visible within the viewport
    // Parameters: block, fitMode, paddingTop, paddingRight, paddingBottom, paddingLeft
    engine.scene.enableZoomAutoFit(page, 'Both', 20, 20, 20, 20);

    // Configure navigation bar with custom zoom buttons
    // This replaces the default zoom controls
    cesdk.ui.setNavigationBarOrder([
      'ly.img.spacer',
      {
        id: 'ly.img.action.navigationBar',
        key: 'zoom-15',
        label: 'Zoom 15%',
        icon: '@imgly/ZoomOut',
        onClick: () => {
          engine.scene.setZoomLevel(0.15);
        }
      },
      {
        id: 'ly.img.action.navigationBar',
        key: 'zoom-42',
        label: 'Zoom 42%',
        icon: '@imgly/Zoom',
        onClick: () => {
          engine.scene.setZoomLevel(0.42);
        }
      },
      {
        id: 'ly.img.action.navigationBar',
        key: 'zoom-90',
        label: 'Zoom 90%',
        icon: '@imgly/ZoomIn',
        onClick: () => {
          engine.scene.setZoomLevel(0.9);
        }
      },
      {
        id: 'ly.img.action.navigationBar',
        key: 'zoom-auto-fit',
        label: 'Auto-Fit',
        icon: '@imgly/Fit',
        onClick: () => {
          engine.scene.enableZoomAutoFit(page, 'Both', 20, 20, 20, 20);
        }
      }
    ]);

    // Zoom to show a specific block with smooth animation
    await engine.scene.zoomToBlock(page, {
      padding: 40,
      animate: { duration: 0.3, easing: 'EaseOut' }
    });
  }
}

export default Example;

Understanding the Zoom APIs#

CE.SDK provides three main approaches for controlling the zoom level.

Set Zoom Level#

Use engine.scene.setZoomLevel() to set a specific zoom level. The value is a ratio where:

0.15 = 15% zoom (zoomed out)
1.0 = 100% zoom (1:1 pixel ratio)
2.0 = 200% zoom (zoomed in)

// Set a specific zoom level (value 0.15 = 15%, 1.0 = 100%)
engine.scene.setZoomLevel(0.15);

Auto-Fit Zoom#

Use engine.scene.enableZoomAutoFit() to continuously adjust zoom to fit a block in the viewport. The parameters are:

blockOrScene: The block ID to fit
axis: 'Both', 'Horizontal', or 'Vertical'
padding values: Space around the block in screen pixels (top, right, bottom, left)

// Enable auto-fit to keep content visible within the viewport
// Parameters: block, fitMode, paddingTop, paddingRight, paddingBottom, paddingLeft
engine.scene.enableZoomAutoFit(page, 'Both', 20, 20, 20, 20);

When auto-fit is enabled, the viewport automatically adjusts when the block changes size. Calling setZoomLevel() or zoomToBlock() disables auto-fit.

Zoom to Block#

Use engine.scene.zoomToBlock() to focus the viewport on a specific block with animation:

// Zoom to show a specific block with smooth animation
await engine.scene.zoomToBlock(page, {
  padding: 40,
  animate: { duration: 0.3, easing: 'EaseOut' }
});

Built-in Zoom Controls#

CE.SDK includes a built-in zoom component that provides a complete zoom interface out of the box. The ly.img.zoom.navigationBar component includes:

Zoom in and zoom out buttons
Auto-fit button
Fit-to-page option
Preset zoom levels (200%, 100%, 50%)
A dropdown with a numeric input for custom zoom values

This component appears in the navigation bar by default. For most use cases, the built-in zoom controls provide everything users need without any additional code.

If you need custom zoom behavior beyond what the built-in component provides, use cesdk.ui.setNavigationBarOrder() to replace or extend the navigation bar controls.

// Configure navigation bar with custom zoom buttons
// This replaces the default zoom controls
cesdk.ui.setNavigationBarOrder([
  'ly.img.spacer',
  {
    id: 'ly.img.action.navigationBar',
    key: 'zoom-15',
    label: 'Zoom 15%',
    icon: '@imgly/ZoomOut',
    onClick: () => {
      engine.scene.setZoomLevel(0.15);
    }
  },
  {
    id: 'ly.img.action.navigationBar',
    key: 'zoom-42',
    label: 'Zoom 42%',
    icon: '@imgly/Zoom',
    onClick: () => {
      engine.scene.setZoomLevel(0.42);
    }
  },
  {
    id: 'ly.img.action.navigationBar',
    key: 'zoom-90',
    label: 'Zoom 90%',
    icon: '@imgly/ZoomIn',
    onClick: () => {
      engine.scene.setZoomLevel(0.9);
    }
  },
  {
    id: 'ly.img.action.navigationBar',
    key: 'zoom-auto-fit',
    label: 'Auto-Fit',
    icon: '@imgly/Fit',
    onClick: () => {
      engine.scene.enableZoomAutoFit(page, 'Both', 20, 20, 20, 20);
    }
  }
]);

Each action button requires:

id: Use 'ly.img.action.navigationBar' for action buttons
key: Unique identifier for the button
label: Display text
icon: Icon from the @imgly/ icon set
onClick: Handler function

By defining your own order, you can remove default controls, add custom action buttons, and reorder existing components.

Troubleshooting#

Zoom Level Doesn’t Change#

Check that no UI component is overriding zoom
Ensure a scene exists before calling zoom methods
Verify zoom clamping isn’t limiting the range

Auto-Fit Not Working#

Only one block can have auto-fit enabled at a time
Calling setZoomLevel() or zoomToBlock() disables auto-fit
Pass a valid block ID that exists in the scene

Custom Buttons Not Appearing#

Ensure setNavigationBarOrder() is called after the scene is created
Check that button keys are unique
Verify the icon name is correct

API Reference#

Method	Description
`engine.scene.getZoomLevel()`	Get current zoom level
`engine.scene.setZoomLevel()`	Set zoom level directly
`engine.scene.zoomToBlock()`	Zoom and pan to show a block
`engine.scene.enableZoomAutoFit()`	Enable continuous zoom adjustment
`engine.scene.disableZoomAutoFit()`	Disable auto-fit
`engine.scene.isZoomAutoFitEnabled()`	Query auto-fit state
`engine.scene.onZoomLevelChanged()`	Subscribe to zoom changes
`cesdk.ui.setNavigationBarOrder()`	Customize navigation bar layout
