Color Basics - Svelte

Understand the three color spaces in CE.SDK and when to use each for screen or print workflows.

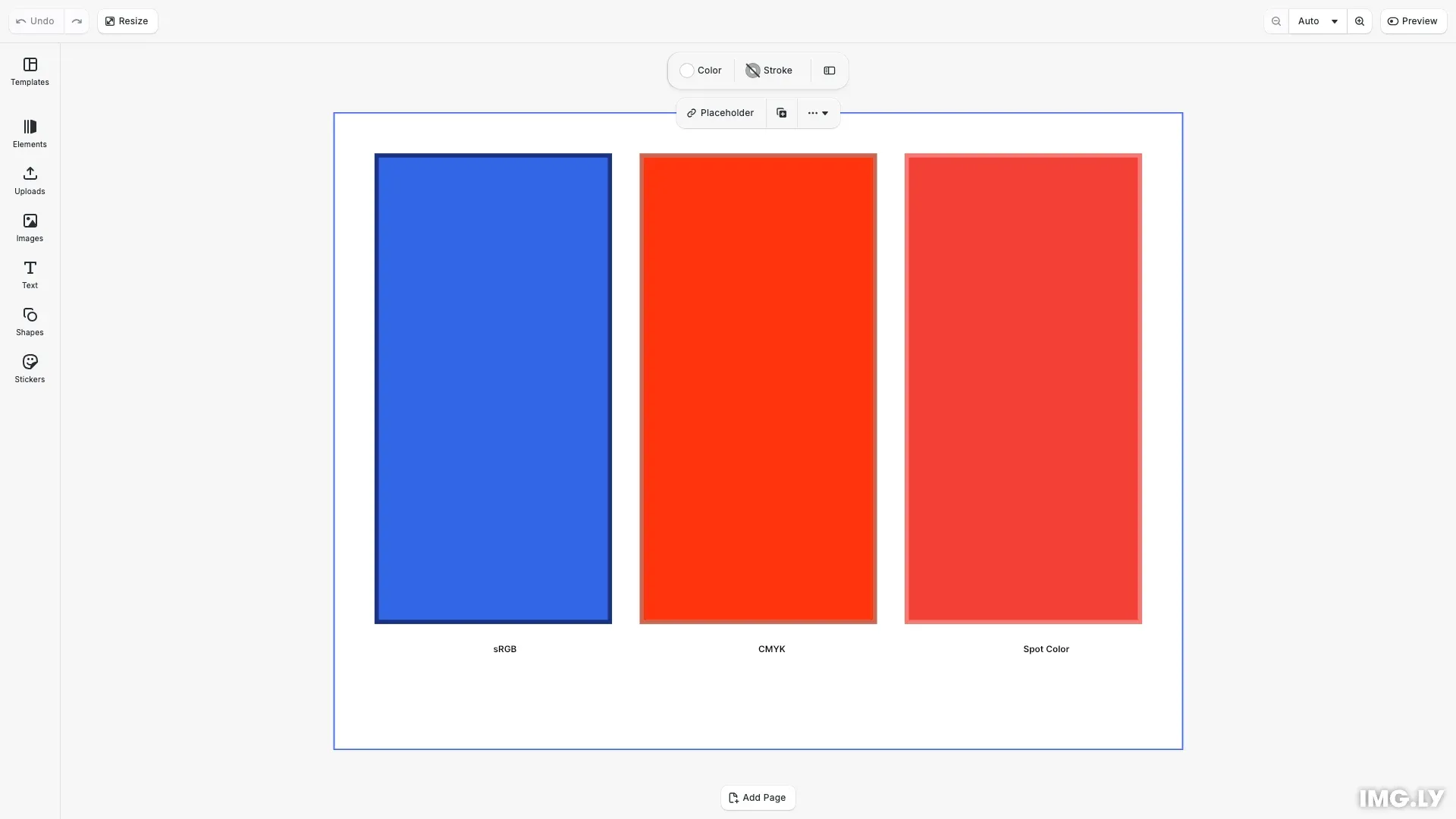

Color Basics example showing three colored blocks representing sRGB, CMYK, and Spot color spaces

10 mins

estimated time

CE.SDK supports three color spaces: sRGB for screen display, CMYK for print workflows, and Spot Color for specialized printing. Each color space serves different output types and has its own object format for the setColor() API.

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';
import packageJson from './package.json';

class Example implements EditorPlugin {
  name = packageJson.name;
  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    // Enable spot color feature for the UI
    cesdk.feature.enable('ly.img.spotColor');

    await cesdk.addDefaultAssetSources();
    await cesdk.addDemoAssetSources({
      sceneMode: 'Design',
      withUploadAssetSources: true
    });
    await cesdk.createDesignScene();

    const engine = cesdk.engine;
    const page = engine.block.findByType('page')[0];

    // Set page dimensions
    engine.block.setWidth(page, 800);
    engine.block.setHeight(page, 600);

    const pageWidth = engine.block.getWidth(page);
    const pageHeight = engine.block.getHeight(page);

    // Calculate block sizes for three columns
    const margin = 40;
    const spacing = 30;
    const availableWidth = pageWidth - 2 * margin - 2 * spacing;
    const blockWidth = availableWidth / 3;
    const blockHeight = pageHeight - 2 * margin - 80; // Leave space for labels

    // Define a spot color with RGB approximation for screen preview
    engine.editor.setSpotColorRGB('MyBrand Red', 0.95, 0.25, 0.21);

    // Create three blocks to demonstrate each color space

    // Block 1: sRGB color (for screen display)
    const srgbBlock = engine.block.create('//ly.img.ubq/graphic');
    engine.block.setShape(
      srgbBlock,
      engine.block.createShape('//ly.img.ubq/shape/rect')
    );
    const srgbFill = engine.block.createFill('//ly.img.ubq/fill/color');
    // Set fill color using RGBAColor object (values 0.0-1.0)
    engine.block.setColor(srgbFill, 'fill/color/value', {
      r: 0.2,
      g: 0.4,
      b: 0.9,
      a: 1.0
    });
    engine.block.setFill(srgbBlock, srgbFill);
    engine.block.setWidth(srgbBlock, blockWidth);
    engine.block.setHeight(srgbBlock, blockHeight);
    engine.block.appendChild(page, srgbBlock);

    // Block 2: CMYK color (for print workflows)
    const cmykBlock = engine.block.create('//ly.img.ubq/graphic');
    engine.block.setShape(
      cmykBlock,
      engine.block.createShape('//ly.img.ubq/shape/rect')
    );
    const cmykFill = engine.block.createFill('//ly.img.ubq/fill/color');
    // Set fill color using CMYKColor object (values 0.0-1.0, tint controls opacity)
    engine.block.setColor(cmykFill, 'fill/color/value', {
      c: 0.0,
      m: 0.8,
      y: 0.95,
      k: 0.0,
      tint: 1.0
    });
    engine.block.setFill(cmykBlock, cmykFill);
    engine.block.setWidth(cmykBlock, blockWidth);
    engine.block.setHeight(cmykBlock, blockHeight);
    engine.block.appendChild(page, cmykBlock);

    // Block 3: Spot color (for specialized printing)
    const spotBlock = engine.block.create('//ly.img.ubq/graphic');
    engine.block.setShape(
      spotBlock,
      engine.block.createShape('//ly.img.ubq/shape/rect')
    );
    const spotFill = engine.block.createFill('//ly.img.ubq/fill/color');
    // Set fill color using SpotColor object (references the defined spot color)
    engine.block.setColor(spotFill, 'fill/color/value', {
      name: 'MyBrand Red',
      tint: 1.0,
      externalReference: ''
    });
    engine.block.setFill(spotBlock, spotFill);
    engine.block.setWidth(spotBlock, blockWidth);
    engine.block.setHeight(spotBlock, blockHeight);
    engine.block.appendChild(page, spotBlock);

    // Add strokes to demonstrate stroke color property
    engine.block.setStrokeEnabled(srgbBlock, true);
    engine.block.setStrokeWidth(srgbBlock, 4);
    engine.block.setColor(srgbBlock, 'stroke/color', {
      r: 0.1,
      g: 0.2,
      b: 0.5,
      a: 1.0
    });

    engine.block.setStrokeEnabled(cmykBlock, true);
    engine.block.setStrokeWidth(cmykBlock, 4);
    engine.block.setColor(cmykBlock, 'stroke/color', {
      c: 0.0,
      m: 0.5,
      y: 0.6,
      k: 0.2,
      tint: 1.0
    });

    engine.block.setStrokeEnabled(spotBlock, true);
    engine.block.setStrokeWidth(spotBlock, 4);
    engine.block.setColor(spotBlock, 'stroke/color', {
      name: 'MyBrand Red',
      tint: 0.7,
      externalReference: ''
    });

    // Create labels for each color space
    const labelY = margin + blockHeight + 20;
    const fontSize = 24;

    const labels = [
      { text: 'sRGB', x: margin + blockWidth / 2 },
      { text: 'CMYK', x: margin + blockWidth + spacing + blockWidth / 2 },
      { text: 'Spot Color', x: margin + 2 * (blockWidth + spacing) + blockWidth / 2 }
    ];

    for (const label of labels) {
      const textBlock = engine.block.create('//ly.img.ubq/text');
      engine.block.replaceText(textBlock, label.text);
      engine.block.setTextFontSize(textBlock, fontSize);
      engine.block.setWidthMode(textBlock, 'Auto');
      engine.block.setHeightMode(textBlock, 'Auto');
      engine.block.appendChild(page, textBlock);

      // Center the label below each block
      const textWidth = engine.block.getWidth(textBlock);
      engine.block.setPositionX(textBlock, label.x - textWidth / 2);
      engine.block.setPositionY(textBlock, labelY);
    }

    // Position all color blocks
    engine.block.setPositionX(srgbBlock, margin);
    engine.block.setPositionY(srgbBlock, margin);

    engine.block.setPositionX(cmykBlock, margin + blockWidth + spacing);
    engine.block.setPositionY(cmykBlock, margin);

    engine.block.setPositionX(spotBlock, margin + 2 * (blockWidth + spacing));
    engine.block.setPositionY(spotBlock, margin);

    // Retrieve and log color values to demonstrate getColor()
    const srgbColor = engine.block.getColor(srgbFill, 'fill/color/value');
    const cmykColor = engine.block.getColor(cmykFill, 'fill/color/value');
    const spotColor = engine.block.getColor(spotFill, 'fill/color/value');

    console.log('sRGB Color:', srgbColor);
    console.log('CMYK Color:', cmykColor);
    console.log('Spot Color:', spotColor);

    console.log('Color Basics example loaded successfully');
  }
}

export default Example;

This guide covers how to choose the correct color space, define and apply colors using the unified setColor() API, and configure spot colors with screen preview approximations.

Color Spaces Overview#

CE.SDK represents colors as objects with different properties depending on the color space. Use engine.block.setColor() to apply any color type to supported properties.

Supported color properties:

'fill/color/value' - Fill color of a block
'stroke/color' - Stroke/outline color
'dropShadow/color' - Drop shadow color
'backgroundColor/color' - Background color
'camera/clearColor' - Canvas clear color

sRGB Colors#

sRGB is the default color space for screen display. Pass an RGBAColor object with r, g, b, a components, each in the range 0.0 to 1.0. The a (alpha) component controls transparency.

// Block 1: sRGB color (for screen display)
const srgbBlock = engine.block.create('//ly.img.ubq/graphic');
engine.block.setShape(
  srgbBlock,
  engine.block.createShape('//ly.img.ubq/shape/rect')
);
const srgbFill = engine.block.createFill('//ly.img.ubq/fill/color');
// Set fill color using RGBAColor object (values 0.0-1.0)
engine.block.setColor(srgbFill, 'fill/color/value', {
  r: 0.2,
  g: 0.4,
  b: 0.9,
  a: 1.0
});
engine.block.setFill(srgbBlock, srgbFill);
engine.block.setWidth(srgbBlock, blockWidth);
engine.block.setHeight(srgbBlock, blockHeight);
engine.block.appendChild(page, srgbBlock);

sRGB colors are ideal for web and digital content where the output is displayed on screens.

CMYK Colors#

CMYK is the color space for print workflows. Pass a CMYKColor object with c, m, y, k components (0.0 to 1.0) plus a tint value that controls opacity.

// Block 2: CMYK color (for print workflows)
const cmykBlock = engine.block.create('//ly.img.ubq/graphic');
engine.block.setShape(
  cmykBlock,
  engine.block.createShape('//ly.img.ubq/shape/rect')
);
const cmykFill = engine.block.createFill('//ly.img.ubq/fill/color');
// Set fill color using CMYKColor object (values 0.0-1.0, tint controls opacity)
engine.block.setColor(cmykFill, 'fill/color/value', {
  c: 0.0,
  m: 0.8,
  y: 0.95,
  k: 0.0,
  tint: 1.0
});
engine.block.setFill(cmykBlock, cmykFill);
engine.block.setWidth(cmykBlock, blockWidth);
engine.block.setHeight(cmykBlock, blockHeight);
engine.block.appendChild(page, cmykBlock);

When rendered on screen, CMYK colors are converted to RGB using standard conversion formulas. The tint value (0.0 to 1.0) is rendered as transparency.

Spot Colors#

Spot colors are named colors used for specialized printing. Before using a spot color, you must define it with an RGB or CMYK approximation for screen preview.

Defining Spot Colors#

Use engine.editor.setSpotColorRGB() or engine.editor.setSpotColorCMYK() to register a spot color with its screen preview approximation.

// Define a spot color with RGB approximation for screen preview
engine.editor.setSpotColorRGB('MyBrand Red', 0.95, 0.25, 0.21);

Applying Spot Colors#

Reference a defined spot color using a SpotColor object with the name, tint, and externalReference properties.

// Block 3: Spot color (for specialized printing)
const spotBlock = engine.block.create('//ly.img.ubq/graphic');
engine.block.setShape(
  spotBlock,
  engine.block.createShape('//ly.img.ubq/shape/rect')
);
const spotFill = engine.block.createFill('//ly.img.ubq/fill/color');
// Set fill color using SpotColor object (references the defined spot color)
engine.block.setColor(spotFill, 'fill/color/value', {
  name: 'MyBrand Red',
  tint: 1.0,
  externalReference: ''
});
engine.block.setFill(spotBlock, spotFill);
engine.block.setWidth(spotBlock, blockWidth);
engine.block.setHeight(spotBlock, blockHeight);
engine.block.appendChild(page, spotBlock);

When rendered on screen, the spot color uses its RGB or CMYK approximation. During PDF export, spot colors are saved as a Separation Color Space that preserves print information.

Applying Stroke Colors#

Strokes support all three color spaces. Enable the stroke, set its width, then apply a color using the 'stroke/color' property.

// Add strokes to demonstrate stroke color property
engine.block.setStrokeEnabled(srgbBlock, true);
engine.block.setStrokeWidth(srgbBlock, 4);
engine.block.setColor(srgbBlock, 'stroke/color', {
  r: 0.1,
  g: 0.2,
  b: 0.5,
  a: 1.0
});

engine.block.setStrokeEnabled(cmykBlock, true);
engine.block.setStrokeWidth(cmykBlock, 4);
engine.block.setColor(cmykBlock, 'stroke/color', {
  c: 0.0,
  m: 0.5,
  y: 0.6,
  k: 0.2,
  tint: 1.0
});

engine.block.setStrokeEnabled(spotBlock, true);
engine.block.setStrokeWidth(spotBlock, 4);
engine.block.setColor(spotBlock, 'stroke/color', {
  name: 'MyBrand Red',
  tint: 0.7,
  externalReference: ''
});

Reading Color Values#

Use engine.block.getColor() to retrieve the current color value from a property. The returned object’s shape indicates the color space (RGBAColor, CMYKColor, or SpotColor).

// Retrieve and log color values to demonstrate getColor()
const srgbColor = engine.block.getColor(srgbFill, 'fill/color/value');
const cmykColor = engine.block.getColor(cmykFill, 'fill/color/value');
const spotColor = engine.block.getColor(spotFill, 'fill/color/value');

console.log('sRGB Color:', srgbColor);
console.log('CMYK Color:', cmykColor);
console.log('Spot Color:', spotColor);

Choosing the Right Color Space#

Color Space	Use Case	Output
sRGB	Web, digital, screen display	PNG, JPEG, WebP
CMYK	Print workflows (converts to RGB)	PDF (converted)
Spot Color	Specialized printing, brand colors	PDF (Separation Color Space)

API Reference#

Method	Description
`engine.block.setColor(id, property, value)`	Set a color property on a block. Pass an `RGBAColor`, `CMYKColor`, or `SpotColor` object.
`engine.block.getColor(id, property)`	Get the current color value from a property. Returns an `RGBAColor`, `CMYKColor`, or `SpotColor` object.
`engine.editor.setSpotColorRGB(name, r, g, b)`	Define a spot color with an RGB approximation for screen preview. Components range from 0.0 to 1.0.
`engine.editor.setSpotColorCMYK(name, c, m, y, k)`	Define a spot color with a CMYK approximation for screen preview. Components range from 0.0 to 1.0.

Type	Properties	Description
`RGBAColor`	`r`, `g`, `b`, `a` (0.0-1.0)	sRGB color for screen display. Alpha controls transparency.
`CMYKColor`	`c`, `m`, `y`, `k`, `tint` (0.0-1.0)	CMYK color for print. Tint controls opacity.
`SpotColor`	`name`, `tint`, `externalReference`	Named color for specialized printing.

Next Steps#

Apply Colors - Apply colors to design elements programmatically
CMYK Colors - Work with CMYK for print workflows
Spot Colors - Define and manage spot colors for specialized printing
