Supported Animation Types - Svelte

Apply entrance, exit, and loop animations to design blocks using the available animation types in CE.SDK.

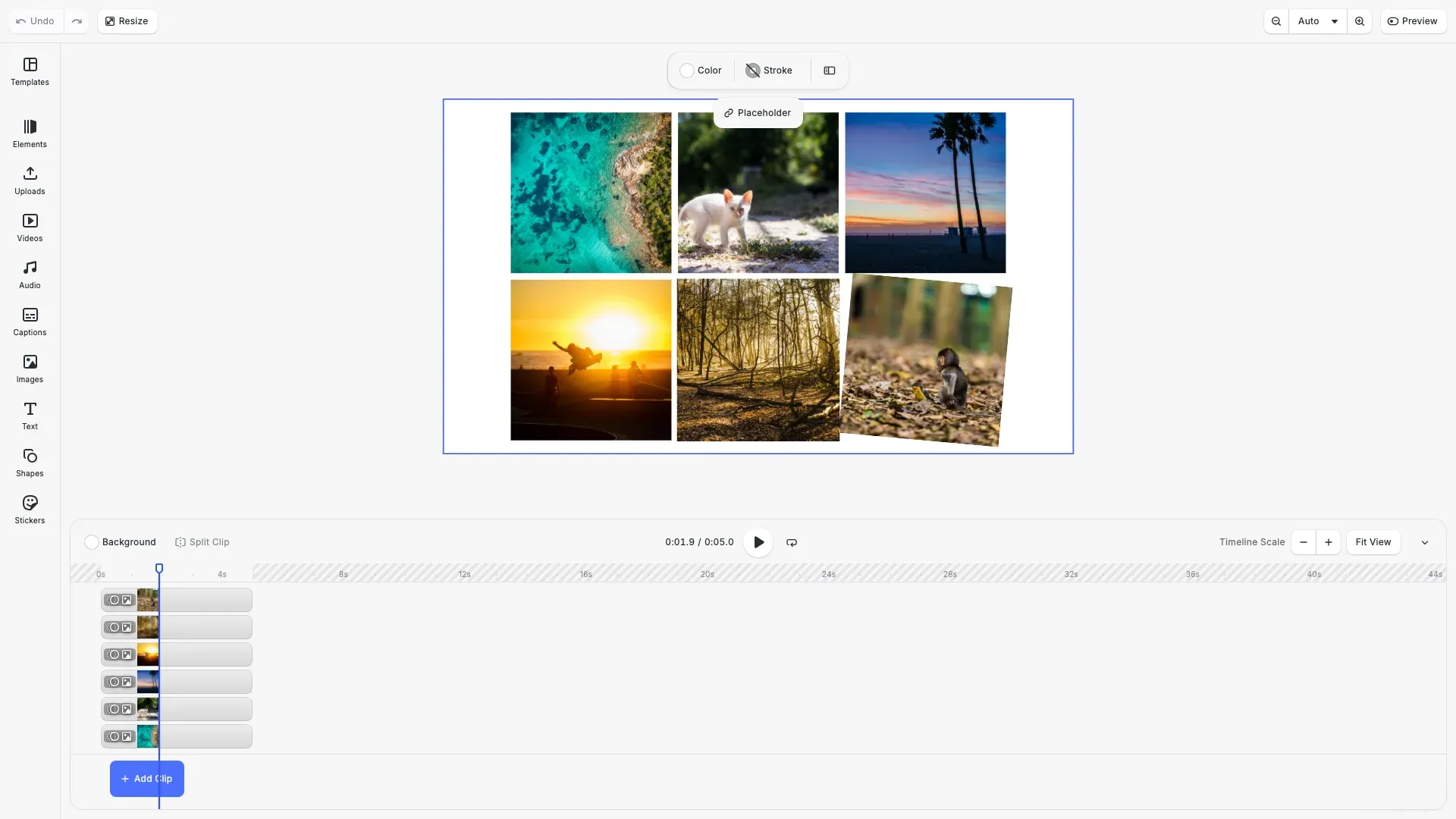

Animation types demonstrating slide, fade, zoom, and loop effects on image blocks

10 mins

estimated time

CE.SDK organizes animations into three categories: entrance (In), exit (Out), and loop. Each category determines when the animation plays during the block’s lifecycle. This guide demonstrates different animation types and their configurable properties.

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';
import packageJson from './package.json';
import { calculateGridLayout } from './utils';

/**
 * CE.SDK Plugin: Supported Animation Types Guide
 *
 * Demonstrates how to use different animation types in CE.SDK:
 * - Entrance animations (slide, fade, zoom, spin)
 * - Exit animations with timing and easing
 * - Loop animations for continuous motion
 * - Animation property configuration
 */
class Example implements EditorPlugin {
  name = packageJson.name;

  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    // Enable video features for animation playback
    cesdk.feature.enable('ly.img.video');
    cesdk.feature.enable('ly.img.timeline');
    cesdk.feature.enable('ly.img.playback');

    // Load assets and create a video scene (required for animations)
    await cesdk.addDefaultAssetSources();
    await cesdk.addDemoAssetSources({
      sceneMode: 'Video',
      withUploadAssetSources: true
    });
    await cesdk.createVideoScene();

    const engine = cesdk.engine;

    const scene = engine.scene.get()!;
    const pages = engine.block.findByType('page');
    const page = pages.length > 0 ? pages[0] : scene;

    // Set page dimensions
    engine.block.setWidth(page, 1920);
    engine.block.setHeight(page, 1080);

    // Set white background color
    if (!engine.block.supportsFill(page) || !engine.block.getFill(page)) {
      const fill = engine.block.createFill('color');
      engine.block.setFill(page, fill);
    }
    const pageFill = engine.block.getFill(page)!;
    engine.block.setColor(pageFill, 'fill/color/value', {
      r: 1.0,
      g: 1.0,
      b: 1.0,
      a: 1.0
    });

    // Calculate grid layout for 6 demonstration blocks
    const pageWidth = engine.block.getWidth(page)!;
    const pageHeight = engine.block.getHeight(page)!;
    const layout = calculateGridLayout(pageWidth, pageHeight, 6);
    const { blockWidth, blockHeight, getPosition } = layout;

    // Helper to create an image block
    const createImageBlock = async (index: number, imageUrl: string) => {
      const graphic = engine.block.create('graphic');
      const imageFill = engine.block.createFill('image');
      engine.block.setString(imageFill, 'fill/image/imageFileURI', imageUrl);
      engine.block.setFill(graphic, imageFill);
      engine.block.setShape(graphic, engine.block.createShape('rect'));
      engine.block.setWidth(graphic, blockWidth);
      engine.block.setHeight(graphic, blockHeight);
      const pos = getPosition(index);
      engine.block.setPositionX(graphic, pos.x);
      engine.block.setPositionY(graphic, pos.y);
      engine.block.appendChild(page, graphic);
      return graphic;
    };

    // Sample images for demonstration
    const imageUrls = [
      'https://img.ly/static/ubq_samples/sample_1.jpg',
      'https://img.ly/static/ubq_samples/sample_2.jpg',
      'https://img.ly/static/ubq_samples/sample_3.jpg',
      'https://img.ly/static/ubq_samples/sample_4.jpg',
      'https://img.ly/static/ubq_samples/sample_5.jpg',
      'https://img.ly/static/ubq_samples/sample_6.jpg'
    ];

    // Block 1: Slide entrance animation with direction
    const block1 = await createImageBlock(0, imageUrls[0]);

    // Create a slide animation that enters from the left
    const slideAnimation = engine.block.createAnimation('slide');
    engine.block.setInAnimation(block1, slideAnimation);
    engine.block.setDuration(slideAnimation, 1.0);
    // Direction in radians: 0=right, PI/2=bottom, PI=left, 3*PI/2=top
    engine.block.setFloat(slideAnimation, 'animation/slide/direction', Math.PI);
    engine.block.setEnum(slideAnimation, 'animationEasing', 'EaseOut');

    // Block 2: Fade animation with easing
    const block2 = await createImageBlock(1, imageUrls[1]);

    // Create a fade entrance animation
    const fadeAnimation = engine.block.createAnimation('fade');
    engine.block.setInAnimation(block2, fadeAnimation);
    engine.block.setDuration(fadeAnimation, 1.0);
    engine.block.setEnum(fadeAnimation, 'animationEasing', 'EaseInOut');

    // Block 3: Zoom animation
    const block3 = await createImageBlock(2, imageUrls[2]);

    // Create a zoom animation with fade effect
    const zoomAnimation = engine.block.createAnimation('zoom');
    engine.block.setInAnimation(block3, zoomAnimation);
    engine.block.setDuration(zoomAnimation, 1.0);
    engine.block.setBool(zoomAnimation, 'animation/zoom/fade', true);

    // Block 4: Exit animation
    const block4 = await createImageBlock(3, imageUrls[3]);

    // Create entrance and exit animations
    const wipeIn = engine.block.createAnimation('wipe');
    engine.block.setInAnimation(block4, wipeIn);
    engine.block.setDuration(wipeIn, 1.0);
    engine.block.setEnum(wipeIn, 'animation/wipe/direction', 'Right');

    // Exit animation plays before block disappears
    const fadeOut = engine.block.createAnimation('fade');
    engine.block.setOutAnimation(block4, fadeOut);
    engine.block.setDuration(fadeOut, 1.0);
    engine.block.setEnum(fadeOut, 'animationEasing', 'EaseIn');

    // Block 5: Loop animation
    const block5 = await createImageBlock(4, imageUrls[4]);

    // Create a breathing loop animation
    const breathingLoop = engine.block.createAnimation('breathing_loop');
    engine.block.setLoopAnimation(block5, breathingLoop);
    engine.block.setDuration(breathingLoop, 2.0);
    // Intensity: 0 = 1.25x max scale, 1 = 2.5x max scale
    engine.block.setFloat(
      breathingLoop,
      'animation/breathing_loop/intensity',
      0.3
    );

    // Block 6: Combined animations
    const block6 = await createImageBlock(5, imageUrls[5]);

    // Apply entrance, exit, and loop animations together
    const spinIn = engine.block.createAnimation('spin');
    engine.block.setInAnimation(block6, spinIn);
    engine.block.setDuration(spinIn, 1.0);
    engine.block.setEnum(spinIn, 'animation/spin/direction', 'Clockwise');
    engine.block.setFloat(spinIn, 'animation/spin/intensity', 0.5);

    const blurOut = engine.block.createAnimation('blur');
    engine.block.setOutAnimation(block6, blurOut);
    engine.block.setDuration(blurOut, 1.0);

    const swayLoop = engine.block.createAnimation('sway_loop');
    engine.block.setLoopAnimation(block6, swayLoop);
    engine.block.setDuration(swayLoop, 1.5);

    // Discover available properties for any animation
    const properties = engine.block.findAllProperties(slideAnimation);
    console.log('Slide animation properties:', properties);

    // Query available easing options
    const easingOptions = engine.block.getEnumValues('animationEasing');
    console.log('Available easing options:', easingOptions);

    // Set initial playback time to see animations
    engine.block.setPlaybackTime(page, 1.9);
  }
}

export default Example;

This guide covers applying entrance animations (slide, fade, zoom), exit animations, loop animations, and configuring animation properties like direction, easing, and intensity.

Entrance Animations#

Entrance animations define how a block appears. We use createAnimation() with the animation type and attach it using setInAnimation().

Slide Animation#

The slide animation moves a block in from a specified direction. The direction property uses radians where 0 is right, π/2 is bottom, π is left, and 3π/2 is top.

// Create a slide animation that enters from the left
const slideAnimation = engine.block.createAnimation('slide');
engine.block.setInAnimation(block1, slideAnimation);
engine.block.setDuration(slideAnimation, 1.0);
// Direction in radians: 0=right, PI/2=bottom, PI=left, 3*PI/2=top
engine.block.setFloat(slideAnimation, 'animation/slide/direction', Math.PI);
engine.block.setEnum(slideAnimation, 'animationEasing', 'EaseOut');

Fade Animation#

The fade animation transitions opacity from invisible to fully visible. Easing controls the animation curve.

// Create a fade entrance animation
const fadeAnimation = engine.block.createAnimation('fade');
engine.block.setInAnimation(block2, fadeAnimation);
engine.block.setDuration(fadeAnimation, 1.0);
engine.block.setEnum(fadeAnimation, 'animationEasing', 'EaseInOut');

Zoom Animation#

The zoom animation scales the block from a smaller size to its final dimensions. The fade property adds an opacity transition during scaling.

// Create a zoom animation with fade effect
const zoomAnimation = engine.block.createAnimation('zoom');
engine.block.setInAnimation(block3, zoomAnimation);
engine.block.setDuration(zoomAnimation, 1.0);
engine.block.setBool(zoomAnimation, 'animation/zoom/fade', true);

Other entrance animation types include:

blur — Transitions from blurred to clear
wipe — Reveals with a directional wipe
pop — Bouncy scale effect
spin — Rotates the block into view
grow — Scales up from a point

Exit Animations#

Exit animations define how a block leaves the screen. We use setOutAnimation() to attach them. CE.SDK prevents overlap between entrance and exit durations automatically.

// Create entrance and exit animations
const wipeIn = engine.block.createAnimation('wipe');
engine.block.setInAnimation(block4, wipeIn);
engine.block.setDuration(wipeIn, 1.0);
engine.block.setEnum(wipeIn, 'animation/wipe/direction', 'Right');

// Exit animation plays before block disappears
const fadeOut = engine.block.createAnimation('fade');
engine.block.setOutAnimation(block4, fadeOut);
engine.block.setDuration(fadeOut, 1.0);
engine.block.setEnum(fadeOut, 'animationEasing', 'EaseIn');

In this example, a wipe entrance transitions to a fade exit. Mirror entrance effects for visual consistency, or use contrasting effects for emphasis.

Loop Animations#

Loop animations run continuously while the block is visible. They can combine with entrance and exit animations. We use setLoopAnimation() to attach them.

// Create a breathing loop animation
const breathingLoop = engine.block.createAnimation('breathing_loop');
engine.block.setLoopAnimation(block5, breathingLoop);
engine.block.setDuration(breathingLoop, 2.0);
// Intensity: 0 = 1.25x max scale, 1 = 2.5x max scale
engine.block.setFloat(
  breathingLoop,
  'animation/breathing_loop/intensity',
  0.3
);

The duration controls each cycle length. Loop animation types include:

breathing_loop — Slow scale pulse
pulsating_loop — Rhythmic scale
spin_loop — Continuous rotation
fade_loop — Opacity cycling
sway_loop — Rotational oscillation
jump_loop — Jumping motion
blur_loop — Blur cycling
squeeze_loop — Squeezing effect

Combined Animations#

A single block can have entrance, exit, and loop animations running together. The loop animation runs throughout the block’s visibility while entrance and exit animations play at the appropriate times.

// Apply entrance, exit, and loop animations together
const spinIn = engine.block.createAnimation('spin');
engine.block.setInAnimation(block6, spinIn);
engine.block.setDuration(spinIn, 1.0);
engine.block.setEnum(spinIn, 'animation/spin/direction', 'Clockwise');
engine.block.setFloat(spinIn, 'animation/spin/intensity', 0.5);

const blurOut = engine.block.createAnimation('blur');
engine.block.setOutAnimation(block6, blurOut);
engine.block.setDuration(blurOut, 1.0);

const swayLoop = engine.block.createAnimation('sway_loop');
engine.block.setLoopAnimation(block6, swayLoop);
engine.block.setDuration(swayLoop, 1.5);

Configuring Animation Properties#

Each animation type has specific configurable properties. We use findAllProperties() to discover available properties and getEnumValues() to query options for enum properties.

// Discover available properties for any animation
const properties = engine.block.findAllProperties(slideAnimation);
console.log('Slide animation properties:', properties);

// Query available easing options
const easingOptions = engine.block.getEnumValues('animationEasing');
console.log('Available easing options:', easingOptions);

Common configurable properties include:

Direction: Controls entry/exit direction in radians or enum values
Easing: Animation curve (Linear, EaseIn, EaseOut, EaseInOut)
Intensity: Strength of the effect (varies by animation type)
Fade: Whether to include opacity transition

API Reference#

Method	Description
`engine.block.createAnimation(type)`	Create animation by type string
`engine.block.setInAnimation(block, anim)`	Attach entrance animation
`engine.block.setOutAnimation(block, anim)`	Attach exit animation
`engine.block.setLoopAnimation(block, anim)`	Attach loop animation
`engine.block.setDuration(anim, seconds)`	Set animation duration
`engine.block.setFloat(anim, property, value)`	Set numeric property
`engine.block.setEnum(anim, property, value)`	Set enum property
`engine.block.setBool(anim, property, value)`	Set boolean property
`engine.block.findAllProperties(anim)`	Discover configurable properties
`engine.block.getEnumValues(property)`	Get available enum values

Next Steps#

Base Animations — Create and attach animations to blocks
Text Animations — Animate text with writing styles
Animation Overview — Animation concepts and capabilities
