Customize Fonts - React

Load and configure custom fonts in CE.SDK to match brand guidelines or provide users with a curated font selection.

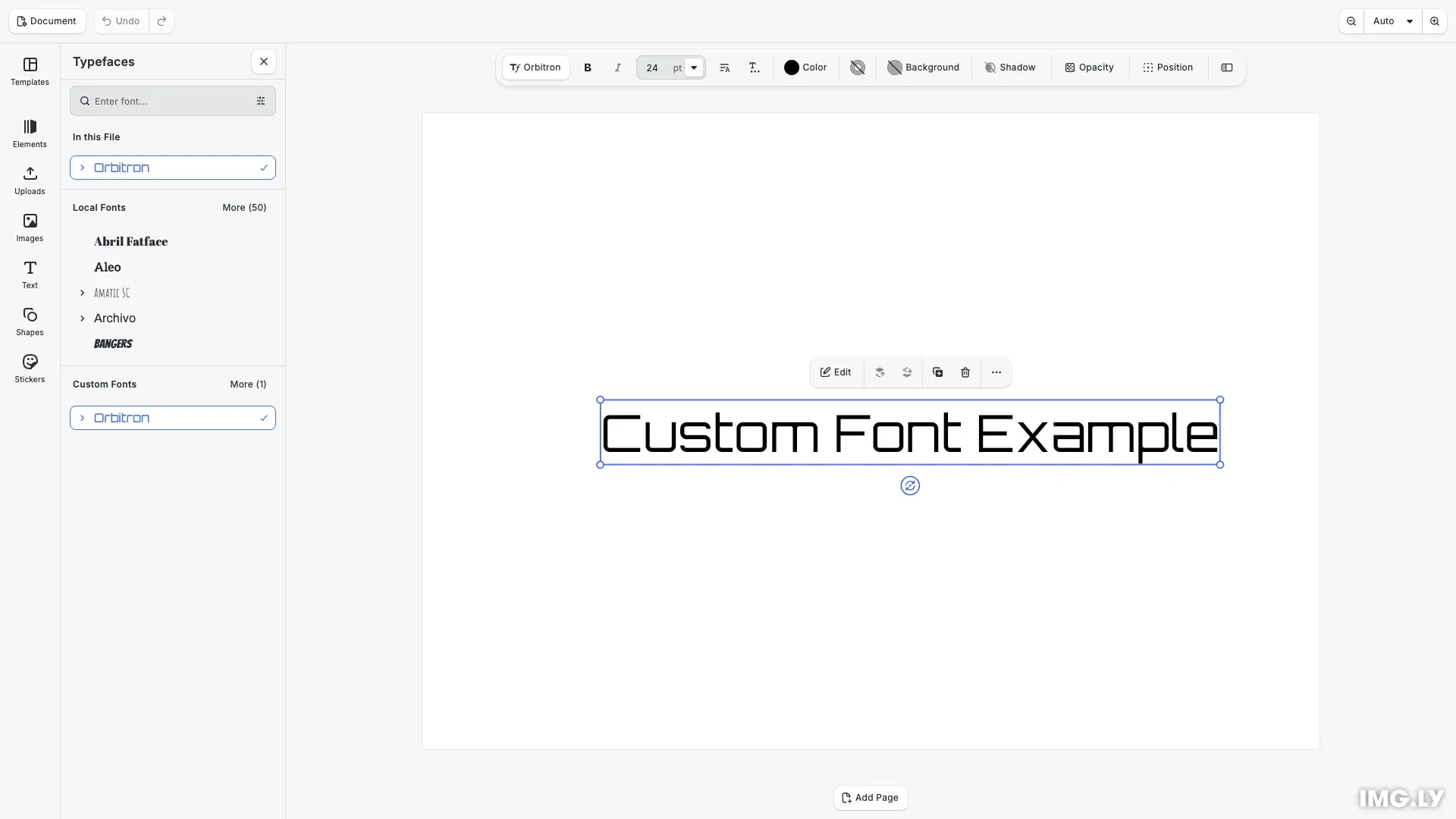

Custom Fonts example showing the font dropdown with custom typefaces

10 mins

estimated time

CE.SDK includes a set of default typefaces, but you can customize the available fonts by creating custom asset sources with your own typeface definitions. Fonts are managed through the asset system and displayed in the editor UI via the typeface library.

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';
import type CreativeEngine from '@cesdk/cesdk-js/node_modules/@cesdk/engine';
import packageJson from './package.json';

class CustomFontsExample implements EditorPlugin {
  name = packageJson.name;
  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    // Load assets
    await cesdk.addDefaultAssetSources();
    await cesdk.addDemoAssetSources({
      sceneMode: 'Design',
      withUploadAssetSources: true
    });

    const engine = cesdk.engine;

    // Create the typeface with resolved font URIs
    const orbitronTypeface = createOrbitronTypeface();

    // Create a local asset source for custom typefaces
    engine.asset.addLocalSource('my-custom-typefaces');

    // Add a typeface with multiple font variants
    engine.asset.addAssetToSource('my-custom-typefaces', {
      id: 'orbitron',
      label: {
        en: 'Orbitron'
      },
      payload: {
        typeface: orbitronTypeface
      }
    });

    // Replace the default typefaces with the custom source
    cesdk.ui.updateAssetLibraryEntry('ly.img.typefaces', {
      sourceIds: ['my-custom-typefaces']
    });

    // Create a design scene to display the editor
    await cesdk.createDesignScene();

    // Create a text block and apply the custom font
    const page = engine.block.findByType('page')[0];
    if (page) {
      const textBlock = engine.block.create('text');
      engine.block.appendChild(page, textBlock);

      // Set the text content
      engine.block.replaceText(textBlock, 'Custom Font Example');

      // Configure auto-sizing so the block adjusts to content
      engine.block.setWidthMode(textBlock, 'Auto');
      engine.block.setHeightMode(textBlock, 'Auto');

      // Apply the custom font to the text block
      const fontUri = orbitronTypeface.fonts[0].uri;
      engine.block.setFont(textBlock, fontUri, orbitronTypeface);

      // Set font size
      engine.block.setTextFontSize(textBlock, 24);

      // Center the text block on the page
      centerBlockOnPage(engine, textBlock, page);

      // Select the text block
      engine.block.select(textBlock);
    }
  }
}

export default CustomFontsExample;

// ============================================================================
// Typeface Definitions
// ============================================================================

type DesignBlockId = number;

interface TypefaceFont {
  uri: string;
  subFamily: string;
  weight: 'thin' | 'extraLight' | 'light' | 'normal' | 'medium' | 'semiBold' | 'bold' | 'extraBold' | 'heavy';
  style: 'normal' | 'italic';
}

interface Typeface {
  name: string;
  fonts: TypefaceFont[];
}

/**
 * Builds a full URL for a font file served from the public directory
 */
function buildFontUri(filename: string): string {
  return `${window.location.protocol}//${window.location.host}/${filename}`;
}

/**
 * Creates the Orbitron typeface with properly resolved font URIs
 */
function createOrbitronTypeface(): Typeface {
  return {
    name: 'Orbitron',
    fonts: [
      {
        uri: buildFontUri('Orbitron-Regular.ttf'),
        subFamily: 'Regular',
        weight: 'normal',
        style: 'normal'
      },
      {
        uri: buildFontUri('Orbitron-Bold.ttf'),
        subFamily: 'Bold',
        weight: 'bold',
        style: 'normal'
      }
    ]
  };
}

// ============================================================================
// Helper Functions
// ============================================================================

/**
 * Centers a block on a page by calculating and setting its position
 */
function centerBlockOnPage(
  engine: CreativeEngine,
  block: DesignBlockId,
  page: DesignBlockId
): void {
  const pageWidth = engine.block.getWidth(page);
  const pageHeight = engine.block.getHeight(page);
  const blockWidth = engine.block.getFrameWidth(block);
  const blockHeight = engine.block.getFrameHeight(block);
  engine.block.setPositionX(block, (pageWidth - blockWidth) / 2);
  engine.block.setPositionY(block, (pageHeight - blockHeight) / 2);
}

This guide covers how to define typefaces with multiple font weights and styles, create a custom typeface asset source, update the typeface library in the editor UI, and apply fonts programmatically to text blocks.

Typeface and Font Structure#

A typeface in CE.SDK represents a font family containing multiple font variants. Each typeface has a name property displayed in the UI and a fonts array containing individual font definitions.

Each font in the array requires:

uri - Path to the font file (TTF, OTF, WOFF, or WOFF2)
subFamily - Display name for this font variant (e.g., “Regular”, “Bold”, “Italic”)
weight - Font weight: thin, extraLight, light, normal, medium, semiBold, bold, extraBold, or heavy
style - Font style: normal or italic

interface TypefaceFont {
  uri: string;
  subFamily: string;
  weight: 'thin' | 'extraLight' | 'light' | 'normal' | 'medium' | 'semiBold' | 'bold' | 'extraBold' | 'heavy';
  style: 'normal' | 'italic';
}

interface Typeface {
  name: string;
  fonts: TypefaceFont[];
}

Create a Custom Typeface Asset Source#

To make custom fonts available in the editor, we create a local asset source and add typeface assets to it. Each asset must include a payload.typeface property containing the typeface definition.

We first create the source with engine.asset.addLocalSource(), then add typeface assets with engine.asset.addAssetToSource():

// Create a local asset source for custom typefaces
engine.asset.addLocalSource('my-custom-typefaces');

// Add a typeface with multiple font variants
engine.asset.addAssetToSource('my-custom-typefaces', {
  id: 'orbitron',
  label: {
    en: 'Orbitron'
  },

The name property defines how the typeface appears in the font dropdown:

name: 'Orbitron',

The fonts array defines each available font variant. Here we add both Regular and Bold weights:

fonts: [
  {
    uri: buildFontUri('Orbitron-Regular.ttf'),
    subFamily: 'Regular',
    weight: 'normal',
    style: 'normal'
  },
  {
    uri: buildFontUri('Orbitron-Bold.ttf'),
    subFamily: 'Bold',
    weight: 'bold',
    style: 'normal'
  }
]

Update the Typeface Library#

After creating the custom typeface source, we update the typeface library entry to control which fonts appear in the editor’s font dropdown. Use cesdk.ui.updateAssetLibraryEntry() with the ly.img.typefaces entry ID.

To replace the default typefaces entirely with your custom fonts:

// Replace the default typefaces with the custom source
cesdk.ui.updateAssetLibraryEntry('ly.img.typefaces', {
  sourceIds: ['my-custom-typefaces']
});

To extend the default typefaces (keeping them alongside your custom fonts), include both source IDs:

cesdk.ui.updateAssetLibraryEntry('ly.img.typefaces', {
  sourceIds: ['ly.img.typeface', 'my-custom-typefaces']
});

The order in sourceIds determines the display order in the UI.

Apply Fonts Programmatically#

You can apply fonts to text blocks without relying on the UI using the block API. CE.SDK provides two methods with different behaviors:

setFont - Sets the font for an entire text block and resets all text formatting:

engine.block.setFont(textBlock, fontFileUri, typeface);

setTypeface - Applies a typeface to a text range while preserving existing formatting:

engine.block.setTypeface(textBlock, typeface, from, to);

To query the current font applied to a text block:

// Get the base typeface of a text block
const typeface = engine.block.getTypeface(textBlock);

// Get unique typefaces within a text range
const typefaces = engine.block.getTypefaces(textBlock, from, to);

Here’s a complete example that creates a text block and applies a custom font:

// Create a text block and apply the custom font
const page = engine.block.findByType('page')[0];
if (page) {
  const textBlock = engine.block.create('text');
  engine.block.appendChild(page, textBlock);

  // Set the text content
  engine.block.replaceText(textBlock, 'Custom Font Example');

  // Configure auto-sizing so the block adjusts to content
  engine.block.setWidthMode(textBlock, 'Auto');
  engine.block.setHeightMode(textBlock, 'Auto');

  // Apply the custom font to the text block
  const fontUri = orbitronTypeface.fonts[0].uri;
  engine.block.setFont(textBlock, fontUri, orbitronTypeface);

  // Set font size
  engine.block.setTextFontSize(textBlock, 24);

  // Center the text block on the page
  centerBlockOnPage(engine, textBlock, page);

  // Select the text block
  engine.block.select(textBlock);
}

Troubleshooting#

Font not appearing in UI: Verify the asset source is registered with engine.asset.addLocalSource() and that updateAssetLibraryEntry is called with the correct source ID.

Font not loading: Check that the font file URI is accessible and returns a valid font file with the correct MIME type. Use browser developer tools to verify the network request.

Font weight/style not available: Ensure the typeface definition includes font entries for the requested weight and style combinations. If you only define Regular and Bold, Italic variants won’t be available.

getTypeface() throws error: New text blocks don’t have an explicit typeface until setFont() is called. Handle this case in your code.

API Reference#

Method	Purpose
`engine.asset.addLocalSource(sourceId)`	Create a local asset source for custom typefaces
`engine.asset.addAssetToSource(sourceId, asset)`	Add a typeface asset to the source
`cesdk.ui.updateAssetLibraryEntry(entryId, options)`	Update which sources appear in the font dropdown
`engine.block.setFont(block, fontUri, typeface)`	Set font for entire text block, resets formatting
`engine.block.setTypeface(block, typeface, from, to)`	Apply typeface to text range, preserves formatting
`engine.block.getTypeface(block)`	Get the base typeface of a text block
`engine.block.getTypefaces(block, from, to)`	Get unique typefaces within a text range
