Export with a Color Mask

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';
import packageJson from './package.json';

class Example implements EditorPlugin {
  name = packageJson.name;
  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    await cesdk.addDefaultAssetSources();
    await cesdk.addDemoAssetSources({
      sceneMode: 'Design',
      withUploadAssetSources: true
    });
    await cesdk.createDesignScene();

    const engine = cesdk.engine;
    const page = engine.block.findByType('page')[0];

    // Set page dimensions
    engine.block.setWidth(page, 800);
    engine.block.setHeight(page, 600);

    const pageWidth = engine.block.getWidth(page);
    const pageHeight = engine.block.getHeight(page);

    const imageUri = 'https://img.ly/static/ubq_samples/sample_1.jpg';

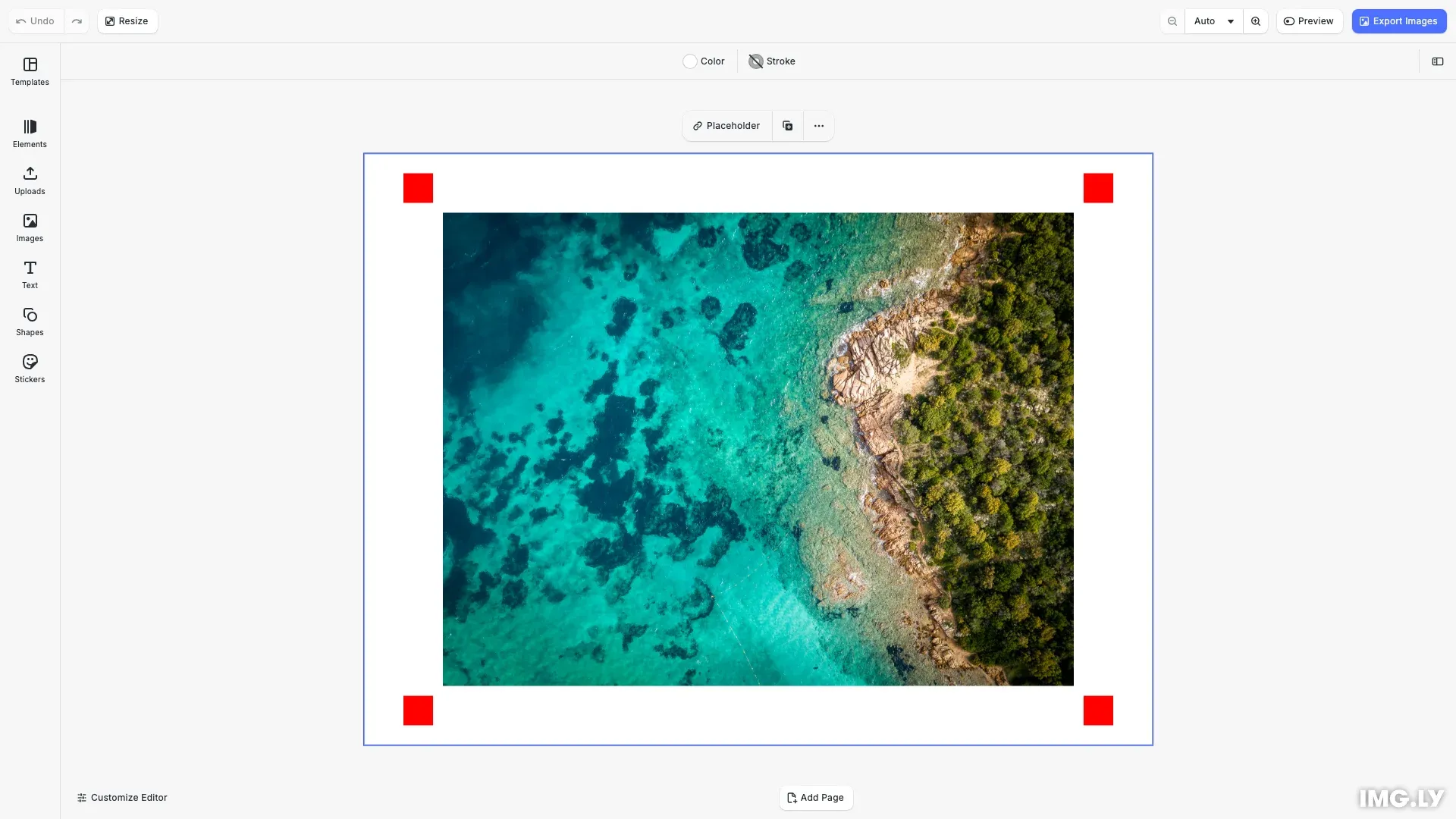

    // Create a single image with registration marks
    const imageBlock = await engine.block.addImage(imageUri, {
      size: { width: pageWidth * 0.8, height: pageHeight * 0.8 }
    });
    engine.block.appendChild(page, imageBlock);

    // Center the image on the page
    const imageWidth = engine.block.getWidth(imageBlock);
    const imageHeight = engine.block.getHeight(imageBlock);
    engine.block.setPositionX(imageBlock, (pageWidth - imageWidth) / 2);
    engine.block.setPositionY(imageBlock, (pageHeight - imageHeight) / 2);

    // Add registration marks at the corners (pure red for demonstration)
    const markSize = 30;
    const imageX = engine.block.getPositionX(imageBlock);
    const imageY = engine.block.getPositionY(imageBlock);

    const markPositions = [
      { x: imageX - markSize - 10, y: imageY - markSize - 10 }, // Top-left
      { x: imageX + imageWidth + 10, y: imageY - markSize - 10 }, // Top-right
      { x: imageX - markSize - 10, y: imageY + imageHeight + 10 }, // Bottom-left
      { x: imageX + imageWidth + 10, y: imageY + imageHeight + 10 } // Bottom-right
    ];

    markPositions.forEach((pos) => {
      const mark = engine.block.create('//ly.img.ubq/graphic');
      engine.block.setShape(
        mark,
        engine.block.createShape('//ly.img.ubq/shape/rect')
      );
      const redFill = engine.block.createFill('//ly.img.ubq/fill/color');
      engine.block.setColor(redFill, 'fill/color/value', {
        r: 1.0,
        g: 0.0,
        b: 0.0,
        a: 1.0
      });
      engine.block.setFill(mark, redFill);
      engine.block.setWidth(mark, markSize);
      engine.block.setHeight(mark, markSize);
      engine.block.setPositionX(mark, pos.x);
      engine.block.setPositionY(mark, pos.y);
      engine.block.appendChild(page, mark);
    });

    // Override the default image export action to use color mask export
    cesdk.actions.register('exportDesign', async () => {
      const currentPage = engine.scene.getCurrentPage();
      if (!currentPage) return;

      // Export with color mask - removes pure red pixels (registration marks)
      const [maskedImage, alphaMask] = await engine.block.exportWithColorMask(
        currentPage,
        1.0, // Red component
        0.0, // Green component
        0.0, // Blue component (RGB: pure red)
        { mimeType: 'image/png' }
      );

      // Download masked image using CE.SDK utils
      await cesdk.utils.downloadFile(maskedImage, 'image/png');

      // Download alpha mask
      await cesdk.utils.downloadFile(alphaMask, 'image/png');

      console.log('Color mask export completed:', {
        maskedSize: maskedImage.size,
        maskSize: alphaMask.size
      });
    });

    // Add export button to navigation bar
    cesdk.ui.insertNavigationBarOrderComponent('last', {
      id: 'ly.img.actions.navigationBar',
      children: ['ly.img.exportImage.navigationBar']
    });

    // Log completion
    console.log('Export with Color Mask example loaded successfully');
    console.log(
      'Click the export button in the navigation bar to export with color mask'
    );
  }
}

export default Example;

// Export with color mask - removes pure red pixels (registration marks)
const [maskedImage, alphaMask] = await engine.block.exportWithColorMask(
  currentPage,
  1.0, // Red component
  0.0, // Green component
  0.0, // Blue component (RGB: pure red)
  { mimeType: 'image/png' }
);

// Override the default image export action to use color mask export
cesdk.actions.register('exportDesign', async () => {
  const currentPage = engine.scene.getCurrentPage();
  if (!currentPage) return;

  // Export with color mask - removes pure red pixels (registration marks)
  const [maskedImage, alphaMask] = await engine.block.exportWithColorMask(
    currentPage,
    1.0, // Red component
    0.0, // Green component
    0.0, // Blue component (RGB: pure red)
    { mimeType: 'image/png' }
  );

  // Download masked image using CE.SDK utils
  await cesdk.utils.downloadFile(maskedImage, 'image/png');

  // Download alpha mask
  await cesdk.utils.downloadFile(alphaMask, 'image/png');

  console.log('Color mask export completed:', {
    maskedSize: maskedImage.size,
    maskSize: alphaMask.size
  });
});
