Configuration - React

Set up CE.SDK with license keys, asset base URLs, user IDs, and runtime configuration options to match your application requirements.

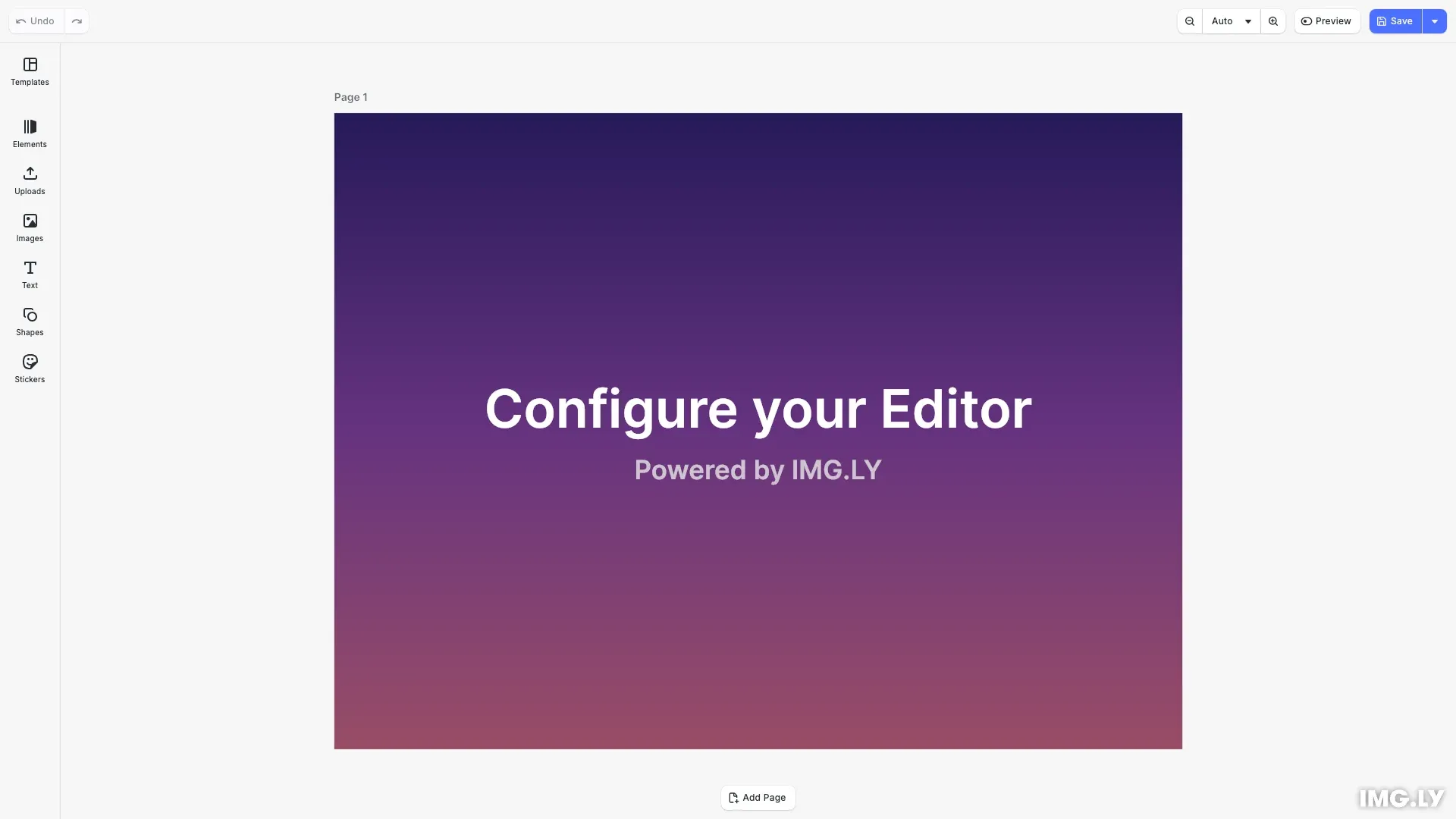

Configuration example showing CE.SDK editor with theme toggle in navigation bar

10 mins

estimated time

Download

StackBlitz

GitHub

CreativeEditorSDK.create() initializes the full CE.SDK editor with UI components. The configuration object controls license validation, asset loading, user tracking, and UI behavior.

import CreativeEditorSDK from '@cesdk/cesdk-js';
import Example from './browser';

const config = {
  // License key removes watermarks from exports
  // Get a free trial at https://img.ly/forms/free-trial
  // license: 'YOUR_CESDK_LICENSE_KEY',

  // User ID for accurate MAU tracking across devices
  userId: 'guides-user',

  // Custom logger for debugging and monitoring
  logger: (message: string, level?: string) => {
    console.log(`[CE.SDK ${level ?? 'Info'}] ${message}`);
  },

  // Enable developer mode for diagnostics
  devMode: false,

  // Accessibility settings
  a11y: {
    headingsHierarchyStart: 1 as const
  },

  // Location of core engine assets (WASM, data files)
  // Default: IMG.LY CDN. For production, host assets yourself.
  // baseURL: 'https://your-cdn.com/cesdk-assets/',

  // Use local assets when developing with local packages
  ...(import.meta.env.CESDK_USE_LOCAL && {
    baseURL: '/assets/'
  })
};

CreativeEditorSDK.create('#cesdk_container', config)
  .then(async (cesdk: CreativeEditorSDK) => {

    // Expose cesdk for debugging and hero screenshot generation
    (window as any).cesdk = cesdk;

    // Load the example plugin
    await cesdk.addPlugin(new Example());
  })
  .catch((error: Error) => {
    console.error('Failed to initialize CE.SDK:', error);
  });

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';
import packageJson from './package.json';

class Example implements EditorPlugin {
  name = packageJson.name;
  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    // Load default asset sources for editing
    await cesdk.addDefaultAssetSources();
    await cesdk.addDemoAssetSources({
      sceneMode: 'Design',
      withUploadAssetSources: true
    });

    const engine = cesdk.engine;

    // Create a Scene
    engine.scene.create('VerticalStack', {
      page: { size: { width: 800, height: 600 } }
    });

    const pages = engine.block.findByType('page');
    const page = pages[0];

    // ========================================
    // Setup: Gradient Background with Title
    // ========================================
    // Create gradient background
    const gradientFill = engine.block.createFill('gradient/linear');
    engine.block.setGradientColorStops(gradientFill, 'fill/gradient/colors', [
      { color: { r: 0.15, g: 0.1, b: 0.35, a: 1.0 }, stop: 0 },
      { color: { r: 0.4, g: 0.2, b: 0.5, a: 1.0 }, stop: 0.5 },
      { color: { r: 0.6, g: 0.3, b: 0.4, a: 1.0 }, stop: 1 }
    ]);
    engine.block.setFill(page, gradientFill);

    // Add centered title text
    const pageWidth = engine.block.getWidth(page);
    const pageHeight = engine.block.getHeight(page);

    const titleText = engine.block.create('text');
    engine.block.replaceText(titleText, 'Configure your Editor');
    engine.block.setFloat(titleText, 'text/fontSize', 12);
    engine.block.setTextColor(titleText, { r: 1.0, g: 1.0, b: 1.0, a: 1.0 });
    engine.block.setWidthMode(titleText, 'Auto');
    engine.block.setHeightMode(titleText, 'Auto');
    engine.block.appendChild(page, titleText);

    // Add IMG.LY subtext
    const subtitleText = engine.block.create('text');
    engine.block.replaceText(subtitleText, 'Powered by IMG.LY');
    engine.block.setFloat(subtitleText, 'text/fontSize', 6);
    engine.block.setTextColor(subtitleText, { r: 0.9, g: 0.9, b: 0.9, a: 0.8 });
    engine.block.setWidthMode(subtitleText, 'Auto');
    engine.block.setHeightMode(subtitleText, 'Auto');
    engine.block.appendChild(page, subtitleText);

    // Center both texts
    const titleWidth = engine.block.getFrameWidth(titleText);
    const titleHeight = engine.block.getFrameHeight(titleText);
    const subtitleWidth = engine.block.getFrameWidth(subtitleText);
    const subtitleHeight = engine.block.getFrameHeight(subtitleText);

    const spacing = 12;
    const totalHeight = titleHeight + spacing + subtitleHeight;
    const startY = (pageHeight - totalHeight) / 2;

    engine.block.setPositionX(titleText, (pageWidth - titleWidth) / 2);
    engine.block.setPositionY(titleText, startY);
    engine.block.setPositionX(subtitleText, (pageWidth - subtitleWidth) / 2);
    engine.block.setPositionY(subtitleText, startY + titleHeight + spacing);

    // ========================================
    // Runtime Configuration: Theme
    // ========================================
    cesdk.ui.setTheme('light');
    const currentTheme = cesdk.ui.getTheme();
    console.log('Current theme:', currentTheme);

    // ========================================
    // Runtime Configuration: Scale
    // ========================================
    cesdk.ui.setScale('modern');
    const currentScale = cesdk.ui.getScale();
    console.log('Current scale:', currentScale);

    // ========================================
    // Runtime Configuration: Actions
    // ========================================
    cesdk.actions.register('customSave', async () => {
      const sceneBlob = await engine.scene.saveToArchive();
      await cesdk.utils.downloadFile(sceneBlob, 'application/zip');
    });

    // ========================================
    // Built-in Actions
    // ========================================
    // Add built-in export and import actions to the navigation bar
    cesdk.ui.insertNavigationBarOrderComponent('last', {
      id: 'ly.img.actions.navigationBar',
      children: [
        'ly.img.saveScene.navigationBar',
        'ly.img.exportImage.navigationBar',
        'ly.img.exportPDF.navigationBar',
        'ly.img.exportScene.navigationBar',
        'ly.img.exportArchive.navigationBar',
        'ly.img.importScene.navigationBar',
        'ly.img.importArchive.navigationBar'
      ]
    });

    // ========================================
    // Engine Settings
    // ========================================
    engine.editor.setSetting('doubleClickToCropEnabled', true);
    engine.editor.setSetting('highlightColor', { r: 0, g: 0.5, b: 1, a: 1 });
    const cropEnabled = engine.editor.getSetting('doubleClickToCropEnabled');
    console.log('Double-click crop enabled:', cropEnabled);

    // ========================================
    // Internationalization: Locale
    // ========================================
    cesdk.i18n.setLocale('en');
    const currentLocale = cesdk.i18n.getLocale();
    console.log('Current locale:', currentLocale);

    // ========================================
    // Internationalization: Translations
    // ========================================
    cesdk.i18n.setTranslations({
      en: {
        'common.back': 'Go Back',
        'common.apply': 'Apply Changes'
      }
    });

    // Enable Auto-Fit Zoom
    engine.scene.zoomToBlock(page);
    engine.scene.enableZoomAutoFit(page, 'Horizontal', 40, 40);
  }
}

export default Example;

Required Configuration#

The license property is the only required configuration. All other properties have sensible defaults.

Property	Type	Purpose
`license`	`string`	License key to remove export watermarks

The license key validates your CE.SDK subscription and removes watermarks from exports. Get a free trial license at https://img.ly/forms/free-trial.

Optional Configuration#

These properties customize engine behavior and are all optional.

Engine Properties#

Property	Type	Purpose
`baseURL`	`string`	Location of core engine assets (WASM, data files)
`userId`	`string`	User identifier for MAU tracking
`logger`	`function`	Custom logging function
`role`	`'Creator'` \| `'Adopter'` \| `'Viewer'` \| `'Presenter'`	User role for feature access
`featureFlags`	`object`	Experimental feature toggles

Editor Properties#

Property	Type	Purpose
`devMode`	`boolean`	Enable developer diagnostics
`a11y`	`object`	Accessibility settings
`ui`	`object`	User interface customization

Configuration Properties#

License Key#

The license key validates your CE.SDK subscription and removes watermarks from exports. Without a valid license, exports include a watermark.

// License key removes watermarks from exports
// Get a free trial at https://img.ly/forms/free-trial
// license: 'YOUR_CESDK_LICENSE_KEY',

User ID#

Provide a unique user identifier for accurate Monthly Active User (MAU) tracking. This helps count users correctly when the same person accesses your application from multiple devices.

// User ID for accurate MAU tracking across devices
userId: 'guides-user',

Custom Logger#

Replace the default console logging with a custom logger function. The logger receives a message string and an optional log level ('Info', 'Warning', or 'Error').

// Custom logger for debugging and monitoring
logger: (message: string, level?: string) => {
  console.log(`[CE.SDK ${level ?? 'Info'}] ${message}`);
},

Developer Mode#

Enable developer mode to get additional diagnostics and debugging information in the console.

// Enable developer mode for diagnostics
devMode: false,

Accessibility Settings#

Configure accessibility options like heading hierarchy for screen readers. The headingsHierarchyStart property sets which heading level (1-6) the editor should start from.

// Accessibility settings
a11y: {
  headingsHierarchyStart: 1 as const
},

Asset Base URL#

The baseURL property specifies the location of core engine assets, including WASM files, data files, and JavaScript workers. By default, these load from the IMG.LY CDN. For production deployments, host these assets yourself by copying the assets folder from node_modules/@cesdk/engine/assets to your server.

Content assets like stickers and filters are loaded separately via engine.addDefaultAssetSources(), which has its own baseURL parameter defaulting to https://cdn.img.ly/assets/v4.

// Location of core engine assets (WASM, data files)
// Default: IMG.LY CDN. For production, host assets yourself.
// baseURL: 'https://your-cdn.com/cesdk-assets/',

Initialization#

Pass the configuration object to CreativeEditorSDK.create() along with a container element selector.

CreativeEditorSDK.create('#cesdk_container', config)
  .then(async (cesdk: CreativeEditorSDK) => {

Runtime Configuration#

After initialization, use dedicated APIs to modify settings dynamically.

Internationalization#

Locale#

Change the UI language using cesdk.i18n.setLocale().

cesdk.i18n.setLocale('en');
const currentLocale = cesdk.i18n.getLocale();
console.log('Current locale:', currentLocale);

Translations#

Add or override UI text strings using cesdk.i18n.setTranslations().

cesdk.i18n.setTranslations({
  en: {
    'common.back': 'Go Back',
    'common.apply': 'Apply Changes'
  }
});

Theme#

Set the UI theme using cesdk.ui.setTheme(). Options: 'light', 'dark', or 'system'.

cesdk.ui.setTheme('light');
const currentTheme = cesdk.ui.getTheme();
console.log('Current theme:', currentTheme);

Actions#

cesdk.actions.register('customSave', async () => {
  const sceneBlob = await engine.scene.saveToArchive();
  await cesdk.utils.downloadFile(sceneBlob, 'application/zip');
});

Built-in Actions#

CE.SDK provides built-in actions for common operations like saving, exporting, and importing. Add them to the navigation bar using insertNavigationBarOrderComponent():

// Add built-in export and import actions to the navigation bar
cesdk.ui.insertNavigationBarOrderComponent('last', {
  id: 'ly.img.actions.navigationBar',
  children: [
    'ly.img.saveScene.navigationBar',
    'ly.img.exportImage.navigationBar',
    'ly.img.exportPDF.navigationBar',
    'ly.img.exportScene.navigationBar',
    'ly.img.exportArchive.navigationBar',
    'ly.img.importScene.navigationBar',
    'ly.img.importArchive.navigationBar'
  ]
});

Available built-in actions:

Action ID	Purpose
`ly.img.saveScene.navigationBar`	Save scene to cloud
`ly.img.exportImage.navigationBar`	Export as image (PNG/JPEG)
`ly.img.exportPDF.navigationBar`	Export as PDF
`ly.img.exportScene.navigationBar`	Export scene file
`ly.img.exportArchive.navigationBar`	Export as archive (ZIP)
`ly.img.importScene.navigationBar`	Import scene file
`ly.img.importArchive.navigationBar`	Import archive (ZIP)

Scale#

Adjust UI scale for different device types. Options: 'normal', 'large', or 'modern'.

cesdk.ui.setScale('modern');
const currentScale = cesdk.ui.getScale();
console.log('Current scale:', currentScale);

Engine Settings#

Configure engine behavior using engine.editor.setSetting().

engine.editor.setSetting('doubleClickToCropEnabled', true);
engine.editor.setSetting('highlightColor', { r: 0, g: 0.5, b: 1, a: 1 });
const cropEnabled = engine.editor.getSetting('doubleClickToCropEnabled');
console.log('Double-click crop enabled:', cropEnabled);

API Reference#

Method	Purpose
`CreativeEditorSDK.create()`	Initialize editor
`cesdk.ui.setTheme()`	Set UI theme
`cesdk.i18n.setLocale()`	Set UI locale
`cesdk.i18n.setTranslations()`	Add translations
`cesdk.ui.setScale()`	Set UI scale
`cesdk.actions.register()`	Register custom actions
`cesdk.ui.insertNavigationBarOrderComponent()`	Add built-in actions to navigation bar
`cesdk.utils.downloadFile()`	Download blob as file
`engine.editor.setSetting()`	Set engine setting

Next Steps#

Headless Mode - Use CE.SDK without the UI
