Hide UI components using two approaches: the Feature API for disabling entire features, and the Component Order API for surgical control over individual components.

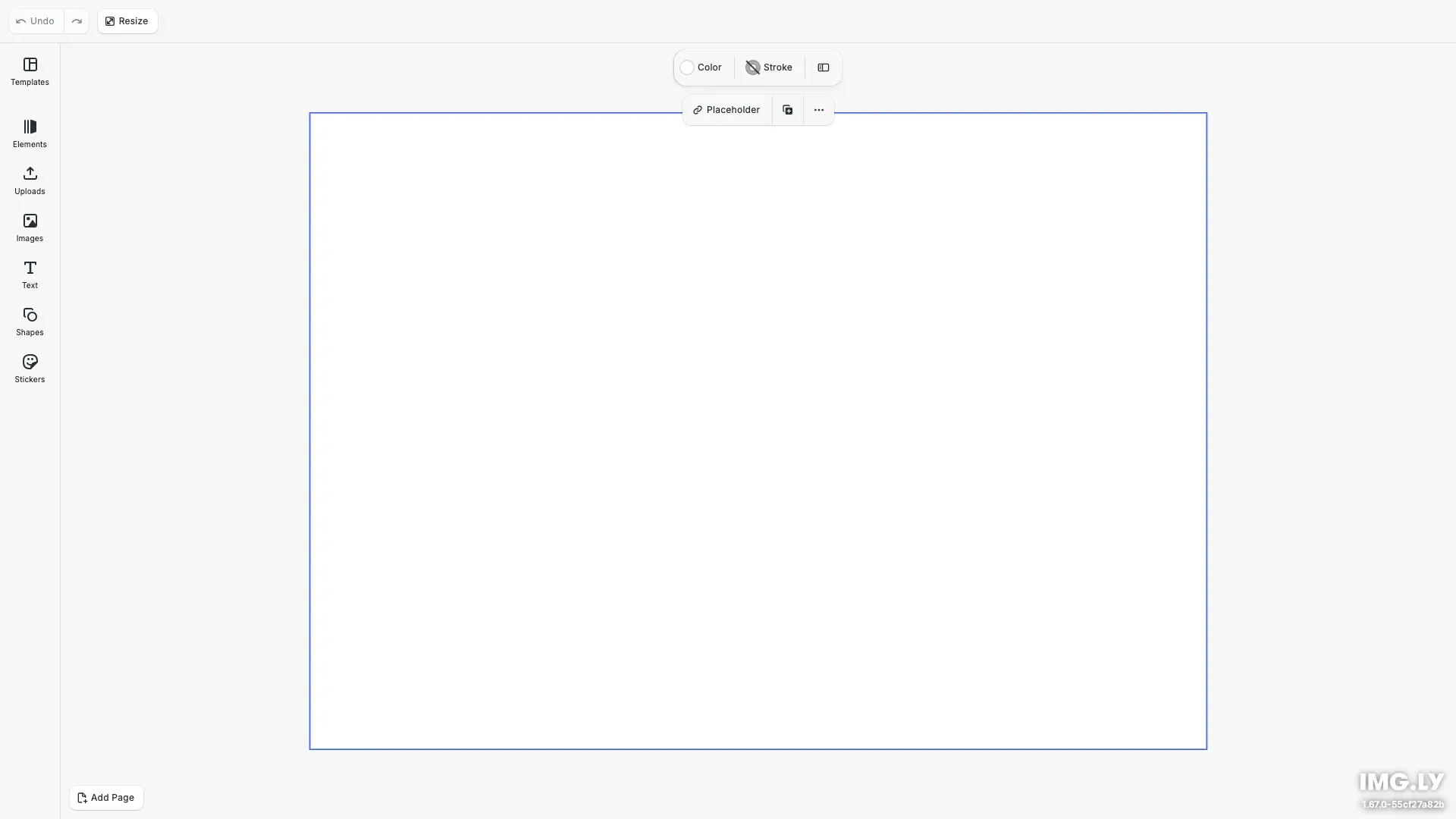

Show/Hide Components example showing a minimal editor interface

5 mins

estimated time

Download

StackBlitz

GitHub

CE.SDK provides two ways to hide UI elements. The Feature API hides features globally across the entire editor—use this for broad visibility control. The Component Order API removes specific components from specific UI areas—use this for targeted, surgical control over individual components.

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';

import {
  BlurAssetSource,
  ColorPaletteAssetSource,
  CropPresetsAssetSource,
  DemoAssetSources,
  EffectsAssetSource,
  FiltersAssetSource,
  PagePresetsAssetSource,
  StickerAssetSource,
  TextAssetSource,
  TextComponentAssetSource,
  TypefaceAssetSource,
  UploadAssetSources,
  VectorShapeAssetSource
} from '@cesdk/cesdk-js/plugins';
import { DesignEditorConfig } from './design-editor/plugin';
import packageJson from './package.json';

class Example implements EditorPlugin {
  name = packageJson.name;
  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }
    await cesdk.addPlugin(new DesignEditorConfig());

    // Add asset source plugins
    await cesdk.addPlugin(new BlurAssetSource());
    await cesdk.addPlugin(new ColorPaletteAssetSource());
    await cesdk.addPlugin(new CropPresetsAssetSource());
    await cesdk.addPlugin(new UploadAssetSources({ include: ['ly.img.image.upload'] }));
    await cesdk.addPlugin(
      new DemoAssetSources({
        include: [
          'ly.img.templates.blank.*',
          'ly.img.templates.presentation.*',
          'ly.img.templates.print.*',
          'ly.img.templates.social.*',
          'ly.img.image.*'
        ]
      })
    );
    await cesdk.addPlugin(new EffectsAssetSource());
    await cesdk.addPlugin(new FiltersAssetSource());
    await cesdk.addPlugin(new PagePresetsAssetSource());
    await cesdk.addPlugin(new StickerAssetSource());
    await cesdk.addPlugin(new TextAssetSource());
    await cesdk.addPlugin(new TextComponentAssetSource());
    await cesdk.addPlugin(new TypefaceAssetSource());
    await cesdk.addPlugin(new VectorShapeAssetSource());

    await cesdk.actions.run('scene.create', {
      page: {
        sourceId: 'ly.img.page.presets',
        assetId: 'ly.img.page.presets.print.iso.a6.landscape'
      }
    });

    // Hide components using Feature API (disables both UI and functionality)
    // This hides the page resize controls from the navigation bar
    cesdk.feature.disable('ly.img.navigation.pageResize');

    // Hide specific components using Component Order API
    // This removes the preview button but keeps preview functionality (keyboard shortcut still works)
    const previewResult = cesdk.ui.removeOrderComponent({
      in: 'ly.img.navigation.bar',
      match: 'ly.img.preview.navigationBar'
    });
    console.log(
      `Removed preview button: ${previewResult.removed} component(s)`
    );

    // Remove all separators from the navigation bar for a cleaner look
    const separatorResult = cesdk.ui.removeOrderComponent({
      in: 'ly.img.navigation.bar',
      match: 'ly.img.separator'
    });
    console.log(`Removed separators: ${separatorResult.removed} component(s)`);

    // Remove components using glob patterns
    // This removes all zoom-related components
    const zoomResult = cesdk.ui.removeOrderComponent({
      in: 'ly.img.navigation.bar',
      match: 'ly.img.zoom.*'
    });
    console.log(`Removed zoom components: ${zoomResult.removed} component(s)`);

    // Remove from multiple areas at once using area glob patterns
    // This removes all spacers from all areas
    const spacerResult = cesdk.ui.removeOrderComponent({
      in: '*',
      match: 'ly.img.spacer'
    });
    console.log('Removed spacers from all areas:', spacerResult);

    // Hide components only in specific edit modes using the 'when' context
    // This removes crop controls only when in Transform mode (keeps them in Crop mode)
    const conditionalResult = cesdk.ui.removeOrderComponent({
      in: 'ly.img.inspector.bar',
      match: 'ly.img.crop.inspectorBar',
      when: { editMode: 'Transform' }
    });
    console.log(
      `Removed crop controls in Transform mode: ${conditionalResult.removed} component(s)`
    );

    // Verify component removal by checking the current order
    const currentOrder = cesdk.ui.getComponentOrder({
      in: 'ly.img.navigation.bar'
    });
    console.log('Current navigation bar components:', currentOrder);

    console.log('Show/Hide Components example loaded successfully');
  }
}

export default Example;

This guide covers how to hide components using the Feature API, remove specific components with the Component Order API, use glob patterns for bulk operations, hide components conditionally based on edit mode, and verify component removal.

Hide Using Feature API#

The simplest way to hide UI elements is to disable the associated feature. This removes the feature from all UI areas globally.

// Hide components using Feature API (disables both UI and functionality)
// This hides the page resize controls from the navigation bar
cesdk.feature.disable('ly.img.navigation.pageResize');

The Feature API uses feature identifiers like ly.img.navigation.pageResize that correspond to specific UI capabilities. Disabling a feature hides it from all UI areas throughout the editor.

Hide Specific Components#

Use cesdk.ui.removeOrderComponent() to remove individual components while preserving the underlying functionality. This is useful when you want to hide a button but keep the feature accessible via keyboard shortcuts or your own custom UI.

// Hide specific components using Component Order API
// This removes the preview button but keeps preview functionality (keyboard shortcut still works)
const previewResult = cesdk.ui.removeOrderComponent({
  in: 'ly.img.navigation.bar',
  match: 'ly.img.preview.navigationBar'
});
console.log(
  `Removed preview button: ${previewResult.removed} component(s)`
);

The method returns an object with removed (count of removed components) and order (the updated component array). Use this return value to verify the operation succeeded.

Remove Multiple Components#

You can remove layout elements like separators and spacers to create a more compact interface.

// Remove all separators from the navigation bar for a cleaner look
const separatorResult = cesdk.ui.removeOrderComponent({
  in: 'ly.img.navigation.bar',
  match: 'ly.img.separator'
});
console.log(`Removed separators: ${separatorResult.removed} component(s)`);

Hide Using Glob Patterns#

Glob patterns let you remove multiple matching components with a single call. Use * as a wildcard to match any sequence of characters.

// Remove components using glob patterns
// This removes all zoom-related components
const zoomResult = cesdk.ui.removeOrderComponent({
  in: 'ly.img.navigation.bar',
  match: 'ly.img.zoom.*'
});
console.log(`Removed zoom components: ${zoomResult.removed} component(s)`);

This removes all components matching the pattern from the specified area.

Hide from Multiple Areas#

Target multiple UI areas at once using area glob patterns. This is useful for removing layout components like spacers or separators across the entire interface.

// Remove from multiple areas at once using area glob patterns
// This removes all spacers from all areas
const spacerResult = cesdk.ui.removeOrderComponent({
  in: '*',
  match: 'ly.img.spacer'
});
console.log('Removed spacers from all areas:', spacerResult);

The method returns results for each affected area when using multi-area patterns.

Conditional Hiding#

Hide components only in specific edit modes using the when context. This lets you show different UI controls based on what the user is doing.

// Hide components only in specific edit modes using the 'when' context
// This removes crop controls only when in Transform mode (keeps them in Crop mode)
const conditionalResult = cesdk.ui.removeOrderComponent({
  in: 'ly.img.inspector.bar',
  match: 'ly.img.crop.inspectorBar',
  when: { editMode: 'Transform' }
});
console.log(
  `Removed crop controls in Transform mode: ${conditionalResult.removed} component(s)`
);

The when option accepts an editMode property that specifies when the removal applies. Common edit modes include Transform, Crop, Trim, and Text. The removal only affects the specified context—the component remains visible in other modes.

Verify Component Removal#

Check the current component order to verify your changes took effect.

// Verify component removal by checking the current order
const currentOrder = cesdk.ui.getComponentOrder({
  in: 'ly.img.navigation.bar'
});
console.log('Current navigation bar components:', currentOrder);

Use getComponentOrder() to inspect the current state of any UI area. This helps with debugging when components don’t appear or disappear as expected.

Common Hiding Scenarios#

What to Hide	Method	Code
Undo/Redo buttons	Feature API	`cesdk.feature.disable('ly.img.navigation.undoRedo')`
Entire navigation bar	Feature API	`cesdk.feature.disable('ly.img.navigation.bar')`
Specific component	Component Order API	`cesdk.ui.removeOrderComponent({ in: area, match: id })`
All separators	Component Order API	`cesdk.ui.removeOrderComponent({ in: '*', match: 'ly.img.separator' })`

Troubleshooting#

Component still visible — Verify the component ID and area are correct. Use getComponentOrder() to see current components. Component IDs include an area suffix like .navigationBar or .inspectorBar.

Feature still works after hiding — If you used removeOrderComponent(), functionality remains active. Use feature.disable() to completely disable a feature.

Wrong area — Double-check the area suffix in component IDs. For example, ly.img.undoRedo.navigationBar is different from ly.img.undoRedo.inspectorBar.

API Reference#

Method	Category	Purpose
`cesdk.feature.disable()`	Feature	Disable a feature and hide its UI
`cesdk.ui.removeOrderComponent()`	UI	Remove specific components from UI areas
`cesdk.ui.getComponentOrder()`	UI	Get current components to verify removal

Next Steps#

Reorder Components — Change component order instead of hiding
Component Reference — Find all component IDs
Component Order API — Complete API reference
