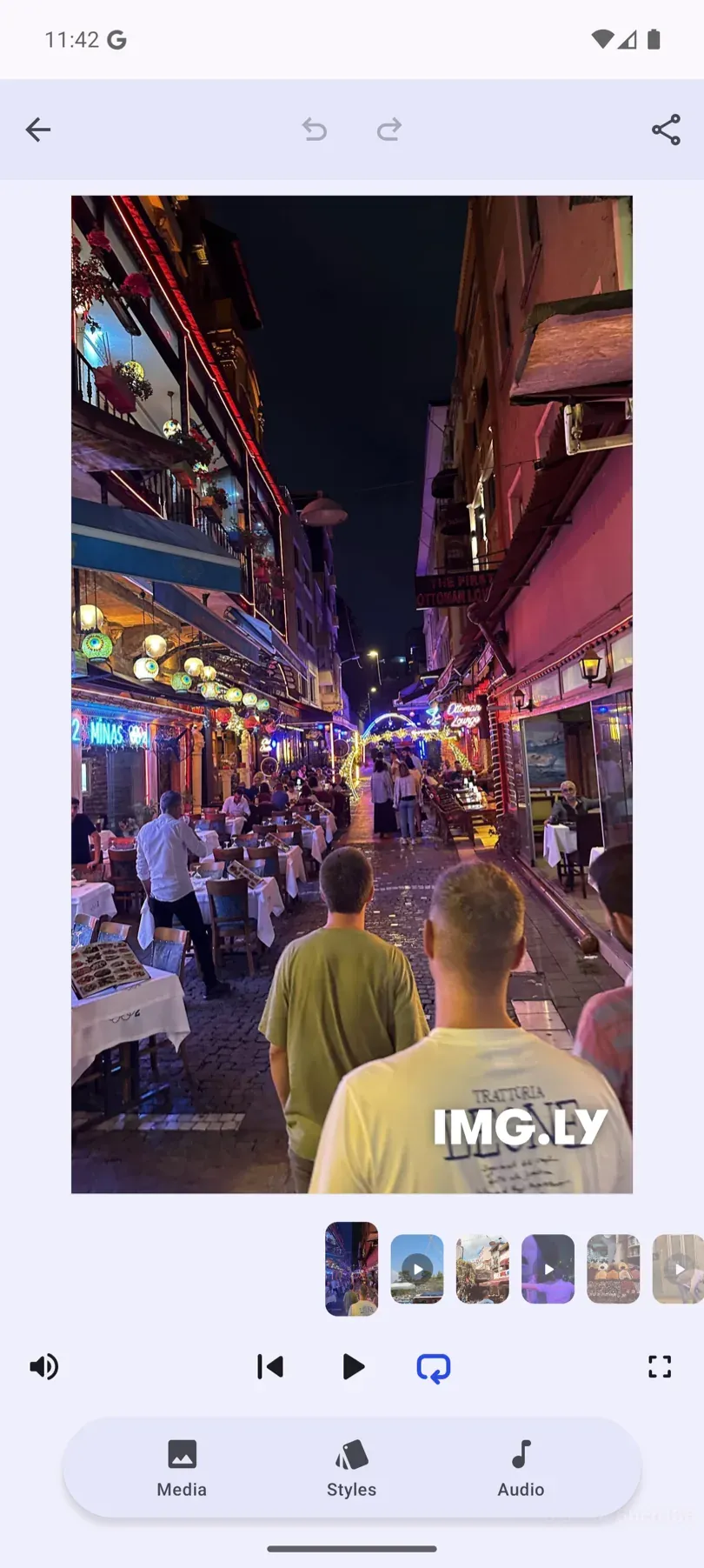

Turn a set of photos and video clips into a shareable memory montage on Android. The kit picks up media from the gallery, arranges it on a timeline with transitions and title cards, applies styled looks, layers in audio, and exports an MP4—entirely on the device with no server dependencies.

Pre-Requisites#
This guide assumes basic familiarity with Android and Kotlin. You will need:
- Latest Android Studio
- Kotlin: 1.9.10 or later
- Gradle: 8.4 or later
- Android: 7.0+ (API level 24+)
Get Started#
Start with a complete, runnable Android starter kit project.
Step 1: Clone the Repository#
git clone -b v1.84.0-rc.1 https://github.com/imgly/starterkit-memories-editor-android.gitcd starterkit-memories-editor-androidStep 2: Open and Run#
Create and launch a new android emulator or use an existing one, or connect a physical device with USB Debugging on.
Open the project in Android Studio, sync gradle via File -> Sync Project With Gradle Files and run the app module from the UI, or use:
./gradlew app:installDebugThe sample app launches MainActivity, which displays the full Memories flow: a photo picker that hands the selected media to the slideshow editor.
Get Started#
Integrate only the starter-kit library module into your existing Android app.
Step 1: Run the Extraction Script From Your App Root#
Run this from your application root directory:
repo="starterkit-memories-editor-android"version="1.84.0-rc.1"curl -0 "https://codeload.github.com/imgly/${repo}/tar.gz/refs/heads/v${version}" | tar -xz --strip-components=1 "${repo}-${version}/starter-kit" "${repo}-${version}/starter-kit-dependencies.gradle"This extracts two things into your project, side by side: the starter-kit/ library module and its starter-kit-dependencies.gradle. The dependencies file lists the extra libraries the kit needs (Coil, ExifInterface, and a few Compose artifacts); starter-kit/build.gradle.kts applies it from right next to the module, so keep the two as siblings.
Step 2: Include the Module#
Declare the newly added Android library module in your project:
include(":starter-kit")Step 3: Add Dependency in Your App Module#
Include the starter kit module dependency in your app module:
dependencies { implementation(project(":starter-kit"))}Step 4: Add the IMG.LY Maven Repository#
Add the IMG.LY maven repository path in your project:
dependencyResolutionManagement { repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS) repositories { google() mavenCentral() maven { name = "IMG.LY Artifactory" url = uri("https://artifactory.img.ly/artifactory/maven") mavenContent { includeGroup("ly.img") } } }}If the project is open in Android Studio, sync gradle via File -> Sync Project With Gradle Files to make all dependencies available.
The full implementation of the starter kit lives in the starter-kit/ folder:
starter-kit/src/main/├── assets/│ └── ly.img.memories.style/ # The kit's own local asset source (backdrops + picker thumbnails)│ ├── content.json # Describes the style assets; URIs use the {{base_url}} placeholder│ ├── thumbnails/ # noir.png, hologram.png, bubblegum.png│ └── animations/ # hologram.json, bubblegum.json (looping Lottie backdrops)└── kotlin/ly/img/editor/configuration/memories/ ├── MemoriesConfiguration.kt # Wires the editor's onCreate / dock / bottomPanel / navigationBar / overlay / onExport slots ├── MemoriesApp.kt # The full flow: photo picker → slideshow editor ├── MemoriesEditor.kt # Hosts the editor with the loading overlay and back handling ├── MemoriesViewModel.kt # Editor + montage state ├── callback/ │ ├── OnCreate.kt # Builds the scene, registers asset sources, wires event subscriptions │ └── OnExport.kt # Export flow and handling (MP4) ├── component/ # Editor UI slots: Dock, BottomPanel, NavigationBar, Overlay, ExportOverlay ├── scene/ # Timeline assembly (the tracks are the source of truth) │ ├── SceneSetup.kt # Builds the video scene and its tracks in code │ ├── Timeline.kt # Lays every clip on one media track, in slot order │ ├── Transitions.kt # TransitionSpec + wiring a style's blend onto every boundary │ ├── TrackEditor.kt # Reads/writes the tracks and applies in-place edits │ ├── Title.kt # Title card + burst-image intro │ └── Playback.kt # Loop / volume helpers ├── style/ # The styled looks + their custom asset source │ ├── VideoStyle.kt # Style catalog (filter, backdrop, transition, typeface) referencing assets by id │ ├── StyleAssetSource.kt # Registers ly.img.memories.style via addLocalSourceFromJSON │ └── StyleApplier.kt # Applies a style to the slideshow ├── screen/ # ImageSelectionScreen (picker) + LoadingScreen ├── sheet/ # Styles and Volume bottom sheets ├── widget/ # Reusable composables (grid, timeline strip, video thumbnail, …) ├── iconPack/ # Compose vector icons ├── model/ # Small data models (ImageItem, TimelineImage, ExportStatus) └── util/ ├── Animations.kt # The slide animations (edit this to change the motion) └── Constants.kt # Timing, page size, title knobsSet Up a Scene#
The Memories scene is built in code (no serialized scene file). The setup logic lives in
scene/SceneSetup.kt and runs from the editor’s onCreate (callback/OnCreate.kt): it creates a
video scene, lays out the persistent background and text tracks, then scene/Timeline.kt appends
every photo and clip to a single media track in slot order.
The clips are siblings on that one track because a transition belongs to the outgoing clip and blends it into its neighbour—which only works between siblings. The track’s own time offset holds the title gap; everything inside it is positioned by the engine.
Transitions and Slide Motion#
Two things move in a Memories montage, and each has one job:
| What moves | Who owns it | |
|---|---|---|
| Between two slides | The blend from one clip to the next | The style’s transition, applied by the engine |
| Within one slide | A slow Ken Burns across the clip’s full duration | util/Animations.kt |
Keeping them apart is what lets both stay simple. Assigning a transition overlaps the pair and pulls
every later clip earlier, so the engine—not the kit—owns the timeline: there is no start-time
arithmetic anywhere in scene/. The engine also clamps each overlap to half of the shorter
neighbour, so a clip shorter than the requested duration needs no special case. A 4s video between
8s photos simply gets 2s blends on either side.
Because the transition does the leaving, a slide needs no out-animation. AnimationPair.createOut
is nullable and defaults to null, and the shipped recipe is a single Ken Burns spanning the whole
clip with Linear easing—an eased curve spends its speed early or late, which over eight seconds
reads as the photo lurching and then crawling.
private fun kenBurnsDrift(): AnimationPair = AnimationPair( createIn = { engine -> engine.block.createAnimation(AnimationType.KenBurns).also { animation -> // The whole clip, so the move is slow enough to read as life rather than motion. engine.block.setDuration(animation, IMAGE_DURATION) engine.block.setFloat(animation, "animation/ken_burns/zoomIntensity", 0.2f) // A full crop-length of travel reads as the photo sliding past; a third of it reads // as drift. engine.block.setFloat(animation, "animation/ken_burns/travelDistanceRatio", 0.3f) engine.block.setEnum(animation, "animationEasing", "Linear") } },)A Transition Per Style#
A transition is as much a style’s character as its filter is, so each one blends differently:
| Style | Transition | Overlap |
|---|---|---|
| Default | CrossFade |
3.2s |
| Noir | FadeToBlack |
1.8s |
| Hologram | CrossWarp |
1.2s |
| Bubblegum | ColorWipe, pink, sweeping up |
1.0s |
A style declares one as a TransitionSpec: the type, how long the clips overlap, and a configure
lambda for the type’s own properties, which live under transition/{type}/{property} keypaths. Call
findAllProperties on a created transition to see what a type exposes.
transition = TransitionSpec( type = TransitionType.ColorWipe, duration = 1.0, configure = { engine, transition -> engine.block.setEnum(transition, "transition/color-wipe/direction", "Up") engine.block.setColor(transition, "transition/color-wipe/color", Color.fromHex("#FF4FA3")) },),Because styles overlap by different amounts, choosing one changes how long the montage runs.
style/StyleApplier.kt re-wires every boundary, reads the new end back off the engine, and
re-stretches the backdrop to match—so nothing predicts a duration it can measure.
Styles From a Custom Asset Source#
The styled looks (Noir, Hologram, Bubblegum) get their backdrops and picker thumbnails from the
kit’s own local asset source, ly.img.memories.style, rather than hard-coded paths. The assets
stay bundled under starter-kit/src/main/assets/ly.img.memories.style/ and are described by
content.json, which style/StyleAssetSource.kt registers with
engine.asset.addLocalSourceFromJSON(...)—exactly like the default IMG.LY sources.
style/VideoStyle.kt then references each backdrop and thumbnail by asset id, and
style/StyleApplier.kt resolves the actual URI from the source at apply time. Because the asset
URIs in content.json use the portable {{base_url}} placeholder (which the engine substitutes
with the basePath the source is registered against) instead of an absolute
file:///android_asset/... path, the same source definition also works if you reuse it on iOS or
Web.
{ "uri": "{{base_url}}/ly.img.memories.style/animations/hologram.json", "thumbUri": "{{base_url}}/ly.img.memories.style/thumbnails/hologram.png"}The two animated backdrops are Lottie, not video. A video fill plays either—the engine picks its
decoder from the asset’s mimeType, so application/json routes the file through its Lottie
renderer and video/mp4 through the video decoder. StyleBackground.Video is named for the fill,
not the file. Vector costs a fraction of the bytes for this kind of abstract motion: the two
backdrops here are 25 KB together, against 25 MB as MP4.
To add a look, drop its thumbnail (and backdrop, if any) into the assets folder, add an entry to
content.json, and add the matching VideoStyle in style/VideoStyle.kt.
Where to Change Things#
The starter kit ships a generic structure and behavior, but every part of it is in your codebase and meant to be customized. The most common edit points:
- Slide motion —
util/Animations.kt. Add, remove, or tune the animation recipes a slide can use. Keep them alpha-free, for the reason above. - Transitions — the
transitionfield on eachVideoStyle, wired byscene/Transitions.kt. - Looks / filters (styles) —
style/VideoStyle.kt. Each style bundles a filter, backdrop, transition, and title typeface, referencing the bundled assets by id (see above). - Timing, page size, title —
util/Constants.kt(clip duration, the default transition overlap, canvas size, title duration). - Timeline assembly —
scene/SceneSetup.kt,scene/Timeline.kt, andscene/Title.kt.
Customize Export Functionality#
Export handling lives in callback/OnExport.kt. The montage is rendered to an MP4 ByteBuffer; from
there you can upload it to your server, save it to the device gallery, or share it. Closing the
editor is driven by the onCloseEditor callback passed into MemoriesEditor (wired to the
navigation-bar close button via rememberCloseEditor in component/NavigationBar.kt).
Troubleshooting#
Editor doesn’t load#
- Check onCreate: Ensure the
onCreatecallback finishes building the scene and no coroutine is stuck. - Verify the baseURL: Assets must be reachable from the CDN or your self-hosted location.
- Check logcat errors: Look for errors in Android logcat.
Export fails or produces blank output#
- Wait for content to load: Ensure media is fully loaded before exporting.
- Check logcat errors: Look for errors in Android logcat.
