Crop - Mac Catalyst | IMG.LY Docs

Crop videos to focus on specific areas or remove unwanted edges using programmatic crop transforms.

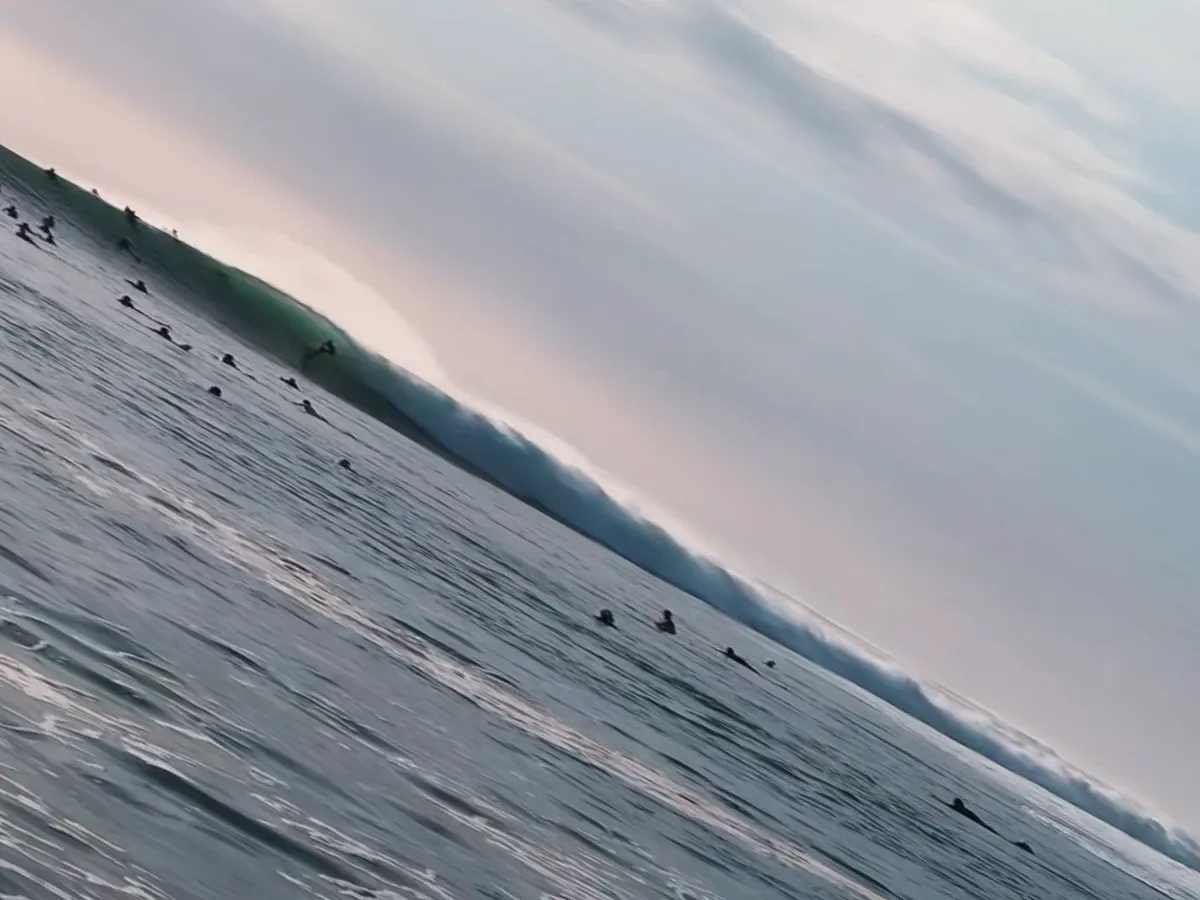

Cropped video frame after scaling, translating, rotating, and flipping

10 mins

estimated time

Video cropping in CreativeEditor SDK (CE.SDK) lets you re-frame clips and remove unwanted edges by moving the content inside the block. Unlike resizing or scaling which affects the entire frame uniformly, cropping selects a specific region of the source video to display inside the block’s existing dimensions.

import Foundation
import IMGLYEngine

@MainActor
func cropVideo(engine: Engine) async throws {
  // Demo scaffolding: a video scene with a single video block that fills the page.
  let scene = try engine.scene.createVideo()
  let page = try engine.block.create(.page)
  try engine.block.appendChild(to: scene, child: page)
  try engine.block.setWidth(page, value: 800)
  try engine.block.setHeight(page, value: 600)
  try engine.block.setDuration(page, duration: 5)

  let videoBlock = try engine.block.create(.graphic)
  try engine.block.setShape(videoBlock, shape: engine.block.createShape(.rect))
  let videoFill = try engine.block.createFill(.video)
  let videoURL = "https://cdn.img.ly/packages/imgly/cesdk-swift/1.75.0" +
    "/assets/ly.img.video/videos/pexels-drone-footage-of-a-surfer-barrelling-a-wave-12715991.mp4"
  try engine.block.setString(videoFill, property: "fill/video/fileURI", value: videoURL)
  try engine.block.setFill(videoBlock, fill: videoFill)

  let track = try engine.block.create(.track)
  try engine.block.appendChild(to: page, child: track)
  try engine.block.appendChild(to: track, child: videoBlock)
  try engine.block.fillParent(track)

  // Decode at least one video frame before exporting snapshots.
  try await engine.block.forceLoadAVResource(videoFill)

  let canCrop = try engine.block.supportsCrop(videoBlock)
  _ = canCrop

  // Center-crop: scale both axes uniformly while keeping the content centered.
  try engine.block.setCropScaleRatio(videoBlock, scaleRatio: 1.5)

  try await engine.captureGuide(page, label: "after-scale")

  // Or scale each axis independently. Unequal values stretch the content.
  try engine.block.setCropScaleX(videoBlock, scaleX: 1.5)
  try engine.block.setCropScaleY(videoBlock, scaleY: 2.0)

  // Pan the content within the frame. Values are normalized fractions of the
  // frame dimensions: 0.25 moves the content one quarter of the frame to the right.
  try engine.block.setCropTranslationX(videoBlock, translationX: 0.25)
  try engine.block.setCropTranslationY(videoBlock, translationY: -0.1)

  try await engine.captureGuide(page, label: "after-translate")

  // Rotate the content within the crop frame. Rotation is in radians.
  try engine.block.setCropRotation(videoBlock, rotation: .pi / 6)

  let scaleRatio = try engine.block.getCropScaleRatio(videoBlock)
  let scaleX = try engine.block.getCropScaleX(videoBlock)
  let scaleY = try engine.block.getCropScaleY(videoBlock)
  let rotation = try engine.block.getCropRotation(videoBlock)
  let offsetX = try engine.block.getCropTranslationX(videoBlock)
  let offsetY = try engine.block.getCropTranslationY(videoBlock)
  _ = (scaleRatio, scaleX, scaleY, rotation, offsetX, offsetY)

  // After translating or rotating you can re-fill the frame to remove letterboxing.
  try engine.block.adjustCropToFillFrame(videoBlock, minScaleRatio: 1.0)

  // Mirror the content along the vertical axis.
  try engine.block.flipCropHorizontal(videoBlock)

  try await engine.captureGuide(page, label: "hero")

  try engine.block.setCropAspectRatioLocked(videoBlock, locked: true)
  let isLocked = try engine.block.isCropAspectRatioLocked(videoBlock)
  _ = isLocked

  // Reset every crop transform back to its starting state.
  try engine.block.resetCrop(videoBlock)
}

This guide covers the programmatic crop API: checking crop support, scaling and translating the content, rotating and flipping it, locking the aspect ratio, and resetting the transform.

Check Crop Support#

Before applying crop operations, verify the block supports cropping with engine.block.supportsCrop(_:). Graphic blocks with image or video fills return true:

let canCrop = try engine.block.supportsCrop(videoBlock)

Scale Crop#

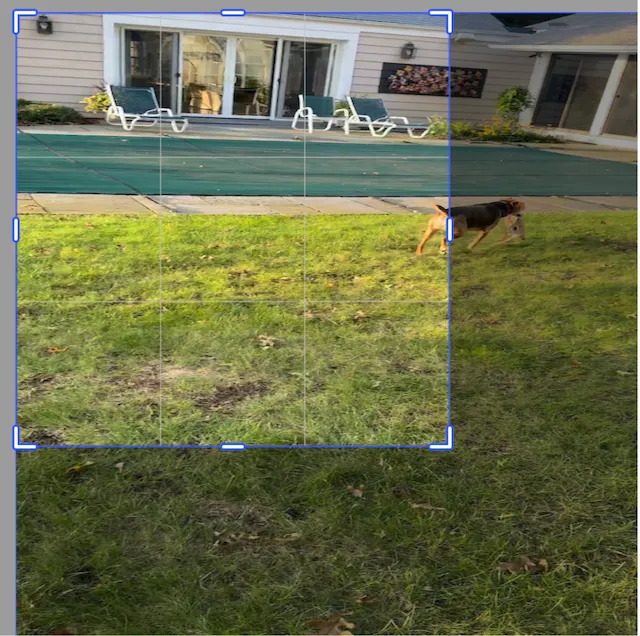

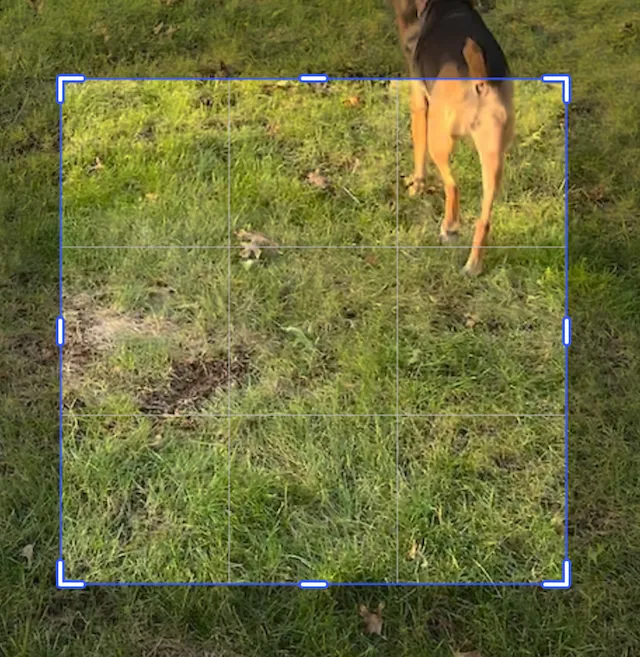

Use engine.block.setCropScaleRatio(_:scaleRatio:) to scale the video content uniformly within its frame. Values greater than 1.0 zoom in, values less than 1.0 zoom out, and the transform keeps the content centered:

// Center-crop: scale both axes uniformly while keeping the content centered.
try engine.block.setCropScaleRatio(videoBlock, scaleRatio: 1.5)

If you need to scale each axis independently — for example to stretch the content — call setCropScaleX and setCropScaleY directly. Unequal values distort the video:

// Or scale each axis independently. Unequal values stretch the content.
try engine.block.setCropScaleX(videoBlock, scaleX: 1.5)
try engine.block.setCropScaleY(videoBlock, scaleY: 2.0)

Translate Crop#

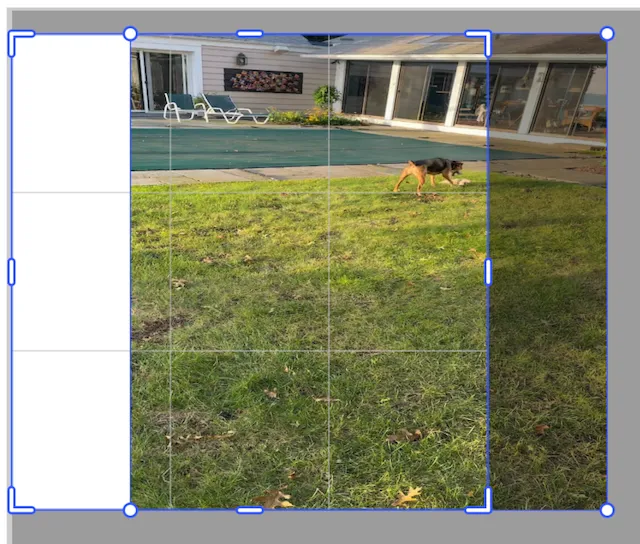

Pan the video content within the crop frame with engine.block.setCropTranslationX(_:translationX:) and engine.block.setCropTranslationY(_:translationY:). Translation values are normalized fractions of the frame dimensions, so 0.25 moves the content one quarter of the frame to the right and -0.1 moves it 10% up:

// Pan the content within the frame. Values are normalized fractions of the
// frame dimensions: 0.25 moves the content one quarter of the frame to the right.
try engine.block.setCropTranslationX(videoBlock, translationX: 0.25)
try engine.block.setCropTranslationY(videoBlock, translationY: -0.1)

Rotate Crop#

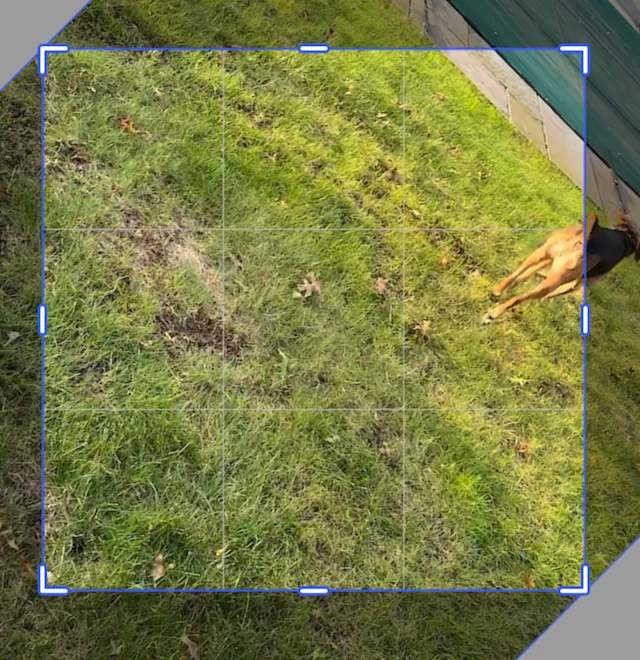

Rotate the video content within its frame using engine.block.setCropRotation(_:rotation:). Rotation is specified in radians where .pi equals 180 degrees:

// Rotate the content within the crop frame. Rotation is in radians.
try engine.block.setCropRotation(videoBlock, rotation: .pi / 6)

Get Crop Values#

Read the current crop state with the matching getters. The example below captures the scale ratio, the per-axis scales, the rotation, and the translation offsets:

let scaleRatio = try engine.block.getCropScaleRatio(videoBlock)
let scaleX = try engine.block.getCropScaleX(videoBlock)
let scaleY = try engine.block.getCropScaleY(videoBlock)
let rotation = try engine.block.getCropRotation(videoBlock)
let offsetX = try engine.block.getCropTranslationX(videoBlock)
let offsetY = try engine.block.getCropTranslationY(videoBlock)

Fill Frame#

Translations and rotations can reveal the empty area behind the video as letterboxing. Call engine.block.adjustCropToFillFrame(_:minScaleRatio:) to automatically adjust the scale and translation so the content covers the full frame. The minScaleRatio argument sets the minimum scale the engine is allowed to settle on:

// After translating or rotating you can re-fill the frame to remove letterboxing.
try engine.block.adjustCropToFillFrame(videoBlock, minScaleRatio: 1.0)

Flip Crop#

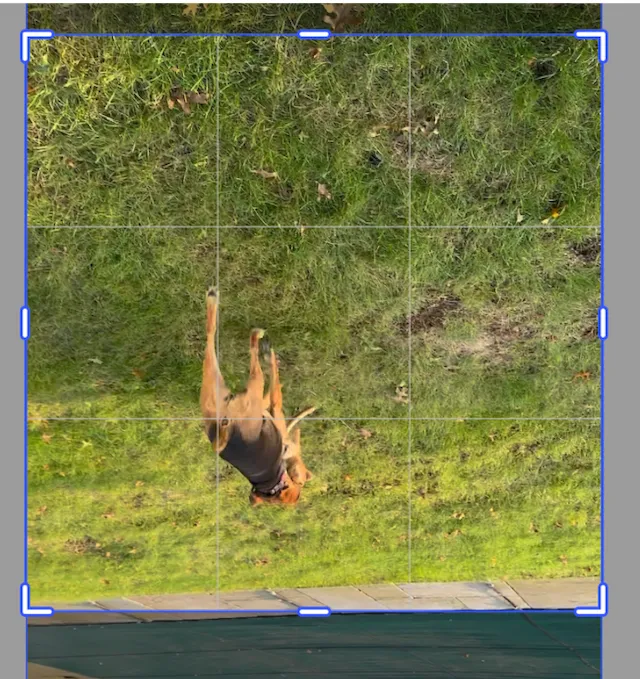

Flip the content horizontally or vertically within its crop frame with engine.block.flipCropHorizontal(_:) and engine.block.flipCropVertical(_:). These flip the content, not the block on the canvas — every call toggles the orientation, so calling the same function twice returns the content to its original state:

// Mirror the content along the vertical axis.
try engine.block.flipCropHorizontal(videoBlock)

Lock Aspect Ratio#

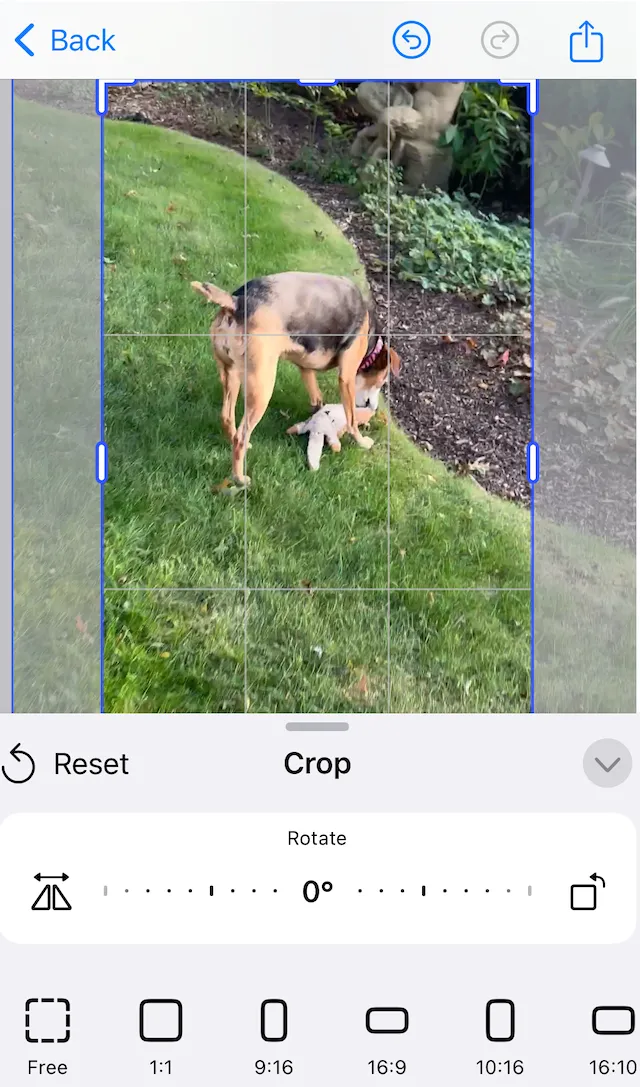

Lock the crop’s aspect ratio during interactive editing with engine.block.setCropAspectRatioLocked(_:locked:). When locked, crop handles in the editor maintain the current aspect ratio while the user drags. Use engine.block.isCropAspectRatioLocked(_:) to query the current state:

try engine.block.setCropAspectRatioLocked(videoBlock, locked: true)
let isLocked = try engine.block.isCropAspectRatioLocked(videoBlock)

Reset Crop#

Reset every crop transform back to the engine’s initial values using engine.block.resetCrop(_:). The engine restores the scale and translation that were applied when the video was first placed inside the block:

// Reset every crop transform back to its starting state.
try engine.block.resetCrop(videoBlock)

Coordinate System#

Crop transforms operate in normalized units rather than pixels:

Property	Value Type	Description
Scale	`Float` (0.0+)	`1.0` is original size, `2.0` is double, `0.5` is half
Translation	`Float`	Fraction of the frame dimensions; `1.0` shifts by a full frame
Rotation	`Float` (radians)	`.pi` equals 180°, `.pi / 2` equals 90°

All crop values are independent of the canvas zoom level and the timeline duration — cropping changes the visual framing of the clip for its entire duration but does not trim time.

Combining with Other Transforms#

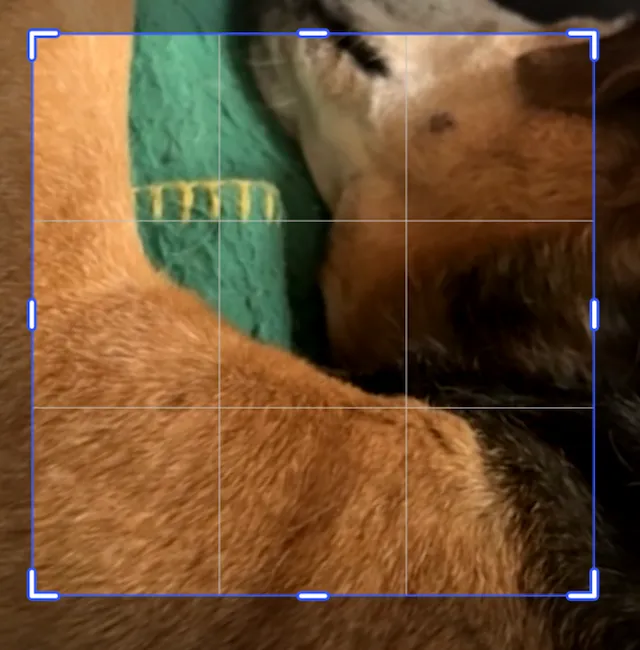

Crop transforms move the content inside the block; the block’s own position, rotation, and scale move the block on the canvas. The two are independent — you can chain them freely. For example, after scaling and rotating the crop you can change the block’s own rotation and width with engine.block.setRotation(_:radians:) and engine.block.setWidth(_:value:). The order of crop calls matters: rotating first and then scaling does not produce the same frame as scaling first and then rotating.

Troubleshooting#

Crop functions throw a scope error#

Crop functions require the layer/crop scope. The default Creator role has it enabled; if you’ve switched to a more restrictive role, re-enable the scope before calling the crop API.

Crop handles are not visible#

Confirm the selected block has a video fill. Crop handles only appear for blocks whose fill type supports cropping. Check that controlGizmo/showCropHandles is still enabled in your engine settings.

Black bars after scaling or translating#

Call engine.block.adjustCropToFillFrame(_:minScaleRatio:) so the engine re-fits the content to the frame, or raise the scale ratio until the content fully covers the block.

API Reference#

Method	Description
`engine.block.supportsCrop(_:)`	Check if a block supports cropping
`engine.block.setCropScaleRatio(_:scaleRatio:)`	Set the uniform scale ratio
`engine.block.setCropScaleX(_:scaleX:)`	Set the horizontal scale
`engine.block.setCropScaleY(_:scaleY:)`	Set the vertical scale
`engine.block.setCropTranslationX(_:translationX:)`	Set the horizontal pan
`engine.block.setCropTranslationY(_:translationY:)`	Set the vertical pan
`engine.block.setCropRotation(_:rotation:)`	Set the rotation in radians
`engine.block.getCropScaleRatio(_:)`	Read the current scale ratio
`engine.block.getCropScaleX(_:)`	Read the current horizontal scale
`engine.block.getCropScaleY(_:)`	Read the current vertical scale
`engine.block.getCropTranslationX(_:)`	Read the current horizontal translation
`engine.block.getCropTranslationY(_:)`	Read the current vertical translation
`engine.block.getCropRotation(_:)`	Read the current rotation
`engine.block.adjustCropToFillFrame(_:minScaleRatio:)`	Auto-adjust to fill the frame
`engine.block.flipCropHorizontal(_:)`	Flip content horizontally
`engine.block.flipCropVertical(_:)`	Flip content vertically
`engine.block.setCropAspectRatioLocked(_:locked:)`	Lock or unlock the aspect ratio
`engine.block.isCropAspectRatioLocked(_:)`	Check whether the aspect ratio is locked
`engine.block.resetCrop(_:)`	Reset every crop transform
