Create From Scratch - Mac Catalyst

import Foundation
import IMGLYEngine

@MainActor
func createTemplateFromScratch(engine: Engine) async throws {
  // Resolve sample assets (fonts, image) against the engine's configured base URL.
  let baseURL = try engine.guidesBaseURL

  let scene = try engine.scene.create(designUnit: .px, fontSizeUnit: .px)

  let page = try engine.block.create(.page)
  try engine.block.setWidth(page, value: 800)
  try engine.block.setHeight(page, value: 1000)
  try engine.block.appendChild(to: scene, child: page)

  let backgroundFill = try engine.block.createFill(.color)
  try engine.block.setColor(
    backgroundFill,
    property: "fill/color/value",
    color: .rgba(r: 0.98, g: 0.98, b: 0.99, a: 1),
  )
  try engine.block.setFill(page, fill: backgroundFill)

  let brandTypeface = Typeface(
    name: "Brand Sans",
    fonts: [
      Font(
        uri: baseURL.appendingPathComponent("ly.img.typeface/fonts/Roboto/Roboto-Regular.ttf"),
        subFamily: "Regular",
        weight: .normal,
        style: .normal,
      ),
      Font(
        uri: baseURL.appendingPathComponent("ly.img.typeface/fonts/Roboto/Roboto-Bold.ttf"),
        subFamily: "Bold",
        weight: .bold,
        style: .normal,
      ),
    ],
  )
  let brandRegularFont = brandTypeface.fonts[0]

  let headline = try engine.block.create(.text)
  try engine.block.replaceText(headline, text: "{{title}}")
  try engine.block.setFont(headline, fontFileURL: brandRegularFont.uri, typeface: brandTypeface)
  try engine.block.setTextFontSize(headline, fontSize: 72)
  try engine.block.setTextColor(headline, color: .rgba(r: 0.09, g: 0.09, b: 0.09, a: 1))
  try engine.block.setPositionX(headline, value: 72)
  try engine.block.setPositionY(headline, value: 96)
  try engine.block.setWidth(headline, value: 656)
  try engine.block.setHeightMode(headline, mode: .auto)
  try engine.block.appendChild(to: page, child: headline)

  let subtitle = try engine.block.create(.text)
  try engine.block.replaceText(subtitle, text: "{{subtitle}}")
  try engine.block.setFont(subtitle, fontFileURL: brandRegularFont.uri, typeface: brandTypeface)
  try engine.block.setTextFontSize(subtitle, fontSize: 32)
  try engine.block.setTextColor(subtitle, color: .rgba(r: 0.32, g: 0.32, b: 0.32, a: 1))
  try engine.block.setPositionX(subtitle, value: 72)
  try engine.block.setPositionY(subtitle, value: 194)
  try engine.block.setWidth(subtitle, value: 620)
  try engine.block.setHeightMode(subtitle, mode: .auto)
  try engine.block.appendChild(to: page, child: subtitle)

  let cta = try engine.block.create(.text)
  try engine.block.replaceText(cta, text: "{{cta}}")
  try engine.block.setFont(cta, fontFileURL: brandRegularFont.uri, typeface: brandTypeface)
  try engine.block.setTextFontSize(cta, fontSize: 36)
  try engine.block.setTextColor(cta, color: .rgba(r: 0.09, g: 0.09, b: 0.09, a: 1))
  try engine.block.setPositionX(cta, value: 72)
  try engine.block.setPositionY(cta, value: 858)
  try engine.block.setWidth(cta, value: 400)
  try engine.block.setHeightMode(cta, mode: .auto)
  try engine.block.appendChild(to: page, child: cta)

  try engine.variable.set(key: "title", value: "Summer Sale")
  try engine.variable.set(key: "subtitle", value: "Up to 50% off all items")
  try engine.variable.set(key: "cta", value: "Learn More")

  let variableNames = engine.variable.findAll()
  print("Template variables:", variableNames)

  let imageBlock = try engine.block.create(.graphic)
  try engine.block.setName(imageBlock, name: "hero-image")
  try engine.block.setShape(imageBlock, shape: engine.block.createShape(.rect))
  try engine.block.setPositionX(imageBlock, value: 72)
  try engine.block.setPositionY(imageBlock, value: 300)
  try engine.block.setWidth(imageBlock, value: 656)
  try engine.block.setHeight(imageBlock, value: 500)
  try engine.block.setContentFillMode(imageBlock, mode: .cover)

  let imageFill = try engine.block.createFill(.image)
  try engine.block.setURL(
    imageFill,
    property: "fill/image/imageFileURI",
    value: baseURL.appendingPathComponent("ly.img.image/images/sample_1.jpg"),
  )
  try engine.block.setFill(imageBlock, fill: imageFill)
  try engine.block.appendChild(to: page, child: imageBlock)

  let placeholderFill = try engine.block.getFill(imageBlock)
  if try engine.block.supportsPlaceholderBehavior(placeholderFill) {
    try engine.block.setPlaceholderBehaviorEnabled(placeholderFill, enabled: true)
  }

  try engine.block.setPlaceholderEnabled(imageBlock, enabled: true)
  if try engine.block.supportsPlaceholderControls(imageBlock) {
    try engine.block.setPlaceholderControlsOverlayEnabled(imageBlock, enabled: true)
    try engine.block.setPlaceholderControlsButtonEnabled(imageBlock, enabled: true)
  }

  try engine.editor.setGlobalScope(key: "layer/move", value: .defer)
  try engine.editor.setGlobalScope(key: "layer/resize", value: .defer)
  try engine.editor.setGlobalScope(key: "fill/change", value: .defer)

  for block in [headline, subtitle, cta, imageBlock] {
    try engine.block.setScopeEnabled(block, key: "layer/move", enabled: false)
    try engine.block.setScopeEnabled(block, key: "layer/resize", enabled: false)
  }
  try engine.block.setScopeEnabled(imageBlock, key: "fill/change", enabled: true)

  let imageCanMove = try engine.block.isAllowedByScope(imageBlock, key: "layer/move")
  let imageFillCanChange = try engine.block.isAllowedByScope(imageBlock, key: "fill/change")
  print("Image can move:", imageCanMove, "— fill can change:", imageFillCanChange)

  // Most-evolved scene — the finished promotional card, promoted to the guide's hero image.
  try await engine.captureGuide(page, label: "hero")

  try await engine.block.forceLoadResources([page])
  let templateString = try await engine.scene.saveToString()
  let templateArchive = try await engine.scene.saveToArchive()
  print("Template string characters:", templateString.count)
  print("Template archive bytes:", templateArchive.count)
}

Build reusable design templates entirely through code for automation, batch generation, and custom template creation tools.

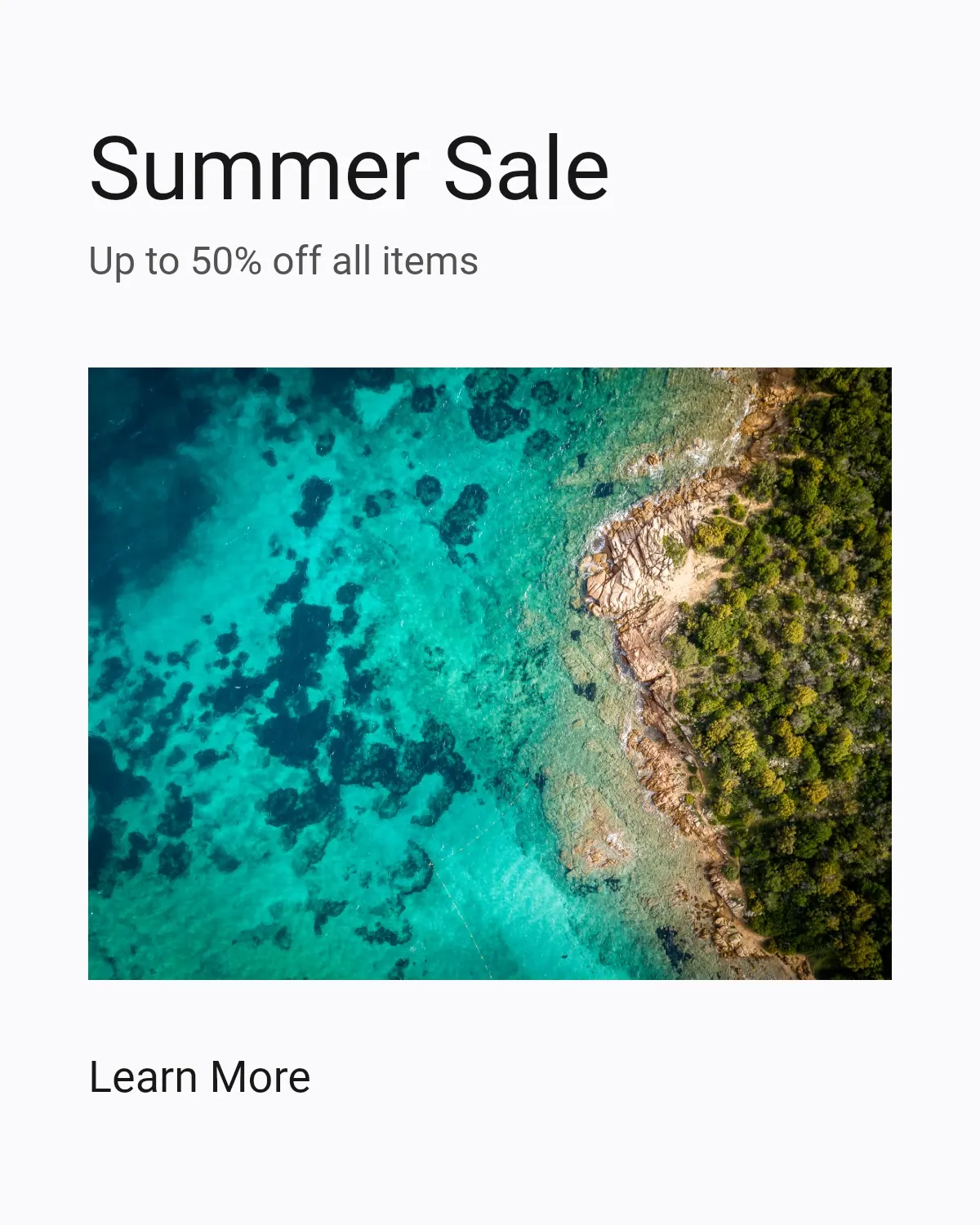

A promotional card template with the “Summer Sale” headline above the “Up to 50% off all items” subtitle, a swappable hero image, and a “Learn More” call to action.

8 mins

estimated time

GitHub

CE.SDK lets you create a template without starting from an existing scene. You define the page size, add text and graphic blocks, bind text variables, mark media as a placeholder, restrict editing with scopes, and save the result for reuse.

This guide builds a promotional card template with variable-driven text and one swappable image area. The sample assumes an existing Engine instance and focuses on the scene and block APIs that assemble the reusable template.

Create a Blank Scene#

Create the scene with pixel units for layout and text sizing, add a page, and define the template canvas size. Pairing the design unit with a matching font-size unit keeps setTextFontSize values in pixels.

let scene = try engine.scene.create(designUnit: .px, fontSizeUnit: .px)

let page = try engine.block.create(.page)
try engine.block.setWidth(page, value: 800)
try engine.block.setHeight(page, value: 1000)
try engine.block.appendChild(to: scene, child: page)

Set Page Background#

Use a color fill for the page background so every generated template starts from the same base appearance.

let backgroundFill = try engine.block.createFill(.color)
try engine.block.setColor(
  backgroundFill,
  property: "fill/color/value",
  color: .rgba(r: 0.98, g: 0.98, b: 0.99, a: 1),
)
try engine.block.setFill(page, fill: backgroundFill)

The fill stores the color value, and setFill assigns that fill to the page.

Add Text Blocks#

Text blocks hold the template copy. The sample uses a bundled font, variable tokens for dynamic content, and fixed positions so the layout stays predictable.

let brandTypeface = Typeface(
  name: "Brand Sans",
  fonts: [
    Font(
      uri: baseURL.appendingPathComponent("ly.img.typeface/fonts/Roboto/Roboto-Regular.ttf"),
      subFamily: "Regular",
      weight: .normal,
      style: .normal,
    ),
    Font(
      uri: baseURL.appendingPathComponent("ly.img.typeface/fonts/Roboto/Roboto-Bold.ttf"),
      subFamily: "Bold",
      weight: .bold,
      style: .normal,
    ),
  ],
)
let brandRegularFont = brandTypeface.fonts[0]

let headline = try engine.block.create(.text)
try engine.block.replaceText(headline, text: "{{title}}")
try engine.block.setFont(headline, fontFileURL: brandRegularFont.uri, typeface: brandTypeface)
try engine.block.setTextFontSize(headline, fontSize: 72)
try engine.block.setTextColor(headline, color: .rgba(r: 0.09, g: 0.09, b: 0.09, a: 1))
try engine.block.setPositionX(headline, value: 72)
try engine.block.setPositionY(headline, value: 96)
try engine.block.setWidth(headline, value: 656)
try engine.block.setHeightMode(headline, mode: .auto)
try engine.block.appendChild(to: page, child: headline)

let subtitle = try engine.block.create(.text)
try engine.block.replaceText(subtitle, text: "{{subtitle}}")
try engine.block.setFont(subtitle, fontFileURL: brandRegularFont.uri, typeface: brandTypeface)
try engine.block.setTextFontSize(subtitle, fontSize: 32)
try engine.block.setTextColor(subtitle, color: .rgba(r: 0.32, g: 0.32, b: 0.32, a: 1))
try engine.block.setPositionX(subtitle, value: 72)
try engine.block.setPositionY(subtitle, value: 194)
try engine.block.setWidth(subtitle, value: 620)
try engine.block.setHeightMode(subtitle, mode: .auto)
try engine.block.appendChild(to: page, child: subtitle)

let cta = try engine.block.create(.text)
try engine.block.replaceText(cta, text: "{{cta}}")
try engine.block.setFont(cta, fontFileURL: brandRegularFont.uri, typeface: brandTypeface)
try engine.block.setTextFontSize(cta, fontSize: 36)
try engine.block.setTextColor(cta, color: .rgba(r: 0.09, g: 0.09, b: 0.09, a: 1))
try engine.block.setPositionX(cta, value: 72)
try engine.block.setPositionY(cta, value: 858)
try engine.block.setWidth(cta, value: 400)
try engine.block.setHeightMode(cta, mode: .auto)
try engine.block.appendChild(to: page, child: cta)

Each text block is appended to the page after its content, typography, position, and sizing are configured. Setting the height mode to .auto lets a block grow to fit its resolved text.

Add Text Variables#

Variables populate the {{title}}, {{subtitle}}, and {{cta}} tokens in the text blocks. Set defaults while authoring the template so the design has meaningful preview content.

try engine.variable.set(key: "title", value: "Summer Sale")
try engine.variable.set(key: "subtitle", value: "Up to 50% off all items")
try engine.variable.set(key: "cta", value: "Learn More")

let variableNames = engine.variable.findAll()
print("Template variables:", variableNames)

When your app applies the template later, call engine.variable.set(key:value:) again with the runtime values. engine.variable.findAll() returns the keys currently registered in the scene.

Add Graphic Blocks#

Graphic blocks are the image containers in the template. Give the image block a name so your app can find it later, then assign a rectangle shape and image fill.

let imageBlock = try engine.block.create(.graphic)
try engine.block.setName(imageBlock, name: "hero-image")
try engine.block.setShape(imageBlock, shape: engine.block.createShape(.rect))
try engine.block.setPositionX(imageBlock, value: 72)
try engine.block.setPositionY(imageBlock, value: 300)
try engine.block.setWidth(imageBlock, value: 656)
try engine.block.setHeight(imageBlock, value: 500)
try engine.block.setContentFillMode(imageBlock, mode: .cover)

let imageFill = try engine.block.createFill(.image)
try engine.block.setURL(
  imageFill,
  property: "fill/image/imageFileURI",
  value: baseURL.appendingPathComponent("ly.img.image/images/sample_1.jpg"),
)
try engine.block.setFill(imageBlock, fill: imageFill)
try engine.block.appendChild(to: page, child: imageBlock)

setContentFillMode(_:mode:) set to .cover crops the image to fill its bounds. The sample resolves a bundled sample image; in your app, use a stable local or remote URL that can be resolved when the template is loaded.

Configure Placeholders#

Placeholder behavior makes the image fill act as swappable content, while placeholder controls let a CE.SDK editor present the block as an interactive drop zone.

let placeholderFill = try engine.block.getFill(imageBlock)
if try engine.block.supportsPlaceholderBehavior(placeholderFill) {
  try engine.block.setPlaceholderBehaviorEnabled(placeholderFill, enabled: true)
}

try engine.block.setPlaceholderEnabled(imageBlock, enabled: true)
if try engine.block.supportsPlaceholderControls(imageBlock) {
  try engine.block.setPlaceholderControlsOverlayEnabled(imageBlock, enabled: true)
  try engine.block.setPlaceholderControlsButtonEnabled(imageBlock, enabled: true)
}

Placeholder behavior lives on the fill, so enable it on the fill returned by getFill(_:). Placeholder interaction and controls live on the graphic block itself. Guard the control calls with supportsPlaceholderControls(_:) so they only run on blocks that support them.

Apply Editing Constraints#

Scopes protect the layout while keeping the image content replaceable. Defer the relevant global scopes to the block level, then disable movement and resizing on the template elements.

try engine.editor.setGlobalScope(key: "layer/move", value: .defer)
try engine.editor.setGlobalScope(key: "layer/resize", value: .defer)
try engine.editor.setGlobalScope(key: "fill/change", value: .defer)

for block in [headline, subtitle, cta, imageBlock] {
  try engine.block.setScopeEnabled(block, key: "layer/move", enabled: false)
  try engine.block.setScopeEnabled(block, key: "layer/resize", enabled: false)
}
try engine.block.setScopeEnabled(imageBlock, key: "fill/change", enabled: true)

let imageCanMove = try engine.block.isAllowedByScope(imageBlock, key: "layer/move")
let imageFillCanChange = try engine.block.isAllowedByScope(imageBlock, key: "fill/change")
print("Image can move:", imageCanMove, "— fill can change:", imageFillCanChange)

Deferring a global scope tells the engine to consult each block’s own setting for that capability. The image block keeps fill/change enabled so users or automation can replace the image without moving the placeholder. isAllowedByScope(_:key:) returns the effective permission after resolving both the global and block-level settings. For the full scope and role model, see Set Editing Constraints.

Save the Template#

Save the finished scene as a string when its assets stay externally resolvable, or as an archive when you need a portable package with the assets bundled in.

try await engine.block.forceLoadResources([page])
let templateString = try await engine.scene.saveToString()
let templateArchive = try await engine.scene.saveToArchive()
print("Template string characters:", templateString.count)
print("Template archive bytes:", templateArchive.count)

forceLoadResources(_:) ensures referenced assets are loaded before saving. saveToString() is compact and works well for templates stored alongside stable asset URLs. saveToArchive() returns a ZIP archive that bundles the assets the engine can access at save time.

Troubleshooting#

Blocks do not appear: Verify that every page, text block, and graphic block is attached with appendChild(to:child:).

Variables do not resolve: Check that each text token uses the same key as engine.variable.set(key:value:), including the double curly braces in the text.

The placeholder is not swappable: Enable placeholder behavior on the fill returned by getFill(_:), not on the graphic block, and enable placeholder interaction on the block.

Constraints are not enforced: Defer the relevant global scope with setGlobalScope(key:value:) set to .defer before applying block-level scope settings.

API Reference#

Methods#

Method	Description
`engine.scene.create(designUnit:fontSizeUnit:)`	Create the empty template scene with pixel measurements and pixel text sizing.
`engine.block.create(_:)`	Create a page, text, or graphic block.
`engine.block.setWidth(_:value:)`	Set page or block width.
`engine.block.setHeight(_:value:)`	Set page or block height.
`engine.block.setHeightMode(_:mode:)`	Let a text block’s height fit its content with `.auto`.
`engine.block.setPositionX(_:value:)`	Set a block’s horizontal position.
`engine.block.setPositionY(_:value:)`	Set a block’s vertical position.
`engine.block.appendChild(to:child:)`	Add a page or block to the scene hierarchy.
`engine.block.createFill(_:)`	Create a color or image fill.
`engine.block.setColor(_:property:color:)`	Set the background fill color.
`engine.block.setFill(_:fill:)`	Assign a fill to a page or graphic block.
`engine.block.getFill(_:)`	Read the fill block attached to a graphic block.
`engine.block.replaceText(_:text:)`	Set text block content.
`engine.block.setFont(_:fontFileURL:typeface:)`	Apply a typeface to a text block.
`engine.block.setTextFontSize(_:fontSize:)`	Set text size.
`engine.block.setTextColor(_:color:)`	Set text color.
`engine.variable.set(key:value:)`	Set a text variable value.
`engine.variable.findAll()`	Read the variable keys registered in the scene.
`engine.block.setName(_:name:)`	Name a block for later lookup.
`engine.block.createShape(_:)`	Create a rectangular shape for the graphic block.
`engine.block.setShape(_:shape:)`	Assign the shape to the graphic block.
`engine.block.setContentFillMode(_:mode:)`	Crop the image to cover its placeholder bounds with `.cover`.
`engine.block.setURL(_:property:value:)`	Set the image URL on the image fill.
`engine.block.supportsPlaceholderBehavior(_:)`	Check whether the fill supports placeholder behavior.
`engine.block.setPlaceholderBehaviorEnabled(_:enabled:)`	Enable placeholder behavior on the fill.
`engine.block.setPlaceholderEnabled(_:enabled:)`	Enable placeholder interaction on the graphic block.
`engine.block.supportsPlaceholderControls(_:)`	Check whether the graphic block supports placeholder controls.
`engine.block.setPlaceholderControlsOverlayEnabled(_:enabled:)`	Show the placeholder overlay.
`engine.block.setPlaceholderControlsButtonEnabled(_:enabled:)`	Show the placeholder action button.
`engine.editor.setGlobalScope(key:value:)`	Defer a scope to block-level settings with `.defer`.
`engine.block.setScopeEnabled(_:key:enabled:)`	Allow or deny a scope on one block.
`engine.block.isAllowedByScope(_:key:)`	Read the effective permission for a scope on a block.
`engine.block.forceLoadResources(_:)`	Ensure referenced assets are loaded before saving.
`engine.scene.saveToString()`	Serialize the template scene as a string.
`engine.scene.saveToArchive()`	Save the template scene and accessible assets as an archive.

Next Steps#

Placeholders - Configure placeholder behavior and visual controls in depth.
Text Variables - Implement dynamic text personalization with variables.
Set Editing Constraints - Lock layout properties to protect design integrity.
Add to Template Library - Save and organize templates in an asset source for users to browse and apply.
