Positioning and Alignment - Vanilla JS

Position, align, and distribute design elements precisely using CE.SDK’s layout APIs and snapping system.

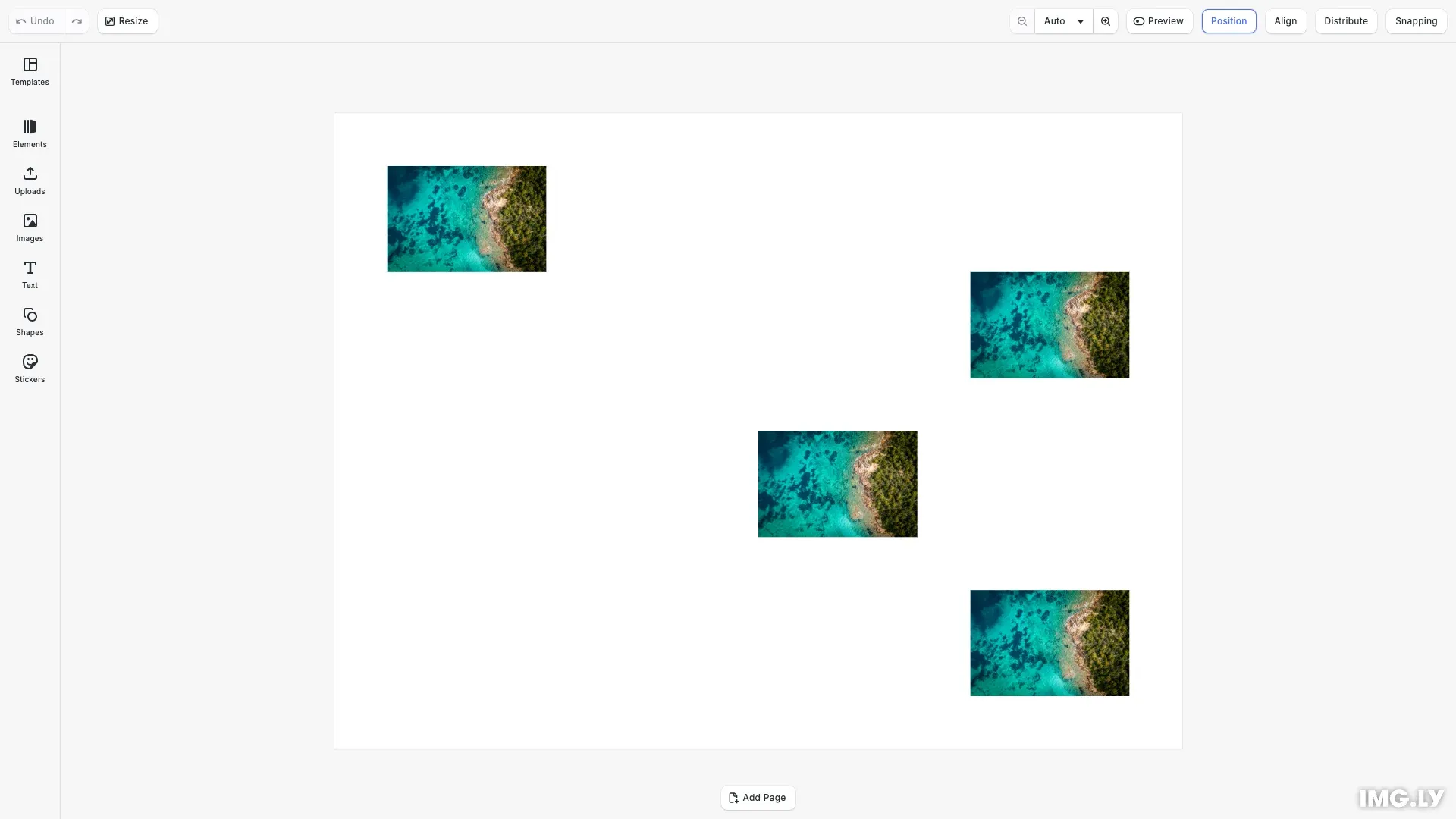

Positioning and Alignment example showing blocks arranged in a grid layout

8 mins

estimated time

CE.SDK positions blocks relative to their parent container with the origin at the top left. You can set positions using absolute values (design units) or as percentages of the parent’s dimensions. For multi-element layouts, alignment and distribution APIs arrange blocks precisely without manual calculations. In the browser, snapping guides provide visual feedback when dragging elements.

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';
import packageJson from './package.json';

/**
 * CE.SDK Plugin: Positioning and Alignment Guide
 *
 * Demonstrates positioning, aligning, and distributing design elements:
 * - Setting block positions with absolute and percentage modes
 * - Aligning multiple blocks horizontally and vertically
 * - Aligning a single block within its parent
 * - Distributing blocks with even spacing
 * - Configuring snapping thresholds and guide colors
 */
class Example implements EditorPlugin {
  name = packageJson.name;

  version = packageJson.version;

  private currentDemo = 'position';

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    // Initialize CE.SDK with Design mode and load asset sources
    await cesdk.addDefaultAssetSources();
    await cesdk.addDemoAssetSources({
      sceneMode: 'Design',
      withUploadAssetSources: true
    });
    await cesdk.createDesignScene();

    const engine = cesdk.engine;
    const page = engine.block.findByType('page')[0];

    // Set page dimensions
    engine.block.setWidth(page, 800);
    engine.block.setHeight(page, 600);

    // Create navigation buttons for different demos
    this.addNavigationButtons(cesdk);

    // Run the initial demo
    await this.runPositionDemo(cesdk);
  }

  private addNavigationButtons(
    cesdk: NonNullable<EditorPluginContext['cesdk']>
  ) {
    // Register position demo button component
    cesdk.ui.registerComponent('position-demo-btn', ({ builder }) => {
      builder.Button('position-demo', {
        label: 'Position',
        variant: 'regular',
        isActive: this.currentDemo === 'position',
        onClick: async () => {
          this.currentDemo = 'position';
          await this.clearAndRun(cesdk, () => this.runPositionDemo(cesdk));
        }
      });
    });

    // Register align demo button component
    cesdk.ui.registerComponent('align-demo-btn', ({ builder }) => {
      builder.Button('align-demo', {
        label: 'Align',
        variant: 'regular',
        isActive: this.currentDemo === 'align',
        onClick: async () => {
          this.currentDemo = 'align';
          await this.clearAndRun(cesdk, () => this.runAlignDemo(cesdk));
        }
      });
    });

    // Register distribute demo button component
    cesdk.ui.registerComponent('distribute-demo-btn', ({ builder }) => {
      builder.Button('distribute-demo', {
        label: 'Distribute',
        variant: 'regular',
        isActive: this.currentDemo === 'distribute',
        onClick: async () => {
          this.currentDemo = 'distribute';
          await this.clearAndRun(cesdk, () => this.runDistributeDemo(cesdk));
        }
      });
    });

    // Register snapping demo button component
    cesdk.ui.registerComponent('snapping-demo-btn', ({ builder }) => {
      builder.Button('snapping-demo', {
        label: 'Snapping',
        variant: 'regular',
        isActive: this.currentDemo === 'snapping',
        onClick: async () => {
          this.currentDemo = 'snapping';
          await this.clearAndRun(cesdk, () => this.runSnappingDemo(cesdk));
        }
      });
    });

    // Add buttons to navigation bar
    cesdk.ui.insertNavigationBarOrderComponent('last', 'position-demo-btn');
    cesdk.ui.insertNavigationBarOrderComponent('last', 'align-demo-btn');
    cesdk.ui.insertNavigationBarOrderComponent('last', 'distribute-demo-btn');
    cesdk.ui.insertNavigationBarOrderComponent('last', 'snapping-demo-btn');
  }

  private async clearAndRun(
    cesdk: NonNullable<EditorPluginContext['cesdk']>,
    runDemo: () => Promise<void>
  ) {
    const engine = cesdk.engine;
    const page = engine.block.findByType('page')[0];

    // Remove all children from the page
    const children = engine.block.getChildren(page);
    children.forEach((child) => {
      engine.block.destroy(child);
    });

    // Run the new demo
    await runDemo();
  }

  private async runPositionDemo(
    cesdk: NonNullable<EditorPluginContext['cesdk']>
  ) {
    const engine = cesdk.engine;
    const page = engine.block.findByType('page')[0];
    const pageWidth = engine.block.getWidth(page);
    const pageHeight = engine.block.getHeight(page);

    // Create image blocks to demonstrate positioning
    const imageUri = 'https://img.ly/static/ubq_samples/sample_1.jpg';
    const blockSize = { width: 150, height: 100 };

    // Block 1: Absolute positioning at specific coordinates
    const block1 = await engine.block.addImage(imageUri, { size: blockSize });
    engine.block.appendChild(page, block1);

    // Set position using absolute coordinates (in design units)
    engine.block.setPositionX(block1, 50);
    engine.block.setPositionY(block1, 50);

    // Query the current position
    const x1 = engine.block.getPositionX(block1);
    const y1 = engine.block.getPositionY(block1);
    console.log(`Block 1 position: (${x1}, ${y1})`);

    // Block 2: Percentage-based positioning (relative to parent)
    const block2 = await engine.block.addImage(imageUri, { size: blockSize });
    engine.block.appendChild(page, block2);

    // Set position mode to Percent and use percentage values
    engine.block.setPositionXMode(block2, 'Percent');
    engine.block.setPositionYMode(block2, 'Percent');
    engine.block.setPositionX(block2, 0.5); // 50% from left
    engine.block.setPositionY(block2, 0.5); // 50% from top

    // Query the position mode
    const xMode = engine.block.getPositionXMode(block2);
    const yMode = engine.block.getPositionYMode(block2);
    console.log(`Block 2 position modes: X=${xMode}, Y=${yMode}`);

    // Block 3: Using the convenience method setPosition()
    const block3 = await engine.block.addImage(imageUri, { size: blockSize });
    engine.block.appendChild(page, block3);

    // Set both X and Y at once with a specific position mode
    engine.block.setPosition(block3, 0.75, 0.25, { positionMode: 'Percent' });

    console.log(
      `Block 3 set to 75% horizontal, 25% vertical using setPosition()`
    );

    // Block 4: Bottom right corner using absolute positioning
    const block4 = await engine.block.addImage(imageUri, { size: blockSize });
    engine.block.appendChild(page, block4);
    engine.block.setPositionX(block4, pageWidth - blockSize.width - 50);
    engine.block.setPositionY(block4, pageHeight - blockSize.height - 50);

    console.log(
      'Position demo initialized. Blocks placed at various positions.'
    );
  }

  private async runAlignDemo(cesdk: NonNullable<EditorPluginContext['cesdk']>) {
    const engine = cesdk.engine;
    const page = engine.block.findByType('page')[0];

    // Create multiple blocks for alignment demonstration
    const imageUri = 'https://img.ly/static/ubq_samples/sample_1.jpg';
    const blockSize = { width: 100, height: 80 };

    // Create 4 blocks at random-ish positions
    const blocks: number[] = [];
    const positions = [
      { x: 100, y: 100 },
      { x: 250, y: 150 },
      { x: 180, y: 250 },
      { x: 350, y: 200 }
    ];

    for (const pos of positions) {
      const block = await engine.block.addImage(imageUri, { size: blockSize });
      engine.block.appendChild(page, block);
      engine.block.setPositionX(block, pos.x);
      engine.block.setPositionY(block, pos.y);
      blocks.push(block);
    }

    // Check if blocks can be aligned
    const canAlign = engine.block.isAlignable(blocks);
    console.log('Can align blocks:', canAlign);

    if (canAlign) {
      // Align blocks horizontally to the left edge of their bounding box
      engine.block.alignHorizontally(blocks, 'Left');
      console.log('Blocks aligned to left edge');
    }

    // Create a single block to demonstrate aligning within parent
    const singleBlock = await engine.block.addImage(imageUri, {
      size: { width: 150, height: 100 }
    });
    engine.block.appendChild(page, singleBlock);

    // Position initially off-center
    engine.block.setPositionX(singleBlock, 500);
    engine.block.setPositionY(singleBlock, 300);

    // Align single block to center of parent (page)
    if (engine.block.isAlignable([singleBlock])) {
      engine.block.alignHorizontally([singleBlock], 'Center');
      engine.block.alignVertically([singleBlock], 'Center');
      console.log('Single block centered within parent');
    }

    console.log(
      'Align demo initialized. Left group aligned left, single block centered.'
    );
  }

  private async runDistributeDemo(
    cesdk: NonNullable<EditorPluginContext['cesdk']>
  ) {
    const engine = cesdk.engine;
    const page = engine.block.findByType('page')[0];

    // Create multiple blocks for distribution demonstration
    const imageUri = 'https://img.ly/static/ubq_samples/sample_1.jpg';
    const blockSize = { width: 100, height: 80 };

    // Create 4 blocks at uneven horizontal positions
    const blocks: number[] = [];
    const xPositions = [50, 180, 400, 650];

    for (let i = 0; i < xPositions.length; i++) {
      const block = await engine.block.addImage(imageUri, { size: blockSize });
      engine.block.appendChild(page, block);
      engine.block.setPositionX(block, xPositions[i]);
      engine.block.setPositionY(block, 200); // Same Y for horizontal distribution
      blocks.push(block);
    }

    // Check if blocks can be distributed
    const canDistribute = engine.block.isDistributable(blocks);
    console.log('Can distribute blocks:', canDistribute);

    if (canDistribute) {
      // Distribute blocks horizontally with even spacing
      engine.block.distributeHorizontally(blocks);
      console.log('Blocks distributed horizontally with even spacing');
    }

    // Create another set of blocks for vertical distribution
    const verticalBlocks: number[] = [];
    const yPositions = [50, 150, 350, 500];

    for (let i = 0; i < yPositions.length; i++) {
      const block = await engine.block.addImage(imageUri, { size: blockSize });
      engine.block.appendChild(page, block);
      engine.block.setPositionX(block, 600); // Same X for vertical distribution
      engine.block.setPositionY(block, yPositions[i]);
      verticalBlocks.push(block);
    }

    if (engine.block.isDistributable(verticalBlocks)) {
      engine.block.distributeVertically(verticalBlocks);
      console.log('Vertical blocks distributed with even spacing');
    }

    console.log(
      'Distribute demo initialized. Left group horizontal, right group vertical.'
    );
  }

  private async runSnappingDemo(
    cesdk: NonNullable<EditorPluginContext['cesdk']>
  ) {
    const engine = cesdk.engine;
    const page = engine.block.findByType('page')[0];

    // Create some blocks to demonstrate snapping
    const imageUri = 'https://img.ly/static/ubq_samples/sample_1.jpg';

    // Create reference blocks (these will act as snap targets)
    const refBlock1 = await engine.block.addImage(imageUri, {
      size: { width: 150, height: 100 }
    });
    engine.block.appendChild(page, refBlock1);
    engine.block.setPositionX(refBlock1, 100);
    engine.block.setPositionY(refBlock1, 100);

    const refBlock2 = await engine.block.addImage(imageUri, {
      size: { width: 150, height: 100 }
    });
    engine.block.appendChild(page, refBlock2);
    engine.block.setPositionX(refBlock2, 100);
    engine.block.setPositionY(refBlock2, 350);

    // Create a draggable block
    const dragBlock = await engine.block.addImage(imageUri, {
      size: { width: 120, height: 80 }
    });
    engine.block.appendChild(page, dragBlock);
    engine.block.setPositionX(dragBlock, 400);
    engine.block.setPositionY(dragBlock, 225);

    // Configure position snapping threshold (pixels)
    // Higher values = snapping activates from further away
    engine.editor.setSettingFloat('positionSnappingThreshold', 10);

    // Configure rotation snapping threshold (degrees)
    engine.editor.setSettingFloat('rotationSnappingThreshold', 5);
    console.log('Snapping thresholds configured: position=10px, rotation=5deg');

    // Customize snapping guide colors
    engine.editor.setSettingColor('snappingGuideColor', {
      r: 0.2,
      g: 0.6,
      b: 1.0,
      a: 1.0
    });

    engine.editor.setSettingColor('rotationSnappingGuideColor', {
      r: 1.0,
      g: 0.4,
      b: 0.2,
      a: 1.0
    });

    engine.editor.setSettingColor('ruleOfThirdsLineColor', {
      r: 0.5,
      g: 0.5,
      b: 0.5,
      a: 0.5
    });
    console.log('Snapping guide colors configured');

    // Select the draggable block so user can interact with it
    engine.block.setSelected(dragBlock, true);

    console.log(
      'Snapping demo initialized. Drag the selected block to see snapping guides.'
    );
  }
}

export default Example;

This guide covers how to set block positions using different modes, align blocks horizontally and vertically, distribute blocks with even spacing, and configure snapping for interactive editing.

Coordinate System#

CE.SDK uses a coordinate system where the origin (0, 0) is at the top-left corner of the parent container. The X axis extends to the right and the Y axis extends downward. All positions are relative to the block’s parent.

Setting Block Positions#

Absolute Positioning#

We can position blocks using absolute coordinates in design units. This is useful when you need precise control over element placement.

// Set position using absolute coordinates (in design units)
engine.block.setPositionX(block1, 50);
engine.block.setPositionY(block1, 50);

// Query the current position
const x1 = engine.block.getPositionX(block1);
const y1 = engine.block.getPositionY(block1);
console.log(`Block 1 position: (${x1}, ${y1})`);

The engine.block.setPositionX() and engine.block.setPositionY() methods set the block’s position relative to its parent. Use engine.block.getPositionX() and engine.block.getPositionY() to query the current position.

Percentage-Based Positioning#

Positions can also be set as percentages of the parent’s dimensions. This approach is useful for responsive layouts that adapt to different container sizes.

// Block 2: Percentage-based positioning (relative to parent)
const block2 = await engine.block.addImage(imageUri, { size: blockSize });
engine.block.appendChild(page, block2);

// Set position mode to Percent and use percentage values
engine.block.setPositionXMode(block2, 'Percent');
engine.block.setPositionYMode(block2, 'Percent');
engine.block.setPositionX(block2, 0.5); // 50% from left
engine.block.setPositionY(block2, 0.5); // 50% from top

// Query the position mode
const xMode = engine.block.getPositionXMode(block2);
const yMode = engine.block.getPositionYMode(block2);
console.log(`Block 2 position modes: X=${xMode}, Y=${yMode}`);

Position modes are set using engine.block.setPositionXMode() and engine.block.setPositionYMode(). When set to 'Percent', position values represent a fraction of the parent’s size (0.5 = 50%). Query the current mode with engine.block.getPositionXMode() and engine.block.getPositionYMode().

Using the Convenience Method#

CE.SDK provides a convenience method that sets both coordinates at once, optionally with a position mode.

// Block 3: Using the convenience method setPosition()
const block3 = await engine.block.addImage(imageUri, { size: blockSize });
engine.block.appendChild(page, block3);

// Set both X and Y at once with a specific position mode
engine.block.setPosition(block3, 0.75, 0.25, { positionMode: 'Percent' });

console.log(
  `Block 3 set to 75% horizontal, 25% vertical using setPosition()`
);

The engine.block.setPosition() method accepts X and Y values along with an optional positionMode parameter. This simplifies code when setting both coordinates simultaneously.

Aligning Blocks#

Aligning Multiple Blocks#

Multiple blocks can be aligned within their combined bounding box. This is useful for creating visually organized layouts.

// Check if blocks can be aligned
const canAlign = engine.block.isAlignable(blocks);
console.log('Can align blocks:', canAlign);

Before aligning, we check if the blocks can be aligned using engine.block.isAlignable(). This method returns true if the blocks support alignment operations.

// Align blocks horizontally to the left edge of their bounding box
engine.block.alignHorizontally(blocks, 'Left');
console.log('Blocks aligned to left edge');

The engine.block.alignHorizontally() method accepts an array of block IDs and an alignment value: 'Left', 'Right', or 'Center'. Similarly, engine.block.alignVertically() accepts 'Top', 'Bottom', or 'Center'.

Aligning a Single Block to Parent#

When you pass a single block to the alignment methods, it aligns within its parent container rather than a group bounding box.

// Create a single block to demonstrate aligning within parent
const singleBlock = await engine.block.addImage(imageUri, {
  size: { width: 150, height: 100 }
});
engine.block.appendChild(page, singleBlock);

// Position initially off-center
engine.block.setPositionX(singleBlock, 500);
engine.block.setPositionY(singleBlock, 300);

// Align single block to center of parent (page)
if (engine.block.isAlignable([singleBlock])) {
  engine.block.alignHorizontally([singleBlock], 'Center');
  engine.block.alignVertically([singleBlock], 'Center');
  console.log('Single block centered within parent');
}

This approach is useful for centering elements on a page or positioning them at specific edges of the container.

Distributing Blocks#

Distribution spaces blocks evenly within their bounding box. This is ideal for creating consistent spacing in grid layouts or navigation elements.

// Check if blocks can be distributed
const canDistribute = engine.block.isDistributable(blocks);
console.log('Can distribute blocks:', canDistribute);

The engine.block.isDistributable() method verifies that the blocks can be distributed.

// Distribute blocks horizontally with even spacing
engine.block.distributeHorizontally(blocks);
console.log('Blocks distributed horizontally with even spacing');

The engine.block.distributeHorizontally() method arranges blocks so the horizontal space between them is equal. The first and last blocks remain in place while the middle blocks are repositioned.

// Create another set of blocks for vertical distribution
const verticalBlocks: number[] = [];
const yPositions = [50, 150, 350, 500];

for (let i = 0; i < yPositions.length; i++) {
  const block = await engine.block.addImage(imageUri, { size: blockSize });
  engine.block.appendChild(page, block);
  engine.block.setPositionX(block, 600); // Same X for vertical distribution
  engine.block.setPositionY(block, yPositions[i]);
  verticalBlocks.push(block);
}

if (engine.block.isDistributable(verticalBlocks)) {
  engine.block.distributeVertically(verticalBlocks);
  console.log('Vertical blocks distributed with even spacing');
}

Similarly, engine.block.distributeVertically() distributes blocks with equal vertical spacing.

Configuring Snapping#

Snapping provides visual guides when dragging elements in the editor, helping users align blocks precisely. Configure the snapping sensitivity and appearance using editor settings.

Setting Snapping Thresholds#

// Configure position snapping threshold (pixels)
// Higher values = snapping activates from further away
engine.editor.setSettingFloat('positionSnappingThreshold', 10);

// Configure rotation snapping threshold (degrees)
engine.editor.setSettingFloat('rotationSnappingThreshold', 5);
console.log('Snapping thresholds configured: position=10px, rotation=5deg');

The positionSnappingThreshold setting controls how close (in pixels) a block must be to a snap target before snapping activates. Higher values make snapping more “sticky”. The rotationSnappingThreshold setting controls rotation snapping sensitivity in degrees.

Customizing Snapping Guide Colors#

// Customize snapping guide colors
engine.editor.setSettingColor('snappingGuideColor', {
  r: 0.2,
  g: 0.6,
  b: 1.0,
  a: 1.0
});

engine.editor.setSettingColor('rotationSnappingGuideColor', {
  r: 1.0,
  g: 0.4,
  b: 0.2,
  a: 1.0
});

engine.editor.setSettingColor('ruleOfThirdsLineColor', {
  r: 0.5,
  g: 0.5,
  b: 0.5,
  a: 0.5
});
console.log('Snapping guide colors configured');

Customize the appearance of snapping guides using color settings. The snappingGuideColor controls position snapping lines, rotationSnappingGuideColor controls rotation guides, and ruleOfThirdsLineColor controls composition guide lines.

Troubleshooting#

Position Not Updating#

If a block’s position doesn’t change after calling the setter methods:

Verify the block’s transform is not locked with engine.block.isTransformLocked()
Check that the block has the 'layer/move' scope enabled
Ensure you’re using the correct position mode for your values

Alignment Not Working#

If engine.block.alignHorizontally() or engine.block.alignVertically() has no effect:

Confirm engine.block.isAlignable() returns true for the blocks
Verify all block IDs in the array are valid
Check that blocks have the 'layer/move' scope enabled

Blocks Cannot Be Distributed#

If engine.block.distributeHorizontally() or engine.block.distributeVertically() doesn’t work:

Verify engine.block.isDistributable() returns true
Ensure you have at least three blocks in the array
Check that all blocks share the same parent

API Reference#

Method	Description
`engine.block.getPositionX(id)`	Get block’s X position
`engine.block.getPositionY(id)`	Get block’s Y position
`engine.block.setPositionX(id, value)`	Set block’s X position
`engine.block.setPositionY(id, value)`	Set block’s Y position
`engine.block.getPositionXMode(id)`	Get X position mode (Absolute/Percent)
`engine.block.getPositionYMode(id)`	Get Y position mode (Absolute/Percent)
`engine.block.setPositionXMode(id, mode)`	Set X position mode
`engine.block.setPositionYMode(id, mode)`	Set Y position mode
`engine.block.setPosition(id, x, y, options)`	Set both coordinates with optional mode
`engine.block.isAlignable(ids)`	Check if blocks can be aligned
`engine.block.alignHorizontally(ids, alignment)`	Align blocks horizontally (Left/Right/Center)
`engine.block.alignVertically(ids, alignment)`	Align blocks vertically (Top/Bottom/Center)
`engine.block.isDistributable(ids)`	Check if blocks can be distributed
`engine.block.distributeHorizontally(ids)`	Distribute blocks horizontally with even spacing
`engine.block.distributeVertically(ids)`	Distribute blocks vertically with even spacing
`engine.editor.setSettingFloat(keypath, value)`	Set float settings (snapping thresholds)
`engine.editor.setSettingColor(keypath, color)`	Set color settings (snapping guide colors)

Next Steps#

Now that you understand positioning and alignment, explore related layout features:

Layer Management - Control the stacking order of elements
Grouping - Group related elements together
Multi-Page Layouts - Create multi-page designs with multiple pages in a single scene
