Export your designs as PDF documents with high compatibility mode and underlayer support for special media printing.

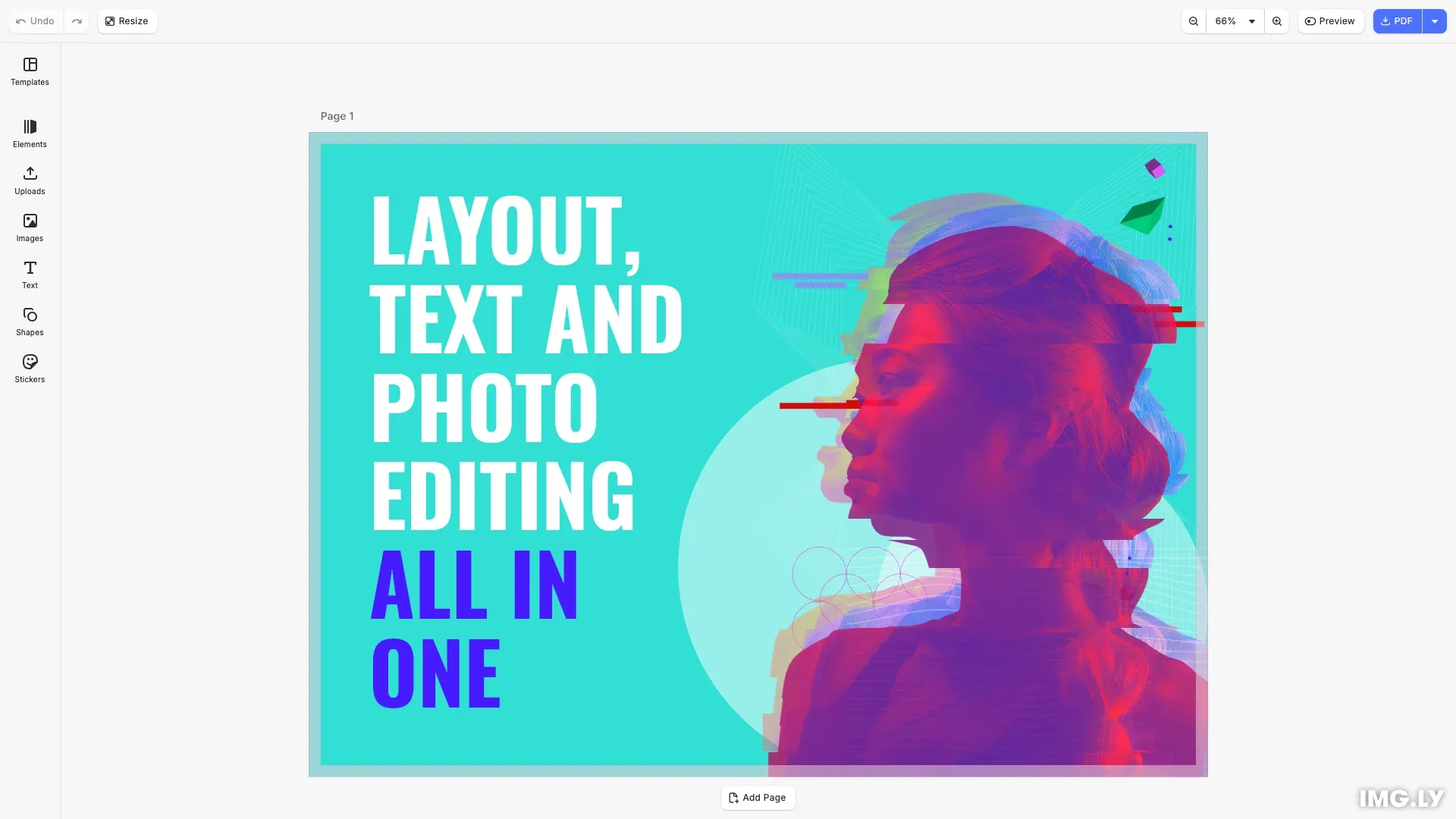

Export to PDF hero image

10 mins

estimated time

PDF provides a universal document format for sharing and printing designs. CE.SDK exports PDF files that preserve vector graphics, support multi-page documents, and include options for print compatibility. You can configure high compatibility mode to ensure consistent rendering across different PDF viewers, and generate underlayers for special media printing like fabric, glass, or DTF transfers.

import {
  MimeType,
  type EditorPlugin,
  type EditorPluginContext
} from '@cesdk/cesdk-js';
import packageJson from './package.json';

/**
 * CE.SDK Plugin: Export to PDF Guide
 *
 * This example demonstrates:
 * - Exporting designs as PDF documents
 * - Configuring high compatibility mode for consistent rendering
 * - Generating underlayers for special media printing
 * - Controlling output dimensions
 * - Using the built-in export action
 */
class Example implements EditorPlugin {
  name = packageJson.name;

  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    const engine = cesdk.engine;

    // Load a template scene and zoom to fit
    await engine.scene.loadFromURL(
      'https://cdn.img.ly/assets/demo/v1/ly.img.template/templates/cesdk_postcard_1.scene'
    );
    const page = engine.scene.getCurrentPage();
    if (!page) throw new Error('No page found');

    await engine.scene.zoomToBlock(page, { padding: 40 });

    // Register a custom export action with PDF-specific options
    cesdk.actions.register('exportDesign', async () => {
      // Export the scene block to include all pages in the PDF
      const scene = engine.scene.get()!;

      // Merge PDF-specific defaults with provided options
      const blob = await engine.block.export(scene, {
        mimeType: 'application/pdf',
        exportPdfWithHighCompatibility: true
      });

      await cesdk.utils.downloadFile(blob, 'application/pdf');
    });

    // Configure navigation bar with export buttons using insertNavigationBarOrderComponent
    cesdk.ui.insertNavigationBarOrderComponent('last', {
      id: 'ly.img.actions.navigationBar',
      children: [
        {
          id: 'ly.img.action.navigationBar',
          key: 'export-pdf',
          label: 'PDF',
          icon: '@imgly/Download',
          onClick: async () => {
            // Export scene to include all pages in the PDF
            const scene = engine.scene.get()!;
            // Export scene as PDF (includes all pages)
            const pdfBlob = await engine.block.export(scene, {
              mimeType: 'application/pdf'
            });
            // Download using CE.SDK utils
            await cesdk.utils.downloadFile(pdfBlob, 'application/pdf');
          }
        },
        {
          id: 'ly.img.action.navigationBar',
          key: 'export-high-compat',
          label: 'High Compat',
          icon: '@imgly/Download',
          onClick: async () => {
            // Export scene to include all pages in the PDF
            const scene = engine.scene.get()!;
            // Enable high compatibility mode for consistent rendering across PDF viewers
            // This rasterizes complex elements like gradients with transparency at scene DPI
            const pdfBlob = await engine.block.export(scene, {
              mimeType: 'application/pdf',
              exportPdfWithHighCompatibility: true
            });
            await cesdk.utils.downloadFile(pdfBlob, 'application/pdf');
          }
        },
        {
          id: 'ly.img.action.navigationBar',
          key: 'export-underlayer',
          label: 'Underlayer',
          icon: '@imgly/Download',
          onClick: async () => {
            // Export scene to include all pages in the PDF
            const scene = engine.scene.get()!;
            // Define the underlayer spot color before export
            // RGB values (0.8, 0.8, 0.8) provide a preview representation
            engine.editor.setSpotColorRGB('RDG_WHITE', 0.8, 0.8, 0.8);

            // Export with underlayer for special media printing
            const pdfBlob = await engine.block.export(scene, {
              mimeType: 'application/pdf',
              exportPdfWithHighCompatibility: true,
              exportPdfWithUnderlayer: true,
              underlayerSpotColorName: 'RDG_WHITE',
              // Negative offset shrinks underlayer to prevent visible edges
              underlayerOffset: -2.0
            });
            await cesdk.utils.downloadFile(pdfBlob, 'application/pdf');
          }
        },
        {
          id: 'ly.img.action.navigationBar',
          key: 'export-a4',
          label: 'A4 @ 300 DPI',
          icon: '@imgly/Download',
          onClick: async () => {
            // Export scene to include all pages in the PDF
            const scene = engine.scene.get()!;
            // Export with specific dimensions for print output
            const pdfBlob = await engine.block.export(scene, {
              mimeType: 'application/pdf',
              targetWidth: 2480, // A4 at 300 DPI (210mm)
              targetHeight: 3508 // A4 at 300 DPI (297mm)
            });
            await cesdk.utils.downloadFile(pdfBlob, 'application/pdf');
          }
        },
        {
          id: 'ly.img.action.navigationBar',
          key: 'export-action',
          label: 'Export',
          icon: '@imgly/Download',
          onClick: () => {
            // Run built-in export with PDF format
            cesdk.actions.run('exportDesign', { mimeType: 'application/pdf' });
          }
        }
      ]
    });
  }
}

export default Example;

This guide covers exporting designs to PDF format, configuring high compatibility mode, generating underlayers with spot colors, and controlling output dimensions.

Export to PDF#

Call engine.block.export() with mimeType: 'application/pdf' to export any block as a PDF document. The method returns a Blob containing the PDF data.

// Export scene as PDF (includes all pages)
const pdfBlob = await engine.block.export(scene, {
  mimeType: 'application/pdf'
});

Pass the scene ID from engine.scene.get() to export all pages as a multi-page PDF. You can also pass a single page ID from engine.scene.getCurrentPage() if you only need to export one page.

Configure High Compatibility Mode#

Enable exportPdfWithHighCompatibility to rasterize complex elements like gradients with transparency at the scene’s DPI. This ensures consistent rendering across all PDF viewers.

// Enable high compatibility mode for consistent rendering across PDF viewers
// This rasterizes complex elements like gradients with transparency at scene DPI
const pdfBlob = await engine.block.export(scene, {
  mimeType: 'application/pdf',
  exportPdfWithHighCompatibility: true
});

Use high compatibility mode when:

Designs contain gradients with transparency
Effects or blend modes render inconsistently across viewers
Maximum compatibility matters more than vector precision

High compatibility mode increases file size because complex elements are converted to raster images rather than remaining as vectors.

Generate Underlayers for Special Media#

Underlayers provide a base ink layer (typically white) for printing on transparent or non-white substrates like fabric, glass, or acrylic. The underlayer sits behind your design elements and provides opacity on transparent materials.

Define the Underlayer Spot Color#

Before exporting, define a spot color that represents the underlayer ink. The RGB values provide a preview representation in PDF viewers.

// Define the underlayer spot color before export
// RGB values (0.8, 0.8, 0.8) provide a preview representation
engine.editor.setSpotColorRGB('RDG_WHITE', 0.8, 0.8, 0.8);

The spot color name (e.g., 'RDG_WHITE') must match your print provider’s requirements. Common names include RDG_WHITE for Roland DG printers and White for other systems.

Export with Underlayer Options#

Configure the underlayer spot color name and optional offset. The underlayerOffset adjusts the underlayer size in design units—negative values shrink it inward to prevent visible edges from print misalignment (trapping).

// Export with underlayer for special media printing
const pdfBlob = await engine.block.export(scene, {
  mimeType: 'application/pdf',
  exportPdfWithHighCompatibility: true,
  exportPdfWithUnderlayer: true,
  underlayerSpotColorName: 'RDG_WHITE',
  // Negative offset shrinks underlayer to prevent visible edges
  underlayerOffset: -2.0
});

The underlayer is generated automatically from the contours of all design elements on the page. Elements with transparency will have proportionally reduced underlayer opacity.

Export at Target Dimensions#

Use targetWidth and targetHeight to control the exported PDF dimensions in pixels. The block renders large enough to fill the target size while maintaining aspect ratio.

// Export with specific dimensions for print output
const pdfBlob = await engine.block.export(scene, {
  mimeType: 'application/pdf',
  targetWidth: 2480, // A4 at 300 DPI (210mm)
  targetHeight: 3508 // A4 at 300 DPI (297mm)
});

For print output, calculate the target dimensions based on your desired DPI:

A4 at 300 DPI: 2480 × 3508 pixels
Letter at 300 DPI: 2550 × 3300 pixels

Built-in Export Action#

Run the exportDesign action to execute the default export flow programmatically.

// Run built-in export with PDF format
cesdk.actions.run('exportDesign', { mimeType: 'application/pdf' });

This executes the registered export action, which handles the complete export process including format selection and file download.

Customize Export Action#

Register a custom exportDesign action to apply PDF-specific options automatically. This lets you set defaults like high compatibility mode that apply whenever the export action runs.

// Register a custom export action with PDF-specific options
cesdk.actions.register('exportDesign', async () => {
  // Export the scene block to include all pages in the PDF
  const scene = engine.scene.get()!;

  // Merge PDF-specific defaults with provided options
  const blob = await engine.block.export(scene, {
    mimeType: 'application/pdf',
    exportPdfWithHighCompatibility: true
  });

  await cesdk.utils.downloadFile(blob, 'application/pdf');
});

The custom action merges your PDF defaults with any options passed when the action runs. This approach centralizes export configuration and ensures consistent behavior across your application.

Download Export#

Use cesdk.utils.downloadFile() to trigger the browser’s download dialog for the exported blob.

// Download using CE.SDK utils
await cesdk.utils.downloadFile(pdfBlob, 'application/pdf');

Pass the blob and MIME type to prompt the user to save the file locally.

PDF Export Options#

Option	Description
`mimeType`	Output format. Must be `'application/pdf'`.
`exportPdfWithHighCompatibility`	Rasterize complex elements at scene DPI for consistent rendering. Defaults to `true`.
`exportPdfWithUnderlayer`	Generate an underlayer from design contours. Defaults to `false`.
`underlayerSpotColorName`	Spot color name for the underlayer ink. Required when `exportPdfWithUnderlayer` is true.
`underlayerOffset`	Size adjustment in design units. Negative values shrink the underlayer inward.
`targetWidth`	Target output width in pixels. Must be used with `targetHeight`.
`targetHeight`	Target output height in pixels. Must be used with `targetWidth`.
`abortSignal`	Signal to cancel the export operation.

API Reference#

Method	Description
`engine.block.export(blockId, options)`	Export a block as PDF with format and compatibility options
`engine.editor.setSpotColorRGB(name, r, g, b)`	Define a spot color for underlayer ink
`engine.scene.get()`	Get the scene for multi-page PDF export
`engine.scene.getCurrentPage()`	Get the current page for single-page export
`cesdk.actions.run()`	Runs a built-in action like `exportDesign`
`cesdk.actions.register()`	Registers a custom action to override default behavior
`cesdk.utils.downloadFile()`	Triggers browser download dialog for a blob
