Add Watermark - Vanilla JS

Add text and image watermarks to designs programmatically using CE.SDK’s block API.

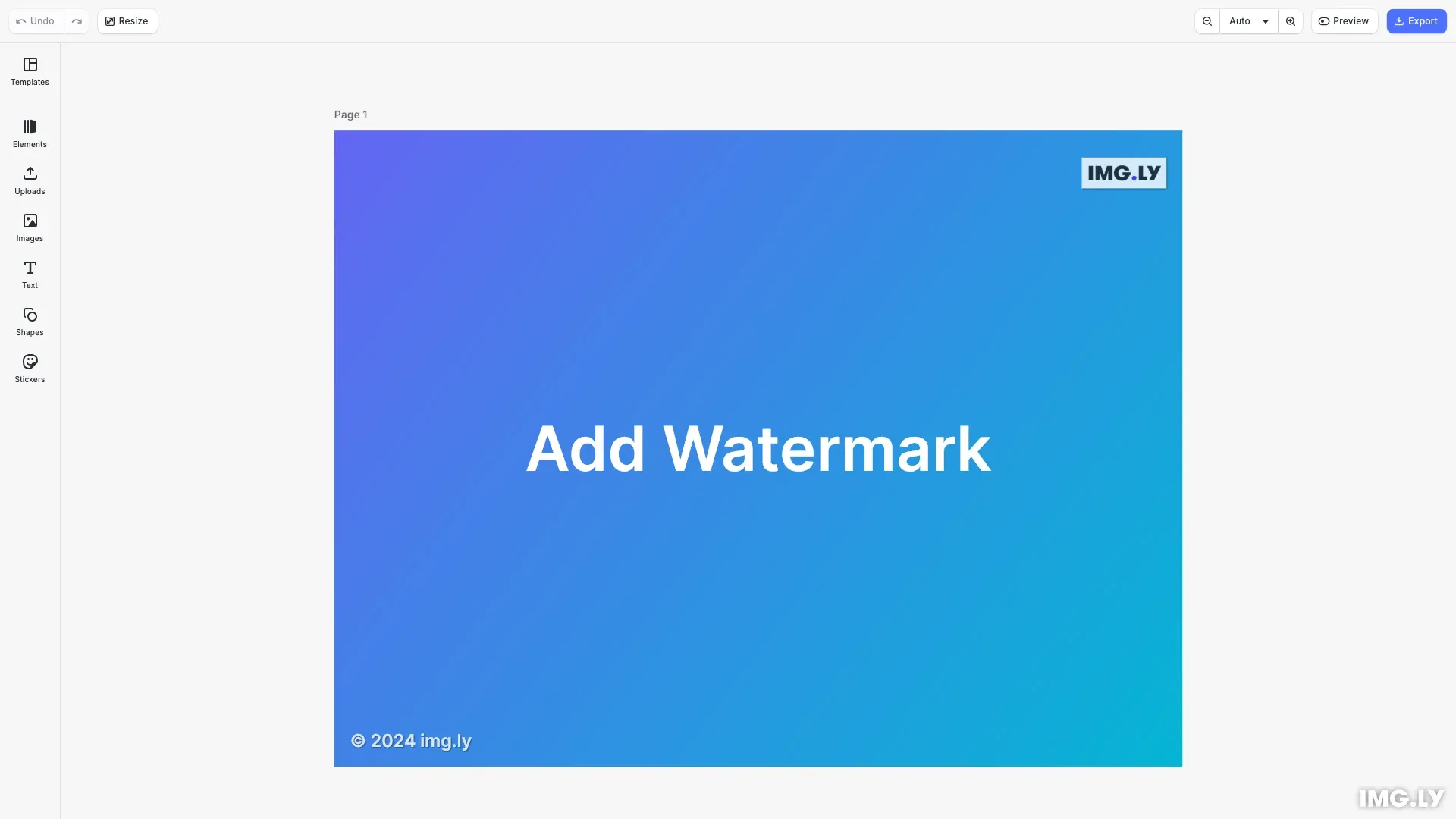

Add Watermark example showing a design with text and logo watermarks

8 mins

estimated time

Watermarks protect intellectual property, indicate ownership, add branding, or mark content as drafts. CE.SDK supports two types of watermarks: text watermarks created from text blocks for copyright notices and brand names, and image watermarks created from graphic blocks with image fills for logos and symbols.

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';
import packageJson from './package.json';

/**
 * CE.SDK Plugin: Add Watermark Guide
 *
 * Demonstrates adding text and image watermarks to designs:
 * - Creating text watermarks with custom styling
 * - Creating logo watermarks using graphic blocks
 * - Positioning watermarks side by side at the bottom
 * - Applying drop shadows for visibility
 * - Exporting watermarked designs
 */
class Example implements EditorPlugin {
  name = packageJson.name;

  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    // Load asset sources for the editor
    await cesdk.addDefaultAssetSources();
    await cesdk.addDemoAssetSources({
      sceneMode: 'Design',
      withUploadAssetSources: true
    });

    const engine = cesdk.engine;

    // Create a scene with custom page dimensions
    const scene = engine.scene.create();
    const page = engine.block.create('page');
    engine.block.setWidth(page, 800);
    engine.block.setHeight(page, 600);
    engine.block.appendChild(scene, page);

    const pageWidth = engine.block.getWidth(page);
    const pageHeight = engine.block.getHeight(page);

    // Create a gradient background for the page
    const gradientFill = engine.block.createFill('gradient/linear');

    // Set a modern purple-to-cyan gradient
    engine.block.setGradientColorStops(gradientFill, 'fill/gradient/colors', [
      { color: { r: 0.39, g: 0.4, b: 0.95, a: 1 }, stop: 0 }, // Indigo
      { color: { r: 0.02, g: 0.71, b: 0.83, a: 1 }, stop: 1 } // Cyan
    ]);

    // Set diagonal gradient direction (top-left to bottom-right)
    engine.block.setFloat(gradientFill, 'fill/gradient/linear/startPointX', 0);
    engine.block.setFloat(gradientFill, 'fill/gradient/linear/startPointY', 0);
    engine.block.setFloat(gradientFill, 'fill/gradient/linear/endPointX', 1);
    engine.block.setFloat(gradientFill, 'fill/gradient/linear/endPointY', 1);

    // Apply gradient to page
    engine.block.setFill(page, gradientFill);

    // Create a centered title text
    const titleText = engine.block.create('text');
    engine.block.setString(titleText, 'text/text', 'Add Watermark');
    engine.block.setEnum(titleText, 'text/horizontalAlignment', 'Center');
    engine.block.appendChild(page, titleText);

    // Style the title
    engine.block.setTextFontSize(titleText, 14);
    engine.block.setTextColor(titleText, { r: 1, g: 1, b: 1, a: 1 });
    engine.block.setWidthMode(titleText, 'Auto');
    engine.block.setHeightMode(titleText, 'Auto');

    // Center the title on the page
    const titleWidth = engine.block.getFrameWidth(titleText);
    const titleHeight = engine.block.getFrameHeight(titleText);
    engine.block.setPositionX(titleText, (pageWidth - titleWidth) / 2);
    engine.block.setPositionY(titleText, (pageHeight - titleHeight) / 2);

    // Create a text block for the watermark
    const textWatermark = engine.block.create('text');

    // Set the watermark text content
    engine.block.setString(textWatermark, 'text/text', '© 2024 img.ly');

    // Left-align the text for the watermark
    engine.block.setEnum(textWatermark, 'text/horizontalAlignment', 'Left');

    // Add the text block to the page
    engine.block.appendChild(page, textWatermark);

    // Set font size for the watermark
    engine.block.setTextFontSize(textWatermark, 4);

    // Set text color to white for contrast
    engine.block.setTextColor(textWatermark, { r: 1, g: 1, b: 1, a: 1 });

    // Set opacity to make it semi-transparent
    engine.block.setOpacity(textWatermark, 0.8);

    // Set width mode to auto so text fits its content
    engine.block.setWidthMode(textWatermark, 'Auto');
    engine.block.setHeightMode(textWatermark, 'Auto');

    // Create a graphic block for the logo watermark
    const logoWatermark = engine.block.create('graphic');

    // Create a rect shape for the logo
    const rectShape = engine.block.createShape('rect');
    engine.block.setShape(logoWatermark, rectShape);

    // Create an image fill with a logo
    const imageFill = engine.block.createFill('image');
    engine.block.setString(
      imageFill,
      'fill/image/imageFileURI',
      'https://img.ly/static/ubq_samples/imgly_logo.jpg'
    );

    // Apply the fill to the graphic block
    engine.block.setFill(logoWatermark, imageFill);

    // Set content fill mode to contain the image within bounds
    engine.block.setContentFillMode(logoWatermark, 'Contain');

    // Add to page
    engine.block.appendChild(page, logoWatermark);

    // Size the logo watermark
    const logoWidth = 80;
    const logoHeight = 50;
    engine.block.setWidth(logoWatermark, logoWidth);
    engine.block.setHeight(logoWatermark, logoHeight);

    // Set opacity for the logo watermark
    engine.block.setOpacity(logoWatermark, 0.8);

    // Position padding from edges
    const padding = 15;

    // Position text watermark at bottom-left
    engine.block.setPositionX(textWatermark, padding);
    engine.block.setPositionY(textWatermark, pageHeight - padding - 20);

    // Position logo watermark at top-right
    engine.block.setPositionX(logoWatermark, pageWidth - padding - logoWidth);
    engine.block.setPositionY(logoWatermark, padding);

    // Add drop shadow to text watermark for better visibility
    engine.block.setDropShadowEnabled(textWatermark, true);
    engine.block.setDropShadowOffsetX(textWatermark, 1);
    engine.block.setDropShadowOffsetY(textWatermark, 1);
    engine.block.setDropShadowBlurRadiusX(textWatermark, 2);
    engine.block.setDropShadowBlurRadiusY(textWatermark, 2);
    engine.block.setDropShadowColor(textWatermark, {
      r: 0,
      g: 0,
      b: 0,
      a: 0.5
    });

    // Add drop shadow to logo watermark
    engine.block.setDropShadowEnabled(logoWatermark, true);
    engine.block.setDropShadowOffsetX(logoWatermark, 1);
    engine.block.setDropShadowOffsetY(logoWatermark, 1);
    engine.block.setDropShadowBlurRadiusX(logoWatermark, 2);
    engine.block.setDropShadowBlurRadiusY(logoWatermark, 2);
    engine.block.setDropShadowColor(logoWatermark, {
      r: 0,
      g: 0,
      b: 0,
      a: 0.5
    });

    // Add export button to the navigation bar
    cesdk.ui.insertNavigationBarOrderComponent('last', {
      id: 'ly.img.actions.navigationBar',
      children: [
        {
          id: 'ly.img.action.navigationBar',
          key: 'export-watermarked',
          label: 'Export',
          icon: '@imgly/Download',
          onClick: async () => {
            // Export the watermarked design
            const blob = await engine.block.export(page, {
              mimeType: 'image/png'
            });

            // Download the watermarked image
            await cesdk.utils.downloadFile(blob, 'image/png');
          }
        }
      ]
    });

    // Zoom to fit the page in view with padding and enable auto-fit
    await engine.scene.zoomToBlock(page, { padding: 40 });
    engine.scene.enableZoomAutoFit(page, 'Both', 40, 40, 40, 40);
  }
}

export default Example;

This guide covers how to create text and logo watermarks, position them on a design, style them for visibility, and export the watermarked result.

Setup and Prerequisites#

We start by initializing CE.SDK, loading asset sources, and creating a scene with a custom page size. The page provides the canvas where we’ll add our watermarks.

// Load asset sources for the editor
await cesdk.addDefaultAssetSources();
await cesdk.addDemoAssetSources({
  sceneMode: 'Design',
  withUploadAssetSources: true
});

const engine = cesdk.engine;

// Create a scene with custom page dimensions
const scene = engine.scene.create();
const page = engine.block.create('page');
engine.block.setWidth(page, 800);
engine.block.setHeight(page, 600);
engine.block.appendChild(scene, page);

const pageWidth = engine.block.getWidth(page);
const pageHeight = engine.block.getHeight(page);

We use engine.scene.create('VerticalStack', {...}) to create a scene with custom page dimensions. The page dimensions are retrieved for positioning calculations later.

Creating Text Watermarks#

Text watermarks display copyright notices, URLs, or brand names. We create a text block, set its content, and add it to the page.

// Create a text block for the watermark
const textWatermark = engine.block.create('text');

// Set the watermark text content
engine.block.setString(textWatermark, 'text/text', '© 2024 img.ly');

// Left-align the text for the watermark
engine.block.setEnum(textWatermark, 'text/horizontalAlignment', 'Left');

// Add the text block to the page
engine.block.appendChild(page, textWatermark);

The engine.block.create('text') method creates a new text block. We set the text content using engine.block.setString() with the 'text/text' property.

Styling the Text#

We configure the font size, color, and opacity to make the watermark visible but unobtrusive.

// Set font size for the watermark
engine.block.setTextFontSize(textWatermark, 4);

// Set text color to white for contrast
engine.block.setTextColor(textWatermark, { r: 1, g: 1, b: 1, a: 1 });

// Set opacity to make it semi-transparent
engine.block.setOpacity(textWatermark, 0.8);

// Set width mode to auto so text fits its content
engine.block.setWidthMode(textWatermark, 'Auto');
engine.block.setHeightMode(textWatermark, 'Auto');

Key styling options:

Font size - Use sizes between 14-18px for subtle watermarks
Text color - White or black depending on the image background
Opacity - Values between 0.5-0.7 provide a balanced, semi-transparent appearance
Size mode - Set to 'Auto' so the block automatically fits its text content

Positioning the Watermarks#

We calculate the watermark positions based on the page dimensions and place the logo and text side-by-side at the bottom center of the page.

// Position padding from edges
const padding = 15;

// Position text watermark at bottom-left
engine.block.setPositionX(textWatermark, padding);
engine.block.setPositionY(textWatermark, pageHeight - padding - 20);

// Position logo watermark at top-right
engine.block.setPositionX(logoWatermark, pageWidth - padding - logoWidth);
engine.block.setPositionY(logoWatermark, padding);

We retrieve the rendered frame dimensions using engine.block.getFrameWidth() and engine.block.getFrameHeight(), calculate the total width of both watermarks with spacing, then center them horizontally. The vertical position places them near the bottom with padding from the edge.

Creating Logo Watermarks#

Logo watermarks use graphic blocks with image fills to display brand symbols or company logos.

// Create a graphic block for the logo watermark
const logoWatermark = engine.block.create('graphic');

// Create a rect shape for the logo
const rectShape = engine.block.createShape('rect');
engine.block.setShape(logoWatermark, rectShape);

// Create an image fill with a logo
const imageFill = engine.block.createFill('image');
engine.block.setString(
  imageFill,
  'fill/image/imageFileURI',
  'https://img.ly/static/ubq_samples/imgly_logo.jpg'
);

// Apply the fill to the graphic block
engine.block.setFill(logoWatermark, imageFill);

// Set content fill mode to contain the image within bounds
engine.block.setContentFillMode(logoWatermark, 'Contain');

// Add to page
engine.block.appendChild(page, logoWatermark);

We create a graphic block, assign a rect shape, then create an image fill with the logo URI. The fill is applied to the graphic block before adding it to the page.

Sizing the Logo#

We set fixed dimensions for the logo and apply opacity to match the text watermark.

// Size the logo watermark
const logoWidth = 80;
const logoHeight = 50;
engine.block.setWidth(logoWatermark, logoWidth);
engine.block.setHeight(logoWatermark, logoHeight);

// Set opacity for the logo watermark
engine.block.setOpacity(logoWatermark, 0.8);

A good rule is to size logos to 10-20% of the page width. This keeps them visible without dominating the design.

Enhancing Visibility with Drop Shadows#

Drop shadows improve watermark readability against varied backgrounds by adding contrast.

// Add drop shadow to text watermark for better visibility
engine.block.setDropShadowEnabled(textWatermark, true);
engine.block.setDropShadowOffsetX(textWatermark, 1);
engine.block.setDropShadowOffsetY(textWatermark, 1);
engine.block.setDropShadowBlurRadiusX(textWatermark, 2);
engine.block.setDropShadowBlurRadiusY(textWatermark, 2);
engine.block.setDropShadowColor(textWatermark, {
  r: 0,
  g: 0,
  b: 0,
  a: 0.5
});

// Add drop shadow to logo watermark
engine.block.setDropShadowEnabled(logoWatermark, true);
engine.block.setDropShadowOffsetX(logoWatermark, 1);
engine.block.setDropShadowOffsetY(logoWatermark, 1);
engine.block.setDropShadowBlurRadiusX(logoWatermark, 2);
engine.block.setDropShadowBlurRadiusY(logoWatermark, 2);
engine.block.setDropShadowColor(logoWatermark, {
  r: 0,
  g: 0,
  b: 0,
  a: 0.5
});

Drop shadow parameters:

Offset X/Y - Distance from the block (2-4 pixels works well)
Blur Radius X/Y - Softness of the shadow (4-8 pixels for subtle effect)
Color - Black with 0.5 alpha provides soft contrast without being harsh

Exporting Watermarked Images#

After adding watermarks, we add an export button to the navigation bar that downloads the watermarked image when clicked.

// Add export button to the navigation bar
cesdk.ui.insertNavigationBarOrderComponent('last', {
  id: 'ly.img.actions.navigationBar',
  children: [
    {
      id: 'ly.img.action.navigationBar',
      key: 'export-watermarked',
      label: 'Export',
      icon: '@imgly/Download',
      onClick: async () => {
        // Export the watermarked design
        const blob = await engine.block.export(page, {
          mimeType: 'image/png'
        });

        // Download the watermarked image
        await cesdk.utils.downloadFile(blob, 'image/png');
      }
    }
  ]
});

We use cesdk.ui.insertNavigationBarOrderComponent() to add a custom button to the editor’s navigation bar. When clicked, engine.block.export() renders the page with all watermarks and returns a blob that cesdk.utils.downloadFile() downloads to the user’s device. Supported formats include PNG, JPEG, and WebP.

Troubleshooting#

Watermark not visible

Verify the block is within page bounds using position values
Check opacity is between 0.3-1.0
Ensure engine.block.appendChild() was called to add the block to the page

Position appears incorrect

Recalculate positions using current pageWidth and pageHeight
Account for watermark dimensions when calculating corner positions
Remember that coordinates start from the top-left corner

Text not legible

Increase font size to at least 36px
Add a drop shadow for contrast against complex backgrounds
Increase opacity if the watermark is too faint

Logo quality issues

Use a higher resolution source image for the logo
Avoid scaling the logo beyond its original dimensions

API Reference#

Method	Purpose
`engine.block.create(type)`	Create text or graphic blocks
`engine.block.createShape(type)`	Create shapes for graphic blocks
`engine.block.createFill(type)`	Create image fills for logos
`engine.block.setString(id, property, value)`	Set text content or image URI
`engine.block.setTextFontSize(id, size)`	Set text font size
`engine.block.setTextColor(id, color)`	Set text color
`engine.block.setOpacity(id, opacity)`	Set block transparency
`engine.block.setPositionX(id, value)`	Set horizontal position
`engine.block.setPositionY(id, value)`	Set vertical position
`engine.block.setWidth(id, value)`	Set block width
`engine.block.setHeight(id, value)`	Set block height
`engine.block.getFrameWidth(id)`	Get rendered frame width
`engine.block.getFrameHeight(id)`	Get rendered frame height
`engine.block.setDropShadowEnabled(id, enabled)`	Enable drop shadow
`engine.block.setDropShadowOffsetX(id, offset)`	Set shadow X offset
`engine.block.setDropShadowOffsetY(id, offset)`	Set shadow Y offset
`engine.block.setDropShadowBlurRadiusX(id, radius)`	Set shadow blur
`engine.block.setDropShadowColor(id, color)`	Set shadow color
`engine.block.export(id, options)`	Export block to blob
`cesdk.ui.insertNavigationBarOrderComponent(position, config)`	Add custom button to navigation bar
`cesdk.utils.downloadFile(blob, mimeType)`	Download blob as file

Next Steps#

Text Styling — Style text blocks with fonts, colors, and effects
Export Overview — Export options and formats for watermarked images
Crop Images — Transform images before watermarking
