Set Editing Constraints - Vanilla JS

Control what users can edit in templates by setting fine-grained permissions on individual blocks or globally across your scene using CE.SDK’s Scope system.

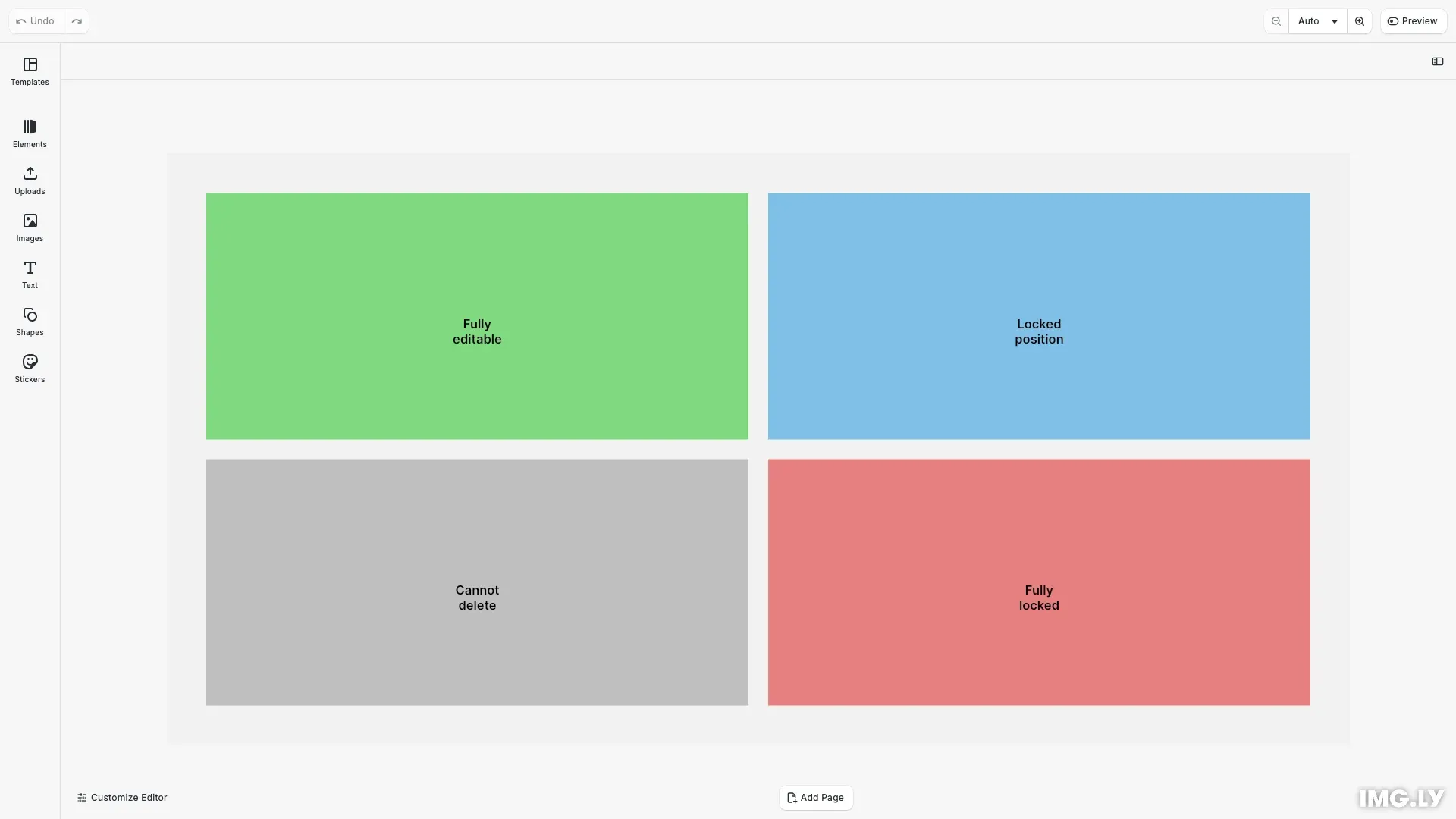

Set Editing Constraints example showing constraint patterns

15 mins

estimated time

Download

StackBlitz

GitHub

Editing constraints in CE.SDK allow you to lock specific properties of design elements while keeping others editable. The Scope system provides granular control over 20+ editing capabilities including movement, resizing, rotation, fill changes, text editing, and lifecycle operations.

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';
import packageJson from './package.json';

/**
 * CE.SDK Plugin: Set Editing Constraints Guide
 *
 * This example demonstrates:
 * - Setting global scopes to respect block-level settings
 * - Disabling move scope to lock position
 * - Disabling lifecycle scopes to prevent deletion
 */
class Example implements EditorPlugin {
  name = packageJson.name;

  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    // Create a design scene
    await cesdk.createDesignScene();

    const engine = cesdk.engine;

    // Get the page
    const pages = engine.block.findByType('page');
    const page = pages[0];
    if (!page) {
      throw new Error('No page found');
    }

    // Set page dimensions for 4 examples
    engine.block.setWidth(page, 1200);
    engine.block.setHeight(page, 600);

    // Set page background color
    const pageFill = engine.block.getFill(page);
    engine.block.setColor(pageFill, 'fill/color/value', {
      r: 0.95,
      g: 0.95,
      b: 0.95,
      a: 1.0
    });

    // ===== Configure Global Scopes =====
    // Set global scopes to 'Defer' to respect block-level scope settings
    // Without this, global 'Allow' settings might override block-level restrictions
    engine.editor.setGlobalScope('layer/move', 'Defer');
    engine.editor.setGlobalScope('layer/resize', 'Defer');
    engine.editor.setGlobalScope('lifecycle/destroy', 'Defer');
    engine.editor.setGlobalScope('lifecycle/duplicate', 'Defer');

    // Global scope modes:
    // - 'Allow': Always allow (overrides block-level settings)
    // - 'Deny': Always deny (overrides block-level settings)
    // - 'Defer': Use block-level settings (respects setScopeEnabled)

    // Calculate layout for 4 examples (2x2 grid)
    const pageWidth = engine.block.getWidth(page);
    const pageHeight = engine.block.getHeight(page);
    const margin = 40;
    const spacing = 20;
    const blockWidth = (pageWidth - margin * 2 - spacing) / 2;
    const blockHeight = (pageHeight - margin * 2 - spacing) / 2;

    const getPosition = (index: number) => {
      const col = index % 2;
      const row = Math.floor(index / 2);
      return {
        x: margin + col * (blockWidth + spacing),
        y: margin + row * (blockHeight + spacing)
      };
    };

    // Helper function to create a labeled example block
    const createExampleBlock = (
      labelText: string,
      backgroundColor: { r: number; g: number; b: number },
      applyScopesCallback?: (blockId: number) => void
    ): number => {
      // Create container block
      const block = engine.block.create('graphic');
      const shape = engine.block.createShape('rect');
      engine.block.setShape(block, shape);
      engine.block.setWidth(block, blockWidth);
      engine.block.setHeight(block, blockHeight);

      // Set background color
      const fill = engine.block.createFill('color');
      engine.block.setFill(block, fill);
      engine.block.setColor(fill, 'fill/color/value', {
        ...backgroundColor,
        a: 1.0
      });

      // Add label text
      const textBlock = engine.block.create('text');
      engine.block.setWidth(textBlock, blockWidth * 0.85);
      engine.block.setHeightMode(textBlock, 'Auto');
      engine.block.setString(textBlock, 'text/text', labelText);
      engine.block.setEnum(textBlock, 'text/horizontalAlignment', 'Center');
      engine.block.setFloat(textBlock, 'text/fontSize', 36);

      // Append text to get dimensions
      engine.block.appendChild(block, textBlock);

      // Center text in container
      const textWidth = engine.block.getWidth(textBlock);
      const textHeight = engine.block.getHeight(textBlock);
      engine.block.setPositionX(textBlock, (blockWidth - textWidth) / 2);
      engine.block.setPositionY(textBlock, (blockHeight - textHeight) / 2);

      // Set text color to white
      const textFill = engine.block.createFill('color');
      engine.block.setFill(textBlock, textFill);
      engine.block.setColor(textFill, 'fill/color/value', {
        r: 1.0,
        g: 1.0,
        b: 1.0,
        a: 1.0
      });

      // Apply scope configuration to both blocks
      if (applyScopesCallback) {
        applyScopesCallback(block);
        applyScopesCallback(textBlock);
      }

      // Append container to page
      engine.block.appendChild(page, block);

      return block;
    };

    // ===== Example 1: Lock Position (Disable Move Scope) =====
    const disableMoveScope = (block: number) => {
      // Disable move scope
      engine.block.setScopeEnabled(block, 'layer/move', false);

      // Explicitly enable other transform scopes
      engine.block.setScopeEnabled(block, 'layer/resize', true);
      engine.block.setScopeEnabled(block, 'layer/rotate', true);
      engine.block.setScopeEnabled(block, 'layer/flip', true);

      // Explicitly enable lifecycle scopes
      engine.block.setScopeEnabled(block, 'lifecycle/destroy', true);
      engine.block.setScopeEnabled(block, 'lifecycle/duplicate', true);
    };

    const moveLockedBlock = createExampleBlock(
      'Locked\nposition',
      {
        r: 0.5,
        g: 0.75,
        b: 0.9
      },
      disableMoveScope
    );
    // Block position is locked - users cannot move or reposition it
    // Other scopes are explicitly enabled: resizing, rotation, flipping, deletion, duplication

    // ===== Example 2: Prevent Deletion (Disable Lifecycle Scopes) =====
    const disableLifecycleScopes = (block: number) => {
      // Disable lifecycle scopes
      engine.block.setScopeEnabled(block, 'lifecycle/destroy', false);
      engine.block.setScopeEnabled(block, 'lifecycle/duplicate', false);

      // Explicitly enable transform scopes
      engine.block.setScopeEnabled(block, 'layer/move', true);
      engine.block.setScopeEnabled(block, 'layer/resize', true);
      engine.block.setScopeEnabled(block, 'layer/rotate', true);
      engine.block.setScopeEnabled(block, 'layer/flip', true);
    };

    const lifecycleLockedBlock = createExampleBlock(
      'Cannot\ndelete',
      {
        r: 0.75,
        g: 0.75,
        b: 0.75
      },
      disableLifecycleScopes
    );
    // Block cannot be deleted or duplicated
    // Other scopes are explicitly enabled: moving, resizing, rotation, flipping

    // ===== Example 3: All Scopes Enabled =====
    const enableAllScopes = (block: number) => {
      // Explicitly enable all transform scopes
      engine.block.setScopeEnabled(block, 'layer/move', true);
      engine.block.setScopeEnabled(block, 'layer/resize', true);
      engine.block.setScopeEnabled(block, 'layer/rotate', true);
      engine.block.setScopeEnabled(block, 'layer/flip', true);

      // Explicitly enable lifecycle scopes
      engine.block.setScopeEnabled(block, 'lifecycle/destroy', true);
      engine.block.setScopeEnabled(block, 'lifecycle/duplicate', true);

      // Explicitly enable fill scopes
      engine.block.setScopeEnabled(block, 'fill/change', true);
      engine.block.setScopeEnabled(block, 'fill/changeType', true);

      // Explicitly enable text scopes
      engine.block.setScopeEnabled(block, 'text/edit', true);
      engine.block.setScopeEnabled(block, 'text/character', true);
    };

    const fullyEditableBlock = createExampleBlock(
      'Fully\neditable',
      {
        r: 0.5,
        g: 0.85,
        b: 0.5
      },
      enableAllScopes
    );
    // All scopes are explicitly enabled - users have full editing capabilities
    // This is the default behavior, but explicitly enabling shows clear intent

    // ===== Example 4: All Scopes Disabled =====
    const disableAllScopes = (block: number) => {
      // Disable all transform scopes
      engine.block.setScopeEnabled(block, 'layer/move', false);
      engine.block.setScopeEnabled(block, 'layer/resize', false);
      engine.block.setScopeEnabled(block, 'layer/rotate', false);
      engine.block.setScopeEnabled(block, 'layer/flip', false);
      engine.block.setScopeEnabled(block, 'layer/crop', false);

      // Disable lifecycle scopes
      engine.block.setScopeEnabled(block, 'lifecycle/destroy', false);
      engine.block.setScopeEnabled(block, 'lifecycle/duplicate', false);

      // Disable fill scopes
      engine.block.setScopeEnabled(block, 'fill/change', false);
      engine.block.setScopeEnabled(block, 'fill/changeType', false);
      engine.block.setScopeEnabled(block, 'stroke/change', false);

      // Disable text scopes
      engine.block.setScopeEnabled(block, 'text/edit', false);
      engine.block.setScopeEnabled(block, 'text/character', false);

      // Disable shape scopes
      engine.block.setScopeEnabled(block, 'shape/change', false);

      // Disable editor scopes
      engine.block.setScopeEnabled(block, 'editor/select', false);

      // Disable appearance scopes
      engine.block.setScopeEnabled(block, 'layer/opacity', false);
      engine.block.setScopeEnabled(block, 'layer/blendMode', false);
      engine.block.setScopeEnabled(block, 'layer/visibility', false);
    };

    const fullyLockedBlock = createExampleBlock(
      'Fully\nlocked',
      {
        r: 0.9,
        g: 0.5,
        b: 0.5
      },
      disableAllScopes
    );
    // All scopes are disabled - block is completely locked and cannot be edited
    // Useful for watermarks, logos, or legal disclaimers

    // ===== Block-Level Scope Setting Example =====
    // Check if a scope is enabled for a specific block
    const canMove = engine.block.isScopeEnabled(moveLockedBlock, 'layer/move');
    const canDelete = engine.block.isScopeEnabled(
      lifecycleLockedBlock,
      'lifecycle/destroy'
    );
    const canEditFully = engine.block.isScopeEnabled(
      fullyEditableBlock,
      'layer/move'
    );
    const canEditLocked = engine.block.isScopeEnabled(
      fullyLockedBlock,
      'layer/move'
    );

    // eslint-disable-next-line no-console
    console.log('Move-locked block - layer/move enabled:', canMove); // false
    // eslint-disable-next-line no-console
    console.log(
      'Lifecycle-locked block - lifecycle/destroy enabled:',
      canDelete
    ); // false
    // eslint-disable-next-line no-console
    console.log('Fully editable block - layer/move enabled:', canEditFully); // true
    // eslint-disable-next-line no-console
    console.log('Fully locked block - layer/move enabled:', canEditLocked); // false

    // Position blocks in 2x2 grid
    const blocks = [
      fullyEditableBlock,
      moveLockedBlock,
      lifecycleLockedBlock,
      fullyLockedBlock
    ];

    blocks.forEach((block, index) => {
      const pos = getPosition(index);
      engine.block.setPositionX(block, pos.x);
      engine.block.setPositionY(block, pos.y);
    });

    // Deselect all blocks
    engine.block.findAllSelected().forEach((block) => {
      engine.block.setSelected(block, false);
    });

    // Zoom to fit content
    await engine.scene.zoomToBlock(page, {
      padding: 50,
      animate: false
    });

    // Log instructions
    // eslint-disable-next-line no-console
    console.log(`
=== Editing Constraints Demo ===

Try interacting with the 4 examples (arranged in 2x2 grid):

Top row:
1. "Fully editable" (green): All scopes enabled - complete editing freedom
2. "Locked position" (light blue): Cannot move, but can resize/edit/delete

Bottom row:
3. "Cannot delete" (light grey): Cannot delete/duplicate, but can move/resize/edit
4. "Fully locked" (red): All scopes disabled - completely locked

Note: Global scopes are set to 'Defer' to respect block-level settings.
    `);
  }
}

export default Example;

This guide demonstrates how to apply editing constraints to create brand templates, guided editing experiences, and form-based workflows.

Understanding Scopes#

What are Scopes?#

A scope is a permission key that controls a specific editing capability in CE.SDK. Each scope represents a distinct action users can perform, such as moving blocks ('layer/move'), changing fills ('fill/change'), or editing text content ('text/edit'). By enabling or disabling scopes, you control exactly what users can and cannot do with each design element.

Scopes exist at two levels:

Block-level scopes: Per-block permissions set using setScopeEnabled()
Global scopes: Default behavior for all blocks set using setGlobalScope()

Available Scope Categories#

CE.SDK provides scopes organized into logical categories:

Category	Purpose	Example Scopes
Text Editing	Control text content and formatting	`text/edit`, `text/character`
Fill & Stroke	Manage colors and gradients	`fill/change`, `fill/changeType`, `stroke/change`
Shape	Modify shape properties	`shape/change`
Layer Transform	Control position and dimensions	`layer/move`, `layer/resize`, `layer/rotate`, `layer/flip`, `layer/crop`
Layer Appearance	Manage visual properties	`layer/opacity`, `layer/blendMode`, `layer/visibility`
Effects & Filters	Apply visual effects	`appearance/adjustments`, `appearance/filter`, `appearance/effect`, `appearance/blur`, `appearance/shadow`
Lifecycle	Control creation and deletion	`lifecycle/destroy`, `lifecycle/duplicate`
Editor	Manage scene-level actions	`editor/add`, `editor/select`

Scope Configuration#

Global Scope Modes#

Global scopes set the default behavior for all blocks in the scene. They have three modes:

Allow: Always allow the action, overriding block-level settings
Deny: Always deny the action, overriding block-level settings
Defer: Use block-level settings (default mode)

To ensure block-level scope settings are respected, set relevant global scopes to ‘Defer’:

// Set global scopes to 'Defer' to respect block-level scope settings
// Without this, global 'Allow' settings might override block-level restrictions
engine.editor.setGlobalScope('layer/move', 'Defer');
engine.editor.setGlobalScope('layer/resize', 'Defer');
engine.editor.setGlobalScope('lifecycle/destroy', 'Defer');
engine.editor.setGlobalScope('lifecycle/duplicate', 'Defer');

// Global scope modes:
// - 'Allow': Always allow (overrides block-level settings)
// - 'Deny': Always deny (overrides block-level settings)
// - 'Defer': Use block-level settings (respects setScopeEnabled)

Without setting global scopes to ‘Defer’, default ‘Allow’ settings might override your block-level restrictions. This is essential when applying fine-grained constraints.

Scope Resolution Priority#

When both global and block-level scopes are set, they resolve in this order:

Global Deny takes highest priority (action always denied)
Global Allow takes second priority (action always allowed)
Global Defer defers to block-level settings (default behavior)

Setting Block-Level Constraints#

Locking Position#

Prevent users from moving or repositioning a block while allowing other edits:

const disableMoveScope = (block: number) => {
  // Disable move scope
  engine.block.setScopeEnabled(block, 'layer/move', false);

  // Explicitly enable other transform scopes
  engine.block.setScopeEnabled(block, 'layer/resize', true);
  engine.block.setScopeEnabled(block, 'layer/rotate', true);
  engine.block.setScopeEnabled(block, 'layer/flip', true);

  // Explicitly enable lifecycle scopes
  engine.block.setScopeEnabled(block, 'lifecycle/destroy', true);
  engine.block.setScopeEnabled(block, 'lifecycle/duplicate', true);
};

const moveLockedBlock = createExampleBlock(
  'Locked\nposition',
  {
    r: 0.5,
    g: 0.75,
    b: 0.9
  },
  disableMoveScope
);
// Block position is locked - users cannot move or reposition it
// Other scopes are explicitly enabled: resizing, rotation, flipping, deletion, duplication

The block position is locked—users cannot move or reposition it. Other scopes remain enabled, allowing resizing, editing, and deletion. This pattern maintains layout integrity while allowing content updates.

Preventing Deletion#

Protect blocks from being deleted or duplicated:

const disableLifecycleScopes = (block: number) => {
  // Disable lifecycle scopes
  engine.block.setScopeEnabled(block, 'lifecycle/destroy', false);
  engine.block.setScopeEnabled(block, 'lifecycle/duplicate', false);

  // Explicitly enable transform scopes
  engine.block.setScopeEnabled(block, 'layer/move', true);
  engine.block.setScopeEnabled(block, 'layer/resize', true);
  engine.block.setScopeEnabled(block, 'layer/rotate', true);
  engine.block.setScopeEnabled(block, 'layer/flip', true);
};

const lifecycleLockedBlock = createExampleBlock(
  'Cannot\ndelete',
  {
    r: 0.75,
    g: 0.75,
    b: 0.75
  },
  disableLifecycleScopes
);
// Block cannot be deleted or duplicated
// Other scopes are explicitly enabled: moving, resizing, rotation, flipping

Users cannot delete or duplicate the block but can still move, resize, and edit it. Use this for essential template elements that must remain present.

Checking Scope State#

Query the current state of any scope for a block:

// Check if a scope is enabled for a specific block
const canMove = engine.block.isScopeEnabled(moveLockedBlock, 'layer/move');
const canDelete = engine.block.isScopeEnabled(
  lifecycleLockedBlock,
  'lifecycle/destroy'
);
const canEditFully = engine.block.isScopeEnabled(
  fullyEditableBlock,
  'layer/move'
);
const canEditLocked = engine.block.isScopeEnabled(
  fullyLockedBlock,
  'layer/move'
);

// eslint-disable-next-line no-console
console.log('Move-locked block - layer/move enabled:', canMove); // false
// eslint-disable-next-line no-console
console.log(
  'Lifecycle-locked block - lifecycle/destroy enabled:',
  canDelete
); // false
// eslint-disable-next-line no-console
console.log('Fully editable block - layer/move enabled:', canEditFully); // true
// eslint-disable-next-line no-console
console.log('Fully locked block - layer/move enabled:', canEditLocked); // false

Use isScopeEnabled() to check the block-level setting. This returns whether the scope is enabled at the block level, but doesn’t consider global scope settings.

Checking Effective Permissions#

Check the effective permission considering both block and global settings:

// Check if scope is allowed (considers global + block settings)
const moveAllowed = engine.block.isAllowedByScope(block, 'layer/move');

isAllowedByScope() returns the final permission after resolving block-level and global scope settings. Use this when you need to know if an action is actually permitted.

API Reference#

Method	Description
`engine.block.setScopeEnabled()`	Enable or disable a scope for a specific block
`engine.block.isScopeEnabled()`	Check if a scope is enabled at the block level
`engine.block.isAllowedByScope()`	Check if a scope is allowed considering both block and global settings
`engine.editor.setGlobalScope()`	Set global scope policy (`'Allow'`, `'Deny'`, or `'Defer'`)
`engine.editor.findAllScopes()`	List all available scope keys
