Hide Elements

import IMGLYEditor
import SwiftUI

/// Design Editor demonstrating how to hide UI elements.
///
/// This example shows how to:
/// - Hide the dock completely (the only UI component that fully hides)
/// - Remove specific items from any UI component
/// - Understand the distinction between hiding and removing
struct HideElementsEditorSolution: View {
  let settings = EngineSettings(
    license: secrets.licenseKey,
    userID: "<your unique user id>",
  )

  // To hide the dock completely, provide an empty items closure
  // The dock is the only UI component that fully hides when given no items
  var editorWithHiddenDock: some View {
    Editor(settings)
      .imgly.configuration {
        DesignEditorConfiguration { builder in
          builder.dock { dock in
            dock.items { _ in
              // Empty - dock will be completely hidden
            }
          }
        }
      }
  }


  // To remove specific items from any component, use the modify variants
  // The component container remains visible, only the specified items are removed
  var editorWithRemovedItems: some View {
    Editor(settings)
      .imgly.configuration {
        DesignEditorConfiguration { builder in
          builder.dock { dock in
            dock.modify { _, items in
              items.remove(id: Dock.Buttons.ID.elementsLibrary)
              items.remove(id: Dock.Buttons.ID.shapesLibrary)
            }
          }
          builder.navigationBar { navigationBar in
            navigationBar.modify { _, items in
              items.remove(id: NavigationBar.Buttons.ID.undo)
              items.remove(id: NavigationBar.Buttons.ID.redo)
            }
          }
        }
      }
  }


  @State private var isPresented = false
  @State private var showHiddenDock = true

  var body: some View {
    VStack {
      Toggle("Hide Dock Completely", isOn: $showHiddenDock)
        .padding()

      Button("Use the Editor") {
        isPresented = true
      }
    }
    .fullScreenCover(isPresented: $isPresented) {
      ModalEditor {
        if showHiddenDock {
          editorWithHiddenDock
        } else {
          editorWithRemovedItems
        }
      }
    }
  }
}

#Preview {
  HideElementsEditorSolution()
}

Control UI visibility through complete component hiding or selective item removal across editor components.

We configure UI element visibility through two distinct approaches: hiding entire components or removing specific items while keeping containers visible.

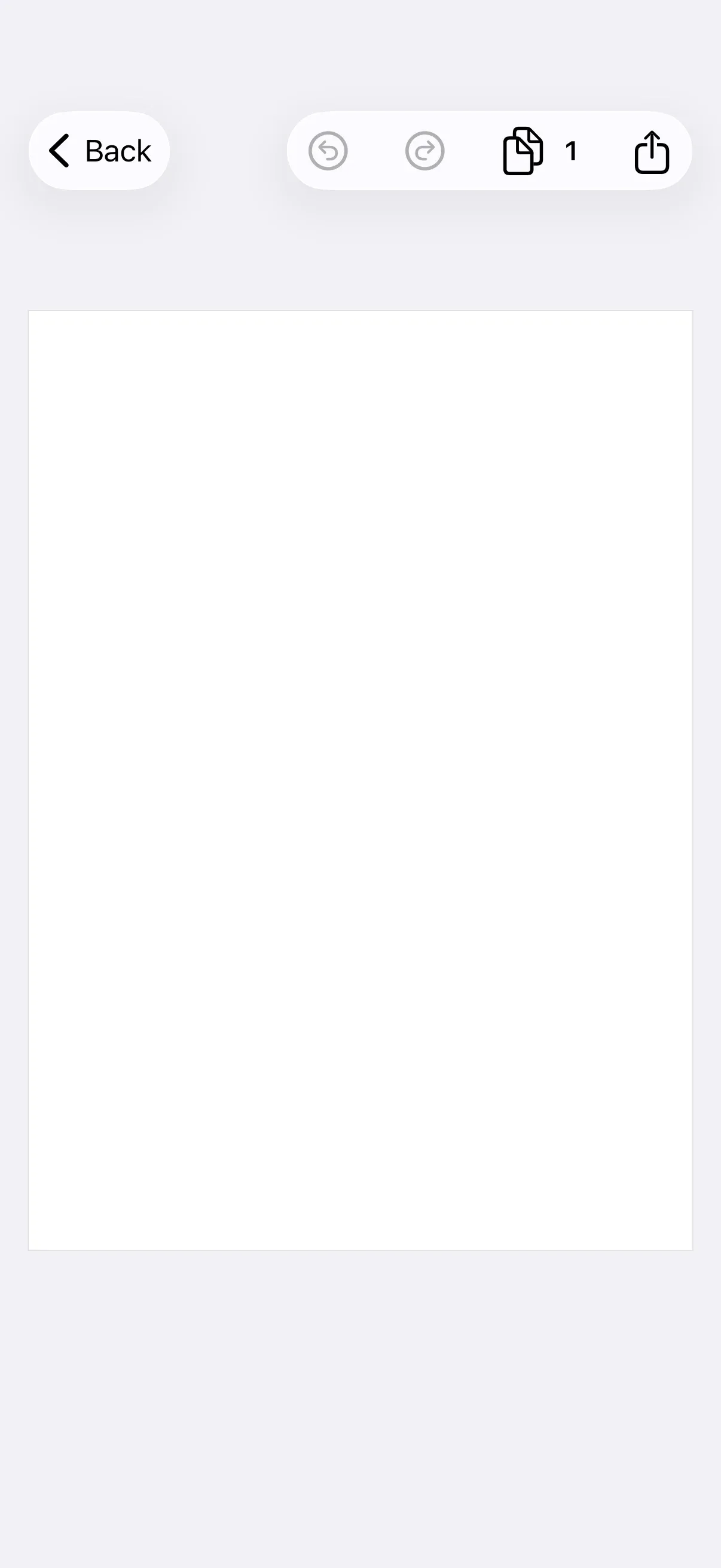

Editor with hidden dock

Explore the complete code sample on GitHub.

Understanding Hide vs. Remove#

CE.SDK iOS provides two approaches for controlling UI element visibility:

Hiding Components removes the entire UI component from the view hierarchy. We provide an empty items closure on the builder.dock configuration, which hides the dock container and background completely. This capability is dock-specific—other components don’t support full hiding.

Removing Items selectively removes individual buttons while keeping the component container visible. We use builder.[component] with [component].modify and items.remove(id:) to remove specific buttons from any component.

Key Distinction:

Approach	Method	Result	Components
Hide Component	`builder.dock { dock in dock.items { _ in } }`	Entire container hidden	Dock only
Remove Items	`builder.[component] { c in c.modify { _, items in items.remove(id:) } }`	Container visible, items removed	All components

Why the Difference?

The dock supports complete hiding because it’s a self-contained toolbar. Other components (Navigation Bar, Canvas Menu, Inspector Bar) use SwiftUI layout patterns where the container always renders—removing items affects only the buttons, not the component structure.

Hiding the Dock#

We hide the dock completely by providing an empty items closure on builder.dock:

// To hide the dock completely, provide an empty items closure
// The dock is the only UI component that fully hides when given no items
var editorWithHiddenDock: some View {
  Editor(settings)
    .imgly.configuration {
      DesignEditorConfiguration { builder in
        builder.dock { dock in
          dock.items { _ in
            // Empty - dock will be completely hidden
          }
        }
      }
    }
}

Key Points:

Only UI component supporting complete container hiding
Background and all content removed from view hierarchy
Useful for minimal or focused editing modes
Cannot be applied to other components (Navigation Bar, Canvas Menu, Inspector Bar)

When to Hide the Dock:

Distraction-free editing experiences
Custom toolbar implementations
Minimal interfaces for specific workflows
Full-screen canvas-focused modes

Removing Specific Items#

We remove individual items from any component using builder.[component] with [component].modify and items.remove(id:):

// To remove specific items from any component, use the modify variants
// The component container remains visible, only the specified items are removed
var editorWithRemovedItems: some View {
  Editor(settings)
    .imgly.configuration {
      DesignEditorConfiguration { builder in
        builder.dock { dock in
          dock.modify { _, items in
            items.remove(id: Dock.Buttons.ID.elementsLibrary)
            items.remove(id: Dock.Buttons.ID.shapesLibrary)
          }
        }
        builder.navigationBar { navigationBar in
          navigationBar.modify { _, items in
            items.remove(id: NavigationBar.Buttons.ID.undo)
            items.remove(id: NavigationBar.Buttons.ID.redo)
          }
        }
      }
    }
}

Key Points:

Container remains visible, only specified buttons removed
Works across all components (Dock, Navigation Bar, Canvas Menu, Inspector Bar)
Use component-specific ID enums (e.g., Dock.Buttons.ID.*)
Multiple items can be removed in sequence

Removing from Dock#

builder.dock { dock in
  dock.modify { _, items in
    items.remove(id: Dock.Buttons.ID.elementsLibrary)
    items.remove(id: Dock.Buttons.ID.shapesLibrary)
  }
}

We use Dock.Buttons.ID.* to reference dock buttons for removal.

builder.navigationBar { navigationBar in
  navigationBar.modify { _, items in
    items.remove(id: NavigationBar.Buttons.ID.undo)
    items.remove(id: NavigationBar.Buttons.ID.redo)
  }
}

We use NavigationBar.Buttons.ID.* to reference navigation bar buttons for removal.

Removing from Other Components#

The same pattern applies to all components:

// Canvas Menu
builder.canvasMenu { canvasMenu in
  canvasMenu.modify { _, items in
    items.remove(id: CanvasMenu.Buttons.ID.bringForward)
    items.remove(id: CanvasMenu.Buttons.ID.sendBackward)
  }
}

// Inspector Bar
builder.inspectorBar { inspectorBar in
  inspectorBar.modify { _, items in
    items.remove(id: InspectorBar.Buttons.ID.crop)
    items.remove(id: InspectorBar.Buttons.ID.filter)
  }
}

Common Use Cases#

Hide Dock for Distraction-Free Editing#

We hide the dock completely to create focused editing experiences:

Editor(settings)
  .imgly.configuration {
    DesignEditorConfiguration { builder in
      builder.dock { dock in
        dock.items { _ in
          // Empty - dock hidden
        }
      }
    }
  }

Use when: Maximizing canvas space, creating minimal interfaces, or implementing custom toolbars.

Remove Specific Items to Simplify Interface#

We remove individual buttons to streamline the interface for specific workflows:

Editor(settings)
  .imgly.configuration {
    DesignEditorConfiguration { builder in
      builder.dock { dock in
        dock.modify { _, items in
          // Keep only essential tools
          items.remove(id: Dock.Buttons.ID.stickersLibrary)
          items.remove(id: Dock.Buttons.ID.shapesLibrary)
        }
      }
    }
  }

Use when: Limiting functionality, creating beginner-friendly interfaces, or enforcing workflow constraints.

We remove navigation buttons to control user flow:

Editor(settings)
  .imgly.configuration {
    DesignEditorConfiguration { builder in
      builder.navigationBar { navigationBar in
        navigationBar.modify { _, items in
          // Remove undo/redo for simpler interface
          items.remove(id: NavigationBar.Buttons.ID.undo)
          items.remove(id: NavigationBar.Buttons.ID.redo)
        }
      }
    }
  }

Use when: Guided workflows, simplified editing modes, or workflow enforcement.

How Hide and Remove Interact#

Hide and Remove are Independent:

Hiding the dock (dock.items { _ in }) affects the entire component
Removing items (dock.modify { _, items in }) affects individual buttons
We can use both: hide dock, remove items from other components

Example Combining Both:

Editor(settings)
  .imgly.configuration {
    DesignEditorConfiguration { builder in
      builder.dock { dock in
        dock.items { _ in
          // Empty - dock hidden
        }
      }
      builder.navigationBar { navigationBar in
        navigationBar.modify { _, items in
          // Remove specific navigation buttons
          items.remove(id: NavigationBar.Buttons.ID.undo)
        }
      }
    }
  }

Troubleshooting#

Dock Not Hiding#

Symptom: Dock still visible after providing empty closure

Causes:

Using dock.modify instead of dock.items
Items closure not actually empty (contains items)

Solutions:

// ✅ Correct - hides dock completely
builder.dock { dock in
  dock.items { _ in
    // Empty - dock hidden
  }
}

// ❌ Wrong - modifies items but doesn't hide container
builder.dock { dock in
  dock.modify { _, items in
    // Even if empty, container remains visible
  }
}

Other Components Not Hiding#

Symptom: Navigation Bar, Canvas Menu, or Inspector Bar still visible with empty closures

Cause: Only dock supports complete container hiding

Solution:

// ❌ Won't hide navigation bar container
builder.navigationBar { navigationBar in
  navigationBar.items { _ in }
}

// ✅ Remove all items instead
builder.navigationBar { navigationBar in
  navigationBar.modify { _, items in
    items.remove(id: NavigationBar.Buttons.ID.undo)
    items.remove(id: NavigationBar.Buttons.ID.redo)
    items.remove(id: NavigationBar.Buttons.ID.export)
    items.remove(id: NavigationBar.Buttons.ID.closeEditor)
  }
}

Items Still Visible After Remove#

Symptom: Button still appears after calling items.remove(id:)

Causes:

Wrong component ID enum (e.g., using Dock.Buttons.ID in navigation bar)
Typo in ID
Modify closure not being called

Solutions:

// ✅ Use correct component's ID enum
builder.dock { dock in
  dock.modify { _, items in
    items.remove(id: Dock.Buttons.ID.elementsLibrary)  // Dock ID for dock
  }
}

builder.navigationBar { navigationBar in
  navigationBar.modify { _, items in
    items.remove(id: NavigationBar.Buttons.ID.undo)  // Navbar ID for navbar
  }
}

// ❌ Wrong - mixing component IDs
builder.dock { dock in
  dock.modify { _, items in
    items.remove(id: NavigationBar.Buttons.ID.undo)  // Wrong component!
  }
}

Container Remains Visible#

Symptom: Component background/container still visible after removing all items

Cause: Expected behavior—only dock supports container hiding

Solution: This is by design. For components other than dock, removing all items leaves an empty container. If container visibility is critical, consider layout adjustments or alternative UI structures.

Error: ID Does Not Exist#

Symptom: Runtime error The 'remove' operation was invoked with id '...' which does not exist

Causes:

Button ID doesn’t exist in component’s default configuration
Typo in ID string
Button already removed earlier

Solutions:

// ✅ Verify button exists in component
// Check Dock.Buttons.ID, NavigationBar.Buttons.ID, etc. enums

// ✅ Use ID constants, not strings
items.remove(id: Dock.Buttons.ID.elementsLibrary)  // Correct

// ❌ Don't use string literals
items.remove(id: "elementsLibrary")  // Error-prone

// ✅ Don't remove same ID twice
items.remove(id: Dock.Buttons.ID.elementsLibrary)
// items.remove(id: Dock.Buttons.ID.elementsLibrary)  // Error!

Next Steps#

Explore related UI customization guides:

Customize Dock - Full dock customization patterns
Customize Navigation Bar - Navigation bar configuration
Rearrange Buttons - Button positioning across components
Add a New Button - Add custom buttons to components
