Decide which categories (tabs) appear in the asset library, adjust the editor’s default categories, or replace the library with a fully custom view.

This guide picks up where the Asset Library Basics guide leaves off. Basics registers a source, surfaces one category, and adds a dock button; this guide covers tab ordering, mixing custom and default categories, modifying the defaults, building a fully custom library view, and opening an ad-hoc, button-specific library. It does not re-teach source registration or the source → library → dock layering.
You configure the asset library on the same EditorConfiguration builder where you configure the dock, navigation bar, inspector bar, and canvas menu. The Configuration guide covers how EditorConfiguration and EngineSettings set up the editor as a whole.
The examples wrap the editor in GuideEditorConfiguration, a small helper class the iOS guides repository ships as a minimal baseline. Substitute your own editor configuration class — the assetLibrary builder is available on every configuration, so the rest of the calls stay the same.
Configuration#
Configure the asset library on the editor configuration builder’s assetLibrary property — builder.assetLibrary { assetLibrary in … } inside the imgly.configuration closure. The builder offers three methods, in increasing complexity:
| Method | Best for |
|---|---|
assetLibrary.categories(_:) |
Defining the complete, ordered list of tabs. The recommended starting point. |
assetLibrary.modify(_:) |
Adjusting the editor’s default categories without rebuilding the list. |
assetLibrary.view(_:) |
Replacing the library with a fully custom view. |
categories and view are single values: the last configuration to set either one wins, so they replace. modify modifications accumulate — a base configuration can set the list with categories while later configurations or plugins still layer their modify changes on top.
The example’s EngineSettings reads its base URL back through engine.editor.getSettingString("basePath") in onCreate to resolve asset URIs, so it passes baseURL::
var settings: EngineSettings { EngineSettings(license: secrets.licenseKey, // pass nil for evaluation mode with watermark userID: "<your unique user id>", baseURL: secrets.baseURL) // read back below via getSettingString("basePath")}The example registers the asset sources its categories reference in onCreate. See the Asset Library Basics guide for the details of source registration.
Define the Library with Categories#

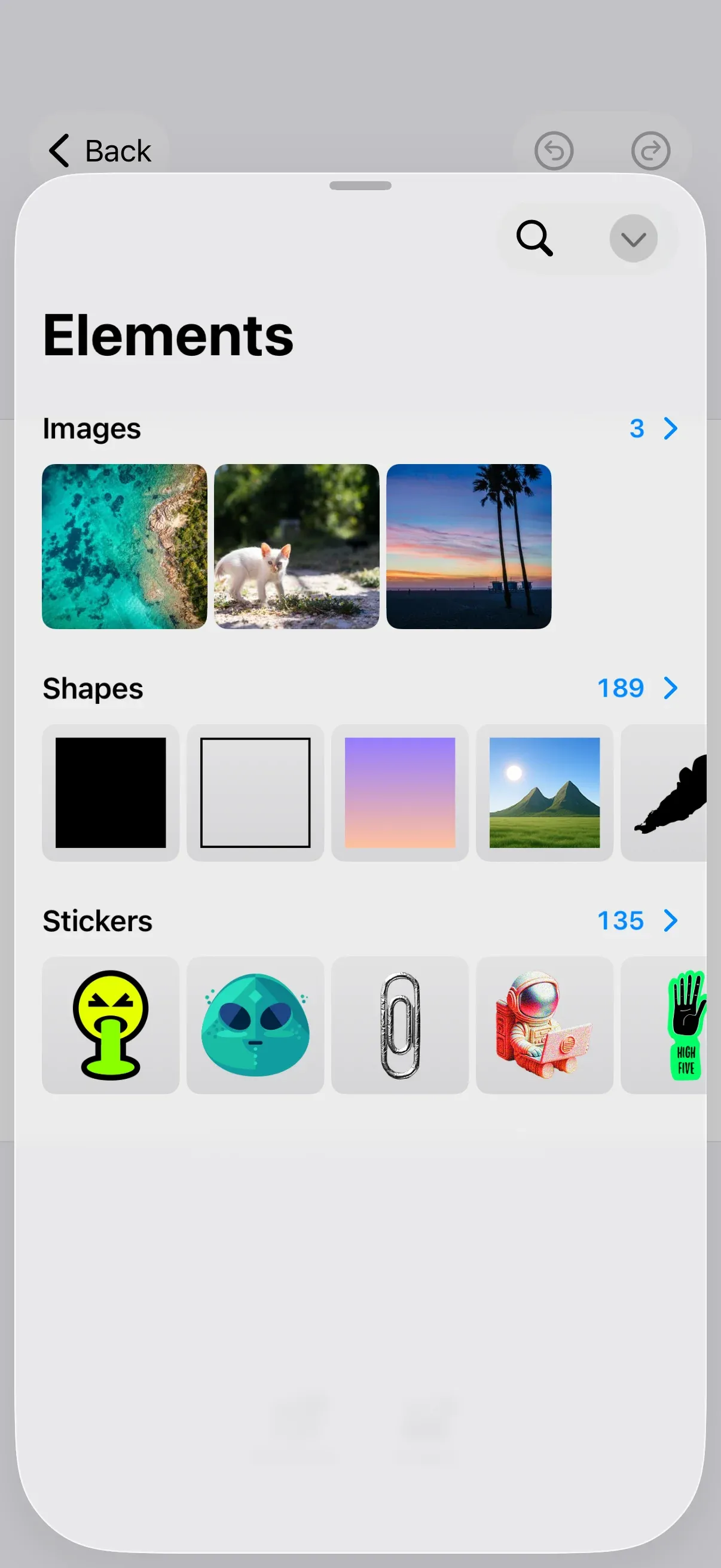

assetLibrary.categories([...]) supplies the complete, ordered list of categories. The array order is the tab order. Mix a custom AssetLibraryCategory(id:title:icon:sections:) with the editor’s predefined categories — .defaultImages, .defaultShapes, .defaultStickers, .defaultText, and .defaultElements (the combined tab that groups every other category):
builder.assetLibrary { assetLibrary in assetLibrary.categories([ // The Elements meta-category combines every other category below — including // the custom one — into a single scrollable tab. .defaultElements, AssetLibraryCategory( id: AssetLibraryCategory.ID.images, title: "Images", icon: Image(systemName: "photo"), sections: [ .image(id: "brand-images", title: "Brand Images", source: .init(id: "brand-images")), ], ), .defaultShapes, .defaultStickers, ])}Each AssetLibraryCategory becomes a tab, and its sections hold the rows of assets. AssetLibrarySection.image(id:title:source:) adds a section that queries a registered source — the id passed to source: must match a sourceID registered with the engine:
AssetLibraryCategory( id: AssetLibraryCategory.ID.images, title: "Images", icon: Image(systemName: "photo"), sections: [ .image(id: "brand-images", title: "Brand Images", source: .init(id: "brand-images")), ],),The dock button that opens each tab comes from the same configuration. The example’s dock includes the Elements button, which opens the combined tab, and the images button:
builder.dock { dock in dock.items { _ in // The Elements button opens the combined tab, which includes the custom category. Dock.Buttons.elementsLibrary() // The custom category reuses `AssetLibraryCategory.ID.images`, so the default // images button opens it automatically — no custom action needed. Dock.Buttons.imagesLibrary() }}Category IDs and the Built-in UI#
The editor resolves its built-in typed tabs by matching a category’s id against the values in AssetLibraryCategory.ID. Two built-in UI elements rely on this:
- The default dock library buttons.
Dock.Buttons.imagesLibrary()opens the tab whose categoryidisAssetLibraryCategory.ID.images. - The inspector bar’s Replace button (
InspectorBar.Buttons.replace). When a block is selected, it opens the library tab that matches the block’s fill or type — the images tab for an image fill.
In the example above, the custom category uses id: AssetLibraryCategory.ID.images. That single choice wires it into both built-in buttons automatically: the default images dock button opens it, and Replace surfaces it for image blocks. Give a category an arbitrary id instead, and it becomes a standalone tab that the built-in typed buttons won’t reach — you’d open it from its own custom dock button (shown in Custom Library Buttons).
Modify the Default Categories#
Use assetLibrary.modify { categories in … } to adjust the editor’s default categories without rebuilding the whole list. The closure receives a CategoryModifier with addFirst/addLast/addAfter(id:)/addBefore(id:)/replace(id:)/remove(id:), plus modifySections(of:) to edit a category’s sections. Target categories by their AssetLibraryCategory.ID value:
builder.assetLibrary { assetLibrary in assetLibrary.modify { categories in // Add the custom "Brand Images" section to the top of the images category. categories.modifySections(of: AssetLibraryCategory.ID.images) { sections in sections.addFirst(.image( id: "brand-images", title: "Brand Images", source: .init(id: "brand-images"), )) } // Drop the device photo roll category. categories.remove(id: AssetLibraryCategory.ID.photoRoll) }}modifySections(of:) reaches into a category’s section list — here it prepends the custom “Brand Images” section to the images category — while remove(id:) drops the photo roll category entirely.
Unlike categories and view, modify composes: every configuration and plugin in the chain applies its modifications on top of the resolved list, so your changes layer with theirs instead of replacing the whole library. The id-based operations (addAfter, addBefore, replace, remove, and modifySections(of:)) throw if no category with that id is present when the modifications are applied, so every id you reference must exist in the list.
A Fully Custom Library View#
When the category model isn’t enough, assetLibrary.view { categories in … } replaces the library with any type conforming to the AssetLibrary protocol. The closure receives the resolved categories — including any modify changes already applied — and returns the view that renders them:
builder.assetLibrary { assetLibrary in assetLibrary.view { categories in // `AssetLibraryView` is the default `AssetLibrary` conformer; return your own // type for full control. `categories` carries any `modify` changes already applied. AssetLibraryView(categories: categories) }}AssetLibraryView is the default AssetLibrary conformer; its init(categories:includeAVResources:) renders the categories it’s handed. Return your own AssetLibrary type for full control over the library UI.
Custom Library Buttons#
A custom dock button can open an ad-hoc library sheet that is independent of the configured assetLibrary. Send an .openSheet(type: .libraryAdd(_:content:)) event whose content is built with the @AssetLibraryBuilder DSL — AssetLibrarySource rows, grouped with AssetLibraryGroup:
builder.dock { dock in dock.items { _ in // A custom dock button can open an ad-hoc library sheet whose content is // built with the `@AssetLibraryBuilder` DSL — `AssetLibrarySource` rows // grouped with `AssetLibraryGroup`. This sheet is independent of the // configured `assetLibrary` above. Dock.Button(id: "my.app.dock.brandImages") { context in context.eventHandler.send(.openSheet(type: .libraryAdd("Brand Images") { AssetLibrarySource.image(.title("Brand Images"), source: .init(id: "brand-images")) })) } label: { _ in Label("Brand Images", systemImage: "photo.stack") } }}This sheet defines its own one-off library UI: it isn’t tied to the categories you configured, so it’s the way to surface a standalone source (or a curated mix of sources) from a button without adding it to the main library.
API Reference#
Configuration#
| Method | Description |
|---|---|
builder.assetLibrary { assetLibrary in … } |
Enter asset library configuration on the editor configuration builder. |
assetLibrary.categories(_:) |
Define the complete, ordered category list (replaces the editor defaults). |
assetLibrary.modify(_:) |
Adjust the default categories and sections (composes across configurations). |
assetLibrary.view(_:) |
Supply a fully custom view conforming to AssetLibrary. |
Library#
| Symbol | Description |
|---|---|
AssetLibraryCategory(id:title:icon:sections:) |
A category (tab) holding asset sections. |
AssetLibraryCategory.defaultElements (and siblings) |
Predefined categories; .defaultElements is the combined tab. |
AssetLibraryCategory.ID.images (and siblings) |
Default category ids; reuse one to back a built-in typed tab. |
AssetLibrarySection.image(id:title:source:) |
A titled image section backed by an asset source id. |
CategoryModifier |
The modifier passed to modify; mutates categories with addFirst/addLast/addAfter(id:)/addBefore(id:)/replace(id:)/remove(id:)/modifySections(of:). |
AssetLibraryView(categories:includeAVResources:) |
The default AssetLibrary conformer returned from view. |
AssetLibrarySource.image(_:source:) / AssetLibraryGroup |
View-based content for a .libraryAdd sheet. |
Dock & Inspector Bar#
| Symbol | Description |
|---|---|
Dock.Buttons.imagesLibrary() |
Built-in button that opens the images tab by category id. |
Dock.Buttons.elementsLibrary() |
Built-in button that opens the combined Elements tab. |
Dock.Button(id:action:label:) |
A custom dock button; open .libraryAdd for an ad-hoc library. |
InspectorBar.Buttons.replace |
Replace action; opens the library tab matching the selected block. |
