Auto-Resize Blocks (Fill Parent & Percent Sizing)

Why It Matters for Automation#

When you generate designs in bulk, you can’t manually correct layout differences for each image. Percentage-based sizing and fillParent() guarantee that every inserted asset or background automatically scales to the right dimensions, regardless of its original size or aspect ratio. This ensures reliable layouts and predictable exports in automated pipelines.

What You’ll Learn#

• Make a block fill its parent in one line. This is perfect for backgrounds and overlays.
• Use percent size modes for responsive, predictable layouts.
• Read computed width and height after layout to verify results.
• Switch between absolute and percent sizing modes at runtime.
• Build a responsive background that always fits the page.

When You’ll Use It#

• Full-bleed background images that cover the page.
• Responsive overlays and watermarks that track the parent’s size.
• Adaptive layouts across iPhone, iPad, and Mac (Catalyst).
• Automation workflows that replace assets of different sizes without breaking layout consistency.

Fill the Parent (One-Liner)#

The simplest way to auto-resize is to ask the engine to make a block fill its parent:

// Make 'block' fill its parent container (resizes & positions).
try engine.block.fillParent(block)

CE.SDK resizes and positions the block, resets crop values if applicable, and switches content fill mode to .cover if needed to avoid invalid crops.

Good for: Page backgrounds, edge-to-edge color panels, full-page masks.

Percent-Based Sizing (Responsive Layouts)#

For finer control, switch size modes for width and height to .percent, then assign values from 0.0 ... 1.0:

// 100% width & height (fill parent)
try engine.block.setWidthMode(block, mode: .percent)
try engine.block.setHeightMode(block, mode: .percent)
try engine.block.setWidth(block, value: 1.0)
try engine.block.setHeight(block, value: 1.0)

In percent mode, 1.0 means 100% of the parent. Use:

• .absolute for fixed-size elements.
• .auto when the content determines its own size.

Partial Fill Examples#

// 50% width, 100% height (e.g., a left column)
try engine.block.setWidthMode(block, mode: .percent)
try engine.block.setHeightMode(block, mode: .percent)
try engine.block.setWidth(block, value: 0.5)
try engine.block.setHeight(block, value: 1.0)

Great for split layouts, sidebars, or variable-width panels.

Reading Computed Dimensions#

After the engine completes a layout pass, you can read computed dimensions with the frame accessors:

let w = try engine.block.getFrameWidth(block)
let h = try engine.block.getFrameHeight(block)

These values are available after layout updates. If you query immediately after changes, you might see stale values. Yield a tick or wait for engine-driven updates before reading.

Switching Between Absolute & Percent#

You can toggle sizing modes at runtime to move between fixed and responsive layouts:

// Fixed (absolute) sizing
try engine.block.setWidthMode(block, mode: .absolute)
try engine.block.setHeightMode(block, mode: .absolute)
try engine.block.setWidth(block, value: 400.0)
try engine.block.setHeight(block, value: 300.0)

// Back to responsive sizing
try engine.block.setWidthMode(block, mode: .percent)
try engine.block.setHeightMode(block, mode: .percent)
try engine.block.setWidth(block, value: 0.75) // 75% width
try engine.block.setHeight(block, value: 1.0)  // 100% height

Use absolute for fixed-size exports or print layouts, and percent for responsive layouts or template-based automation.

Practical Example: Responsive Background#

Here’s a common pattern. Create a background that always fills the page:

// 1) Create an image block and set its fill (placeholder asset)
let bg = try engine.block.create(.graphic)
let shape = try engine.block.createShape(.rect)
try engine.block.setShape(bg, shape: shape)

let solidColor = try engine.block.createFill(.color)
try engine.block.setFill(bg, fill: solidColor)

let rgbaGreen = Color.rgba(r: 0.5, g: 1, b: 0.5, a: 1)
try engine.block.setColor(solidColor, property: "fill/color/value", color: rgbaGreen)

// 2) Append to the page and send behind other content
try engine.block.appendChild(to: page, child: bg)
try engine.block.sendToBack(bg)

// 3) Either the one-liner:
try engine.block.fillParent(bg)

// 4) Or, percent-based equivalent:
try engine.block.setWidthMode(bg, mode: .percent)
try engine.block.setHeightMode(bg, mode: .percent)
try engine.block.setWidth(bg, value: 1.0)
try engine.block.setHeight(bg, value: 1.0)

The percent-based alternative mirrors the behavior of fillParent if your content and crop are already valid. The fillParent method guarantees coverage and sets a safe fill mode automatically.

Automation Example: Batch Image Replacement#

This automation scenario, generates name tags:

• Each tag has a dedicated container that:
  • Is called hero-frame.
  • Displays the person’s photo.
• The code prepares hero-frame once so it always fills its parent.
• It replaces the image fill inside hero-frame during batch generation.
• Layout stays stabless regardless of the photo’s size and aspect.

Prepare Once#

// One‑time setup when building the template/scene
let heroFrame = try engine.block.create(.graphic)
let rect = try engine.block.createShape(.rect)
try engine.block.setShape(heroFrame, shape: rect)

// Give it a name for easy lookup in later steps / debugging
try engine.block.setString(heroFrame, key: "name", value: "hero-frame")

// Attach an image fill now (can be a placeholder)
var heroFrameImageFill = try engine.block.createFill(.image)
try engine.block.setFill(heroFrame, fill: heroFrameImageFill)

// Place it in the nametag layout once (e.g., inside a card group or page)
try engine.block.appendChild(to: faceGroup, child: heroFrame)

// Make the container auto‑resize to its parent so the photo always fits
try engine.block.fillParent(heroFrame)

Update During the Batch#

At a later time, when the batch runs, it:

• Gets a reference to the heroFrame block
• Calls a function to update the image fill during each pass.

func replaceHeroPhotoURL(engine: Engine, hero: DesignBlockID, with url: String) {
  do {
    // Try to get the current fill and swap the image on the same object
    let fill = try engine.block.getFill(hero)
    try engine.block.setString(
      fill,
      property: "fill/image/fileURI",
      value: url
    )
  } catch {
    // If no fill exists yet, create and attach one
    print("No fill found on hero-frame; creating new fill.")
    do {
      let newFill = try engine.block.createFill(.image)
      try engine.block.setString(
        newFill,
        property: "fill/image/fileURI",
        value: url
      )
      try engine.block.setFill(hero, fill: newFill)
    } catch {
      print("Failed to attach new fill: \(error)")
    }
  }
}

Because heroFrame used fillParent, every image conforms to its parent’s size, ensuring layouts remain consistent. This approach is ideal for:

• Product catalogs
• User-generated templates
• Any workflow where image dimensions vary widely.

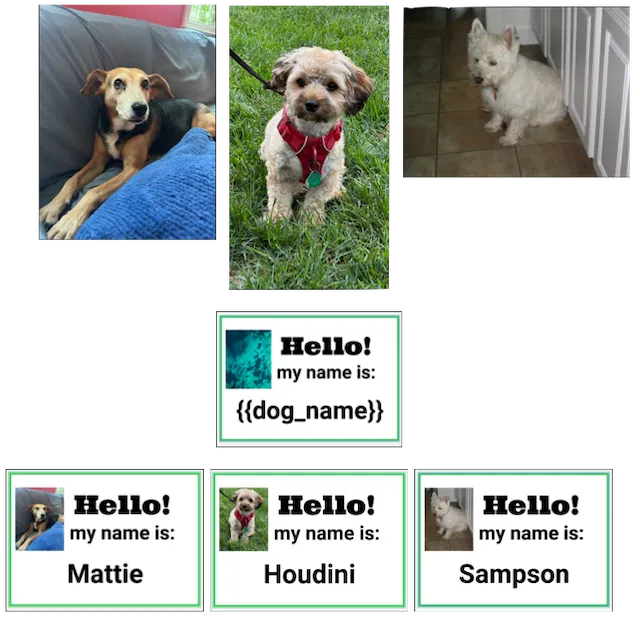

In the preceding diagram, three input images are of different sizes. The engine crops and resizes them to fill the placeholder during the batch.

Platform Notes & Limitations#

• Computed frame values are asynchronous. Read them after a layout cycle. If you set percent sizing and immediately call getFrameWidth, you may get the previous value.
• Groups vs. children. Percent sizing relates a child to its direct parent. Ensure your block is appended where you expect before reading frames.
• Fills and crops. fillParent may reset crop values and/or set fill mode to .cover to avoid invalid states.

Troubleshooting#

Next Steps#

Explore a code sample of percentage resizing and .fillParent on GitHub.

You can use auto-resize as you create compositions and make responsive designs. Here are some other guides to explore to deepen your understanding.

• Resize blocks (manual) — control dimensions interactively.
