Source Sets - Electron

Configure source sets for images and videos so CE.SDK automatically selects the optimal resolution for editing previews and exports.

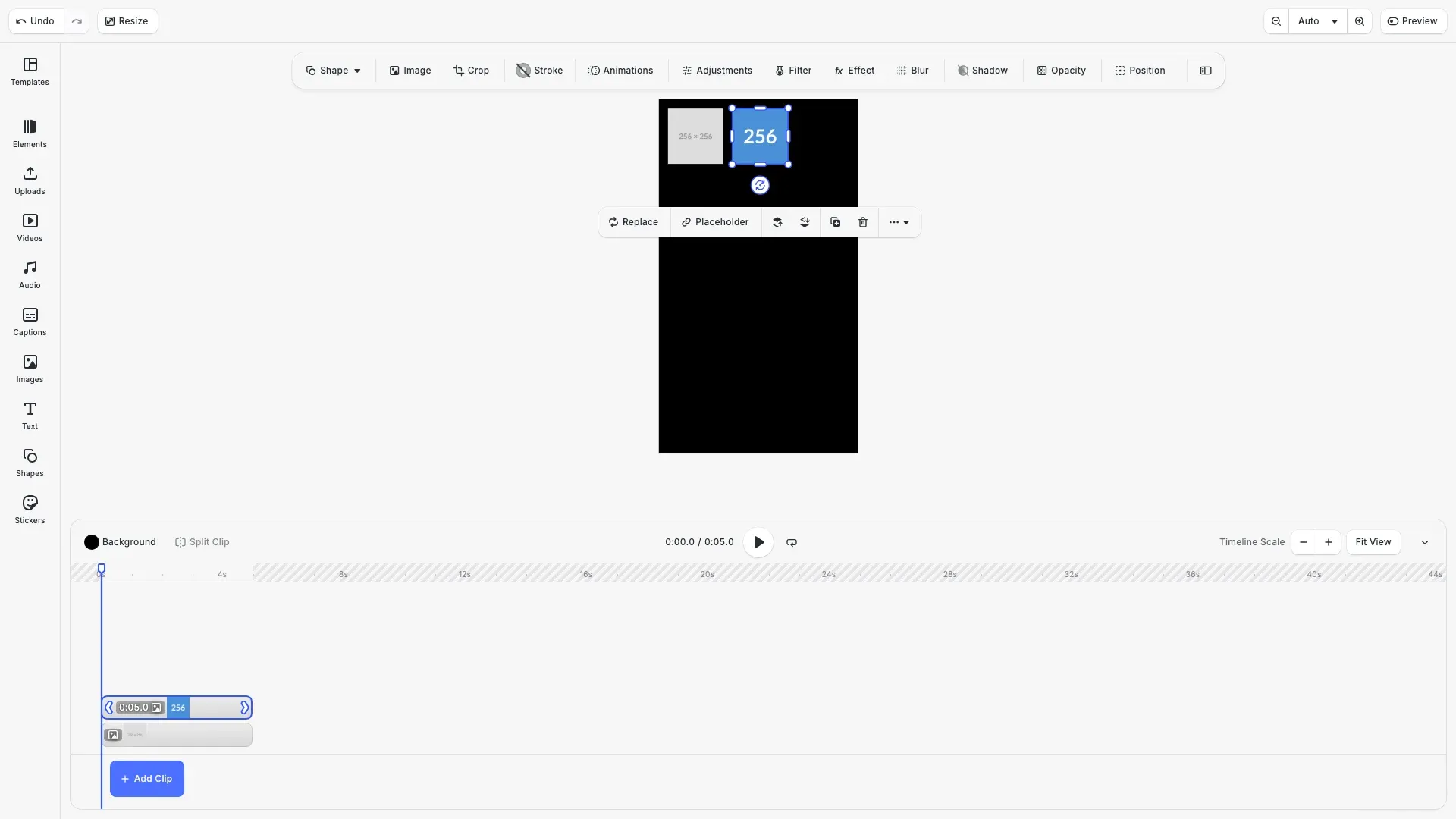

Source Sets example showing image blocks with multiple resolution options

10 mins

estimated time

Download

StackBlitz

GitHub

Source sets allow you to provide multiple versions of the same asset at different resolutions. CE.SDK automatically selects the most appropriate source based on the current drawing size in screen pixels. This improves performance by loading smaller images for mobile previews while ensuring high-quality assets are used for final exports.

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';
import packageJson from './package.json';

class Example implements EditorPlugin {
  name = packageJson.name;

  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    await cesdk.addDefaultAssetSources();
    await cesdk.addDemoAssetSources({
      sceneMode: 'Video',
      withUploadAssetSources: false
    });
    await cesdk.createVideoScene();

    const engine = cesdk.engine;
    const page = engine.block.findByType('page')[0]!;

    // ===== Section 1: Setting a Source Set on an Image Fill =====
    // Create a graphic block with an image fill
    const imageBlock = engine.block.create('graphic');
    engine.block.setShape(imageBlock, engine.block.createShape('rect'));

    // Create an image fill and configure source set with multiple resolutions
    const imageFill = engine.block.createFill('image');
    engine.block.setSourceSet(imageFill, 'fill/image/sourceSet', [
      // Placeholder images display their dimensions, making it easy to see which source is selected
      { uri: 'https://placehold.co/256x256/png', width: 256, height: 256 },
      { uri: 'https://placehold.co/512x512/png', width: 512, height: 512 },
      { uri: 'https://placehold.co/1024x1024/png', width: 1024, height: 1024 }
    ]);
    engine.block.setFill(imageBlock, imageFill);

    // Position and size the block
    engine.block.setWidth(imageBlock, 300);
    engine.block.setHeight(imageBlock, 300);
    engine.block.setPositionX(imageBlock, 50);
    engine.block.setPositionY(imageBlock, 50);
    engine.block.appendChild(page, imageBlock);

    // ===== Section 2: Querying and Modifying Source Sets =====
    // Query the existing source set
    const sourceSet = engine.block.getSourceSet(imageFill, 'fill/image/sourceSet');
    console.log('Current source set:', sourceSet);

    // Add a new high-resolution source dynamically
    // The dimensions are determined automatically from the image
    await engine.block.addImageFileURIToSourceSet(
      imageFill,
      'fill/image/sourceSet',
      'https://placehold.co/2048x2048/png'
    );

    // Verify the source was added
    const updatedSourceSet = engine.block.getSourceSet(
      imageFill,
      'fill/image/sourceSet'
    );
    console.log('Updated source set with 2048px source:', updatedSourceSet);

    // ===== Section 3: Using Source Sets in Asset Definitions =====
    // Define an asset with a source set in its payload
    const assetDefinition = {
      id: 'multi-resolution-image',
      label: { en: 'Multi-Resolution Image' },
      meta: {
        kind: 'image',
        fillType: '//ly.img.ubq/fill/image'
      },
      payload: {
        sourceSet: [
          { uri: 'https://placehold.co/256x256/4a90d9/white/png?text=256', width: 256, height: 256 },
          { uri: 'https://placehold.co/512x512/4a90d9/white/png?text=512', width: 512, height: 512 },
          { uri: 'https://placehold.co/1024x1024/4a90d9/white/png?text=1024', width: 1024, height: 1024 }
        ]
      }
    };

    // Register the asset with a local source
    await engine.asset.addLocalSource('my-images');
    engine.asset.addAssetToSource('my-images', assetDefinition);

    // Find the asset from the source for applying
    const findResult = await engine.asset.findAssets('my-images', {
      page: 0,
      perPage: 1
    });
    const assetResult = findResult.assets[0];

    // Apply the asset - the source set is automatically configured
    const assetBlock = await engine.asset.defaultApplyAsset(assetResult);
    if (assetBlock === undefined) {
      throw new Error('Failed to apply asset');
    }

    // Verify the source set was applied to the block's fill
    const assetFill = engine.block.getFill(assetBlock);
    const assetSourceSet = engine.block.getSourceSet(
      assetFill,
      'fill/image/sourceSet'
    );
    console.log('Asset source set applied:', assetSourceSet);

    // Position the asset block
    engine.block.setWidth(assetBlock, 300);
    engine.block.setHeight(assetBlock, 300);
    engine.block.setPositionX(assetBlock, 400);
    engine.block.setPositionY(assetBlock, 50);

    // ===== Section 4: Video Source Sets =====
    // Create a graphic block with a video fill
    const videoBlock = engine.block.create('graphic');
    engine.block.setShape(videoBlock, engine.block.createShape('rect'));

    // Create a video fill and configure source set
    const videoFill = engine.block.createFill('video');
    engine.block.setSourceSet(videoFill, 'fill/video/sourceSet', [
      {
        uri: 'https://cdn.img.ly/assets/demo/v3/ly.img.video/videos/pexels-drone-footage-of-a-surfer-barrelling-a-wave-12715991.mp4',
        width: 1920,
        height: 1080
      }
    ]);
    engine.block.setFill(videoBlock, videoFill);

    // Add a higher resolution source dynamically
    // Note: In production, this would be a different resolution file
    await engine.block.addVideoFileURIToSourceSet(
      videoFill,
      'fill/video/sourceSet',
      'https://cdn.img.ly/assets/demo/v3/ly.img.video/videos/pexels-drone-footage-of-a-surfer-barrelling-a-wave-12715991.mp4'
    );

    // Position and size the video block
    engine.block.setWidth(videoBlock, 400);
    engine.block.setHeight(videoBlock, 225);
    engine.block.setPositionX(videoBlock, 50);
    engine.block.setPositionY(videoBlock, 400);
    engine.block.appendChild(page, videoBlock);

    // Set video duration for timeline
    engine.block.setDuration(videoBlock, 5);

    // ===== Section 5: Video Preview Quality Settings =====
    // Force low-quality video preview during editing for better performance
    // Export will still use the highest quality source available
    engine.editor.setSettingBool('features/forceLowQualityVideoPreview', true);
  }
}

export default Example;

This guide covers how to configure source sets programmatically, define them in asset definitions, and optimize video preview performance.

How Source Set Selection Works#

When rendering content, the engine calculates the current drawing size in pixels. If a source set exists, the engine selects the source with the closest size exceeding the drawing size. If no source set is defined, the full resolution image is downscaled to a maximum 4096px edge length (configurable via the maxImageSize setting).

Source sets are also evaluated during export, ensuring the best matching asset is used for the target export resolution.

Setting a Source Set on an Image Fill#

We configure source sets for image fills using engine.block.setSourceSet(). Each source entry requires a uri, width, and height. The engine uses these dimensions to select the appropriate source.

// Create a graphic block with an image fill
const imageBlock = engine.block.create('graphic');
engine.block.setShape(imageBlock, engine.block.createShape('rect'));

// Create an image fill and configure source set with multiple resolutions
const imageFill = engine.block.createFill('image');
engine.block.setSourceSet(imageFill, 'fill/image/sourceSet', [
  // Placeholder images display their dimensions, making it easy to see which source is selected
  { uri: 'https://placehold.co/256x256/png', width: 256, height: 256 },
  { uri: 'https://placehold.co/512x512/png', width: 512, height: 512 },
  { uri: 'https://placehold.co/1024x1024/png', width: 1024, height: 1024 }
]);
engine.block.setFill(imageBlock, imageFill);

// Position and size the block
engine.block.setWidth(imageBlock, 300);
engine.block.setHeight(imageBlock, 300);
engine.block.setPositionX(imageBlock, 50);
engine.block.setPositionY(imageBlock, 50);
engine.block.appendChild(page, imageBlock);

Querying and Modifying Source Sets#

You can retrieve existing source sets with engine.block.getSourceSet(). To add sources dynamically, use engine.block.addImageFileURIToSourceSet(), which loads the image to determine dimensions automatically.

// Query the existing source set
const sourceSet = engine.block.getSourceSet(imageFill, 'fill/image/sourceSet');
console.log('Current source set:', sourceSet);

// Add a new high-resolution source dynamically
// The dimensions are determined automatically from the image
await engine.block.addImageFileURIToSourceSet(
  imageFill,
  'fill/image/sourceSet',
  'https://placehold.co/2048x2048/png'
);

// Verify the source was added
const updatedSourceSet = engine.block.getSourceSet(
  imageFill,
  'fill/image/sourceSet'
);
console.log('Updated source set with 2048px source:', updatedSourceSet);

Using Source Sets in Asset Definitions#

When defining assets for the asset library, you can include source sets in the payload.sourceSet field. When the asset is applied with engine.asset.defaultApplyAsset(), the source set is automatically configured on the resulting block’s fill.

// Define an asset with a source set in its payload
const assetDefinition = {
  id: 'multi-resolution-image',
  label: { en: 'Multi-Resolution Image' },
  meta: {
    kind: 'image',
    fillType: '//ly.img.ubq/fill/image'
  },
  payload: {
    sourceSet: [
      { uri: 'https://placehold.co/256x256/4a90d9/white/png?text=256', width: 256, height: 256 },
      { uri: 'https://placehold.co/512x512/4a90d9/white/png?text=512', width: 512, height: 512 },
      { uri: 'https://placehold.co/1024x1024/4a90d9/white/png?text=1024', width: 1024, height: 1024 }
    ]
  }
};

// Register the asset with a local source
await engine.asset.addLocalSource('my-images');
engine.asset.addAssetToSource('my-images', assetDefinition);

// Find the asset from the source for applying
const findResult = await engine.asset.findAssets('my-images', {
  page: 0,
  perPage: 1
});
const assetResult = findResult.assets[0];

// Apply the asset - the source set is automatically configured
const assetBlock = await engine.asset.defaultApplyAsset(assetResult);
if (assetBlock === undefined) {
  throw new Error('Failed to apply asset');
}

// Verify the source set was applied to the block's fill
const assetFill = engine.block.getFill(assetBlock);
const assetSourceSet = engine.block.getSourceSet(
  assetFill,
  'fill/image/sourceSet'
);
console.log('Asset source set applied:', assetSourceSet);

// Position the asset block
engine.block.setWidth(assetBlock, 300);
engine.block.setHeight(assetBlock, 300);
engine.block.setPositionX(assetBlock, 400);
engine.block.setPositionY(assetBlock, 50);

Video Source Sets#

Source sets work with video fills using the fill/video/sourceSet property. The engine selects the appropriate video source based on the current drawing size. Use engine.block.addVideoFileURIToSourceSet() to add video sources dynamically.

// Create a graphic block with a video fill
const videoBlock = engine.block.create('graphic');
engine.block.setShape(videoBlock, engine.block.createShape('rect'));

// Create a video fill and configure source set
const videoFill = engine.block.createFill('video');
engine.block.setSourceSet(videoFill, 'fill/video/sourceSet', [
  {
    uri: 'https://cdn.img.ly/assets/demo/v3/ly.img.video/videos/pexels-drone-footage-of-a-surfer-barrelling-a-wave-12715991.mp4',
    width: 1920,
    height: 1080
  }
]);
engine.block.setFill(videoBlock, videoFill);

// Add a higher resolution source dynamically
// Note: In production, this would be a different resolution file
await engine.block.addVideoFileURIToSourceSet(
  videoFill,
  'fill/video/sourceSet',
  'https://cdn.img.ly/assets/demo/v3/ly.img.video/videos/pexels-drone-footage-of-a-surfer-barrelling-a-wave-12715991.mp4'
);

// Position and size the video block
engine.block.setWidth(videoBlock, 400);
engine.block.setHeight(videoBlock, 225);
engine.block.setPositionX(videoBlock, 50);
engine.block.setPositionY(videoBlock, 400);
engine.block.appendChild(page, videoBlock);

// Set video duration for timeline
engine.block.setDuration(videoBlock, 5);

Video Preview Quality Settings#

For performance optimization during editing, you can force the engine to use the smallest available source for video previews. Export operations will still use the highest quality source.

// Force low-quality video preview during editing for better performance
// Export will still use the highest quality source available
engine.editor.setSettingBool('features/forceLowQualityVideoPreview', true);

The features/forceLowQualityVideoPreview setting forces previews to use the smallest source during editing. By default, this is disabled, and the engine uses the source closest to the current drawing size.

Troubleshooting#

Problem	Solution
Wrong resolution selected	Ensure source dimensions accurately reflect actual image/video dimensions
Performance issues with large assets	Add smaller resolution sources to your source set for editing preview
Export quality issues	Verify that your source set includes a high-resolution source for the target export size
Source set not applied from asset	Ensure `payload.sourceSet` is defined with valid `uri`, `width`, and `height` entries

API Reference#

Method	Description
`engine.block.setSourceSet()`	Set a source set for a block property
`engine.block.getSourceSet()`	Get the source set from a block property
`engine.block.addImageFileURIToSourceSet()`	Add an image to an existing source set (async)
`engine.block.addVideoFileURIToSourceSet()`	Add a video to an existing source set (async)
`engine.block.createFill('image')`	Create an image fill
`engine.block.createFill('video')`	Create a video fill
`engine.block.setFill()`	Apply a fill to a block
`engine.block.getFill()`	Get the fill from a block
`engine.asset.addLocalSource()`	Create a local asset source
`engine.asset.addAssetToSource()`	Add an asset with source set to a source
`engine.asset.defaultApplyAsset()`	Apply an asset, configuring its source set
`engine.editor.setSettingBool()`	Configure editor settings like video preview quality
