Lock Design - Electron

Protect design elements from unwanted modifications using CE.SDK’s scope-based permission system.

Lock Design Hero

10 mins

estimated time

CE.SDK uses a two-layer scope system to control editing permissions. Global scopes set defaults for the entire scene, while block-level scopes override when the global setting is Defer. This enables flexible permission models from fully locked to selectively editable designs.

import type {
  EditorPlugin,
  EditorPluginContext,
  Scope
} from '@cesdk/cesdk-js';
import packageJson from './package.json';

class LockDesign implements EditorPlugin {
  name = packageJson.name;
  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    // Load assets and create scene
    await cesdk.addDefaultAssetSources();
    await cesdk.addDemoAssetSources({
      sceneMode: 'Design',
      withUploadAssetSources: true
    });

    await cesdk.createDesignScene();

    const engine = cesdk.engine;
    const page = engine.block.findByType('page')[0]!;

    // Set page dimensions
    engine.block.setWidth(page, 800);
    engine.block.setHeight(page, 600);

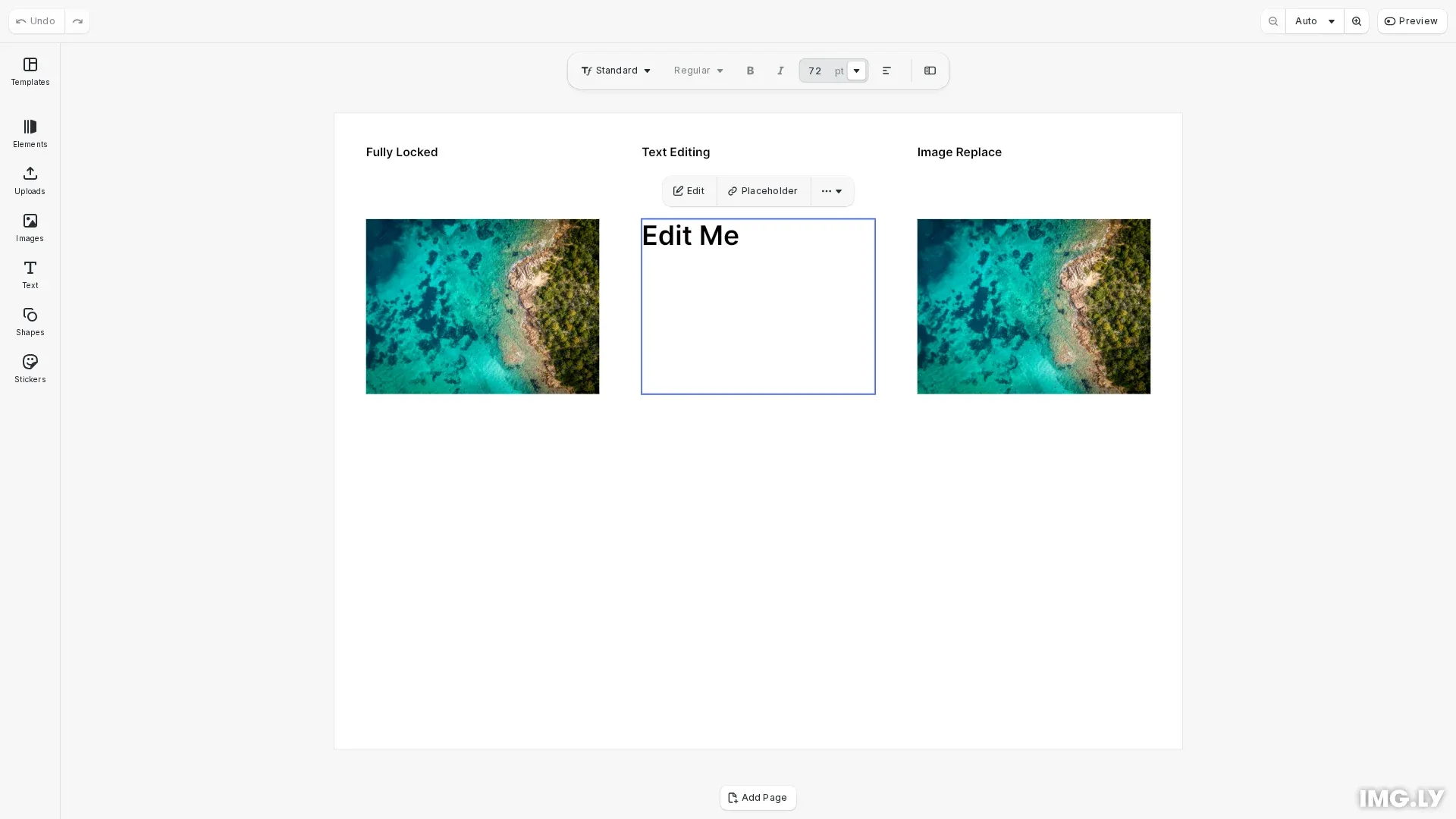

    // Create sample content to demonstrate different locking techniques
    const imageUri = 'https://img.ly/static/ubq_samples/sample_1.jpg';

    // Column 1: Fully Locked
    const caption1 = engine.block.create('text');
    engine.block.setString(caption1, 'text/text', 'Fully Locked');
    engine.block.setFloat(caption1, 'text/fontSize', 32);
    engine.block.setWidth(caption1, 220);
    engine.block.setHeight(caption1, 50);
    engine.block.setPositionX(caption1, 30);
    engine.block.setPositionY(caption1, 30);
    engine.block.appendChild(page, caption1);

    const imageBlock = await engine.block.addImage(imageUri, {
      x: 30,
      y: 100,
      size: { width: 220, height: 165 }
    });
    engine.block.appendChild(page, imageBlock);

    // Column 2: Text Editing Only
    const caption2 = engine.block.create('text');
    engine.block.setString(caption2, 'text/text', 'Text Editing');
    engine.block.setFloat(caption2, 'text/fontSize', 32);
    engine.block.setWidth(caption2, 220);
    engine.block.setHeight(caption2, 50);
    engine.block.setPositionX(caption2, 290);
    engine.block.setPositionY(caption2, 30);
    engine.block.appendChild(page, caption2);

    const textBlock = engine.block.create('text');
    engine.block.setString(textBlock, 'text/text', 'Edit Me');
    engine.block.setFloat(textBlock, 'text/fontSize', 72);
    engine.block.setWidth(textBlock, 220);
    engine.block.setHeight(textBlock, 165);
    engine.block.setPositionX(textBlock, 290);
    engine.block.setPositionY(textBlock, 100);
    engine.block.appendChild(page, textBlock);

    // Column 3: Image Replace Only
    const caption3 = engine.block.create('text');
    engine.block.setString(caption3, 'text/text', 'Image Replace');
    engine.block.setFloat(caption3, 'text/fontSize', 32);
    engine.block.setWidth(caption3, 220);
    engine.block.setHeight(caption3, 50);
    engine.block.setPositionX(caption3, 550);
    engine.block.setPositionY(caption3, 30);
    engine.block.appendChild(page, caption3);

    const placeholderBlock = await engine.block.addImage(imageUri, {
      x: 550,
      y: 100,
      size: { width: 220, height: 165 }
    });
    engine.block.appendChild(page, placeholderBlock);

    // Lock the entire design by setting all scopes to Deny
    const scopes = engine.editor.findAllScopes();
    for (const scope of scopes) {
      engine.editor.setGlobalScope(scope, 'Deny');
    }

    // Enable selection for specific blocks
    engine.editor.setGlobalScope('editor/select', 'Defer');
    engine.block.setScopeEnabled(textBlock, 'editor/select', true);
    engine.block.setScopeEnabled(placeholderBlock, 'editor/select', true);

    // Enable text editing on the text block
    engine.editor.setGlobalScope('text/edit', 'Defer');
    engine.editor.setGlobalScope('text/character', 'Defer');
    engine.block.setScopeEnabled(textBlock, 'text/edit', true);
    engine.block.setScopeEnabled(textBlock, 'text/character', true);

    // Enable image replacement on the placeholder block
    engine.editor.setGlobalScope('fill/change', 'Defer');
    engine.block.setScopeEnabled(placeholderBlock, 'fill/change', true);

    // Check if operations are permitted on blocks
    const canEditText = engine.block.isAllowedByScope(textBlock, 'text/edit');
    const canMoveImage = engine.block.isAllowedByScope(imageBlock, 'layer/move');
    const canReplacePlaceholder = engine.block.isAllowedByScope(
      placeholderBlock,
      'fill/change'
    );

    console.log('Permission status:');
    console.log('- Can edit text:', canEditText); // true
    console.log('- Can move locked image:', canMoveImage); // false
    console.log('- Can replace placeholder:', canReplacePlaceholder); // true

    // Discover all available scopes
    const allScopes: Scope[] = engine.editor.findAllScopes();
    console.log('Available scopes:', allScopes);

    // Check global scope settings
    const textEditGlobal = engine.editor.getGlobalScope('text/edit');
    const layerMoveGlobal = engine.editor.getGlobalScope('layer/move');
    console.log('Global text/edit:', textEditGlobal); // 'Defer'
    console.log('Global layer/move:', layerMoveGlobal); // 'Deny'

    // Check block-level scope settings
    const textEditEnabled = engine.block.isScopeEnabled(textBlock, 'text/edit');
    console.log('Text block text/edit enabled:', textEditEnabled); // true

    // Select the text block to demonstrate editability
    engine.block.select(textBlock);
  }
}

export default LockDesign;

This guide covers how to lock entire designs, selectively enable specific editing capabilities, and check permissions programmatically.

Understanding the Scope Permission Model#

Scopes control what operations users can perform on design elements. CE.SDK combines global scope settings with block-level settings to determine the final permission.

Global Scope	Block Scope	Result
`Allow`	any	Permitted
`Deny`	any	Blocked
`Defer`	enabled	Permitted
`Defer`	disabled	Blocked

Global scopes have three possible values:

Allow: The operation is always permitted, regardless of block-level settings
Deny: The operation is always blocked, regardless of block-level settings
Defer: The permission depends on the block-level scope setting

Block-level scopes are binary: enabled or disabled. They only take effect when the global scope is set to Defer.

Locking an Entire Design#

To lock all editing operations, iterate through all available scopes and set each to Deny. We use engine.editor.findAllScopes() to discover all scope names dynamically.

// Lock the entire design by setting all scopes to Deny
const scopes = engine.editor.findAllScopes();
for (const scope of scopes) {
  engine.editor.setGlobalScope(scope, 'Deny');
}

When all scopes are set to Deny, users cannot modify any aspect of the design. This includes selecting, moving, editing text, or changing any visual properties.

Enabling Selection for Interactive Blocks#

Before users can interact with any block, you must enable the editor/select scope. Without selection, users cannot click on or access any blocks, even if other editing capabilities are enabled.

// Enable selection for specific blocks
engine.editor.setGlobalScope('editor/select', 'Defer');
engine.block.setScopeEnabled(textBlock, 'editor/select', true);
engine.block.setScopeEnabled(placeholderBlock, 'editor/select', true);

Setting the global editor/select scope to Defer delegates the decision to each block. We then enable selection only on the specific blocks users should be able to interact with.

Selective Locking Patterns#

Lock everything first, then selectively enable specific capabilities on chosen blocks. This pattern provides fine-grained control over what users can modify.

Text-Only Editing#

To allow users to edit text content while protecting everything else, enable the text/edit scope. For text styling changes like font, size, and color, also enable text/character.

// Enable text editing on the text block
engine.editor.setGlobalScope('text/edit', 'Defer');
engine.editor.setGlobalScope('text/character', 'Defer');
engine.block.setScopeEnabled(textBlock, 'text/edit', true);
engine.block.setScopeEnabled(textBlock, 'text/character', true);

Users can now type new text content in the designated text block but cannot move, resize, or delete it.

Image Replacement#

To allow users to swap images while protecting layout and position, enable the fill/change scope on placeholder blocks.

// Enable image replacement on the placeholder block
engine.editor.setGlobalScope('fill/change', 'Defer');
engine.block.setScopeEnabled(placeholderBlock, 'fill/change', true);

Users can replace the image content but the block’s position, dimensions, and other properties remain locked.

Checking Permissions#

Verify whether operations are permitted using engine.block.isAllowedByScope(). This method evaluates both global and block-level settings to return the effective permission state.

// Check if operations are permitted on blocks
const canEditText = engine.block.isAllowedByScope(textBlock, 'text/edit');
const canMoveImage = engine.block.isAllowedByScope(imageBlock, 'layer/move');
const canReplacePlaceholder = engine.block.isAllowedByScope(
  placeholderBlock,
  'fill/change'
);

console.log('Permission status:');
console.log('- Can edit text:', canEditText); // true
console.log('- Can move locked image:', canMoveImage); // false
console.log('- Can replace placeholder:', canReplacePlaceholder); // true

The distinction between checking methods is:

isAllowedByScope() returns the effective permission after evaluating all scope levels
isScopeEnabled() returns only the block-level setting
getGlobalScope() returns only the global setting

Discovering Available Scopes#

To work with scopes programmatically, you can discover all available scope names and check their current settings.

// Discover all available scopes
const allScopes: Scope[] = engine.editor.findAllScopes();
console.log('Available scopes:', allScopes);

// Check global scope settings
const textEditGlobal = engine.editor.getGlobalScope('text/edit');
const layerMoveGlobal = engine.editor.getGlobalScope('layer/move');
console.log('Global text/edit:', textEditGlobal); // 'Defer'
console.log('Global layer/move:', layerMoveGlobal); // 'Deny'

// Check block-level scope settings
const textEditEnabled = engine.block.isScopeEnabled(textBlock, 'text/edit');
console.log('Text block text/edit enabled:', textEditEnabled); // true

Available Scopes Reference#

Scope	Description
`layer/move`	Move block position
`layer/resize`	Resize block dimensions
`layer/rotate`	Rotate block
`layer/flip`	Flip block horizontally or vertically
`layer/crop`	Crop block content
`layer/opacity`	Change block opacity
`layer/blendMode`	Change blend mode
`layer/visibility`	Toggle block visibility
`layer/clipping`	Change clipping behavior
`fill/change`	Change fill content
`fill/changeType`	Change fill type
`stroke/change`	Change stroke properties
`shape/change`	Change shape type
`text/edit`	Edit text content
`text/character`	Change text styling (font, size, color)
`appearance/adjustments`	Change color adjustments
`appearance/filter`	Apply or change filters
`appearance/effect`	Apply or change effects
`appearance/blur`	Apply or change blur
`appearance/shadow`	Apply or change shadows
`appearance/animation`	Apply or change animations
`lifecycle/destroy`	Delete the block
`lifecycle/duplicate`	Duplicate the block
`editor/add`	Add new blocks
`editor/select`	Select blocks
