Text Effects - Angular

Add visual depth and interest to text blocks using drop shadows and stroke outlines.

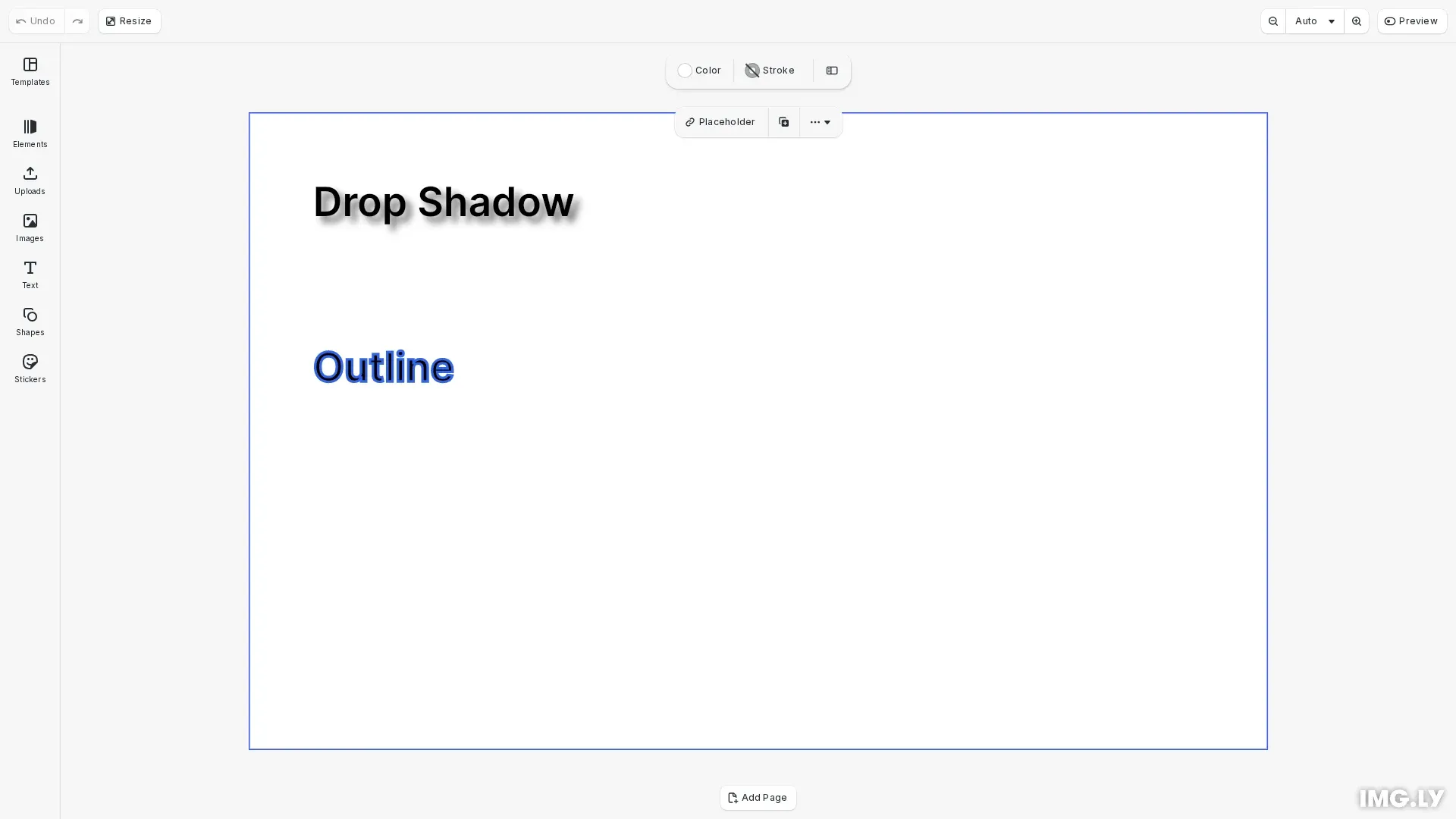

Text Effects example showing text blocks with drop shadow and stroke outline

5 mins

estimated time

Text effects in CE.SDK include drop shadows for depth and stroke outlines for text borders. These visual effects are distinct from text styling properties like colors, fonts, and backgrounds.

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';
import packageJson from './package.json';

/**
 * CE.SDK Plugin: Text Effects Guide
 *
 * Demonstrates applying visual effects to text blocks:
 * - Drop shadows for depth
 * - Outline effect for text borders
 * - Glow effect for luminous aura
 */
class Example implements EditorPlugin {
  name = packageJson.name;

  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    // Initialize CE.SDK with Design mode and load asset sources
    await cesdk.addDefaultAssetSources();
    await cesdk.addDemoAssetSources({
      sceneMode: 'Design',
      withUploadAssetSources: true
    });
    await cesdk.createDesignScene();

    const engine = cesdk.engine;
    const page = engine.block.findByType('page')[0];

    // Set page dimensions
    engine.block.setWidth(page, 800);
    engine.block.setHeight(page, 500);

    // Create a text block with drop shadow
    const shadowText = engine.block.create('//ly.img.ubq/text');
    engine.block.replaceText(shadowText, 'Drop Shadow');
    engine.block.setTextFontSize(shadowText, 90);
    engine.block.setWidthMode(shadowText, 'Auto');
    engine.block.setHeightMode(shadowText, 'Auto');
    engine.block.setPositionX(shadowText, 50);
    engine.block.setPositionY(shadowText, 50);
    engine.block.appendChild(page, shadowText);

    // Enable and configure drop shadow
    engine.block.setDropShadowEnabled(shadowText, true);
    engine.block.setDropShadowColor(shadowText, {
      r: 0,
      g: 0,
      b: 0,
      a: 0.6
    });
    engine.block.setDropShadowOffsetX(shadowText, 5);
    engine.block.setDropShadowOffsetY(shadowText, 5);
    engine.block.setDropShadowBlurRadiusX(shadowText, 10);
    engine.block.setDropShadowBlurRadiusY(shadowText, 10);

    // Create a text block with stroke outline
    const outlineText = engine.block.create('//ly.img.ubq/text');
    engine.block.replaceText(outlineText, 'Outline');
    engine.block.setTextFontSize(outlineText, 90);
    engine.block.setWidthMode(outlineText, 'Auto');
    engine.block.setHeightMode(outlineText, 'Auto');
    engine.block.setPositionX(outlineText, 50);
    engine.block.setPositionY(outlineText, 180);
    engine.block.appendChild(page, outlineText);

    // Enable and configure stroke
    engine.block.setStrokeEnabled(outlineText, true);
    engine.block.setStrokeWidth(outlineText, 2);
    engine.block.setStrokeColor(outlineText, {
      r: 0.2,
      g: 0.4,
      b: 0.9,
      a: 1.0
    });
    engine.block.setStrokeStyle(outlineText, 'Solid');
    engine.block.setStrokePosition(outlineText, 'Center');

    // Select the first text block
    engine.block.select(shadowText);
  }
}

export default Example;

This guide covers how to apply drop shadows and stroke outlines to text blocks programmatically using the Block API.

Drop Shadows#

Drop shadows add depth and emphasis to text. CE.SDK provides dedicated APIs for configuring shadow properties on text blocks.

// Create a text block with drop shadow
const shadowText = engine.block.create('//ly.img.ubq/text');
engine.block.replaceText(shadowText, 'Drop Shadow');
engine.block.setTextFontSize(shadowText, 90);
engine.block.setWidthMode(shadowText, 'Auto');
engine.block.setHeightMode(shadowText, 'Auto');
engine.block.setPositionX(shadowText, 50);
engine.block.setPositionY(shadowText, 50);
engine.block.appendChild(page, shadowText);

// Enable and configure drop shadow
engine.block.setDropShadowEnabled(shadowText, true);
engine.block.setDropShadowColor(shadowText, {
  r: 0,
  g: 0,
  b: 0,
  a: 0.6
});
engine.block.setDropShadowOffsetX(shadowText, 5);
engine.block.setDropShadowOffsetY(shadowText, 5);
engine.block.setDropShadowBlurRadiusX(shadowText, 10);
engine.block.setDropShadowBlurRadiusY(shadowText, 10);

The drop shadow API provides control over color, position, and blur. The offset values position the shadow relative to the text, while the blur radius controls shadow softness. Horizontal and vertical blur can be configured independently for asymmetric effects.

Stroke Outlines#

Stroke outlines add a colored border around text. We enable stroke with setStrokeEnabled(), then configure width, color, style, and position.

// Create a text block with stroke outline
const outlineText = engine.block.create('//ly.img.ubq/text');
engine.block.replaceText(outlineText, 'Outline');
engine.block.setTextFontSize(outlineText, 90);
engine.block.setWidthMode(outlineText, 'Auto');
engine.block.setHeightMode(outlineText, 'Auto');
engine.block.setPositionX(outlineText, 50);
engine.block.setPositionY(outlineText, 180);
engine.block.appendChild(page, outlineText);

// Enable and configure stroke
engine.block.setStrokeEnabled(outlineText, true);
engine.block.setStrokeWidth(outlineText, 2);
engine.block.setStrokeColor(outlineText, {
  r: 0.2,
  g: 0.4,
  b: 0.9,
  a: 1.0
});
engine.block.setStrokeStyle(outlineText, 'Solid');
engine.block.setStrokePosition(outlineText, 'Center');

The stroke width is specified in pixels. Text blocks use centered stroke positioning. Stroke styles include 'Solid', 'Dashed', 'Dotted', and other line patterns.

API Reference#

Method	Purpose
`engine.block.supportsDropShadow()`	Check if block supports drop shadows
`engine.block.setDropShadowEnabled()`	Enable or disable drop shadow
`engine.block.setDropShadowColor()`	Set shadow color
`engine.block.setDropShadowOffsetX()`	Set horizontal shadow offset
`engine.block.setDropShadowOffsetY()`	Set vertical shadow offset
`engine.block.setDropShadowBlurRadiusX()`	Set horizontal blur radius
`engine.block.setDropShadowBlurRadiusY()`	Set vertical blur radius
`engine.block.setStrokeEnabled()`	Enable or disable stroke
`engine.block.setStrokeWidth()`	Set stroke width in pixels
`engine.block.setStrokeColor()`	Set stroke color
`engine.block.setStrokeStyle()`	Set stroke style (Solid, Dashed, etc.)

Troubleshooting#

Drop shadow not visible: Ensure setDropShadowEnabled() is called after configuring properties. Verify supportsDropShadow() returns true for the block.

Stroke not visible: Ensure setStrokeEnabled() is called with true and stroke width is greater than 0.

Stroke too thick or thin: Adjust the value passed to setStrokeWidth() to control outline thickness.
