Pages define the format of your designs—every graphic block, text element, and media file lives inside a page. This guide covers how pages fit into the scene hierarchy, their properties like margins and title templates, and how to configure page dimensions for different layout modes.

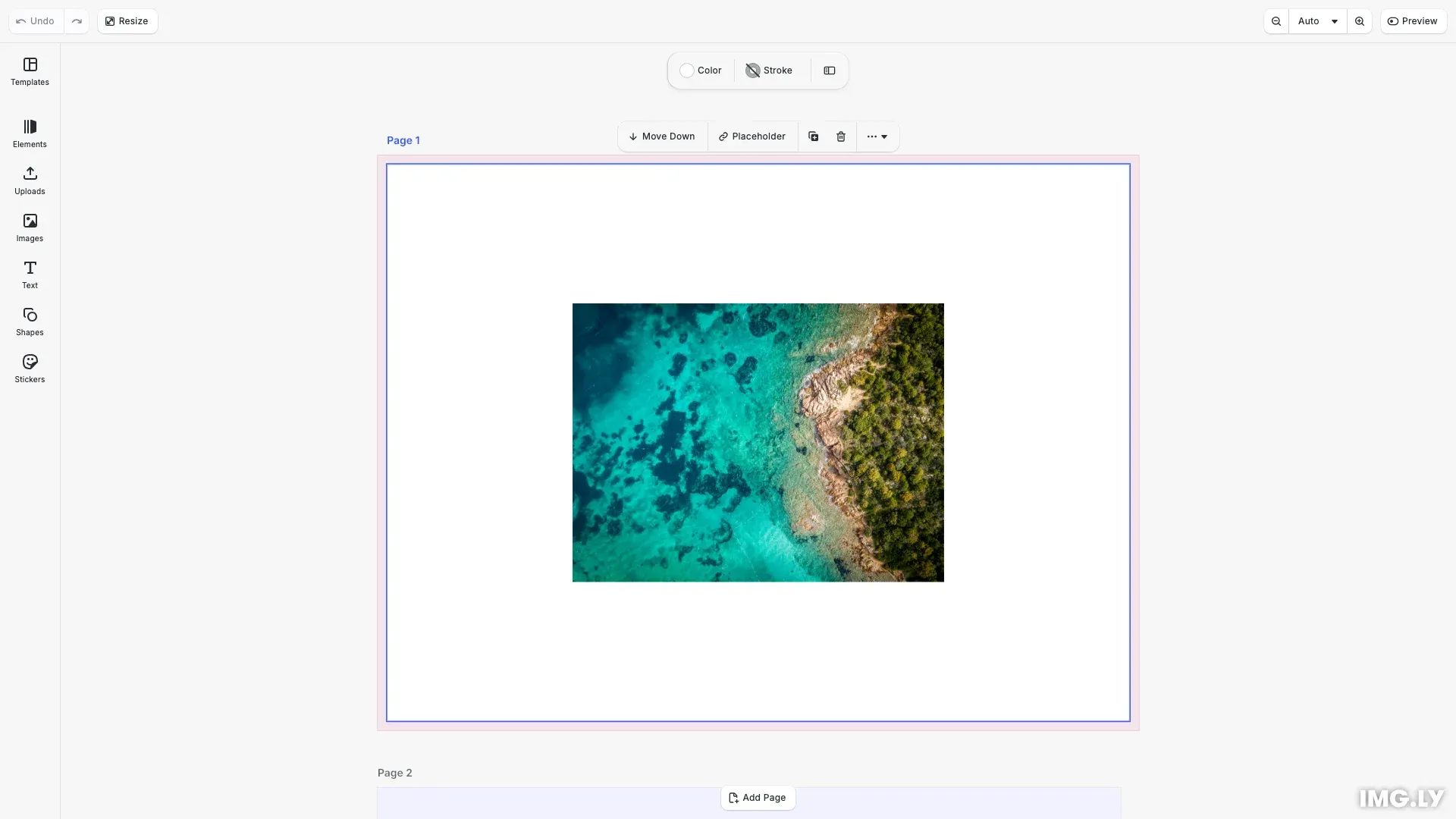

CE.SDK Pages Hero Image

10 mins

estimated time

Download

StackBlitz

GitHub

Pages provide the canvas and frame for your designs. Whether you’re building a multi-page document, a social media carousel, or a video composition, understanding how pages work will help you with structuring your content correctly.

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';
import packageJson from './package.json';

/**
 * CE.SDK Plugin: Pages Guide
 *
 * Demonstrates working with pages in CE.SDK:
 * - Understanding the scene hierarchy (Scene → Pages → Blocks)
 * - Creating and managing multiple pages
 * - Setting page dimensions at the scene level
 * - Configuring page properties (margins, title templates, fills)
 * - Navigating between pages
 */
class Example implements EditorPlugin {
  name = packageJson.name;

  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    // Initialize CE.SDK with Design mode
    await cesdk.addDefaultAssetSources();
    await cesdk.addDemoAssetSources({
      sceneMode: 'Design',
      withUploadAssetSources: true
    });

    const engine = cesdk.engine;

    // Create a scene with VerticalStack layout for multi-page designs
    engine.scene.create('VerticalStack');

    // Get the stack container to configure spacing
    const [stack] = engine.block.findByType('stack');
    engine.block.setFloat(stack, 'stack/spacing', 20);
    engine.block.setBool(stack, 'stack/spacingInScreenspace', true);

    // Get the scene to set page dimensions
    const scene = engine.scene.get();
    if (scene === null) {
      throw new Error('No scene available');
    }

    // Set page dimensions at the scene level (all pages share these dimensions)
    engine.block.setFloat(scene, 'scene/pageDimensions/width', 800);
    engine.block.setFloat(scene, 'scene/pageDimensions/height', 600);

    // Create the first page and set its dimensions
    const firstPage = engine.block.create('page');
    engine.block.setWidth(firstPage, 800);
    engine.block.setHeight(firstPage, 600);
    engine.block.appendChild(stack, firstPage);

    // Create the second page with the same dimensions
    const secondPage = engine.block.create('page');
    engine.block.setWidth(secondPage, 800);
    engine.block.setHeight(secondPage, 600);
    engine.block.appendChild(stack, secondPage);

    // Add an image block to the first page
    const imageBlock = engine.block.create('graphic');
    engine.block.appendChild(firstPage, imageBlock);

    // Create a rect shape for the graphic block
    const rectShape = engine.block.createShape('rect');
    engine.block.setShape(imageBlock, rectShape);

    // Configure size and position after appending to the page
    engine.block.setWidth(imageBlock, 400);
    engine.block.setHeight(imageBlock, 300);
    engine.block.setPositionX(imageBlock, 200);
    engine.block.setPositionY(imageBlock, 150);

    // Create and configure the image fill
    const imageFill = engine.block.createFill('image');
    engine.block.setString(
      imageFill,
      'fill/image/imageFileURI',
      'https://img.ly/static/ubq_samples/sample_1.jpg'
    );
    engine.block.setFill(imageBlock, imageFill);

    // Add a text block to the second page
    const textBlock = engine.block.create('text');
    engine.block.appendChild(secondPage, textBlock);

    // Configure text properties after appending to the page
    engine.block.replaceText(textBlock, 'Page 2');
    engine.block.setTextFontSize(textBlock, 48);
    engine.block.setTextColor(textBlock, { r: 0.2, g: 0.2, b: 0.2, a: 1.0 });
    engine.block.setEnum(textBlock, 'text/horizontalAlignment', 'Center');
    engine.block.setWidthMode(textBlock, 'Auto');
    engine.block.setHeightMode(textBlock, 'Auto');

    // Center the text on the page
    const textWidth = engine.block.getFrameWidth(textBlock);
    const textHeight = engine.block.getFrameHeight(textBlock);
    engine.block.setPositionX(textBlock, (800 - textWidth) / 2);
    engine.block.setPositionY(textBlock, (600 - textHeight) / 2);

    // Configure page properties on the first page
    // Enable and set margins for print bleed
    engine.block.setBool(firstPage, 'page/marginEnabled', true);
    engine.block.setFloat(firstPage, 'page/margin/top', 10);
    engine.block.setFloat(firstPage, 'page/margin/bottom', 10);
    engine.block.setFloat(firstPage, 'page/margin/left', 10);
    engine.block.setFloat(firstPage, 'page/margin/right', 10);

    // Set a custom title template for the first page
    engine.block.setString(firstPage, 'page/titleTemplate', 'Cover');

    // Set a custom title template for the second page
    engine.block.setString(secondPage, 'page/titleTemplate', 'Content');

    // Set a background fill on the second page
    const colorFill = engine.block.createFill('color');
    engine.block.setColor(colorFill, 'fill/color/value', {
      r: 0.95,
      g: 0.95,
      b: 1.0,
      a: 1.0
    });
    engine.block.setFill(secondPage, colorFill);

    // Demonstrate finding pages
    const allPages = engine.scene.getPages();
    console.log('All pages:', allPages);
    console.log('Number of pages:', allPages.length);

    // Get the current page (nearest to viewport center or containing selection)
    const currentPage = engine.scene.getCurrentPage();
    console.log('Current page:', currentPage);

    // Alternative: Find pages using block API
    const pagesByType = engine.block.findByType('page');
    console.log('Pages found by type:', pagesByType);

    // Check the scene mode (Design vs Video)
    const sceneMode = engine.scene.getMode();
    console.log('Scene mode:', sceneMode);

    // Select the first page and zoom to fit
    engine.block.select(firstPage);
    engine.scene.enableZoomAutoFit(firstPage, 'Both');

    console.log('Pages guide initialized with a 2-page design.');
  }
}

export default Example;

This guide covers:

Understanding the scene hierarchy: Scene → Pages → Blocks
Creating and managing multiple pages
Setting page dimensions at the scene level
Configuring page properties like margins and title templates
Navigating between pages programmatically

Pages in the Scene Hierarchy#

In CE.SDK, content follows a strict hierarchy: a scene contains pages, and pages contain content blocks. Only blocks attached to a page are rendered on the canvas.

// Create a scene with VerticalStack layout for multi-page designs
engine.scene.create('VerticalStack');

// Get the stack container to configure spacing
const [stack] = engine.block.findByType('stack');
engine.block.setFloat(stack, 'stack/spacing', 20);
engine.block.setBool(stack, 'stack/spacingInScreenspace', true);

When you create a scene with a layout mode like VerticalStack, pages are automatically arranged according to that mode. Create pages using engine.block.create('page'), set their dimensions with setWidth() and setHeight(), then attach them to the scene (or its stack container) with engine.block.appendChild().

// Create the first page and set its dimensions
const firstPage = engine.block.create('page');
engine.block.setWidth(firstPage, 800);
engine.block.setHeight(firstPage, 600);
engine.block.appendChild(stack, firstPage);

// Create the second page with the same dimensions
const secondPage = engine.block.create('page');
engine.block.setWidth(secondPage, 800);
engine.block.setHeight(secondPage, 600);
engine.block.appendChild(stack, secondPage);

Content blocks must be added as children of a page to render. For graphic blocks, set both a shape and a fill for content to display. Append blocks to the page before configuring their properties.

// Add an image block to the first page
const imageBlock = engine.block.create('graphic');
engine.block.appendChild(firstPage, imageBlock);

// Create a rect shape for the graphic block
const rectShape = engine.block.createShape('rect');
engine.block.setShape(imageBlock, rectShape);

// Configure size and position after appending to the page
engine.block.setWidth(imageBlock, 400);
engine.block.setHeight(imageBlock, 300);
engine.block.setPositionX(imageBlock, 200);
engine.block.setPositionY(imageBlock, 150);

// Create and configure the image fill
const imageFill = engine.block.createFill('image');
engine.block.setString(
  imageFill,
  'fill/image/imageFileURI',
  'https://img.ly/static/ubq_samples/sample_1.jpg'
);
engine.block.setFill(imageBlock, imageFill);

// Add a text block to the second page
const textBlock = engine.block.create('text');
engine.block.appendChild(secondPage, textBlock);

// Configure text properties after appending to the page
engine.block.replaceText(textBlock, 'Page 2');
engine.block.setTextFontSize(textBlock, 48);
engine.block.setTextColor(textBlock, { r: 0.2, g: 0.2, b: 0.2, a: 1.0 });
engine.block.setEnum(textBlock, 'text/horizontalAlignment', 'Center');
engine.block.setWidthMode(textBlock, 'Auto');
engine.block.setHeightMode(textBlock, 'Auto');

// Center the text on the page
const textWidth = engine.block.getFrameWidth(textBlock);
const textHeight = engine.block.getFrameHeight(textBlock);
engine.block.setPositionX(textBlock, (800 - textWidth) / 2);
engine.block.setPositionY(textBlock, (600 - textHeight) / 2);

Page Dimensions and Consistency#

The CE.SDK engine supports pages with different dimensions. When using stacked layout modes (VerticalStack, HorizontalStack), the Editor UI expects all pages to share the same size. However, with the Free layout mode, you can set different dimensions for each page in the UI.

// Get the scene to set page dimensions
const scene = engine.scene.get();
if (scene === null) {
  throw new Error('No scene available');
}

// Set page dimensions at the scene level (all pages share these dimensions)
engine.block.setFloat(scene, 'scene/pageDimensions/width', 800);
engine.block.setFloat(scene, 'scene/pageDimensions/height', 600);

You can set default page dimensions at the scene level using engine.block.setFloat() with scene/pageDimensions/width and scene/pageDimensions/height. The scene/aspectRatioLock property controls whether changing one dimension automatically adjusts the other. Individual pages can also have their dimensions set directly with setWidth() and setHeight().

Finding and Navigating Pages#

CE.SDK provides several methods to locate and navigate between pages in your scene.

// Demonstrate finding pages
const allPages = engine.scene.getPages();
console.log('All pages:', allPages);
console.log('Number of pages:', allPages.length);

// Get the current page (nearest to viewport center or containing selection)
const currentPage = engine.scene.getCurrentPage();
console.log('Current page:', currentPage);

// Alternative: Find pages using block API
const pagesByType = engine.block.findByType('page');
console.log('Pages found by type:', pagesByType);

Use these methods based on your needs:

engine.scene.getPages() returns all pages in sorted order
engine.scene.getCurrentPage() returns the page containing the current selection, or the page nearest to the viewport center
engine.block.findByType('page') finds all page blocks in the scene
engine.scene.findNearestToViewPortCenterByType('page') returns pages sorted by their distance from the viewport center

Page Properties#

Each page has its own properties that control its appearance and behavior. These are set on the page block itself, not on the scene.

Margins#

Page margins define bleed areas useful for print designs. Enable margins and configure each side individually:

// Configure page properties on the first page
// Enable and set margins for print bleed
engine.block.setBool(firstPage, 'page/marginEnabled', true);
engine.block.setFloat(firstPage, 'page/margin/top', 10);
engine.block.setFloat(firstPage, 'page/margin/bottom', 10);
engine.block.setFloat(firstPage, 'page/margin/left', 10);
engine.block.setFloat(firstPage, 'page/margin/right', 10);

// Set a custom title template for the first page
engine.block.setString(firstPage, 'page/titleTemplate', 'Cover');

// Set a custom title template for the second page
engine.block.setString(secondPage, 'page/titleTemplate', 'Content');

Set page/marginEnabled to true to enable margins, then use page/margin/top, page/margin/bottom, page/margin/left, and page/margin/right to configure each side.

Title Template#

The page/titleTemplate property defines the display label shown for each page. It supports template variables like {{ubq.page_index}} for dynamic numbering.

The default value is "Page {{ubq.page_index}}". You can customize this to show labels like “Slide 1”, “Cover”, or any custom text.

Fill and Background#

Pages support fills for background colors or images using the standard fill system.

// Set a background fill on the second page
const colorFill = engine.block.createFill('color');
engine.block.setColor(colorFill, 'fill/color/value', {
  r: 0.95,
  g: 0.95,
  b: 1.0,
  a: 1.0
});
engine.block.setFill(secondPage, colorFill);

Create a fill using engine.block.createFill('color') or engine.block.createFill('image'), configure its properties, then apply it to the page with engine.block.setFill(page, fill).

Page Layout Modes#

The scene’s layout mode controls how multiple pages are arranged. Set this using engine.block.setEnum() on the scene with the scene/layout property:

VerticalStack (default): Pages stack vertically, one below the other
HorizontalStack: Pages arrange horizontally, side by side
DepthStack: Pages overlay each other, typically used in video mode
Free: Pages can be positioned freely without automatic arrangement

Pages in Design Mode vs. Video Mode#

Page behavior varies depending on the scene mode. Query the current mode with engine.scene.getMode().

// Check the scene mode (Design vs Video)
const sceneMode = engine.scene.getMode();
console.log('Scene mode:', sceneMode);

Design Mode#

In Design mode, pages act like artboards. Each page is a separate canvas ideal for multi-page documents, social media posts, or print layouts. Pages exist side by side and don’t have time-based properties.

Video Mode#

In Video mode, pages represent timeline compositions that transition sequentially during playback. Each page has playback properties:

playback/duration controls how long the page appears (in seconds)
playback/time tracks the current playback position

Troubleshooting#

Content Not Visible#

If content blocks aren’t appearing, check these common causes:

Verify the block is attached to a page with engine.block.appendChild(page, block)
For graphic blocks, ensure both a shape and fill are set
Append blocks to the page before setting their size and position

Dimension Inconsistencies#

If pages appear at unexpected sizes when using stacked layouts, ensure all pages have consistent dimensions. With Free layout mode, pages can have different sizes. Set dimensions on individual pages using setWidth() and setHeight().

Page Not Found#

If engine.scene.getPages() returns an empty array, ensure a scene is loaded first. In headless mode, you must create both the scene and pages manually before querying them.
