Create a Color Palette - Angular

Build custom color palettes that appear in the CE.SDK color picker using sRGB, CMYK, and Spot colors.

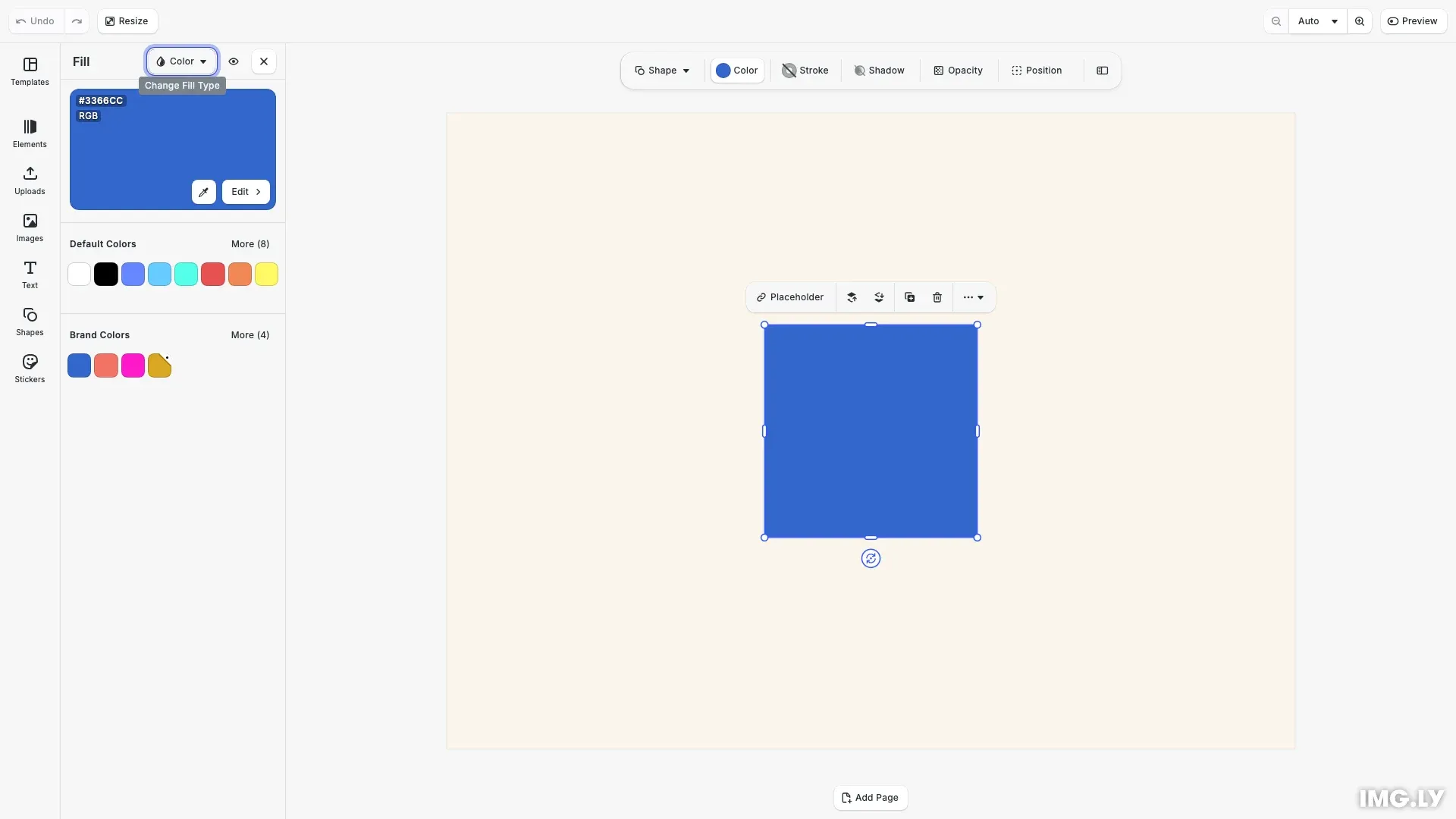

Create a Color Palette example showing custom color library in the color picker

8 mins

estimated time

Color libraries in CE.SDK are implemented as asset sources containing individual colors as assets. Each library has a unique source ID and can include sRGB colors for screen display, CMYK colors for print workflows, and Spot colors for specialized printing applications. You configure which libraries appear in the color picker through the 'ly.img.colors' asset library entry.

import type {
  AssetDefinition,
  EditorPlugin,
  EditorPluginContext
} from '@cesdk/cesdk-js';
import packageJson from './package.json';

// Define color assets for each color space type
const colors: AssetDefinition[] = [
  {
    id: 'brand-blue',
    label: { en: 'Brand Blue' },
    tags: { en: ['brand', 'blue', 'primary'] },
    payload: {
      color: {
        colorSpace: 'sRGB',
        r: 0.2,
        g: 0.4,
        b: 0.8
      }
    }
  },
  {
    id: 'brand-coral',
    label: { en: 'Brand Coral' },
    tags: { en: ['brand', 'coral', 'secondary'] },
    payload: {
      color: {
        colorSpace: 'sRGB',
        r: 0.95,
        g: 0.45,
        b: 0.4
      }
    }
  },
  {
    id: 'print-magenta',
    label: { en: 'Print Magenta' },
    tags: { en: ['print', 'magenta', 'cmyk'] },
    payload: {
      color: {
        colorSpace: 'CMYK',
        c: 0,
        m: 0.9,
        y: 0.2,
        k: 0
      }
    }
  },
  {
    id: 'metallic-gold',
    label: { en: 'Metallic Gold' },
    tags: { en: ['spot', 'metallic', 'gold'] },
    payload: {
      color: {
        colorSpace: 'SpotColor',
        name: 'Metallic Gold Ink',
        externalReference: 'Custom Inks',
        representation: {
          colorSpace: 'sRGB',
          r: 0.85,
          g: 0.65,
          b: 0.13
        }
      }
    }
  }
];

class Example implements EditorPlugin {
  name = packageJson.name;
  version = packageJson.version;

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }

    const engine = cesdk.engine;

    // Set labels for the color library using i18n
    cesdk.i18n.setTranslations({
      en: {
        'libraries.my-brand-colors.label': 'Brand Colors'
      }
    });

    await cesdk.addDefaultAssetSources();
    await cesdk.addDemoAssetSources({
      sceneMode: 'Design',
      withUploadAssetSources: true
    });

    // Create a local asset source for the color library
    engine.asset.addLocalSource('my-brand-colors');

    // Add all color assets to the source
    for (const color of colors) {
      engine.asset.addAssetToSource('my-brand-colors', color);
    }

    // Configure the color picker to display the custom library
    cesdk.ui.updateAssetLibraryEntry('ly.img.colors', {
      sourceIds: ['ly.img.colors.defaultPalette', 'my-brand-colors']
    });

    await cesdk.createDesignScene();

    // Set up the page with dimensions
    const page = engine.block.findByType('page')[0];
    engine.block.setWidth(page, 800);
    engine.block.setHeight(page, 600);

    // Apply a soft cream background to the page fill
    // This complements the Brand Blue rectangle
    const pageFill = engine.block.getFill(page);
    engine.block.setColor(pageFill, 'fill/color/value', {
      r: 0.98,
      g: 0.96,
      b: 0.92,
      a: 1.0
    });

    // Create a graphic block with Brand Blue from the custom palette
    const block = engine.block.create('//ly.img.ubq/graphic');
    engine.block.setShape(
      block,
      engine.block.createShape('//ly.img.ubq/shape/rect')
    );
    const fill = engine.block.createFill('//ly.img.ubq/fill/color');
    // Use Brand Blue from our custom palette
    engine.block.setColor(fill, 'fill/color/value', {
      r: 0.2,
      g: 0.4,
      b: 0.8,
      a: 1.0
    });
    engine.block.setFill(block, fill);
    engine.block.setWidth(block, 200);
    engine.block.setHeight(block, 200);

    // Center the block on the page
    const pageWidth = engine.block.getWidth(page);
    const pageHeight = engine.block.getHeight(page);
    engine.block.setPositionX(block, (pageWidth - 200) / 2);
    engine.block.setPositionY(block, (pageHeight - 200) / 2);
    engine.block.appendChild(page, block);

    // Select the block and open the fill inspector to show the color picker
    engine.block.select(block);
    cesdk.ui.openPanel('//ly.img.panel/inspector/fill');

    console.log('Create Color Palette example loaded successfully');
  }
}

export default Example;

This guide covers how to define colors in different color spaces, create and configure color libraries, set custom labels, and control the display order in the color picker.

Defining Color Assets#

Colors are added to libraries as AssetDefinition objects. Each color asset has an id, optional label and tags for display and search, and a payload.color property containing the color data. The color type determines which color space is used.

sRGB Colors#

sRGB colors use the AssetRGBColor type with colorSpace: 'sRGB' and r, g, b components as floats from 0.0 to 1.0. Use sRGB colors for screen-based designs and web content.

// Define color assets for each color space type
const colors: AssetDefinition[] = [
  {
    id: 'brand-blue',
    label: { en: 'Brand Blue' },
    tags: { en: ['brand', 'blue', 'primary'] },
    payload: {
      color: {
        colorSpace: 'sRGB',
        r: 0.2,
        g: 0.4,
        b: 0.8
      }
    }
  },
  {
    id: 'brand-coral',
    label: { en: 'Brand Coral' },
    tags: { en: ['brand', 'coral', 'secondary'] },
    payload: {
      color: {
        colorSpace: 'sRGB',
        r: 0.95,
        g: 0.45,
        b: 0.4
      }
    }
  },
  {
    id: 'print-magenta',
    label: { en: 'Print Magenta' },
    tags: { en: ['print', 'magenta', 'cmyk'] },
    payload: {
      color: {
        colorSpace: 'CMYK',
        c: 0,
        m: 0.9,
        y: 0.2,
        k: 0
      }
    }
  },
  {
    id: 'metallic-gold',
    label: { en: 'Metallic Gold' },
    tags: { en: ['spot', 'metallic', 'gold'] },
    payload: {
      color: {
        colorSpace: 'SpotColor',
        name: 'Metallic Gold Ink',
        externalReference: 'Custom Inks',
        representation: {
          colorSpace: 'sRGB',
          r: 0.85,
          g: 0.65,
          b: 0.13
        }
      }
    }
  }
];

The example defines four colors demonstrating different color spaces. The first two colors—“Brand Blue” and “Brand Coral”—use sRGB for screen display.

CMYK Colors#

CMYK colors use the AssetCMYKColor type with colorSpace: 'CMYK' and c, m, y, k components as floats from 0.0 to 1.0. Use CMYK colors for print workflows where color accuracy in printing is critical.

The “Print Magenta” color in the example demonstrates the CMYK color space with cyan at 0, magenta at 0.9, yellow at 0.2, and black at 0.

Spot Colors#

Spot colors use the AssetSpotColor type with colorSpace: 'SpotColor', a name that identifies the spot color, an externalReference indicating the color book or ink system, and a representation using sRGB or CMYK for screen preview.

The “Metallic Gold” color demonstrates the spot color format, using a custom ink reference with an sRGB representation for on-screen preview.

Creating a Color Library#

We create a local asset source using engine.asset.addLocalSource() with a unique source ID. Then we add each color asset using engine.asset.addAssetToSource().

// Create a local asset source for the color library
engine.asset.addLocalSource('my-brand-colors');

// Add all color assets to the source
for (const color of colors) {
  engine.asset.addAssetToSource('my-brand-colors', color);
}

The source ID 'my-brand-colors' identifies this library throughout the application. You can create multiple libraries with different source IDs to organize colors by purpose—for example, separate libraries for brand colors, print colors, and seasonal palettes.

Configuring Library Labels#

We set display labels for color libraries using cesdk.i18n.setTranslations(). Labels use the pattern libraries.<source-id>.label where <source-id> matches the ID used when creating the source.

// Set labels for the color library using i18n
cesdk.i18n.setTranslations({
  en: {
    'libraries.my-brand-colors.label': 'Brand Colors'
  }
});

The label “Brand Colors” appears as the section header in the color picker. You can provide translations for multiple locales by adding additional language keys to the translations object.

Configuring the Color Picker#

We control which libraries appear in the color picker and their display order using cesdk.ui.updateAssetLibraryEntry(). The sourceIds array determines both visibility and order—libraries appear in the picker in the same order as the array.

// Configure the color picker to display the custom library
cesdk.ui.updateAssetLibraryEntry('ly.img.colors', {
  sourceIds: ['ly.img.colors.defaultPalette', 'my-brand-colors']
});

The special source ID 'ly.img.colors.defaultPalette' represents CE.SDK’s built-in default color palette. Include it in the array to show the default colors alongside your custom library. Remove it from the array to hide the default palette entirely.

Removing Colors#

You can remove individual colors from a library using engine.asset.removeAssetFromSource() with the source ID and the color’s asset ID.

engine.asset.removeAssetFromSource('my-brand-colors', 'brand-blue');

This removes the color from the library immediately. The color picker updates to reflect the change the next time it renders.

Troubleshooting#

Colors Not Appearing in Picker#

If your colors don’t appear in the color picker:

Verify the source ID is included in the sourceIds array passed to updateAssetLibraryEntry()
Check that colors were added using addAssetToSource() with the correct source ID
Ensure the asset source was created with addLocalSource() before adding colors

Label Not Showing#

If the library label doesn’t appear:

Verify the translation key follows the libraries.<source-id>.label pattern exactly
Check that the source ID in the translation key matches the source ID used in addLocalSource()
Ensure setTranslations() was called before the color picker renders

Spot Color Appears Incorrect#

If a spot color displays incorrectly:

Check that the representation property contains a valid sRGB or CMYK color for screen preview
Verify the name property is defined and not empty
Ensure the colorSpace is set to 'SpotColor'

Wrong Library Order#

The order of libraries in the color picker matches the order in the sourceIds array. To change the order:

Reorder the source IDs in the array passed to updateAssetLibraryEntry()
The first source ID appears at the top of the color picker

API Reference#

Method	Description
`engine.asset.addLocalSource(sourceId)`	Create a local asset source for colors
`engine.asset.addAssetToSource(sourceId, asset)`	Add a color asset to a source
`engine.asset.removeAssetFromSource(sourceId, assetId)`	Remove a color asset from a source
`cesdk.ui.updateAssetLibraryEntry(entryId, config)`	Configure color library display order
`cesdk.i18n.setTranslations(translations)`	Set labels for color libraries

Type	Properties	Description
`AssetRGBColor`	`colorSpace`, `r`, `g`, `b`	sRGB color for screen display
`AssetCMYKColor`	`colorSpace`, `c`, `m`, `y`, `k`	CMYK color for print workflows
`AssetSpotColor`	`colorSpace`, `name`, `externalReference`, `representation`	Named spot color for specialized printing
`AssetDefinition`	`id`, `label`, `tags`, `payload`	Color asset structure with metadata
