Emojis

import android.net.Uri
import ly.img.engine.Color
import ly.img.engine.DesignBlockType
import ly.img.engine.Engine
import ly.img.engine.FillType
import ly.img.engine.MimeType
import ly.img.engine.ShapeType
import ly.img.engine.SizeMode
import java.nio.ByteBuffer

suspend fun textWithEmojis(
    engine: Engine,
    appAssetBaseUri: Uri,
): TextWithEmojisResult {
    val originalEmojiFontUri = engine.editor.getSettingString(keypath = "defaultEmojiFontFileUri")
    val originalForceSystemEmojis = engine.editor.getSettingBoolean(keypath = "forceSystemEmojis")

    try {
        val configuredEmojiFontUri = engine.editor.getSettingString(
            keypath = "defaultEmojiFontFileUri",
        )
        val assetBaseUri = engine.editor
            .getSettingString(keypath = "basePath")
            .trimEnd('/')
        val defaultEmojiFontUri = "$assetBaseUri/emoji/NotoColorEmoji.ttf"

        val emojiFontUri = appAssetBaseUri
            .buildUpon()
            .appendPath("emoji")
            .appendPath("NotoColorEmoji.ttf")
            .build()
            .toString()

        engine.editor.setSettingString(
            keypath = "defaultEmojiFontFileUri",
            value = emojiFontUri,
        )

        engine.editor.setSettingBoolean(
            keypath = "forceSystemEmojis",
            value = true,
        )
        val forceSystemEmojis = engine.editor.getSettingBoolean(
            keypath = "forceSystemEmojis",
        )

        val scene = engine.scene.create()

        val page = engine.block.create(DesignBlockType.Page)
        engine.block.setWidth(page, value = 1000F)
        engine.block.setHeight(page, value = 640F)
        engine.block.appendChild(parent = scene, child = page)

        val background = engine.block.create(DesignBlockType.Graphic)
        engine.block.setShape(background, shape = engine.block.createShape(ShapeType.Rect))
        engine.block.setWidth(background, value = 1000F)
        engine.block.setHeight(background, value = 640F)
        engine.block.setFill(background, fill = engine.block.createFill(FillType.Color))
        engine.block.setFillSolidColor(
            block = background,
            color = Color.fromHex("#FFF8FAFC"),
        )
        engine.block.appendChild(parent = page, child = background)

        val primaryText = "Emoji text 🎉✨"
        val emojiTextBlock = engine.block.create(DesignBlockType.Text)
        engine.block.appendChild(parent = page, child = emojiTextBlock)
        engine.block.replaceText(block = emojiTextBlock, text = primaryText)
        engine.block.setTextFontSize(block = emojiTextBlock, fontSize = 16F)
        engine.block.setWidth(block = emojiTextBlock, value = 880F)
        engine.block.setWidthMode(block = emojiTextBlock, mode = SizeMode.ABSOLUTE)
        engine.block.setHeightMode(block = emojiTextBlock, mode = SizeMode.AUTO)
        engine.block.setPositionX(block = emojiTextBlock, value = 60F)
        engine.block.setPositionY(block = emojiTextBlock, value = 64F)

        val emojiExamples = listOf(
            "Single: 😀 🎉",
            "Flags: 🇩🇪 🇺🇸",
            "Family: 👨‍👩‍👧",
            "Tone: 👋🏽 👍🏾",
        )

        emojiExamples.forEachIndexed { index, text ->
            val textBlock = engine.block.create(DesignBlockType.Text)
            engine.block.appendChild(parent = page, child = textBlock)
            engine.block.replaceText(block = textBlock, text = text)
            engine.block.setTextFontSize(block = textBlock, fontSize = 12F)
            engine.block.setWidthMode(block = textBlock, mode = SizeMode.AUTO)
            engine.block.setHeightMode(block = textBlock, mode = SizeMode.AUTO)
            engine.block.setPositionX(block = textBlock, value = 60F)
            engine.block.setPositionY(block = textBlock, value = 190F + index * 72F)
        }

        val pngData = engine.block.export(block = page, mimeType = MimeType.PNG)
        check(pngData.hasRemaining()) { "Text with emojis PNG export is empty." }
        val pngBytes = ByteArray(pngData.remaining())
        pngData.asReadOnlyBuffer().get(pngBytes)

        return TextWithEmojisResult(
            configuredEmojiFontUri = configuredEmojiFontUri,
            defaultEmojiFontUri = defaultEmojiFontUri,
            activeEmojiFontUri = engine.editor.getSettingString(keypath = "defaultEmojiFontFileUri"),
            forceSystemEmojis = forceSystemEmojis,
            primaryText = primaryText,
            emojiExamples = emojiExamples,
            exportedPng = ByteBuffer.wrap(pngBytes).asReadOnlyBuffer(),
        )
    } finally {
        engine.editor.setSettingString(
            keypath = "defaultEmojiFontFileUri",
            value = originalEmojiFontUri,
        )
        engine.editor.setSettingBoolean(
            keypath = "forceSystemEmojis",
            value = originalForceSystemEmojis,
        )
    }
}

import java.nio.ByteBuffer

data class TextWithEmojisResult(
    val configuredEmojiFontUri: String,
    val defaultEmojiFontUri: String,
    val activeEmojiFontUri: String,
    val forceSystemEmojis: Boolean,
    val primaryText: String,
    val emojiExamples: List<String>,
    val exportedPng: ByteBuffer,
)

Configure emoji rendering in CE.SDK text blocks with a dedicated emoji font for consistent display across Android devices.

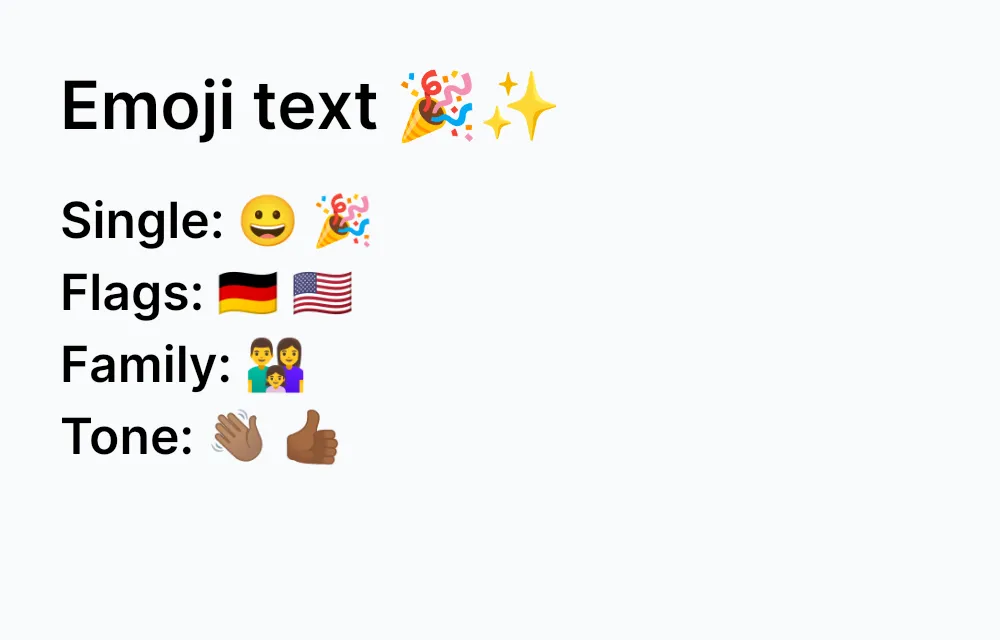

Rendered Android scene with emoji text examples

5 mins

estimated time

GitHub

Emojis are Unicode characters that can be single code points, flag sequences, joined family symbols, or skin tone variants. CE.SDK renders them through the same text engine as other text content, with a configurable emoji font for consistent output.

This guide covers the default emoji font, how to set an emoji font URI, and how to add emoji text programmatically.

Default Emoji Font#

When defaultEmojiFontFileUri is empty, CE.SDK uses Noto Color Emoji from the active asset base URI at emoji/NotoColorEmoji.ttf. Android initializes basePath as file:///android_asset, so the default emoji font URI resolves to file:///android_asset/emoji/NotoColorEmoji.ttf unless your app changes basePath.

Read the configured override with getSettingString(). An empty string means CE.SDK falls back to the default font URI derived from the active asset base.

val configuredEmojiFontUri = engine.editor.getSettingString(
    keypath = "defaultEmojiFontFileUri",
)
val assetBaseUri = engine.editor
    .getSettingString(keypath = "basePath")
    .trimEnd('/')
val defaultEmojiFontUri = "$assetBaseUri/emoji/NotoColorEmoji.ttf"

Configuring the Emoji Font#

Set defaultEmojiFontFileUri when you want to use another emoji font or host the font from a specific location. The URI can point to a reader-owned CDN URL or an Android asset path such as file:///android_asset/emoji/CustomEmoji.ttf.

The sample function receives your app-owned asset base URI as appAssetBaseUri. Point that base URI at a bundled or self-hosted CE.SDK asset directory that contains emoji/NotoColorEmoji.ttf, then derive the font URI from that base:

val emojiFontUri = appAssetBaseUri
    .buildUpon()
    .appendPath("emoji")
    .appendPath("NotoColorEmoji.ttf")
    .build()
    .toString()

engine.editor.setSettingString(
    keypath = "defaultEmojiFontFileUri",
    value = emojiFontUri,
)

Adding Emojis to Text Blocks#

Create a text block with DesignBlockType.Text, attach it to the page, and use replaceText() to insert text that contains emoji characters.

val primaryText = "Emoji text 🎉✨"
val emojiTextBlock = engine.block.create(DesignBlockType.Text)
engine.block.appendChild(parent = page, child = emojiTextBlock)
engine.block.replaceText(block = emojiTextBlock, text = primaryText)
engine.block.setTextFontSize(block = emojiTextBlock, fontSize = 16F)
engine.block.setWidth(block = emojiTextBlock, value = 880F)
engine.block.setWidthMode(block = emojiTextBlock, mode = SizeMode.ABSOLUTE)
engine.block.setHeightMode(block = emojiTextBlock, mode = SizeMode.AUTO)
engine.block.setPositionX(block = emojiTextBlock, value = 60F)
engine.block.setPositionY(block = emojiTextBlock, value = 64F)

CE.SDK handles common emoji forms automatically, including single code points, flag sequences, zero-width-joiner sequences, and skin tone modifiers.

val emojiExamples = listOf(
    "Single: 😀 🎉",
    "Flags: 🇩🇪 🇺🇸",
    "Family: 👨‍👩‍👧",
    "Tone: 👋🏽 👍🏾",
)

emojiExamples.forEachIndexed { index, text ->
    val textBlock = engine.block.create(DesignBlockType.Text)
    engine.block.appendChild(parent = page, child = textBlock)
    engine.block.replaceText(block = textBlock, text = text)
    engine.block.setTextFontSize(block = textBlock, fontSize = 12F)
    engine.block.setWidthMode(block = textBlock, mode = SizeMode.AUTO)
    engine.block.setHeightMode(block = textBlock, mode = SizeMode.AUTO)
    engine.block.setPositionX(block = textBlock, value = 60F)
    engine.block.setPositionY(block = textBlock, value = 190F + index * 72F)
}

The `forceSystemEmojis` Setting#

forceSystemEmojis defaults to true. With this setting enabled, CE.SDK uses the configured emoji font for emoji graphemes even when the current text font contains an emoji glyph. When disabled, CE.SDK only falls back to the emoji font if the active text font cannot render the emoji.

engine.editor.setSettingBoolean(
    keypath = "forceSystemEmojis",
    value = true,
)
val forceSystemEmojis = engine.editor.getSettingBoolean(
    keypath = "forceSystemEmojis",
)

Troubleshooting#

Emojis look different than expected: CE.SDK uses Noto Color Emoji by default. Set defaultEmojiFontFileUri to a different emoji font if your design needs another emoji style.

Missing emojis: Verify that the configured font supports the Unicode emoji sequences your content uses.

Font download is large: The default Noto Color Emoji file is about 9.9 MB. Host it with the rest of your CE.SDK assets or bundle it with your app when startup network cost matters.

Emoji font does not load: Check that the URI is reachable from the Android device and that remote hosts allow font downloads.

API Reference#

API	Category	Purpose
`engine.editor.getSettingString(keypath="basePath")`	Editor	Read the active asset base URI used to derive the standard emoji font URI.
`engine.editor.getSettingString(keypath="defaultEmojiFontFileUri")`	Editor	Read the configured emoji font URI override.
`engine.editor.setSettingString(keypath="defaultEmojiFontFileUri", value=_)`	Editor	Set the emoji font URI override.
`engine.editor.getSettingBoolean(keypath="forceSystemEmojis")`	Editor	Read whether CE.SDK forces emoji graphemes to use the emoji font.
`engine.editor.setSettingBoolean(keypath="forceSystemEmojis", value=_)`	Editor	Configure whether CE.SDK always uses the emoji font for emoji graphemes.
`engine.block.create(blockType=_)`	Block	Create a text block with `DesignBlockType.Text`.
`engine.block.appendChild(parent=_, child=_)`	Block	Attach the text block to the scene hierarchy.
`engine.block.replaceText(block=_, text=_)`	Text	Set text content, including Unicode emoji characters.
`engine.block.setTextFontSize(block=_, fontSize=_)`	Text	Set the font size for the text block.
`engine.block.setWidth(block=_, value=_)`	Layout	Set an explicit text block width.
`engine.block.setWidthMode(block=_, mode=_)`	Layout	Configure how CE.SDK resolves the block width.
`engine.block.setHeightMode(block=_, mode=_)`	Layout	Configure how CE.SDK resolves the block height.
`engine.block.setPositionX(block=_, value=_)`	Layout	Set the block’s horizontal position.
`engine.block.setPositionY(block=_, value=_)`	Layout	Set the block’s vertical position.

Next Steps#

Text Overview - Learn about text editing capabilities in CE.SDK.
Add Text - Insert text blocks into your CE.SDK scene.
