PDF provides a document format for sharing and printing designs. CE.SDK exports PDF files that preserve vector graphics, support multi-page scenes, and include options for print compatibility. You can configure high compatibility mode for consistent rendering across PDF viewers, and generate underlayers for printing on transparent or non-white materials.

This guide covers exporting designs to PDF, configuring high compatibility mode, generating underlayers with spot colors, and controlling output dimensions.

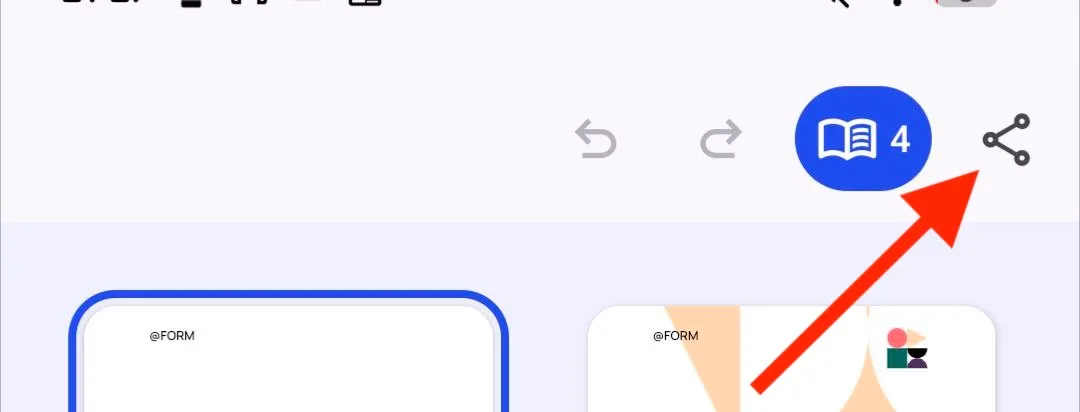

Export to PDF#

Call engine.block.export() with MimeType.PDF to export a block as a PDF document. Pass the scene block from engine.scene.get() to include every page in a multi-page PDF, or pass one page from engine.scene.getCurrentPage() to export a single page.

val pdfData = engine.block.export(
    block = scene,
    mimeType = MimeType.PDF,
)
val defaultPdf = writePdfExport(fileName = "design-pages.pdf", buffer = pdfData)

The Android API returns a ByteBuffer containing the PDF data. Write that buffer to app-specific storage, or hand the file to your app’s share or upload flow.

private suspend fun writePdfExport(
    fileName: String,
    buffer: ByteBuffer,
): File = withContext(Dispatchers.IO) {
    val prefix = fileName.substringBeforeLast(".pdf")
    val source = buffer.asReadOnlyBuffer()
    File.createTempFile(prefix, ".pdf").apply {
        outputStream().use { output ->
            while (source.hasRemaining()) {
                output.channel.write(source)
            }
        }
        check(length() > 0L) { "PDF export was empty." }
    }
}

Configure High Compatibility Mode#

Set exportPdfWithHighCompatibility on ExportOptions to rasterize complex elements like gradients with transparency at the scene’s DPI. This produces more consistent output across PDF viewers, but it can increase file size because complex elements are converted to raster images.

val highCompatibilityOptions = ExportOptions(exportPdfWithHighCompatibility = true)
val highCompatibilityData = engine.block.export(
    block = page,
    mimeType = MimeType.PDF,
    options = highCompatibilityOptions,
)
val highCompatibilityPdf = writePdfExport(
    fileName = "design-high-compatibility.pdf",
    buffer = highCompatibilityData,
)

Use high compatibility mode when:

  • Designs contain gradients with transparency
  • Effects or blend modes render inconsistently across viewers
  • Compatibility matters more than keeping every element vector-based

The flag defaults to true; set it explicitly when you want the export configuration to be visible in your code.

Generate Underlayers for Special Media#

Underlayers provide a base ink layer, typically white, for printing on transparent or non-white substrates like fabric, glass, or acrylic. The underlayer sits behind your design elements and gives the print opacity on the target material.

Define the Underlayer Spot Color#

Before exporting, define a spot color that represents the underlayer ink. The RGB values provide a preview representation in PDF viewers; the spot color name must match the name expected by your print workflow.

engine.editor.setSpotColor(
    name = "UnderlayerWhite",
    Color.fromRGBA(r = 0.8F, g = 0.8F, b = 0.8F),
)

Export with Underlayer Options#

Enable exportPdfWithUnderlayer, then pass the same spot color name in underlayerSpotColorName. Use underlayerOffset to adjust the underlayer size in design units. Negative values shrink the underlayer inward, which helps prevent visible edges from print misalignment.

val underlayerOptions = ExportOptions(
    exportPdfWithHighCompatibility = true,
    exportPdfWithUnderlayer = true,
    underlayerSpotColorName = "UnderlayerWhite",
    underlayerOffset = -2.0F,
)
val underlayerData = engine.block.export(
    block = page,
    mimeType = MimeType.PDF,
    options = underlayerOptions,
)
val underlayerPdf = writePdfExport(fileName = "design-with-underlayer.pdf", buffer = underlayerData)

The underlayer is generated from the contours of visible design elements on the exported page. Elements with transparency produce a proportionally lighter underlayer.

Export at Target Dimensions#

Use targetWidth and targetHeight on ExportOptions to control the exported PDF dimensions in pixels. The block renders large enough to fill the target size while maintaining its aspect ratio.

val a4Options = ExportOptions(targetWidth = 2480F, targetHeight = 3508F)
val a4Data = engine.block.export(
    block = page,
    mimeType = MimeType.PDF,
    options = a4Options,
)
val a4Pdf = writePdfExport(fileName = "design-a4.pdf", buffer = a4Data)

For print output, calculate the target dimensions from your desired DPI:

  • A4 at 300 DPI: 2480 x 3508 pixels
  • Letter at 300 DPI: 2550 x 3300 pixels

PDF Export Options#

mimeType is the second argument to engine.block.export(). The remaining fields below are the PDF-related ExportOptions properties used by this guide and the underlayer controls available on Android.

Option Description
mimeType Output format. Pass MimeType.PDF.
exportPdfWithHighCompatibility Rasterize complex elements at scene DPI for consistent rendering. Defaults to true.
exportPdfWithUnderlayer Generate an underlayer from design contours. Defaults to false.
underlayerSpotColorName Spot color name for the underlayer ink. Required when exportPdfWithUnderlayer is true.
underlayerOffset Size adjustment in design units. Negative values shrink the underlayer inward.
underlayerRenderRatio Resolution multiplier for the raster pass that extracts the underlayer contour. Higher values can preserve small details at higher memory cost. Defaults to 1.0.
underlayerMaxError Maximum curve-fit error in pixels when vectorizing the underlayer contour. Smaller values fit tighter outlines with more path complexity. Defaults to 2.0.
targetWidth Target output width in pixels. Must be used with targetHeight.
targetHeight Target output height in pixels. Must be used with targetWidth.

API Reference#

Method Description
engine.block.export(block=_, mimeType=MimeType.PDF, options=_) Export a block as PDF with format and compatibility options.
engine.editor.setSpotColor(name=_, color=Color.fromRGBA(r=_, g=_, b=_, a=_)) Define or update the RGB approximation of a spot color.
Color.fromRGBA(r=_, g=_, b=_, a=_) Create the RGB preview color for the underlayer spot color.
engine.scene.get() Get the scene block for a multi-page PDF export.
engine.scene.getCurrentPage() Get the current page for a single-page PDF export.
