Rotate

Video rotation features#

• Smooth video rotation with real-time preview
• Orientation correction for mobile-recorded content
• Precise angle control through Kotlin programming
• Multi-video rotation for synchronized editing

Rotating a Video Using the UI#

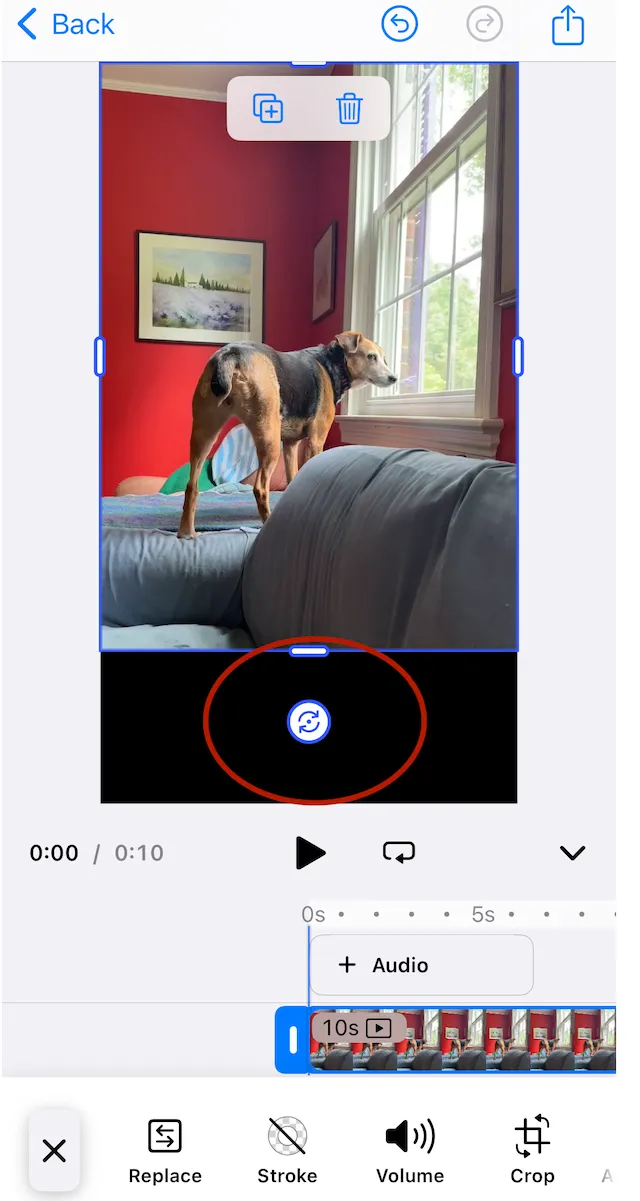

By default, selecting a block will show handles for resizing and rotating. You can freeform rotate a block by dragging the rotation handle.

Rotating a Video Using Code#

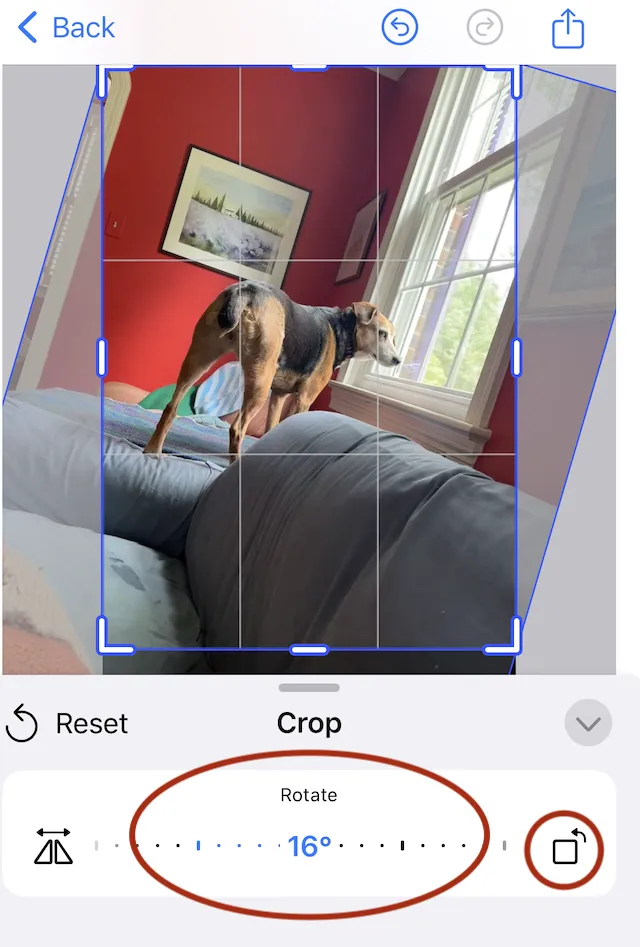

You can rotate a video block using the setRotation function. It takes the id of the block and a rotation amount in radians.

import kotlin.math.PI

engine.block.setRotation(videoBlock, (PI / 4).toFloat())

If you need to convert between radians and degrees, multiply the number in degrees by pi and divide by 180.

val angleInRadians: Float = (angleInDegrees * PI / 180).toFloat()

val angleInDegrees: Float = (angleInRadians * 180 / PI).toFloat()

You can discover the current rotation of a block using the getRotation function.

val rotationOfVideo = engine.block.getRotation(videoBlock)

Locking Rotation#

You can remove the rotation handle from the UI by changing the setting for the engine. This will affect all blocks.

engine.editor.setSettingBoolean("controlGizmo/showRotateHandles", false)

Though the handle is gone, the user can still use the two finger rotation gesture on a touch device. You can disable that gesture with the following setting.

engine.editor.setSettingBoolean("touch/rotateAction", false)

When you want to lock only certain blocks, you can toggle the transform lock property. This will apply to all transformations for the block.

engine.block.setTransformLocked(videoBlock, true)

Rotating As a Group#

To rotate multiple elements together, first add them to a group and then rotate the group.

import kotlin.math.PI

val groupId = engine.block.group(listOf(videoBlock, textBlock))
engine.block.setRotation(groupId, (PI / 2).toFloat())
