The CE.SDK provides a flexible architecture that allows you to extend its capability to meet your specific needs.

This guide demonstrates how to integrate a custom background removal feature using Google ML Kit. You can apply the same approach to implement any custom image processing functionality in your Android app.

What You’ll Learn#

How to extract the current image from the CE.SDK engine.
How to implement background removal using ML Kit Selfie Segmentation.
How to process the image and apply the segmentation mask.
How to update the image in the scene with the processed result.
How to keep operations async and handle errors gracefully.

When To Use It#

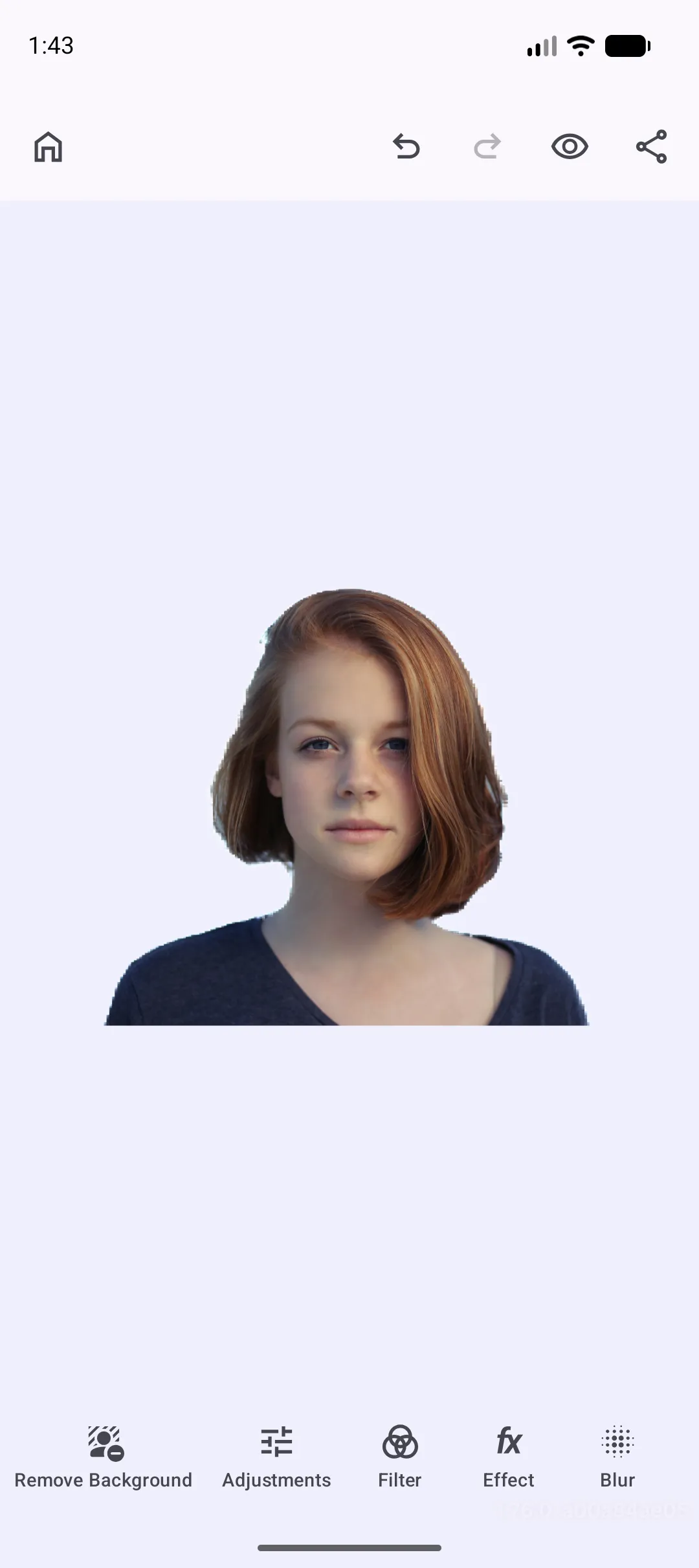

Want programmatic “Remove BG” functionality in your app.
Prefer on-device processing (no uploads) for latency, privacy, or offline use.
Need to integrate custom image processing logic (ML Kit, third-party libraries, or your own API).
Building custom UI or automation workflows.

Setup ML Kit#

First, add the ML Kit Selfie Segmentation dependency to your build.gradle:

dependencies {
    implementation("com.google.mlkit:segmentation-selfie:16.0.0-beta5")
}

Extracting the Image#

A block that displays an image has an imageFill which contains the URI of the underlying image. The first step is to extract the image data from the fill.

import android.content.Context
import android.graphics.Bitmap
import android.graphics.BitmapFactory
import android.net.Uri
import kotlinx.coroutines.Dispatchers
import kotlinx.coroutines.withContext
import ly.img.engine.DesignBlockType
import ly.img.engine.Engine
import ly.img.engine.FillType
import java.io.ByteArrayOutputStream
import java.net.URL

suspend fun extractImageFromScene(
    engine: Engine,
    context: Context
): Bitmap? {
    // Get the current page from the scene
    val page = engine.scene.getCurrentPage() ?: return null

    // Validate that the page contains an image
    val imageFill = engine.block.getFill(page)
    val fillType = engine.block.getType(imageFill)

    if (fillType != "//ly.img.ubq/fill/image") {
        return null
    }

    // Extract the image URI
    val imageFileURI = engine.block.getString(imageFill, property = "fill/image/imageFileURI")

    // Download and decode the image
    return withContext(Dispatchers.IO) {
        try {
            val imageData = if (imageFileURI.startsWith("http")) {
                // Download from URL
                val url = URL(imageFileURI)
                val outputStream = ByteArrayOutputStream()
                url.openStream().use { inputStream ->
                    outputStream.use(inputStream::copyTo)
                }
                outputStream.toByteArray()
            } else {
                // Load from local file or content URI
                val uri = Uri.parse(imageFileURI)
                val inputStream = context.contentResolver.openInputStream(uri)
                inputStream?.readBytes() ?: byteArrayOf()
            }

            BitmapFactory.decodeByteArray(imageData, 0, imageData.size)
        } catch (e: Exception) {
            null
        }
    }
}

Processing the Image with ML Kit#

With a Bitmap, you can now process the image using ML Kit Selfie Segmentation. Here’s a complete implementation:

import android.graphics.Bitmap
import android.graphics.Color
import com.google.mlkit.vision.common.InputImage
import com.google.mlkit.vision.segmentation.Segmentation
import com.google.mlkit.vision.segmentation.SegmentationMask
import com.google.mlkit.vision.segmentation.selfie.SelfieSegmenterOptions
import kotlinx.coroutines.tasks.await

/**
 * Removes the background from an image using ML Kit Selfie Segmentation.
 * @param original The source bitmap to process.
 * @return A new bitmap with the background removed (transparent), or null if processing fails.
 */
suspend fun removeBackgroundWithMLKit(original: Bitmap): Bitmap? {
    try {
        // Configure ML Kit Selfie Segmentation
        val options = SelfieSegmenterOptions.Builder()
            .setDetectorMode(SelfieSegmenterOptions.SINGLE_IMAGE_MODE)
            .enableRawSizeMask() // Get mask at original image resolution
            .build()

        val segmenter = Segmentation.getClient(options)

        // Create InputImage from bitmap
        val inputImage = InputImage.fromBitmap(original, 0)

        // Process the image and get the segmentation mask
        val segmentationMask: SegmentationMask = segmenter.process(inputImage).await()

        // Create output bitmap with transparency
        val width = original.width
        val height = original.height
        val result = Bitmap.createBitmap(width, height, Bitmap.Config.ARGB_8888)

        // Get mask data
        val mask = segmentationMask.buffer
        val maskWidth = segmentationMask.width
        val maskHeight = segmentationMask.height

        // Apply the mask to create transparent background
        for (y in 0 until height) {
            for (x in 0 until width) {
                // Map image coordinates to mask coordinates
                val maskX = (x * maskWidth / width).coerceIn(0, maskWidth - 1)
                val maskY = (y * maskHeight / height).coerceIn(0, maskHeight - 1)

                // Get mask confidence (0.0 = background, 1.0 = foreground)
                val maskIndex = maskY * maskWidth + maskX
                val confidence = mask.getFloat(maskIndex * 4) // 4 bytes per float

                // Get original pixel color
                val originalPixel = original.getPixel(x, y)

                if (confidence > 0.5f) {
                    // Foreground - keep original pixel
                    result.setPixel(x, y, originalPixel)
                } else {
                    // Background - make transparent
                    result.setPixel(x, y, Color.TRANSPARENT)
                }
            }
        }

        // Clean up
        segmenter.close()

        return result

    } catch (e: Exception) {
        e.printStackTrace()
        return null
    }
}

Replace the Image in the Scene#

With a processed image, the last step is to update the fill with the new image:

Save the processed bitmap to a file.
Get the file URI.
Update the image fill’s source set with the new URI.

import android.content.Context
import android.graphics.Bitmap
import android.net.Uri
import kotlinx.coroutines.Dispatchers
import kotlinx.coroutines.withContext
import ly.img.engine.Engine
import ly.img.engine.Source
import java.io.File
import java.io.FileOutputStream

suspend fun replaceImageInScene(
    engine: Engine,
    context: Context,
    processedBitmap: Bitmap
) {
    // Save the bitmap to a file
    val imageFile = withContext(Dispatchers.IO) {
        val file = File(context.cacheDir, "bg_removed_${System.currentTimeMillis()}.png")
        FileOutputStream(file).use { outputStream ->
            processedBitmap.compress(Bitmap.CompressFormat.PNG, 100, outputStream)
        }
        file
    }

    val processedImageUri = Uri.fromFile(imageFile)

    // Get the current page and its fill
    val page = engine.scene.getCurrentPage() ?: return
    val imageFill = engine.block.getFill(page)

    // Update the source set with the new image
    engine.block.setSourceSet(
        block = imageFill,
        property = "fill/image/sourceSet",
        sourceSet = listOf(
            Source(
                uri = processedImageUri,
                width = processedBitmap.width.toUInt(),
                height = processedBitmap.height.toUInt()
            )
        )
    )
}

Complete Function#

Here’s the complete function that combines all the steps:

import android.content.Context
import android.graphics.Bitmap
import android.graphics.BitmapFactory
import android.graphics.Color
import android.net.Uri
import com.google.mlkit.vision.common.InputImage
import com.google.mlkit.vision.segmentation.Segmentation
import com.google.mlkit.vision.segmentation.SegmentationMask
import com.google.mlkit.vision.segmentation.selfie.SelfieSegmenterOptions
import kotlinx.coroutines.Dispatchers
import kotlinx.coroutines.tasks.await
import kotlinx.coroutines.withContext
import ly.img.engine.DesignBlockType
import ly.img.engine.Engine
import ly.img.engine.FillType
import ly.img.engine.Source
import java.io.ByteArrayOutputStream
import java.io.File
import java.io.FileOutputStream
import java.net.URL

suspend fun performBackgroundRemoval(
    engine: Engine,
    context: Context
): Boolean {
    return withContext(Dispatchers.Main) {
        try {
            // Step 1: Get the current page
            val page = engine.scene.getCurrentPage() ?: return@withContext false

            // Step 2: Validate it's an image fill
            val imageFill = engine.block.getFill(page)
            val fillType = engine.block.getType(imageFill)
            if (fillType != "//ly.img.ubq/fill/image") {
                return@withContext false
            }

            // Step 3: Extract image data
            val imageFileURI = engine.block.getString(imageFill, property = "fill/image/imageFileURI")
            val originalBitmap = withContext(Dispatchers.IO) {
                val imageData = if (imageFileURI.startsWith("http")) {
                    val url = URL(imageFileURI)
                    val outputStream = ByteArrayOutputStream()
                    url.openStream().use { inputStream ->
                        outputStream.use(inputStream::copyTo)
                    }
                    outputStream.toByteArray()
                } else {
                    val uri = Uri.parse(imageFileURI)
                    context.contentResolver.openInputStream(uri)?.readBytes() ?: byteArrayOf()
                }
                BitmapFactory.decodeByteArray(imageData, 0, imageData.size)
            } ?: return@withContext false

            // Step 4: Process with ML Kit
            val options = SelfieSegmenterOptions.Builder()
                .setDetectorMode(SelfieSegmenterOptions.SINGLE_IMAGE_MODE)
                .enableRawSizeMask()
                .build()

            val segmenter = Segmentation.getClient(options)
            val inputImage = InputImage.fromBitmap(originalBitmap, 0)
            val segmentationMask: SegmentationMask = segmenter.process(inputImage).await()

            // Step 5: Apply mask to create transparent background
            val width = originalBitmap.width
            val height = originalBitmap.height
            val result = Bitmap.createBitmap(width, height, Bitmap.Config.ARGB_8888)

            val mask = segmentationMask.buffer
            val maskWidth = segmentationMask.width
            val maskHeight = segmentationMask.height

            for (y in 0 until height) {
                for (x in 0 until width) {
                    val maskX = (x * maskWidth / width).coerceIn(0, maskWidth - 1)
                    val maskY = (y * maskHeight / height).coerceIn(0, maskHeight - 1)
                    val maskIndex = maskY * maskWidth + maskX
                    val confidence = mask.getFloat(maskIndex * 4)
                    val originalPixel = originalBitmap.getPixel(x, y)

                    result.setPixel(
                        x, y,
                        if (confidence > 0.5f) originalPixel else Color.TRANSPARENT
                    )
                }
            }

            segmenter.close()

            // Step 6: Save processed image
            val imageFile = withContext(Dispatchers.IO) {
                val file = File(context.cacheDir, "bg_removed_${System.currentTimeMillis()}.png")
                FileOutputStream(file).use { outputStream ->
                    result.compress(Bitmap.CompressFormat.PNG, 100, outputStream)
                }
                file
            }

            val processedImageUri = Uri.fromFile(imageFile)

            // Step 7: Update the scene
            engine.block.setSourceSet(
                block = imageFill,
                property = "fill/image/sourceSet",
                sourceSet = listOf(
                    Source(
                        uri = processedImageUri,
                        width = result.width.toUInt(),
                        height = result.height.toUInt()
                    )
                )
            )

            return@withContext true

        } catch (e: Exception) {
            e.printStackTrace()
            return@withContext false
        }
    }
}

Usage Example#

Here’s how to use the background removal function in your app:

import android.content.Context
import kotlinx.coroutines.CoroutineScope
import kotlinx.coroutines.Dispatchers
import kotlinx.coroutines.launch
import ly.img.engine.Engine

fun removeBackgroundFromCurrentImage(
    engine: Engine,
    context: Context
) = CoroutineScope(Dispatchers.Main).launch {
    val success = performBackgroundRemoval(engine, context)

    if (success) {
        println("✅ Background removed successfully!")
    } else {
        println("❌ Failed to remove background")
    }
}

Optimizations#

1. Performance for Large Images#

For better performance with large images, downscale before processing:

fun downscaleIfNeeded(bitmap: Bitmap, maxSize: Int = 1024): Bitmap {
    val maxDimension = maxOf(bitmap.width, bitmap.height)
    if (maxDimension <= maxSize) return bitmap

    val scale = maxSize.toFloat() / maxDimension
    val newWidth = (bitmap.width * scale).toInt()
    val newHeight = (bitmap.height * scale).toInt()

    return Bitmap.createScaledBitmap(bitmap, newWidth, newHeight, true)
}

2. Improve Mask Quality#

Apply smoothing to the mask for better edge quality:

/**
 * Apply feathering to the mask for softer edges.
 */
fun applyFeathering(confidence: Float, threshold: Float = 0.5f, feather: Float = 0.1f): Float {
    return when {
        confidence >= threshold + feather -> 1.0f
        confidence <= threshold - feather -> 0.0f
        else -> {
            // Linear interpolation in the feather range
            (confidence - (threshold - feather)) / (2 * feather)
        }
    }
}

Then use it when applying the mask:

val alpha = applyFeathering(confidence)
if (alpha > 0) {
    val r = Color.red(originalPixel)
    val g = Color.green(originalPixel)
    val b = Color.blue(originalPixel)
    val newAlpha = (alpha * 255).toInt()
    result.setPixel(x, y, Color.argb(newAlpha, r, g, b))
} else {
    result.setPixel(x, y, Color.TRANSPARENT)
}

Troubleshooting#

❌ Fill is not an image:

Always check the fill type before processing:

val fillType = engine.block.getType(imageFill)
if (fillType != "//ly.img.ubq/fill/image") {
    // Not an image fill, cannot process
    return
}

❌ Mask quality is poor:

Use enableRawSizeMask() for full-resolution masks.
Apply feathering (see optimization section above).
Consider pre-processing the image for better lighting/contrast.

❌ Performance is slow on large images:

Downscale images before processing (see optimization section).
Use STREAM_MODE instead of SINGLE_IMAGE_MODE for video.
Process on a background thread (already handled with coroutines in the example).

❌ Segmentation only works for people:

ML Kit Selfie Segmentation is optimized for human subjects. For general object segmentation, consider:

Using TensorFlow Lite models for object detection.
Cloud-based APIs (Google Cloud Vision, etc.).
Third-party segmentation libraries.

❌ App crashes or ML Kit errors:

Ensure ML Kit dependencies are properly included.
Check that Google Play Services are available on the device.
Handle exceptions gracefully and provide user feedback.

Alternative: Custom Segmentation Models#

For more advanced segmentation beyond people, you can use TensorFlow Lite models. Here’s a basic structure:

import org.tensorflow.lite.Interpreter
import java.nio.ByteBuffer

class CustomSegmentation(modelPath: String) {
    private val interpreter: Interpreter = Interpreter(loadModelFile(modelPath))

    fun segment(bitmap: Bitmap): Bitmap? {
        // 1. Preprocess bitmap to model input format
        // 2. Run inference
        // 3. Post-process output to mask
        // 4. Apply mask to create transparent background
        // Implementation depends on your specific model
        return null
    }

    private fun loadModelFile(modelPath: String): ByteBuffer {
        // Load TFLite model file
        // Implementation omitted for brevity
        TODO("Load your .tflite model file")
    }
}

Next Steps#

Now that you can remove backgrounds, explore related guides:

Scale & Transform images after background removal.
Chroma Key for green screen effects.
Batch Processing for processing multiple images.
