Using Strokes - Vanilla JS/TS

Add outlines around shapes, text, and graphics to enhance visual definition and create decorative effects.

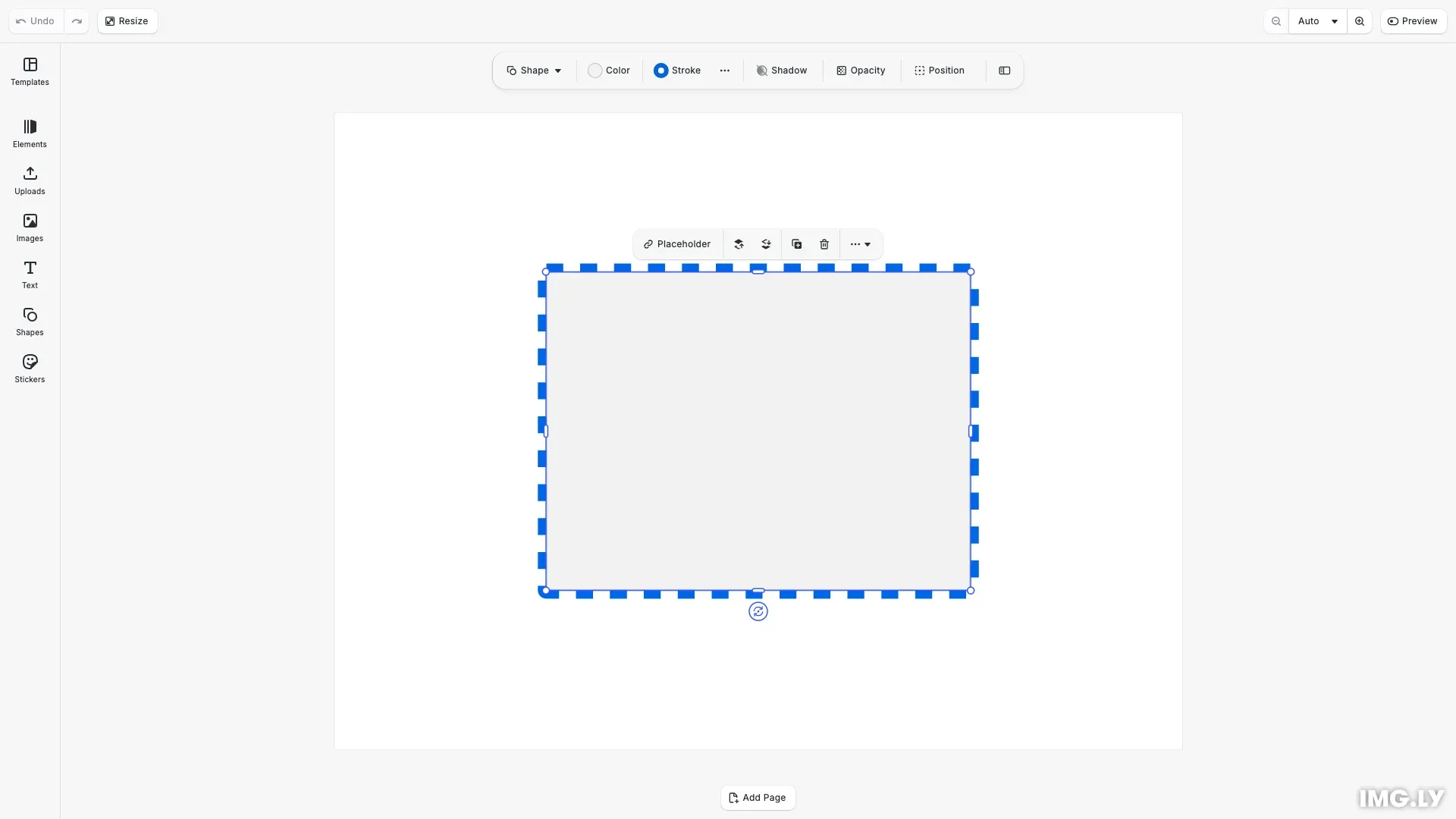

Using Strokes example showing a rectangle with a styled blue dashed stroke

5 mins

estimated time

Strokes add visual outlines that define block boundaries. You can customize their color, width, line style (solid, dashed, dotted), position relative to the block edge, and corner treatment. You can also paint a stroke with a gradient fill. CE.SDK provides both built-in UI controls and programmatic APIs for stroke management.

import type { EditorPlugin, EditorPluginContext } from '@cesdk/cesdk-js';

import {
  BlurAssetSource,
  ImageColorsAssetSource,
  ColorPaletteAssetSource,
  CropPresetsAssetSource,
  DemoAssetSources,
  EffectsAssetSource,
  FiltersAssetSource,
  PagePresetsAssetSource,
  StickerAssetSource,
  TextAssetSource,
  TextComponentAssetSource,
  TypefaceAssetSource,
  UploadAssetSources,
  VectorShapeAssetSource
} from '@cesdk/cesdk-js/plugins';
import { DesignEditorConfig } from '@cesdk/core-configs-web/design-editor';

class Example implements EditorPlugin {
  name = 'guides-outlines-stroke-browser';
  version = '1.0.0';

  async initialize({ cesdk }: EditorPluginContext): Promise<void> {
    if (!cesdk) {
      throw new Error('CE.SDK instance is required for this plugin');
    }
    await cesdk.addPlugin(new DesignEditorConfig());

    // Add asset source plugins
    await cesdk.addPlugin(new BlurAssetSource());
    await cesdk.addPlugin(new ImageColorsAssetSource());
    await cesdk.addPlugin(new ColorPaletteAssetSource());
    await cesdk.addPlugin(new CropPresetsAssetSource());
    await cesdk.addPlugin(
      new UploadAssetSources({ include: ['ly.img.image.upload'] })
    );
    await cesdk.addPlugin(
      new DemoAssetSources({
        include: [
          'ly.img.templates.blank.*',
          'ly.img.templates.presentation.*',
          'ly.img.templates.print.*',
          'ly.img.templates.social.*',
          'ly.img.image.*'
        ]
      })
    );
    await cesdk.addPlugin(new EffectsAssetSource());
    await cesdk.addPlugin(new FiltersAssetSource());
    await cesdk.addPlugin(new PagePresetsAssetSource());
    await cesdk.addPlugin(new StickerAssetSource());
    await cesdk.addPlugin(new TextAssetSource());
    await cesdk.addPlugin(new TextComponentAssetSource());
    await cesdk.addPlugin(new TypefaceAssetSource());
    await cesdk.addPlugin(new VectorShapeAssetSource());

    await cesdk.actions.run('scene.create', {
      page: { width: 800, height: 600, unit: 'Pixel' }
    });

    const engine = cesdk.engine;
    const page = engine.block.findByType('page')[0]!;


    // Create a graphic block with a rectangle shape
    const block = engine.block.create('graphic');
    engine.block.setShape(block, engine.block.createShape('rect'));
    engine.block.appendChild(page, block);

    // Position and size the block
    engine.block.setPositionX(block, 200);
    engine.block.setPositionY(block, 150);
    engine.block.setWidth(block, 400);
    engine.block.setHeight(block, 300);

    // Add a fill so the shape is visible
    const solidFill = engine.block.createFill('color');
    engine.block.setFill(block, solidFill);
    engine.block.setColor(solidFill, 'fill/color/value', {
      r: 0.95,
      g: 0.95,
      b: 0.95,
      a: 1.0
    });

    // Check if block supports strokes
    const canHaveStroke = engine.block.supportsStroke(block);
    console.log('Block supports stroke:', canHaveStroke);

    if (canHaveStroke) {
      // Enable stroke on the block
      engine.block.setStrokeEnabled(block, true);
      const strokeIsEnabled = engine.block.isStrokeEnabled(block);
      console.log('Stroke enabled:', strokeIsEnabled);

      // Set stroke color to blue
      engine.block.setStrokeColor(block, { r: 0.0, g: 0.4, b: 0.9, a: 1.0 });
      const strokeColor = engine.block.getStrokeColor(block);
      console.log('Stroke color:', strokeColor);

      // Set stroke width
      engine.block.setStrokeWidth(block, 8);
      const strokeWidth = engine.block.getStrokeWidth(block);
      console.log('Stroke width:', strokeWidth);

      // Apply a dashed stroke style
      engine.block.setStrokeStyle(block, 'Dashed');
      const strokeStyle = engine.block.getStrokeStyle(block);
      console.log('Stroke style:', strokeStyle);

      // Set stroke position to outer
      engine.block.setStrokePosition(block, 'Outer');
      const strokePosition = engine.block.getStrokePosition(block);
      console.log('Stroke position:', strokePosition);

      // Set corner geometry to round
      engine.block.setStrokeCornerGeometry(block, 'Round');
      const strokeCornerGeometry = engine.block.getStrokeCornerGeometry(block);
      console.log('Stroke corner geometry:', strokeCornerGeometry);
    }

    // Create a star with a stroke to show sharp corners and a gradient stroke
    const star = engine.block.create('graphic');
    engine.block.setShape(star, engine.block.createShape('star'));
    engine.block.appendChild(page, star);
    engine.block.setPositionX(star, 630);
    engine.block.setPositionY(star, 20);
    engine.block.setWidth(star, 150);
    engine.block.setHeight(star, 150);
    engine.block.setFillEnabled(star, false);
    engine.block.setStrokeEnabled(star, true);
    engine.block.setStrokeWidth(star, 10);

    // Bevel each corner whose miter is longer than 1.5 times the stroke width
    engine.block.setStrokeCornerGeometry(star, 'Miter');
    engine.block.setFloat(star, 'stroke/miterLimit', 1.5);
    const miterLimit = engine.block.getFloat(star, 'stroke/miterLimit');
    console.log('Stroke miter limit:', miterLimit);

    // Paint the stroke with a linear gradient instead of the stroke color
    const strokeGradient = engine.block.createFill('gradient/linear');
    engine.block.setGradientColorStops(strokeGradient, 'fill/gradient/colors', [
      { color: { r: 0.0, g: 0.4, b: 0.9, a: 1.0 }, stop: 0 },
      { color: { r: 0.9, g: 0.2, b: 0.5, a: 1.0 }, stop: 1 }
    ]);
    engine.block.setStrokeFill(star, strokeGradient);
    const strokeFill = engine.block.getStrokeFill(star);
    console.log('Stroke fill:', strokeFill);

    // Select the block to show it in the inspector
    engine.block.select(block);
  }
}

export default Example;

This guide covers how to use the stroke inspector panel for interactive editing and how to apply and manage strokes programmatically using the block API.

Using the Built-in Stroke UI#

The CE.SDK editor includes a stroke inspector panel for interactive stroke editing. When you select a block that supports strokes, the inspector displays stroke controls:

Enable toggle - Turn strokes on or off for the selected block
Color picker - Choose the stroke color with full RGBA support
Width control - Adjust stroke thickness using a slider or input field
Style dropdown - Select from solid, dashed, or dotted line patterns
Position options - Choose where the stroke renders relative to the block edge (inner, center, or outer)

These controls provide a visual interface for users to customize strokes without writing code.

Checking Stroke Support#

Before applying strokes programmatically, verify the block supports them using supportsStroke(). Not all block types have stroke capabilities.

// Check if block supports strokes
const canHaveStroke = engine.block.supportsStroke(block);
console.log('Block supports stroke:', canHaveStroke);

Enabling Strokes#

Enable strokes on a block using setStrokeEnabled(). You can check the current state with isStrokeEnabled().

// Enable stroke on the block
engine.block.setStrokeEnabled(block, true);
const strokeIsEnabled = engine.block.isStrokeEnabled(block);
console.log('Stroke enabled:', strokeIsEnabled);

Setting Stroke Color#

Control stroke color using setStrokeColor() with an RGBA color object. Color values range from 0.0 to 1.0. Retrieve the current color with getStrokeColor().

// Set stroke color to blue
engine.block.setStrokeColor(block, { r: 0.0, g: 0.4, b: 0.9, a: 1.0 });
const strokeColor = engine.block.getStrokeColor(block);
console.log('Stroke color:', strokeColor);

Setting Stroke Width#

Set stroke thickness in design units using setStrokeWidth(). Larger values create more prominent outlines. Get the current width with getStrokeWidth().

// Set stroke width
engine.block.setStrokeWidth(block, 8);
const strokeWidth = engine.block.getStrokeWidth(block);
console.log('Stroke width:', strokeWidth);

Stroke Styles#

Control the line pattern using setStrokeStyle(). Available styles include:

Solid - Continuous line
Dashed - Square-ended dashes with gaps
DashedRound - Round-ended dashes with gaps
Dotted - Circular dots
LongDashed - Longer square-ended dashes
LongDashedRound - Longer round-ended dashes

// Apply a dashed stroke style
engine.block.setStrokeStyle(block, 'Dashed');
const strokeStyle = engine.block.getStrokeStyle(block);
console.log('Stroke style:', strokeStyle);

Stroke Position#

Control where the stroke renders relative to the block edge using setStrokePosition():

Center - Stroke centered on the edge (default)
Inner - Stroke rendered inside the block boundary
Outer - Stroke rendered outside the block boundary

Position affects how strokes interact with adjacent elements and overall layout dimensions. Inner strokes stay within the block bounds, while outer strokes extend beyond them.

// Set stroke position to outer
engine.block.setStrokePosition(block, 'Outer');
const strokePosition = engine.block.getStrokePosition(block);
console.log('Stroke position:', strokePosition);

Stroke Corner Geometry#

Control how stroke corners are rendered using setStrokeCornerGeometry(). This is particularly visible on rectangular shapes:

Miter - Sharp pointed corners, up to the miter limit (default)
Round - Smoothly curved corners
Bevel - Flat cut corners

// Set corner geometry to round
engine.block.setStrokeCornerGeometry(block, 'Round');
const strokeCornerGeometry = engine.block.getStrokeCornerGeometry(block);
console.log('Stroke corner geometry:', strokeCornerGeometry);

Miter Limit#

A mitered corner extends to a point. On a sharp corner, this point can reach far beyond the shape. The stroke/miterLimit property limits the length of the miter as a multiple of the stroke width. A corner whose miter is longer than this limit gets a bevel.

Set the limit with setFloat() and read it with getFloat(). The limit only changes corners that use the Miter corner geometry.

Graphic blocks and pages use a default limit of 35.
Text blocks use a default limit of 4.
The value must be 1 or greater. A smaller value throws an error.

// Bevel each corner whose miter is longer than 1.5 times the stroke width
engine.block.setStrokeCornerGeometry(star, 'Miter');
engine.block.setFloat(star, 'stroke/miterLimit', 1.5);
const miterLimit = engine.block.getFloat(star, 'stroke/miterLimit');
console.log('Stroke miter limit:', miterLimit);

Painting Strokes with a Fill#

A stroke uses its stroke color by default. To paint the stroke with a gradient instead, create a fill and set it with setStrokeFill(). getStrokeFill() returns this fill, or null when the stroke uses its color.

// Paint the stroke with a linear gradient instead of the stroke color
const strokeGradient = engine.block.createFill('gradient/linear');
engine.block.setGradientColorStops(strokeGradient, 'fill/gradient/colors', [
  { color: { r: 0.0, g: 0.4, b: 0.9, a: 1.0 }, stop: 0 },
  { color: { r: 0.9, g: 0.2, b: 0.5, a: 1.0 }, stop: 1 }
]);
engine.block.setStrokeFill(star, strokeGradient);
const strokeFill = engine.block.getStrokeFill(star);
console.log('Stroke fill:', strokeFill);

The stroke fill replaces only the color. Width, style, position and corner settings stay the same. Keep these rules in mind:

Graphic blocks and pages support stroke fills. Text blocks do not.
Color, gradient and stripe fills are supported. Image and video fills are rejected.
The block’s own fill cannot also paint its stroke. Create a separate fill block.
A stroke color with an alpha of 0 still hides the stroke.
Call setStrokeFill(block, null) to paint the stroke with its color again. This does not destroy the previous fill block.

Troubleshooting#

If strokes don’t appear as expected, check these common issues:

Stroke not visible - Verify stroke is enabled with isStrokeEnabled() and width is greater than 0
Stroke color appears wrong - Ensure color values are in the 0.0-1.0 range, not 0-255
Stroke affects layout unexpectedly - Use Inner position to keep strokes within bounds, or Outer if you want strokes to extend beyond the block
Block doesn’t support strokes - Use supportsStroke() to verify capability before applying stroke properties
Sharp corners look cut off - The miter is longer than the miter limit. Raise stroke/miterLimit, or use Round corners
Miter limit is rejected - The value is below 1 or not finite (BLOCK.STROKE_MITER_LIMIT_INVALID)
Stroke fill is rejected - The block is a text block (BLOCK.STROKE_FILL_UNSUPPORTED), the fill draws an image or video (BLOCK.STROKE_FILL_TYPE_UNSUPPORTED), or the fill is the block’s own fill (BLOCK.FILL_ALREADY_USED_BY_BLOCK)

API Reference#

Method	Description
`block.supportsStroke(block)`	Check if a block supports strokes
`block.setStrokeEnabled(block, enabled)`	Enable or disable stroke on a block
`block.isStrokeEnabled(block)`	Check if stroke is enabled
`block.setStrokeColor(block, color)`	Set stroke color (RGBA, values 0.0-1.0)
`block.getStrokeColor(block)`	Get current stroke color
`block.setStrokeWidth(block, width)`	Set stroke thickness in design units
`block.getStrokeWidth(block)`	Get current stroke width
`block.setStrokeStyle(block, style)`	Set line pattern (Solid, Dashed, Dotted, etc.)
`block.getStrokeStyle(block)`	Get current stroke style
`block.setStrokePosition(block, position)`	Set stroke position (Center, Inner, Outer)
`block.getStrokePosition(block)`	Get current stroke position
`block.setStrokeCornerGeometry(block, type)`	Set corner rendering (Miter, Round, Bevel)
`block.getStrokeCornerGeometry(block)`	Get current corner geometry
`block.setFloat(block, 'stroke/miterLimit', limit)`	Set the miter limit as a multiple of the stroke width (experimental)
`block.getFloat(block, 'stroke/miterLimit')`	Get the current miter limit (experimental)
`block.setStrokeFill(block, fill)`	Paint the stroke with a fill, or pass `null` to use the stroke color (experimental)
`block.getStrokeFill(block)`	Get the fill that paints the stroke, or `null` (experimental)
